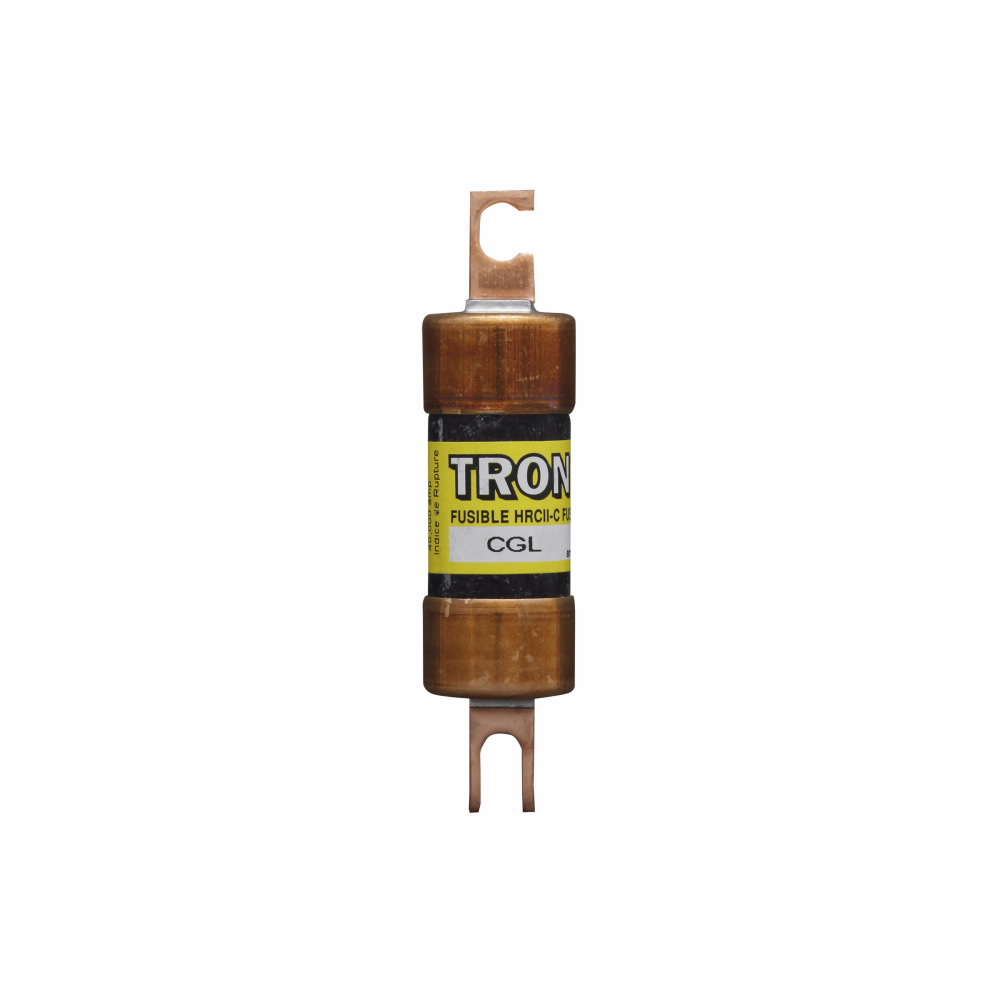

Bussmann® CGL-25 Limitron Fast Acting Fuse
SKU605470
MFGR #CGL-25
Your Cost: $119.20/ea
List: 25AMP 600V C CURRENT LMTG FUSE
25AMP 600V C CURRENT LMTG FUSE
Alternate Catalog Number CGL-25 Application Ind Facilities & Factories - Facility: Safety and Security Systems ARRA Compliant C Buy American Compliant C Catalog Number CGL-25 Connection Blade end x blade end Country of Origin MX Currency USD EU RoHS Indicator C Gross Weight Per Pack 0.1100 lb Gross Weight per Pack Metric 0.05 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536100040 Height 0.90 in Height [Metric] 2.2860 cm Length 3.35 in Length [Metric] 8.5090 cm Returnable Y Size 0.81 In Diameter X 3.31 In Length Standard Not Applicable Standards ARRA CompliantBuy American Act CompliantRoHS CompliantCSA C22.2 No. 106CE Certified Sub Brand Bussmann Series Type Fuse UNSPSC 39121626 UPC 11 05171210031 UPC 12 051712100311 Width 0.85 in Width [Metric] 2.1590 cm Stock Status NONSTOCK Brand Bussmann Manufacturer Eaton Amperage Rating 25 A Class Class C Interrupt Rating 40 kAIC 250 Vdc200 kAIC at 600 Vac Voltage Rating 600//250 VAC//VDC Ind Facilities & Factories - Facility: Safety and Security Systems Current limiting HRCII-C fuses designed to withstand inrush currents on typical motor start-ups while offering high current limitation in the short circuit region Close sizing to loads allows using smaller and less costly switches Provides a higher degree of short circuit protection Helps protect motors against burnout from overloads 200 kA at 600 VAC, 40 kA at 250 VDC interrupt rating Close sizing to loads allows using smaller and less costly switches Provides a higher degree of short circuit protection Helps protect motors against burnout from overloads 200 kA (RMS symmetrical) at 600 VAC, 40 kA at 250 VDC interrupt rating
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Alternate Catalog Number | CGL-25 |
| Application | Ind Facilities & Factories - Facility: Safety and Security Systems |
| ARRA Compliant | C |
| Buy American Compliant | C |
| Catalog Number | CGL-25 |
| Connection | Blade end x blade end |
| Country of Origin | MX |
| Currency | USD |
| EU RoHS Indicator | C |
| Gross Weight Per Pack | 0.1100 lb |
| Gross Weight per Pack Metric | 0.05 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536100040 |
| Height | 0.90 in |
| Height [Metric] | 2.2860 cm |
| Length | 3.35 in |
| Length [Metric] | 8.5090 cm |
| Returnable | Y |
| Size | 0.81 In Diameter X 3.31 In Length |
| Standard | Not Applicable |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantCSA C22.2 No. 106CE Certified |
| Sub Brand | Bussmann Series |
| Type | Fuse |
| UNSPSC | 39121626 |
| UPC 11 | 05171210031 |
| UPC 12 | 051712100311 |
| Width | 0.85 in |
| Width [Metric] | 2.1590 cm |
| Stock Status | NONSTOCK |
| Brand | Bussmann |
| Manufacturer | Eaton |
| Amperage Rating | 25 A |
| Class | Class C |
| Interrupt Rating | 40 kAIC 250 Vdc200 kAIC at 600 Vac |
| Voltage Rating | 600//250 VAC//VDC |
| Ind Facilities & Factories - Facility: Safety and Security Systems |
| Current limiting HRCII-C fuses designed to withstand inrush currents on typical motor start-ups while offering high current limitation in the short circuit region |
| Close sizing to loads allows using smaller and less costly switches |
| Provides a higher degree of short circuit protection |
| Helps protect motors against burnout from overloads |
| 200 kA at 600 VAC, 40 kA at 250 VDC interrupt rating |
| Close sizing to loads allows using smaller and less costly switches |
| Provides a higher degree of short circuit protection |
| Helps protect motors against burnout from overloads |
| 200 kA (RMS symmetrical) at 600 VAC, 40 kA at 250 VDC interrupt rating |
