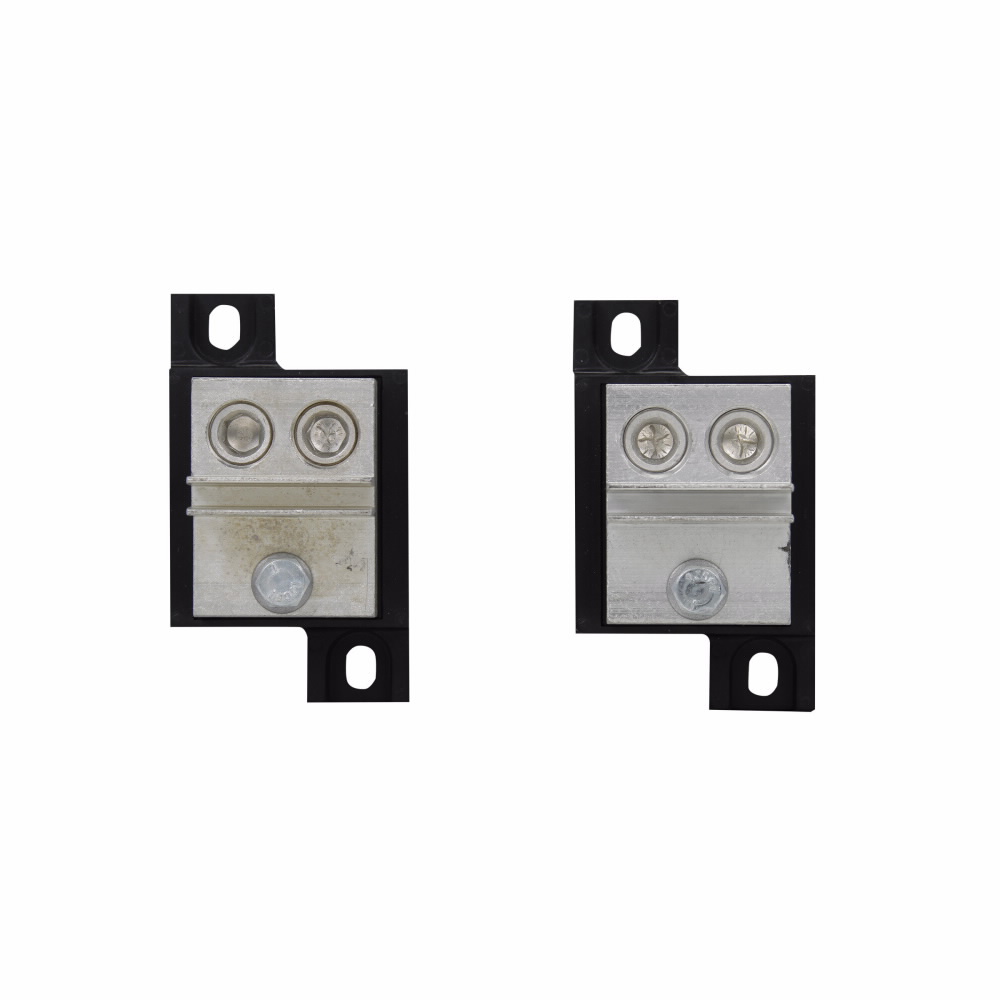

Bussmann® 1BS102 Modular Ferrule Fuse Block, 600 VAC, 400 A, 6 AWG to 250 kcmil Wire, 1 Pole
Custom_Product_Images_Illustration
Bussmann® 1BS102 Modular Ferrule Fuse Block, 600 VAC, 400 A, 6 AWG to 250 kcmil Wire, 1 Pole
SKU589890
MFGR #1BS102
$/ea
Bussmann series modular fuse block for Bolton high speed, Class J (70-100 A), 600 V Class T (70-100 A) and select BS88 fuses. See mounting dimensions table for applicable Bussmann series fuse catalog symbols. Dovetail interlock on each side of the base allows mounting multiple poles adjacent to one another.
Bussmann series modular fuse block for Bolton high speed, Class J (70-100 A), 600 V Class T (70-100 A) and select BS88 fuses. See mounting dimensions table for applicable Bussmann series fuse catalog symbols. Dovetail interlock on each side of the base allows mounting multiple poles adjacent to one another.
Alternate Catalog Number 1BS102 Application Elec Assemblies, Panels & EOEM - Electrical Assemblies, Panels and EOEMs ARRA Compliant C Buy American Compliant C Catalog Number 1BS102 Color Black Connection Screw Connection Type Set Screw Country of Origin MX Currency USD Dimensions 2.53 in H x 2.25 in W EU RoHS Indicator C Gross Weight Per Pack 1.0000 lb Gross Weight per Pack Metric 0.44 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536308000 Height 2.50 in Height [Metric] 6.3500 cm Length 6.60 in Length [Metric] 16.7640 cm Material Tin-plated aluminum connectorZinc-plated steel studs/nut/washerMolded black phenolic base Mounting Stud Mounting Type Stud Operating Temperature 150 Deg C Size 2.25 In Width X 2.53 In Height Standard Contact factory,RoHS Compliant Standards CSA, UL Sub Brand Bussmann Series Temperature Rating 150 Degrees C UNSPSC 39121624 UPC 11 05171213499 UPC 12 051712134996 Wattage 150 CEL Width 3.20 in Width [Metric] 8.1280 cm Stock Status NONSTOCK Brand Bussmann Manufacturer Eaton Amperage Rating 400 A Type Accessory Voltage Rating 600 V Wire Size 6 AWG to 250 kcmil Elec Assemblies, Panels & EOEM - Electrical Assemblies, Panels and EOEMs Wire Size 6 AWG To 250 MCM (Copper/Aluminum), Interrupt Rating 200 kA (RMS Symmetrical), Torque 275 Lbs-In Conductor Set Screw, 120 Lb-In Fuse Mount Zinc plated steel, 1/4-20 x 1/2 in mounting bolt Zinc plated steel 1/4 in Belleville washer Tin-plated aluminum connector Connector accepts single 6 AWG to 250 kcmil copper or aluminum, solid or stranded wire Withstand rating-200 kA rms Sym or the applied fuse interrupting rating, whichever is less
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Alternate Catalog Number | 1BS102 |
| Application | Elec Assemblies, Panels & EOEM - Electrical Assemblies, Panels and EOEMs |
| ARRA Compliant | C |
| Buy American Compliant | C |
| Catalog Number | 1BS102 |
| Color | Black |
| Connection | Screw |
| Connection Type | Set Screw |
| Country of Origin | MX |
| Currency | USD |
| Dimensions | 2.53 in H x 2.25 in W |
| EU RoHS Indicator | C |
| Gross Weight Per Pack | 1.0000 lb |
| Gross Weight per Pack Metric | 0.44 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536308000 |
| Height | 2.50 in |
| Height [Metric] | 6.3500 cm |
| Length | 6.60 in |
| Length [Metric] | 16.7640 cm |
| Material | Tin-plated aluminum connectorZinc-plated steel studs/nut/washerMolded black phenolic base |
| Mounting | Stud |
| Mounting Type | Stud |
| Operating Temperature | 150 Deg C |
| Size | 2.25 In Width X 2.53 In Height |
| Standard | Contact factory,RoHS Compliant |
| Standards | CSA, UL |
| Sub Brand | Bussmann Series |
| Temperature Rating | 150 Degrees C |
| UNSPSC | 39121624 |
| UPC 11 | 05171213499 |
| UPC 12 | 051712134996 |
| Wattage | 150 CEL |
| Width | 3.20 in |
| Width [Metric] | 8.1280 cm |
| Stock Status | NONSTOCK |
| Brand | Bussmann |
| Manufacturer | Eaton |
| Amperage Rating | 400 A |
| Type | Accessory |
| Voltage Rating | 600 V |
| Wire Size | 6 AWG to 250 kcmil |
| Elec Assemblies, Panels & EOEM - Electrical Assemblies, Panels and EOEMs |
| Wire Size 6 AWG To 250 MCM (Copper/Aluminum), Interrupt Rating 200 kA (RMS Symmetrical), Torque 275 Lbs-In Conductor Set Screw, 120 Lb-In Fuse Mount |
| Zinc plated steel, 1/4-20 x 1/2 in mounting bolt |
| Zinc plated steel 1/4 in Belleville washer |
| Tin-plated aluminum connector |
| Connector accepts single 6 AWG to 250 kcmil copper or aluminum, solid or stranded wire |
| Withstand rating-200 kA rms Sym or the applied fuse interrupting rating, whichever is less |
