BURNDY®

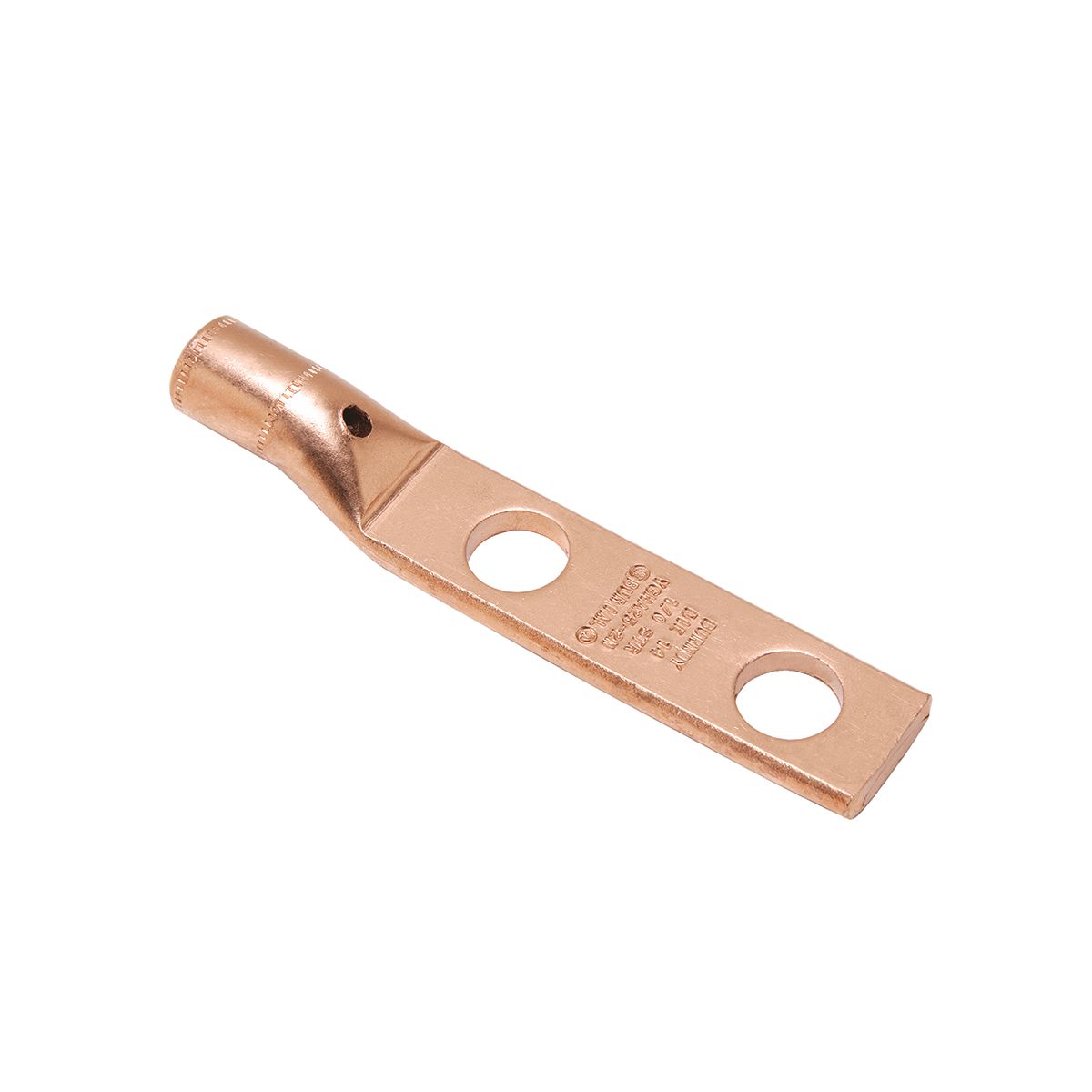

Burndy® YGHA342N HYLUG™ YGHA 2-Hole Heavy Duty Compression Lug, 500 kcmil Copper Conductor, 1/2 in Stud, 22, Copper
Custom_Product_Images_Illustration
BURNDY®
Burndy® YGHA342N HYLUG™ YGHA 2-Hole Heavy Duty Compression Lug, 500 kcmil Copper Conductor, 1/2 in Stud, 22, Copper
SKU217321
MFGR #YGHA342N
Your Cost: $234.41/ea
List: BURNDY's compression connectors are designed for reliable and controllable electrical connections. The complete installation is fully inspectable. They are high conductivity copper and operate cooler than the wire on which they are installed. The connectors withstand a wide range of electrical and environmental conditions, including current surges, temperatures, corrosion and vibrations, for a wide variety of applications. These features mean a consistently high quality connection at a low installed cost. Copper compression connectors are manufactured from high-conductivity electrolytic copper. The connectors are normally tinplated, lead-plated, or plated with proprietary BURNDY® brite finish to provide durable long-lasting corrosion resistance. The connector design has been matched to the cable size to provide the necessary physical strength requirements for reliable electrical performance.
BURNDY's compression connectors are designed for reliable and controllable electrical connections. The complete installation is fully inspectable. They are high conductivity copper and operate cooler than the wire on which they are installed. The connectors withstand a wide range of electrical and environmental conditions, including current surges, temperatures, corrosion and vibrations, for a wide variety of applications. These features mean a consistently high quality connection at a low installed cost. Copper compression connectors are manufactured from high-conductivity electrolytic copper. The connectors are normally tinplated, lead-plated, or plated with proprietary BURNDY® brite finish to provide durable long-lasting corrosion resistance. The connector design has been matched to the cable size to provide the necessary physical strength requirements for reliable electrical performance.
Application For Direct Burial In Earth Or Concrete, Grounding Applications ARRA Compliant C Barrel Size 1.48 in L Barrel Type Short Buy American Compliant C Catalog Number YGHA342N Country of Origin US EU RoHS Indicator Y Gross Weight Per Pack 1.0800 lb Gross Weight per Pack Metric 0.49 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8535908020 Height 1.24 in Height [Metric] 3.1496 cm Length 5.72 in Length [Metric] 14.5288 cm Overall Length 1.48 in Returnable Y Series YGHA Specifications 1-3/4 in Hole Spacing Standard UL467;UL 486A-486B;IEEE 837 Sub Brand HYLUG Tongue Size 1.72 in W x 0.4 in THK Type 2-Hole Heavy Duty Irreversible UNSPSC 39121405 UPC 11 78181022039 UPC 12 781810220399 Width 1.72 in Width [Metric] 4.3688 cm Stock Status NONSTOCK Brand BURNDY® Manufacturer BURNDY® Conductor Size 500 kcmil Conductor Type Stranded Copper Die Code 22 Material Copper Stud Size 1/2 in For Direct Burial In Earth Or Concrete, Grounding Applications Features: Heavy Duty HYLUG Irreversible Compression Terminals Designed Not Only To Carry Short Circuit Load, But To Also Withstand High Mechanical Stress, Each Conductor Element Has An Inspection Probe Hole To Ensure Proper Cable Insertion, UL467 Listed, Acceptable For Direct Burial In Earth Or Concrete, UL486A Listed, Prefilled With PENETROX Compound And Strip Sealed, Tools, Die Set Catalog Number, And (number Of Crimps): HYPRESS: Y35, Y39, Y750, PAT750 Tool, U36RT Die, (3), Y45 Tool, U36RT Die With PT-6515 Adapter, (3), Y46 Tool, U36RT Die With PUADP-1 Adapter, (3), Die Index: 22, Conductor Type: Copper Heavy duty HYLUG017 irreversible compression terminals designed not only to carry short circuit load, but to also withstand high mechanical stress, each conductor element has an inspection probe hole to ensure proper cable insertion, UL467 listed, acceptable for direct burial in earth or concrete, UL486a listed, prefilled with penetrox compound and strip sealed, tools, die set catalog number and (number of crimps): HYPRESS: Y35, Y39, Y750, PAT750 tool, U36rt die, (3) Y45 tool, U36rt die with PT-6515 adapter, (3) Y46 tool, U36rt die with PUADP-1 adapter 500 kcmil stranded conductor size 1-3/4 in Stud Hole Spacing
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | For Direct Burial In Earth Or Concrete, Grounding Applications |
| ARRA Compliant | C |
| Barrel Size | 1.48 in L |
| Barrel Type | Short |
| Buy American Compliant | C |
| Catalog Number | YGHA342N |
| Country of Origin | US |
| EU RoHS Indicator | Y |
| Gross Weight Per Pack | 1.0800 lb |
| Gross Weight per Pack Metric | 0.49 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8535908020 |
| Height | 1.24 in |
| Height [Metric] | 3.1496 cm |
| Length | 5.72 in |
| Length [Metric] | 14.5288 cm |
| Overall Length | 1.48 in |
| Returnable | Y |
| Series | YGHA |
| Specifications | 1-3/4 in Hole Spacing |
| Standard | UL467;UL 486A-486B;IEEE 837 |
| Sub Brand | HYLUG |
| Tongue Size | 1.72 in W x 0.4 in THK |
| Type | 2-Hole Heavy Duty Irreversible |
| UNSPSC | 39121405 |
| UPC 11 | 78181022039 |
| UPC 12 | 781810220399 |
| Width | 1.72 in |
| Width [Metric] | 4.3688 cm |
| Stock Status | NONSTOCK |
| Brand | BURNDY® |
| Manufacturer | BURNDY® |
| Conductor Size | 500 kcmil |
| Conductor Type | Stranded Copper |
| Die Code | 22 |
| Material | Copper |
| Stud Size | 1/2 in |
| For Direct Burial In Earth Or Concrete, Grounding Applications |
| Features: Heavy Duty HYLUG Irreversible Compression Terminals Designed Not Only To Carry Short Circuit Load, But To Also Withstand High Mechanical Stress, Each Conductor Element Has An Inspection Probe Hole To Ensure Proper Cable Insertion, UL467 Listed, Acceptable For Direct Burial In Earth Or Concrete, UL486A Listed, Prefilled With PENETROX Compound And Strip Sealed, Tools, Die Set Catalog Number, And (number Of Crimps): HYPRESS: Y35, Y39, Y750, PAT750 Tool, U36RT Die, (3), Y45 Tool, U36RT Die With PT-6515 Adapter, (3), Y46 Tool, U36RT Die With PUADP-1 Adapter, (3), Die Index: 22, Conductor Type: Copper |
| Heavy duty HYLUG017 irreversible compression terminals designed not only to carry short circuit load, but to also withstand high mechanical stress, each conductor element has an inspection probe hole to ensure proper cable insertion, UL467 listed, acceptable for direct burial in earth or concrete, UL486a listed, prefilled with penetrox compound and strip sealed, tools, die set catalog number and (number of crimps): HYPRESS: Y35, Y39, Y750, PAT750 tool, U36rt die, (3) Y45 tool, U36rt die with PT-6515 adapter, (3) Y46 tool, U36rt die with PUADP-1 adapter |
| 500 kcmil stranded conductor size |
| 1-3/4 in Stud Hole Spacing |
