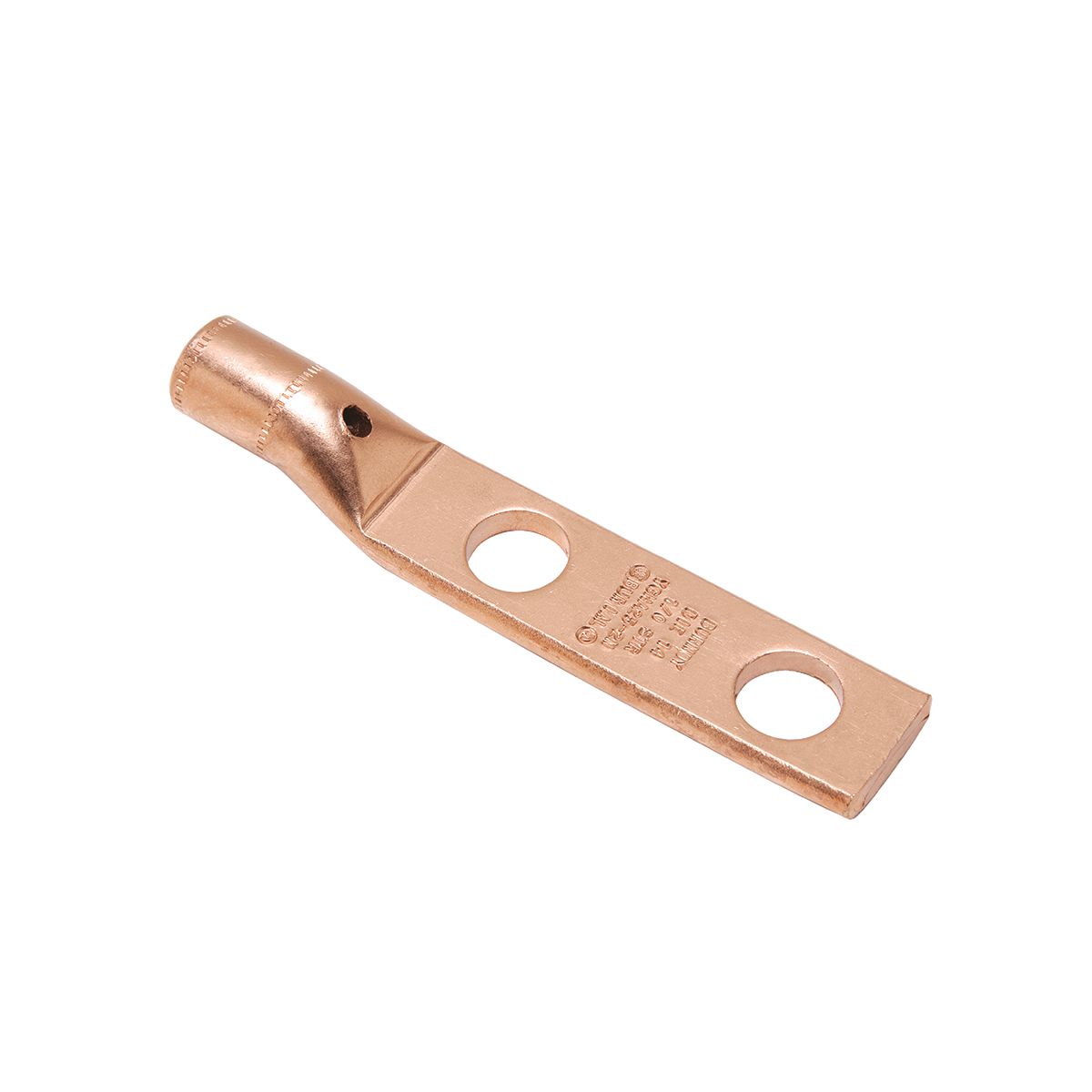

Burndy® YGHA2C2N HYLUG™ YGHA 2-Hole Compression Lug With Inspection Window, 2 AWG Stranded Copper Conductor, 1/2 in Stud
Custom_Product_Images_Illustration
Burndy® YGHA2C2N HYLUG™ YGHA 2-Hole Compression Lug With Inspection Window, 2 AWG Stranded Copper Conductor, 1/2 in Stud
SKU154354
MFGR #YGHA2C2N
$/ea
BURNDY® HYLUG™ Compression Lug, 2-Hole, Series: YGHA, Stranded Copper Conductor, 2 AWG Conductor, Die Code: 11, 600 to 35000 VAC, 1/2 in Stud, 0.97 in W x 0.26 in THK Tongue, 4.21 in Overall Length, Short, 1/2 in OD x 3/4 in L Barrel, 1-3/4 in Stud Hole Spacing, 90 deg C, Copper
BURNDY® HYLUG™ Compression Lug, 2-Hole, Series: YGHA, Stranded Copper Conductor, 2 AWG Conductor, Die Code: 11, 600 to 35000 VAC, 1/2 in Stud, 0.97 in W x 0.26 in THK Tongue, 4.21 in Overall Length, Short, 1/2 in OD x 3/4 in L Barrel, 1-3/4 in Stud Hole Spacing, 90 deg C, Copper
Application For Direct Burial In Earth Or Concrete, Grounding Applications ARRA Compliant C Buy American Compliant C Catalog Number YGHA2C2N Country of Origin US EU RoHS Indicator Y Gross Weight Per Pack 0.2400 lb Gross Weight per Pack Metric 0.11 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8535908020 Height 0.50 in Height [Metric] 1.2700 cm Length 4.21 in Length [Metric] 10.6934 cm Returnable Y Standard UL467;UL 486A-486B;IEEE 837 Sub Brand HYLUG Type Terminals UNSPSC 39121405 UPC 11 78181022035 UPC 12 781810220351 Width 0.97 in Width [Metric] 2.4638 cm Stock Status NONSTOCK Brand BURNDY® Manufacturer BURNDY® Material Copper For Direct Burial In Earth Or Concrete, Grounding Applications Features: Heavy Duty HYLUG Irreversible Compression Terminals Designed Not Only To Carry Short Circuit Load, But To Also Withstand High Mechanical Stress, Each Conductor Element Has An Inspection Probe Hole To Ensure Proper Cable Insertion, UL467 Listed, Acceptable For Direct Burial In Earth Or Concrete, UL486A Listed, Prefilled With PENETROX Compound And Strip Sealed, Tools, Die Set Catalog Number, And (number Of Crimps): Y35, Y39, Y750, PAT750 Tool, U1CRT Die, (1), Y45 Tool, U1CRT Die With PT-6515 Adapter, (1), Y46 Tool, U1CRT Die With PUADP-1 Adapter, (1), Conductor Type: Copper, Die Index: 11 Unplated Terminal connector Heavy duty
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | For Direct Burial In Earth Or Concrete, Grounding Applications |
| ARRA Compliant | C |
| Buy American Compliant | C |
| Catalog Number | YGHA2C2N |
| Country of Origin | US |
| EU RoHS Indicator | Y |
| Gross Weight Per Pack | 0.2400 lb |
| Gross Weight per Pack Metric | 0.11 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8535908020 |
| Height | 0.50 in |
| Height [Metric] | 1.2700 cm |
| Length | 4.21 in |
| Length [Metric] | 10.6934 cm |
| Returnable | Y |
| Standard | UL467;UL 486A-486B;IEEE 837 |
| Sub Brand | HYLUG |
| Type | Terminals |
| UNSPSC | 39121405 |
| UPC 11 | 78181022035 |
| UPC 12 | 781810220351 |
| Width | 0.97 in |
| Width [Metric] | 2.4638 cm |
| Stock Status | NONSTOCK |
| Brand | BURNDY® |
| Manufacturer | BURNDY® |
| Material | Copper |
| For Direct Burial In Earth Or Concrete, Grounding Applications |
| Features: Heavy Duty HYLUG Irreversible Compression Terminals Designed Not Only To Carry Short Circuit Load, But To Also Withstand High Mechanical Stress, Each Conductor Element Has An Inspection Probe Hole To Ensure Proper Cable Insertion, UL467 Listed, Acceptable For Direct Burial In Earth Or Concrete, UL486A Listed, Prefilled With PENETROX Compound And Strip Sealed, Tools, Die Set Catalog Number, And (number Of Crimps): Y35, Y39, Y750, PAT750 Tool, U1CRT Die, (1), Y45 Tool, U1CRT Die With PT-6515 Adapter, (1), Y46 Tool, U1CRT Die With PUADP-1 Adapter, (1), Conductor Type: Copper, Die Index: 11 |
| Unplated |
| Terminal connector |
| Heavy duty |
