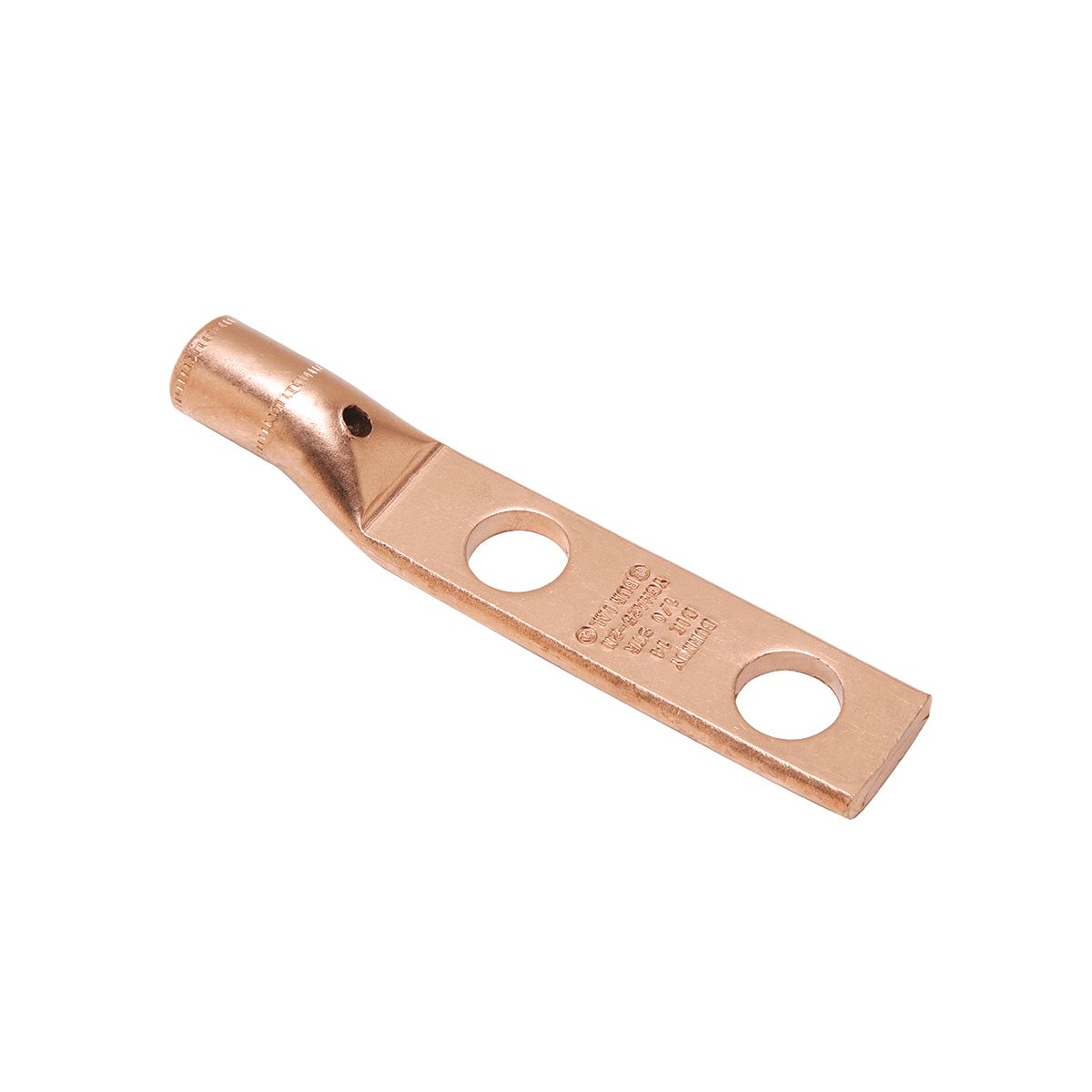

Burndy® YGHA292N HYLUG™ YGHA 2-Hole Compression Lug With Inspection Probe Hole, 250 kcmil Stranded Copper Conductor, 1/2 in Stud
Custom_Product_Images_Illustration
Burndy® YGHA292N HYLUG™ YGHA 2-Hole Compression Lug With Inspection Probe Hole, 250 kcmil Stranded Copper Conductor, 1/2 in Stud
SKU322900
MFGR #YGHA292N
$/ea
BURNDY® HYLUG™ Compression Lug, 2-Hole, Series: YGHA, Stranded Copper Conductor, 250 kcmil Conductor, Die Code: 18, 600 to 35000 VAC, 1/2 in Stud, 1.28 in W x 0.34 in THK Tongue, 4.94 in Overall Length, Short, 0.95 in OD x 1.18 in L Barrel, 1-3/4 in Stud Hole Spacing, 90 deg C, Copper
BURNDY® HYLUG™ Compression Lug, 2-Hole, Series: YGHA, Stranded Copper Conductor, 250 kcmil Conductor, Die Code: 18, 600 to 35000 VAC, 1/2 in Stud, 1.28 in W x 0.34 in THK Tongue, 4.94 in Overall Length, Short, 0.95 in OD x 1.18 in L Barrel, 1-3/4 in Stud Hole Spacing, 90 deg C, Copper
Application For Direct Burial In Earth Or Concrete, Grounding Applications ARRA Compliant C Barrel Size 0.95 in OD x 1.18 in L Barrel Type Short Buy American Compliant C Catalog Number YGHA292N Country of Origin US EU RoHS Indicator Y Gross Weight Per Pack 0.6200 lb Gross Weight per Pack Metric 0.28 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8535908020 Height 1.05 in Height [Metric] 2.6670 cm Length 4.94 in Length [Metric] 12.5476 cm Overall Length 4.94 in Returnable Y Series YGHA Specifications 1-3/4 in Hole Spacing Standard UL467;UL 486A-486B;IEEE 837 Sub Brand HYLUG Temperature Rating 90 °C Tongue Size 1.28 in W x 0.34 in THK Type Terminals UNSPSC 39121405 UPC 11 78181022038 UPC 12 781810220382 Voltage Rating 600 VAC to 35 kV Width 1.28 in Width [Metric] 3.2512 cm Stock Status NONSTOCK Brand BURNDY® Manufacturer BURNDY® Conductor Size 250 kcmil Conductor Type Stranded Copper Die Code 18 Material Copper Stud Size 1/2 in For Direct Burial In Earth Or Concrete, Grounding Applications Features: Heavy Duty HYLUG Irreversible Compression Terminals Designed Not Only To Carry Short Circuit Load, But To Also Withstand High Mechanical Stress, Each Conductor Element Has An Inspection Probe Hole To Ensure Proper Cable Insertion, UL467 Listed, Acceptable For Direct Burial In Earth Or Concrete, UL486A Listed, Prefilled With PENETROX Compound And Strip Sealed, Tools, Die Set Catalog Number, And (number Of Crimps): Y35, Y39, Y750, PAT750 Tool, U31RT Die, (2), Y45 Tool, U31RT Die With PT-6515 Adapter, (2), Y46 Tool, U31RT Die With PUADP-1 Adapter, (2), Conductor Type: Copper, Die Index: 18 Unplated Terminal connector Heavy duty
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | For Direct Burial In Earth Or Concrete, Grounding Applications |
| ARRA Compliant | C |
| Barrel Size | 0.95 in OD x 1.18 in L |
| Barrel Type | Short |
| Buy American Compliant | C |
| Catalog Number | YGHA292N |
| Country of Origin | US |
| EU RoHS Indicator | Y |
| Gross Weight Per Pack | 0.6200 lb |
| Gross Weight per Pack Metric | 0.28 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8535908020 |
| Height | 1.05 in |
| Height [Metric] | 2.6670 cm |
| Length | 4.94 in |
| Length [Metric] | 12.5476 cm |
| Overall Length | 4.94 in |
| Returnable | Y |
| Series | YGHA |
| Specifications | 1-3/4 in Hole Spacing |
| Standard | UL467;UL 486A-486B;IEEE 837 |
| Sub Brand | HYLUG |
| Temperature Rating | 90 °C |
| Tongue Size | 1.28 in W x 0.34 in THK |
| Type | Terminals |
| UNSPSC | 39121405 |
| UPC 11 | 78181022038 |
| UPC 12 | 781810220382 |
| Voltage Rating | 600 VAC to 35 kV |
| Width | 1.28 in |
| Width [Metric] | 3.2512 cm |
| Stock Status | NONSTOCK |
| Brand | BURNDY® |
| Manufacturer | BURNDY® |
| Conductor Size | 250 kcmil |
| Conductor Type | Stranded Copper |
| Die Code | 18 |
| Material | Copper |
| Stud Size | 1/2 in |
| For Direct Burial In Earth Or Concrete, Grounding Applications |
| Features: Heavy Duty HYLUG Irreversible Compression Terminals Designed Not Only To Carry Short Circuit Load, But To Also Withstand High Mechanical Stress, Each Conductor Element Has An Inspection Probe Hole To Ensure Proper Cable Insertion, UL467 Listed, Acceptable For Direct Burial In Earth Or Concrete, UL486A Listed, Prefilled With PENETROX Compound And Strip Sealed, Tools, Die Set Catalog Number, And (number Of Crimps): Y35, Y39, Y750, PAT750 Tool, U31RT Die, (2), Y45 Tool, U31RT Die With PT-6515 Adapter, (2), Y46 Tool, U31RT Die With PUADP-1 Adapter, (2), Conductor Type: Copper, Die Index: 18 |
| Unplated |
| Terminal connector |
| Heavy duty |
