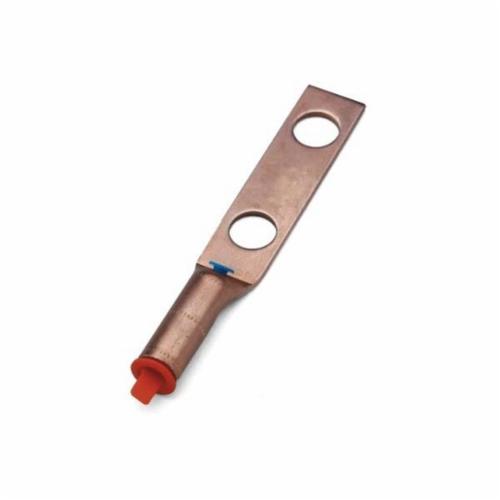

Burndy® YGA342N HYLUG™ YGA Grounding Irreversible Compression Terminal Lug, 500 kcmil Copper Conductor, 1/2 in Stud
Custom_Product_Images_Illustration
Burndy® YGA342N HYLUG™ YGA Grounding Irreversible Compression Terminal Lug, 500 kcmil Copper Conductor, 1/2 in Stud
SKU283886
MFGR #YGA342N
Your Cost: $77.68/ea
List: BURNDY's compression connectors are designed for reliable and controllable electrical connections. The complete installation is fully inspectable. They are high conductivity copper and operate cooler than the wire on which they are installed. The connectors withstand a wide range of electrical and environmental conditions, including current surges, temperatures, corrosion and vibrations, for a wide variety of applications. These features mean a consistently high quality connection at a low installed cost. Copper compression connectors are manufactured from high-conductivity electrolytic copper. The connectors are normally tinplated, lead-plated, or plated with proprietary BURNDY® brite finish to provide durable long-lasting corrosion resistance. The connector design has been matched to the cable size to provide the necessary physical strength requirements for reliable electrical performance.
BURNDY's compression connectors are designed for reliable and controllable electrical connections. The complete installation is fully inspectable. They are high conductivity copper and operate cooler than the wire on which they are installed. The connectors withstand a wide range of electrical and environmental conditions, including current surges, temperatures, corrosion and vibrations, for a wide variety of applications. These features mean a consistently high quality connection at a low installed cost. Copper compression connectors are manufactured from high-conductivity electrolytic copper. The connectors are normally tinplated, lead-plated, or plated with proprietary BURNDY® brite finish to provide durable long-lasting corrosion resistance. The connector design has been matched to the cable size to provide the necessary physical strength requirements for reliable electrical performance.
Barrel Size 2.2 in L Catalog Number YGA342N Country of Origin US Gross Weight Per Pack 0.6300 lb Overall Length 6.08 in Series YGA Specifications 2-5/16 in L Wire Stripe, 1-3/4 in Hole Spacing Tongue Size 1.52 in W x 0.23 in THK Type 2-Hole Grounding Irreversible UNSPSC 39121405 UPC 11 78181022034 UPC 12 781810220344 Stock Status NONSTOCK Brand BURNDY® Manufacturer BURNDY® Conductor Size 500 kcmil Conductor Type Stranded Copper Die Code 20/299 Material Copper Stud Size 1/2 in Features: Irreversible Compression HYLUG Ground Terminal Specifically Designed For Grounding Applications, Each Connector Has An Inspection Probe Hole To Ensure Proper Cable Insertion, UL467 Listed, Acceptable For Direct Burial In Earth Or Concrete, UL486A Listed, Prefilled With PENETROX Compound And Strip Sealed, Tools, Die Set Catalog Number, And (number Of Crimps): Mechanical: MD7-34R, OUR840 Tool, W34VT Die, (4), Hydraulic: Y35, Y39, PAT750, Y750 Tool, U34RT Die, (4), Y45 Tool, U34RT Die With PT6515 Adapter, (4), Y46 Tool, U34RT Die With PUADP-1 Adapter, (4), Conductor Type: Copper Irreversible compression HYLUG017 ground terminal specifically designed for grounding applications, each connector has an inspection probe hole to ensure proper cable insertion, UL467 listed, acceptable for direct burial in earth or concrete, UL486A listed, prefilled with PENETROX compound and strip sealed, Tools, die set catalog number and (number of crimps): mechanical: MD7-34R, OUR840 tool, W34VT die, (4), hydraulic: Y35, Y39, PAT750, Y750 Tool, U34RT die, (4) Y45 tool, U34RT die with PT6515 adapter, (4) Y46 tool, U34RT die with PUADP-1 adapter 500 kcmil stranded conductor size 2-5/16 in L Strip, 1-3/4 in Stud Hole Spacing
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Barrel Size | 2.2 in L |
| Catalog Number | YGA342N |
| Country of Origin | US |
| Gross Weight Per Pack | 0.6300 lb |
| Overall Length | 6.08 in |
| Series | YGA |
| Specifications | 2-5/16 in L Wire Stripe, 1-3/4 in Hole Spacing |
| Tongue Size | 1.52 in W x 0.23 in THK |
| Type | 2-Hole Grounding Irreversible |
| UNSPSC | 39121405 |
| UPC 11 | 78181022034 |
| UPC 12 | 781810220344 |
| Stock Status | NONSTOCK |
| Brand | BURNDY® |
| Manufacturer | BURNDY® |
| Conductor Size | 500 kcmil |
| Conductor Type | Stranded Copper |
| Die Code | 20/299 |
| Material | Copper |
| Stud Size | 1/2 in |
| Features: Irreversible Compression HYLUG Ground Terminal Specifically Designed For Grounding Applications, Each Connector Has An Inspection Probe Hole To Ensure Proper Cable Insertion, UL467 Listed, Acceptable For Direct Burial In Earth Or Concrete, UL486A Listed, Prefilled With PENETROX Compound And Strip Sealed, Tools, Die Set Catalog Number, And (number Of Crimps): Mechanical: MD7-34R, OUR840 Tool, W34VT Die, (4), Hydraulic: Y35, Y39, PAT750, Y750 Tool, U34RT Die, (4), Y45 Tool, U34RT Die With PT6515 Adapter, (4), Y46 Tool, U34RT Die With PUADP-1 Adapter, (4), Conductor Type: Copper |
| Irreversible compression HYLUG017 ground terminal specifically designed for grounding applications, each connector has an inspection probe hole to ensure proper cable insertion, UL467 listed, acceptable for direct burial in earth or concrete, UL486A listed, prefilled with PENETROX compound and strip sealed, Tools, die set catalog number and (number of crimps): mechanical: MD7-34R, OUR840 tool, W34VT die, (4), hydraulic: Y35, Y39, PAT750, Y750 Tool, U34RT die, (4) Y45 tool, U34RT die with PT6515 adapter, (4) Y46 tool, U34RT die with PUADP-1 adapter |
| 500 kcmil stranded conductor size |
| 2-5/16 in L Strip, 1-3/4 in Stud Hole Spacing |
