BURNDY®

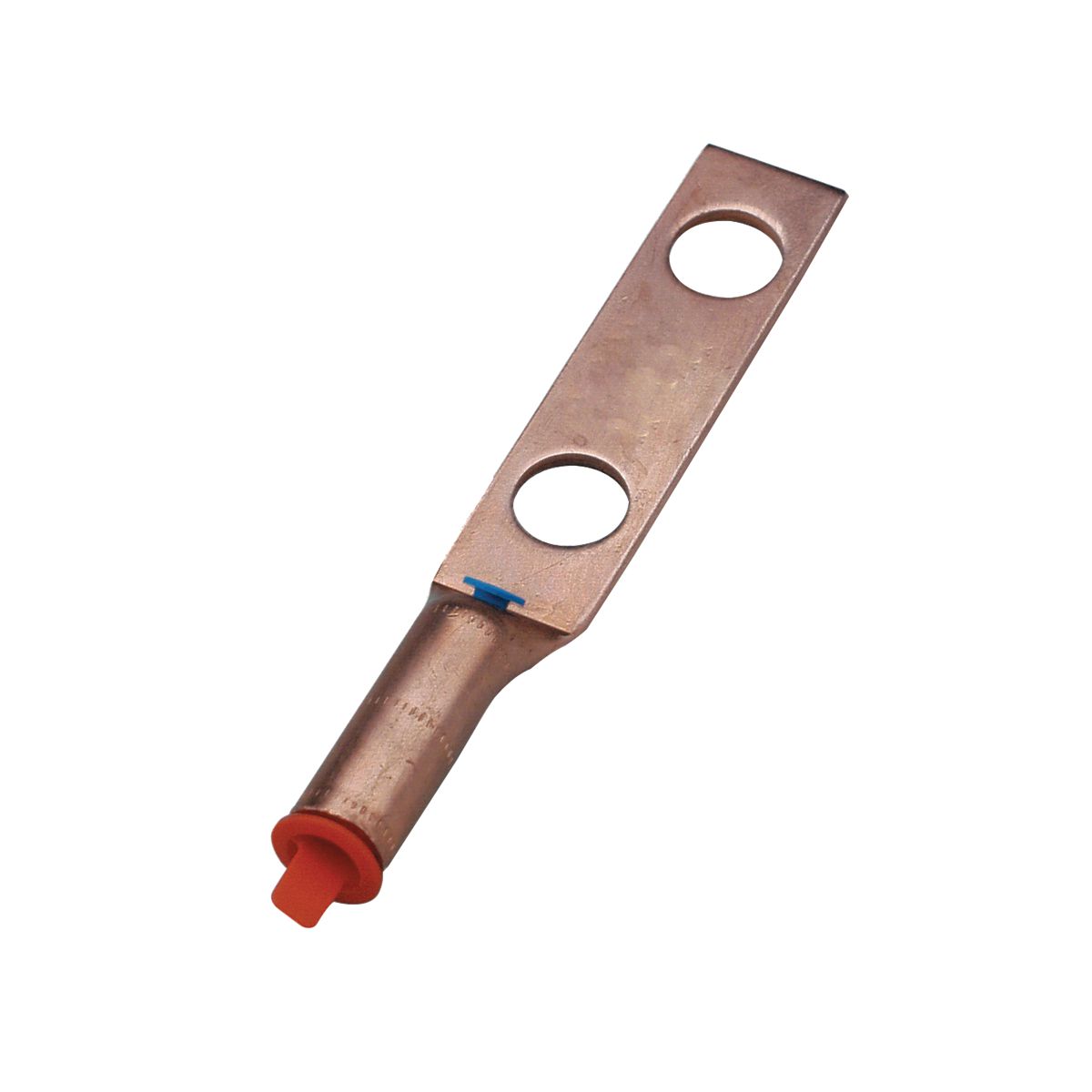

Burndy® YGA2C2TC38 HYLUG™ YGA Grounding Compression Lug, 2 AWG Stranded Solid Copper Conductor, 1/2 in Stud, 10, Copper
Custom_Product_Images_Illustration
BURNDY®
Burndy® YGA2C2TC38 HYLUG™ YGA Grounding Compression Lug, 2 AWG Stranded Solid Copper Conductor, 1/2 in Stud, 10, Copper
SKU547978
MFGR #YGA2C2TC38
$/ea
BURNDY® HYLUG™ Compression Lug, Grounding, Series: YGA, Stranded Solid Copper Conductor, 2 AWG Conductor, Die Code: 10, 600 to 35000 VAC, 1/2 in Stud, 0.6 in W x 0.12 in THK Tongue, 3.48 in Overall Length, 0.42 in OD x 1.25 in L Barrel, 1 in Stud Hole Spacing, 1 in Wire Stripe Length, 90 deg C, Copper
BURNDY® HYLUG™ Compression Lug, Grounding, Series: YGA, Stranded Solid Copper Conductor, 2 AWG Conductor, Die Code: 10, 600 to 35000 VAC, 1/2 in Stud, 0.6 in W x 0.12 in THK Tongue, 3.48 in Overall Length, 0.42 in OD x 1.25 in L Barrel, 1 in Stud Hole Spacing, 1 in Wire Stripe Length, 90 deg C, Copper
Application For Direct Burial In Earth Or Concrete, Grounding Applications ARRA Compliant C Buy American Compliant C Catalog Number YGA2C2TC38 Color Code Brown Country of Origin US EU RoHS Indicator Y Gross Weight Per Pack 0.0700 lb Gross Weight per Pack Metric 0.03 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8535908020 Height 0.42 in Height [Metric] 1.0668 cm Length 3.48 in Length [Metric] 8.8392 cm Returnable Y Standard UL467;UL 486A-486B Sub Brand HYLUG Type Terminals UNSPSC 39121405 UPC 11 78181010964 UPC 12 781810109649 Width 0.60 in Width [Metric] 1.5240 cm Stock Status NONSTOCK Brand BURNDY® Manufacturer BURNDY® Material Copper For Direct Burial In Earth Or Concrete, Grounding Applications Features: Irreversible Compression HYLUG Ground Terminal Specifically Designed For Grounding Applications, Each Connector Has An Inspection Probe Hole To Ensure Proper Cable Insertion, UL467 Listed, Acceptable For Direct Burial In Earth Or Concrete, UL486A Listed, Prefilled With PENETROX Compound And Strip Sealed, Tools, Die Set Catalog Number, And (number Of Crimps): Mechanical: MD7-34R, OUR840 Tool, W2CVT, X2CRT Die, (2), Y2MR Tool, (4), Hydraulic: Y35, Y39, PAT750, Y750 Tool, U2CRT Die, (2), Y45 Tool, U2CRT Die With PT-6515 Adapter, (2), Y46 Tool, U2CRT Die With PUADP-1 Adapter, (2), Conductor Type: Copper, Color Code: Brown, Die Index: 10 Unplated Terminal connector
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | For Direct Burial In Earth Or Concrete, Grounding Applications |
| ARRA Compliant | C |
| Buy American Compliant | C |
| Catalog Number | YGA2C2TC38 |
| Color Code | Brown |
| Country of Origin | US |
| EU RoHS Indicator | Y |
| Gross Weight Per Pack | 0.0700 lb |
| Gross Weight per Pack Metric | 0.03 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8535908020 |
| Height | 0.42 in |
| Height [Metric] | 1.0668 cm |
| Length | 3.48 in |
| Length [Metric] | 8.8392 cm |
| Returnable | Y |
| Standard | UL467;UL 486A-486B |
| Sub Brand | HYLUG |
| Type | Terminals |
| UNSPSC | 39121405 |
| UPC 11 | 78181010964 |
| UPC 12 | 781810109649 |
| Width | 0.60 in |
| Width [Metric] | 1.5240 cm |
| Stock Status | NONSTOCK |
| Brand | BURNDY® |
| Manufacturer | BURNDY® |
| Material | Copper |
| For Direct Burial In Earth Or Concrete, Grounding Applications |
| Features: Irreversible Compression HYLUG Ground Terminal Specifically Designed For Grounding Applications, Each Connector Has An Inspection Probe Hole To Ensure Proper Cable Insertion, UL467 Listed, Acceptable For Direct Burial In Earth Or Concrete, UL486A Listed, Prefilled With PENETROX Compound And Strip Sealed, Tools, Die Set Catalog Number, And (number Of Crimps): Mechanical: MD7-34R, OUR840 Tool, W2CVT, X2CRT Die, (2), Y2MR Tool, (4), Hydraulic: Y35, Y39, PAT750, Y750 Tool, U2CRT Die, (2), Y45 Tool, U2CRT Die With PT-6515 Adapter, (2), Y46 Tool, U2CRT Die With PUADP-1 Adapter, (2), Conductor Type: Copper, Color Code: Brown, Die Index: 10 |
| Unplated |
| Terminal connector |
