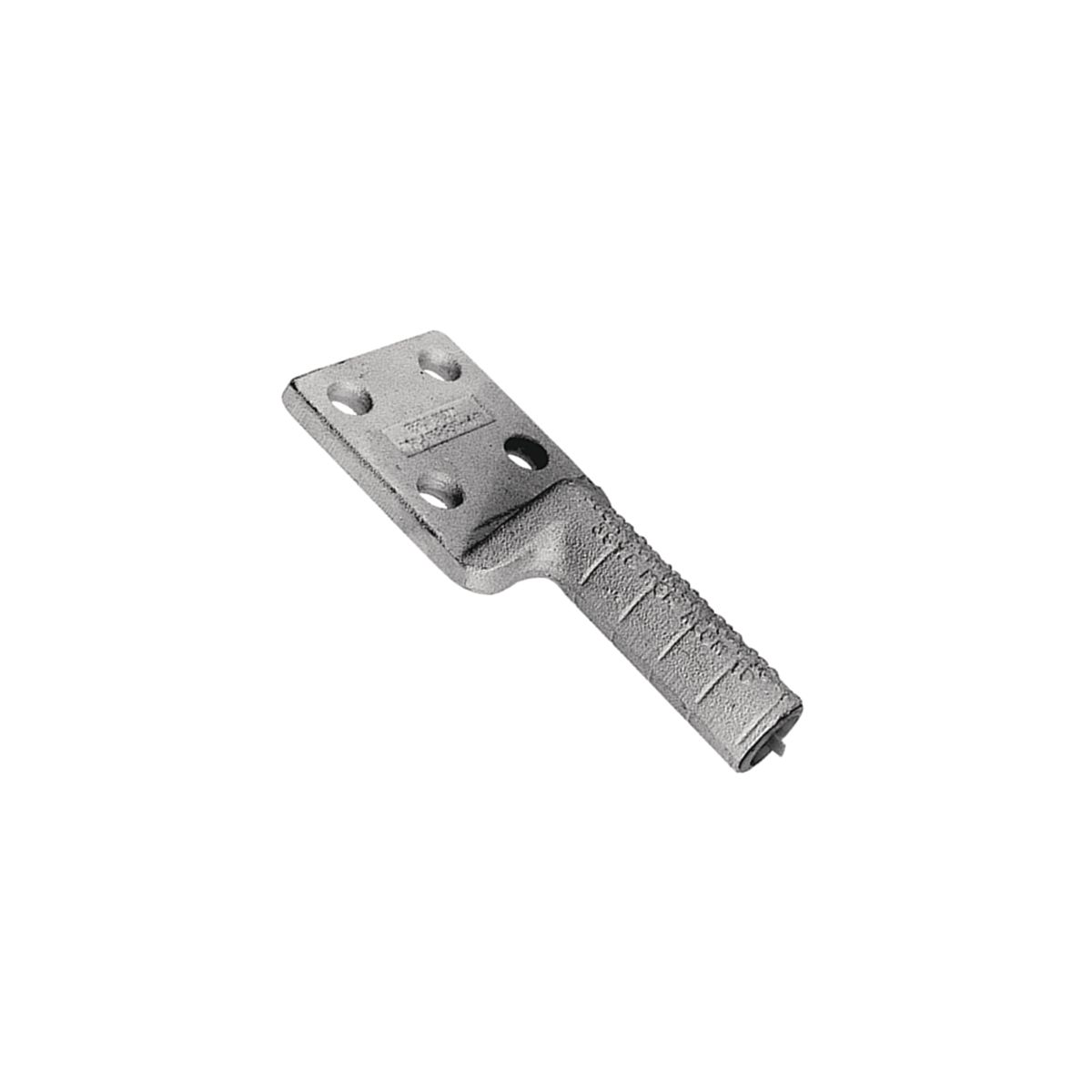

Burndy® YCAK33R4N HYLUG™ YCAK-R-N 4-Hole Compression Lug, 397 kcmil Aluminum Conductor, 9/16 in Stud, 316, Aluminum
Custom_Product_Images_Illustration
Burndy® YCAK33R4N HYLUG™ YCAK-R-N 4-Hole Compression Lug, 397 kcmil Aluminum Conductor, 9/16 in Stud, 316, Aluminum
SKU920494
MFGR #YCAK33R4N
$/ea
BURNDY's compression connectors are designed for reliable and controllable electrical connections. The complete installation is fully inspectable. They are high conductivity copper and operate cooler than the wire on which they are installed. The connectors withstand a wide range of electrical and environmental conditions, including current surges, temperatures, corrosion and vibrations, for a wide variety of applications. These features mean a consistently high quality connection at a low installed cost. Aluminum compression connectors are manufactured from high conductivity, high purity wrought aluminum. They are designed with sufficient mass and are electro-tin plated to minimize corrosion due to galvanic action between dissimilar metals. The connector barrels are pre-filled with PENETROX®, BURNDY's oxide inhibiting compound.
BURNDY's compression connectors are designed for reliable and controllable electrical connections. The complete installation is fully inspectable. They are high conductivity copper and operate cooler than the wire on which they are installed. The connectors withstand a wide range of electrical and environmental conditions, including current surges, temperatures, corrosion and vibrations, for a wide variety of applications. These features mean a consistently high quality connection at a low installed cost. Aluminum compression connectors are manufactured from high conductivity, high purity wrought aluminum. They are designed with sufficient mass and are electro-tin plated to minimize corrosion due to galvanic action between dissimilar metals. The connector barrels are pre-filled with PENETROX®, BURNDY's oxide inhibiting compound.
Application For ACSR/6201/5005 (Compressed/Compact), Aluminum ARRA Compliant C Buy American Compliant C Catalog Number YCAK33R4N Country of Origin US EU RoHS Indicator Y Gross Weight Per Pack 0.6400 lb Gross Weight per Pack Metric 0.29 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8535908020 Height 1.14 in Height [Metric] 2.8956 cm Length 7.34 in Length [Metric] 18.6436 cm Overall Length 7-3/8 in Returnable Y Series YCAK-R-N Specifications 1-3/4 in Hole Spacing Sub Brand TERMINALS Tongue Size 3 in W x 3/8 in THK Type 4-Hole UNSPSC 39121405 UPC 11 78181081023 UPC 12 781810810231 Width 3.00 in Width [Metric] 7.6200 cm Stock Status NONSTOCK Brand BURNDY® Manufacturer BURNDY® Conductor Size 397.5 kcmil Conductor Type Aluminum Die Code 316 Material Cast Aluminum Alloy Stud Size 1/2 in For ACSR/6201/5005 (Compressed/Compact), Aluminum Features: Compression Terminal, Conductor Type: ACSR/6201/5005 (Compressed/Compact), Aluminum, Tools, Die Set Catalog Number, And (number Of Crimps): Y35, Y750 Tool, U316 Die, (4), Y45 Tool, U316 Die With PT-6515 Adapter, (4), Y46 Tool, U316 Die With PUADP-1 Adapter, (4), Y48B Tool, C316 Die, (2), Y60BHU Tool, L316 Die, (2), Die Index: 316 Aluminum compression HYLUG017 for terminating jumper loops and equipment taps at switch pads and other substation apparatus or to YDW-R dead ends NEMA standard mounting holes Installed with same dies as equivalent full tension sleeves Pre-filled with PENETROX® joint compound 336.4 (26/7) Linnet kcmil to 336.4 (30/7) kcmil Oriole ACSR, 394.5 kcmil AAAC 5005/6201, 397 kcmil aluminum conductor 1.75 in hole center to center distance, unplated
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | For ACSR/6201/5005 (Compressed/Compact), Aluminum |
| ARRA Compliant | C |
| Buy American Compliant | C |
| Catalog Number | YCAK33R4N |
| Country of Origin | US |
| EU RoHS Indicator | Y |
| Gross Weight Per Pack | 0.6400 lb |
| Gross Weight per Pack Metric | 0.29 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8535908020 |
| Height | 1.14 in |
| Height [Metric] | 2.8956 cm |
| Length | 7.34 in |
| Length [Metric] | 18.6436 cm |
| Overall Length | 7-3/8 in |
| Returnable | Y |
| Series | YCAK-R-N |
| Specifications | 1-3/4 in Hole Spacing |
| Sub Brand | TERMINALS |
| Tongue Size | 3 in W x 3/8 in THK |
| Type | 4-Hole |
| UNSPSC | 39121405 |
| UPC 11 | 78181081023 |
| UPC 12 | 781810810231 |
| Width | 3.00 in |
| Width [Metric] | 7.6200 cm |
| Stock Status | NONSTOCK |
| Brand | BURNDY® |
| Manufacturer | BURNDY® |
| Conductor Size | 397.5 kcmil |
| Conductor Type | Aluminum |
| Die Code | 316 |
| Material | Cast Aluminum Alloy |
| Stud Size | 1/2 in |
| For ACSR/6201/5005 (Compressed/Compact), Aluminum |
| Features: Compression Terminal, Conductor Type: ACSR/6201/5005 (Compressed/Compact), Aluminum, Tools, Die Set Catalog Number, And (number Of Crimps): Y35, Y750 Tool, U316 Die, (4), Y45 Tool, U316 Die With PT-6515 Adapter, (4), Y46 Tool, U316 Die With PUADP-1 Adapter, (4), Y48B Tool, C316 Die, (2), Y60BHU Tool, L316 Die, (2), Die Index: 316 |
| Aluminum compression HYLUG017 for terminating jumper loops and equipment taps at switch pads and other substation apparatus or to YDW-R dead ends |
| NEMA standard mounting holes |
| Installed with same dies as equivalent full tension sleeves |
| Pre-filled with PENETROX® joint compound |
| 336.4 (26/7) Linnet kcmil to 336.4 (30/7) kcmil Oriole ACSR, 394.5 kcmil AAAC 5005/6201, 397 kcmil aluminum conductor |
| 1.75 in hole center to center distance, unplated |
