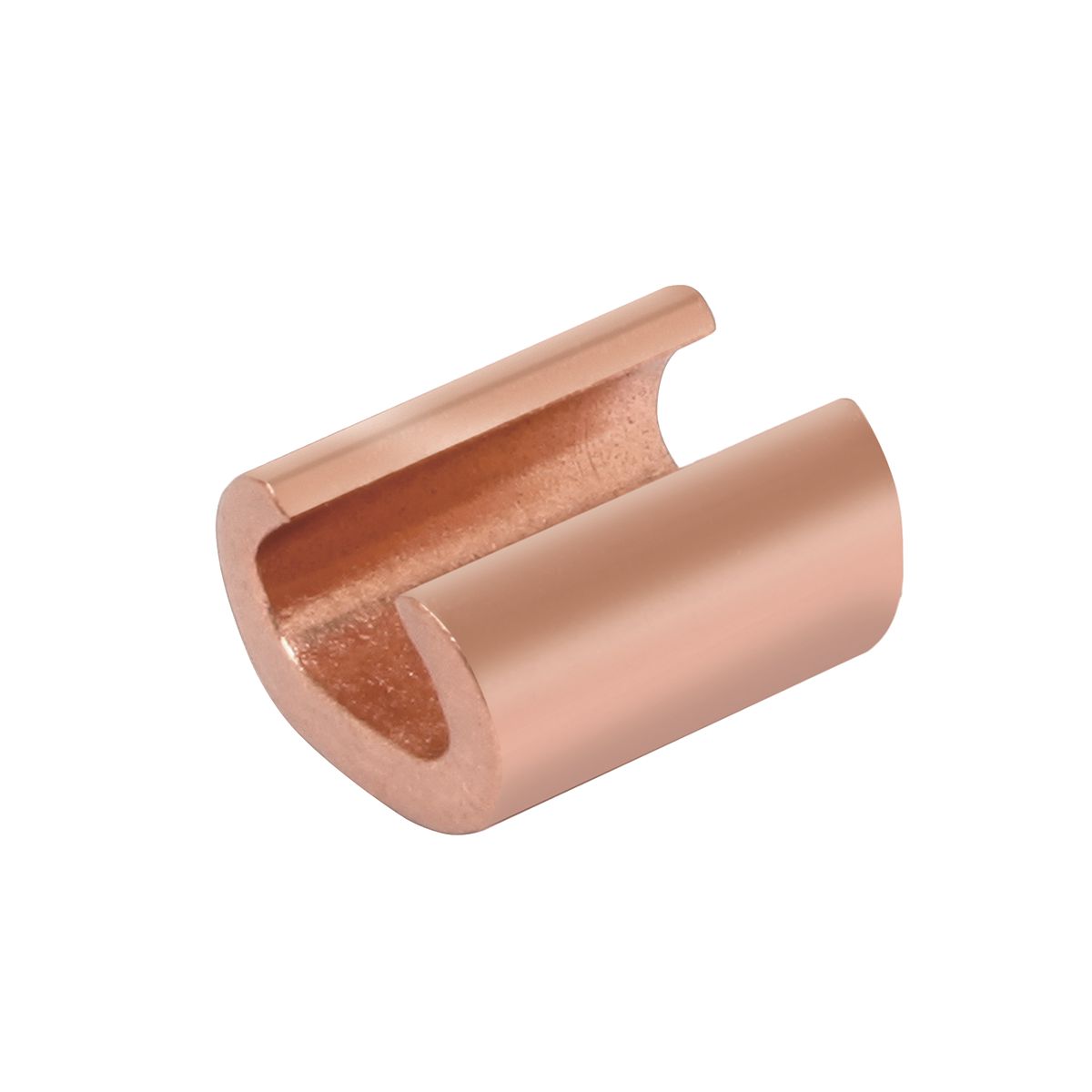

Burndy® YC4C4 CRIMPIT™ YC-C C-Tap Compression Connector, C Shape, 6 to 4 AWG Main/Run Size, 4 AWG Tap Size, Wrought Copper
Compression C-Taps
85637
MFG #: YC4C4
BURNDY®
12.48000
/ ea
BURNDY® CRIMPIT™ C-Tap Compression Connector, Series: YC-C, C, 6 to 4 AWG Main/Run Size, 4 AWG Tap, 600 VAC to 35 kVAC, Commercial Stranded Copper Conductor, BG or 5/8 Element A Die Index, 90 deg C, Wrought Copper, Plain Plated, 5/8 in L
- Brochure URL - 10969_OVS9NCMJGTU086BF.pdf(Brochure URL)
- Brochure URL - BURNDY_YC4C4_Specsheet.pdf(Brochure URL)
- http://www.burndy.com(Seller Home Page URL)
- Catalog URL - IDW_DOCUMENT_3d451fee75dfdb919b2de3c8234af425a24541358396b48c551322c50f63cbee.pdf(Catalog URL)
- Line Drawing URL(Line Drawing URL)
- http://www.burndy.com/(Seller Home Page URL)
- Tech Drawing URL - 10969_NYLM3FXJ276GE1QH.pdf(Tech Drawing URL)
- Tech Drawing URL - se090670.pdf(Tech Drawing URL)
- Spec Sheet URL - YC4C4.pdf(Spec Sheet URL)
- Spec Sheet URL - 10969_Q64T1WJFXYK9L3S0.pdf(Spec Sheet URL)
- Applications
- Features
| For Range Of Copper And Making Tap Or Parallel Copper Connections |
| Features: Range-Taking Connector: Lowers Inventory Requirements, Compact Size: Easy To Tape And Insulate Connection, Manufactured From High Conductivity Wrought Copper: Provides Low Resistance And Excellent Electrical Conductivity, Economical: Provides Low Installed Cost, Conductor Size (run - Range): 6 AWG Solid - 4 AWG Stranded, Conductor Type: Run And Tap: Commercial Stranded Copper, Conductor Size (tap Range): 14 - 8 AWG Flex Copper, Shape: C, Die Index: BG Or 5/8 Element A, Tools, Die Set Catalog Number, And (number Of Crimps): Y35, Y750, Y45, Y46 Tool, U-BG Die, (1), MD6 Tool, BG Die, (2), W-BG Die, (1), OUR840 Tool, XNBG Die, (2) |
| Range-taking connector - lowers inventory requirements |
| Compact size - easy to tape and insulate connection |
| Manufactured from high conductivity wrought copper provides low resistance and excellent electrical conductivity |
| Economical provides low installed cost |
| 4, 6 AWG conductor run size |
| 4 AWG tap size |
| For Y35, Y750, Y45, Y46 tool, U-BG die, MD6 tool, BG die, W-BG die, OUR840 tool and XNBG die |
