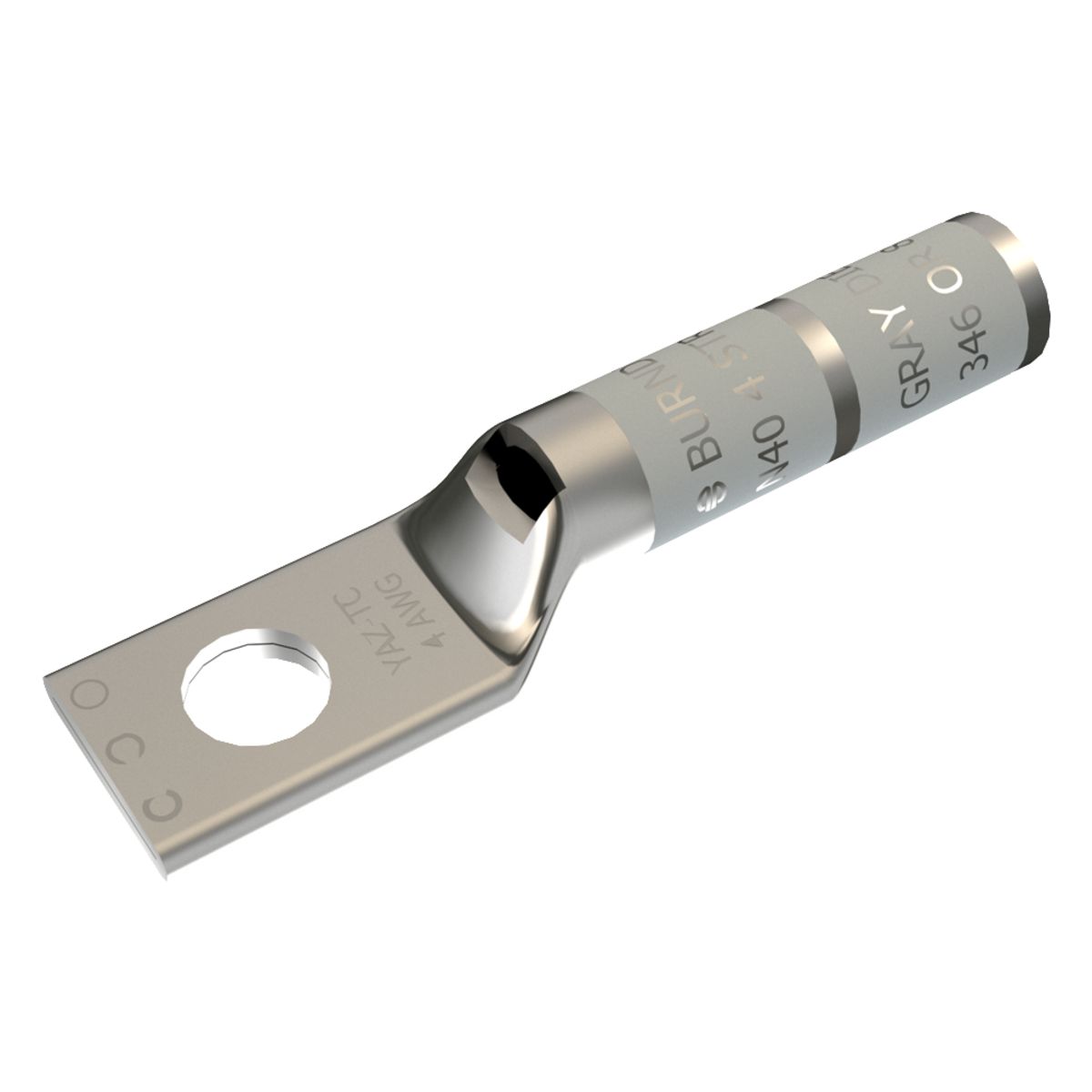

Burndy® YAZ4CTC14 HYLUG™ YAZ 1-Hole Non-Insulated Compression Lug With Inspection Window, 4 AWG Copper Conductor, 1/4 in Stud
Custom_Product_Images_Illustration
Burndy® YAZ4CTC14 HYLUG™ YAZ 1-Hole Non-Insulated Compression Lug With Inspection Window, 4 AWG Copper Conductor, 1/4 in Stud
SKU921194
MFGR #YAZ4CTC14
$/ea
BURNDY's compression connectors are designed for reliable and controllable electrical connections. The complete installation is fully inspectable. They are high conductivity copper and operate cooler than the wire on which they are installed. The connectors withstand a wide range of electrical and environmental conditions, including current surges, temperatures, corrosion and vibrations, for a wide variety of applications. These features mean a consistently high quality connection at a low installed cost. Copper compression connectors are manufactured from high-conductivity electrolytic copper. The connectors are normally tinplated, lead-plated, or plated with proprietary BURNDY® brite finish to provide durable long-lasting corrosion resistance. The connector design has been matched to the cable size to provide the necessary physical strength requirements for reliable electrical performance.
BURNDY's compression connectors are designed for reliable and controllable electrical connections. The complete installation is fully inspectable. They are high conductivity copper and operate cooler than the wire on which they are installed. The connectors withstand a wide range of electrical and environmental conditions, including current surges, temperatures, corrosion and vibrations, for a wide variety of applications. These features mean a consistently high quality connection at a low installed cost. Copper compression connectors are manufactured from high-conductivity electrolytic copper. The connectors are normally tinplated, lead-plated, or plated with proprietary BURNDY® brite finish to provide durable long-lasting corrosion resistance. The connector design has been matched to the cable size to provide the necessary physical strength requirements for reliable electrical performance.
Application Wire Termination ARRA Compliant C Barrel Size 1.12 in L Barrel Type Long/Skived Buy American Compliant C Catalog Number YAZ4CTC14 Color Gray Color Code Gray Country of Origin US EU RoHS Indicator Y Gross Weight Per Pack 0.0300 lb Gross Weight per Pack Metric 0.01 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8535908020 Height 0.34 in Height [Metric] 0.8636 cm Length 2.04 in Length [Metric] 5.1816 cm Overall Length 2.04 in Returnable Y Series YAZ Specifications 1-3/16 in L Wire Stripe Standard UL 486A-486B Standards UL Listed, CSA Certified and RoHS Compliant Sub Brand HYLUG Temperature Rating 90 °C Tongue Size 0.5 in W x 0.09 in THK Tongue Type Straight Type 1-Hole Non-Insulated UNSPSC 39121405 UPC 11 78181023947 UPC 12 781810239476 Voltage Rating 600 VAC to 35 kV Width 0.50 in Width [Metric] 1.2700 cm Stock Status NONSTOCK Brand BURNDY® Manufacturer BURNDY® Conductor Size 4 AWG Conductor Type Stranded Copper Die Code 8/346 Material Copper Stud Size 1/4 in Wire Termination Features: UL Listed 90 DEG C, 600 V - 35 KV, 45 DEG And 90 DEG Angles Are Available, With Inspection Window, Finish: Electro-Tin Plated, Temperature Rating: 90 DEG C, Wire Strip Length: 1-3/16 IN, Tongue Angle: Straight, Color Code: Gray, Tools, Die Set Catalog Number, And (number Of Crimps): Mechanical: MD6, OUR840, MD7-34R Tool, W4CVT, W4CRT, X4CRT Die, (2), Hydraulic: BCT500HS, Y500CTHS Tool, W4CVT, W4CRT, X4CRT Die, (2), Y35, Y39, Y750, PAT750 Tool, U4CRT, U6CABT Die, (2), Y46 Tool, U4CRT, U6CABT Die With PUADP-1 Adapter, (2), Die Index: 8 Or 346, Dieless Tools (number Of Crimps): Y644HS, Y81KFT, Y81KFTMBH, PAT81KFT-18V Tool, (1), MY29-3, MY29-11, MRC840 Tool, (2), Y1MRTC Tool, (4) For mechanical: MD6, OUR840, MD7-34R tool, (2), W4CVT, W4CRT, X4CRT die, hydraulic: BCT500HS, Y500CTHS tool, (2), W4CVT, W4CRT, X4CRT die, Y35, Y39, Y750, PAT750 tool, (2), U4CRT, U6CABT die, Y46 tool, (2), U4CRT, U6CABT die with PUADP-1 adapter, dieless tools (number Of Crimps): (1), Y644HS, Y81KFT, Y81KFTMBH, PAT81KFT-18V tool, (2), MY29-3, MY29-11, MRC840 tool, (4) Y1MRTC tool installation tool 40 (19) navy cable size, 4 AWG copper stranded conductor size 4 AWG stranded conductor size 1-3/16 in L Strip Electro Tin Plated Copper
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | Wire Termination |
| ARRA Compliant | C |
| Barrel Size | 1.12 in L |
| Barrel Type | Long/Skived |
| Buy American Compliant | C |
| Catalog Number | YAZ4CTC14 |
| Color | Gray |
| Color Code | Gray |
| Country of Origin | US |
| EU RoHS Indicator | Y |
| Gross Weight Per Pack | 0.0300 lb |
| Gross Weight per Pack Metric | 0.01 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8535908020 |
| Height | 0.34 in |
| Height [Metric] | 0.8636 cm |
| Length | 2.04 in |
| Length [Metric] | 5.1816 cm |
| Overall Length | 2.04 in |
| Returnable | Y |
| Series | YAZ |
| Specifications | 1-3/16 in L Wire Stripe |
| Standard | UL 486A-486B |
| Standards | UL Listed, CSA Certified and RoHS Compliant |
| Sub Brand | HYLUG |
| Temperature Rating | 90 °C |
| Tongue Size | 0.5 in W x 0.09 in THK |
| Tongue Type | Straight |
| Type | 1-Hole Non-Insulated |
| UNSPSC | 39121405 |
| UPC 11 | 78181023947 |
| UPC 12 | 781810239476 |
| Voltage Rating | 600 VAC to 35 kV |
| Width | 0.50 in |
| Width [Metric] | 1.2700 cm |
| Stock Status | NONSTOCK |
| Brand | BURNDY® |
| Manufacturer | BURNDY® |
| Conductor Size | 4 AWG |
| Conductor Type | Stranded Copper |
| Die Code | 8/346 |
| Material | Copper |
| Stud Size | 1/4 in |
| Wire Termination |
| Features: UL Listed 90 DEG C, 600 V - 35 KV, 45 DEG And 90 DEG Angles Are Available, With Inspection Window, Finish: Electro-Tin Plated, Temperature Rating: 90 DEG C, Wire Strip Length: 1-3/16 IN, Tongue Angle: Straight, Color Code: Gray, Tools, Die Set Catalog Number, And (number Of Crimps): Mechanical: MD6, OUR840, MD7-34R Tool, W4CVT, W4CRT, X4CRT Die, (2), Hydraulic: BCT500HS, Y500CTHS Tool, W4CVT, W4CRT, X4CRT Die, (2), Y35, Y39, Y750, PAT750 Tool, U4CRT, U6CABT Die, (2), Y46 Tool, U4CRT, U6CABT Die With PUADP-1 Adapter, (2), Die Index: 8 Or 346, Dieless Tools (number Of Crimps): Y644HS, Y81KFT, Y81KFTMBH, PAT81KFT-18V Tool, (1), MY29-3, MY29-11, MRC840 Tool, (2), Y1MRTC Tool, (4) |
| For mechanical: MD6, OUR840, MD7-34R tool, (2), W4CVT, W4CRT, X4CRT die, hydraulic: BCT500HS, Y500CTHS tool, (2), W4CVT, W4CRT, X4CRT die, Y35, Y39, Y750, PAT750 tool, (2), U4CRT, U6CABT die, Y46 tool, (2), U4CRT, U6CABT die with PUADP-1 adapter, dieless tools (number Of Crimps): (1), Y644HS, Y81KFT, Y81KFTMBH, PAT81KFT-18V tool, (2), MY29-3, MY29-11, MRC840 tool, (4) Y1MRTC tool installation tool |
| 40 (19) navy cable size, 4 AWG copper stranded conductor size |
| 4 AWG stranded conductor size |
| 1-3/16 in L Strip |
| Electro Tin Plated Copper |
