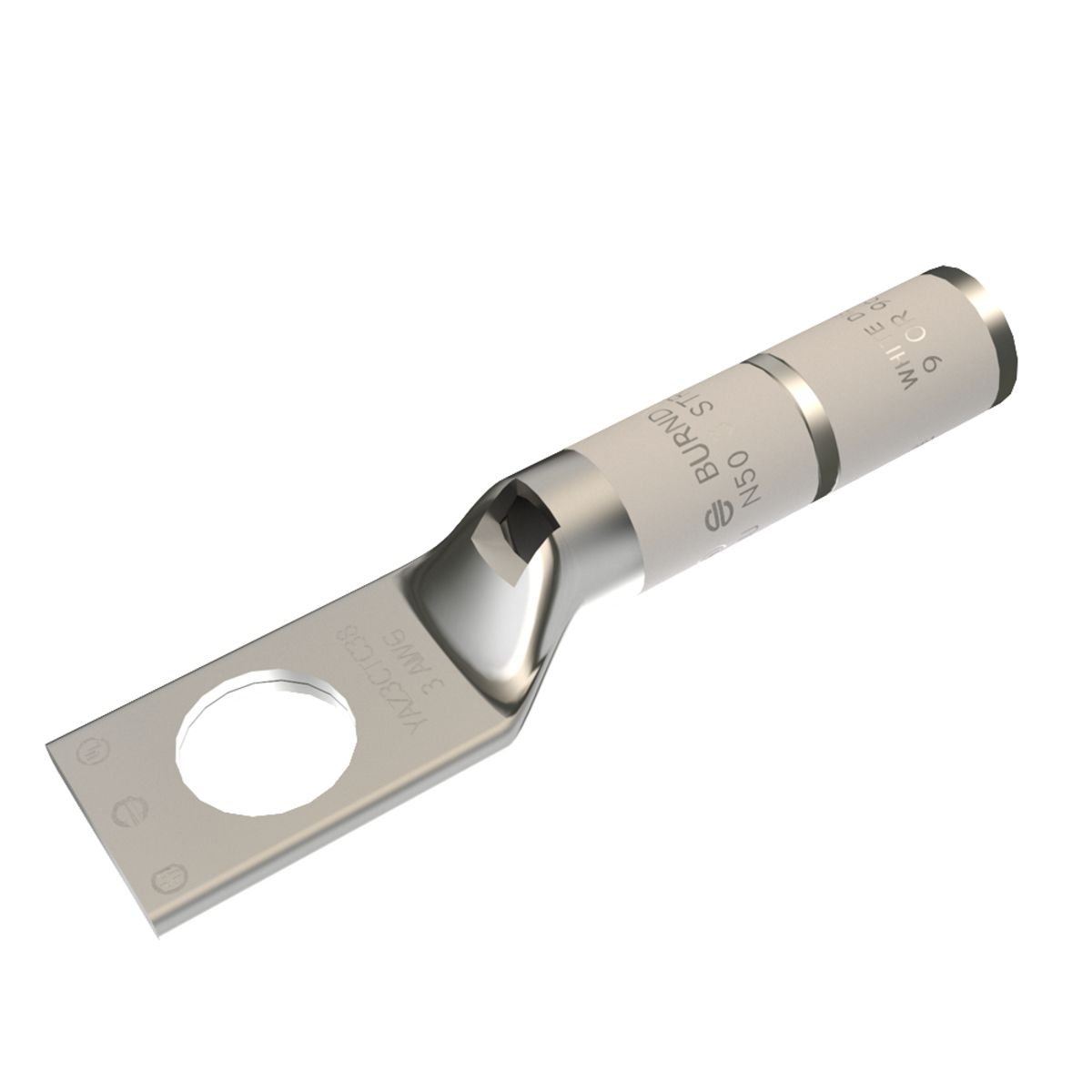

Burndy® YAZ3CTC38 HYLUG™ YAZ 1-Hole Non-Insulated Compression Lug With Inspection Window, 3 AWG Copper Conductor, 3/8 in Stud
Custom_Product_Images_Illustration
Burndy® YAZ3CTC38 HYLUG™ YAZ 1-Hole Non-Insulated Compression Lug With Inspection Window, 3 AWG Copper Conductor, 3/8 in Stud
SKU864839
MFGR #YAZ3CTC38
Your Cost: $18.93/ea
BURNDY's compression connectors are designed for reliable and controllable electrical connections. The complete installation is fully inspectable. They are high conductivity copper and operate cooler than the wire on which they are installed. The connectors withstand a wide range of electrical and environmental conditions, including current surges, temperatures, corrosion and vibrations, for a wide variety of applications. These features mean a consistently high quality connection at a low installed cost. Copper compression connectors are manufactured from high-conductivity electrolytic copper. The connectors are normally tinplated, lead-plated, or plated with proprietary BURNDY® brite finish to provide durable long-lasting corrosion resistance. The connector design has been matched to the cable size to provide the necessary physical strength requirements for reliable electrical performance.
BURNDY's compression connectors are designed for reliable and controllable electrical connections. The complete installation is fully inspectable. They are high conductivity copper and operate cooler than the wire on which they are installed. The connectors withstand a wide range of electrical and environmental conditions, including current surges, temperatures, corrosion and vibrations, for a wide variety of applications. These features mean a consistently high quality connection at a low installed cost. Copper compression connectors are manufactured from high-conductivity electrolytic copper. The connectors are normally tinplated, lead-plated, or plated with proprietary BURNDY® brite finish to provide durable long-lasting corrosion resistance. The connector design has been matched to the cable size to provide the necessary physical strength requirements for reliable electrical performance.
Application Wire Termination ARRA Compliant C Barrel Size 1-1/4 in L Barrel Type Long/Skived Buy American Compliant C Catalog Number YAZ3CTC38 Color White Color Code White Country of Origin US EU RoHS Indicator Y Gross Weight Per Pack 0.0300 lb Gross Weight per Pack Metric 0.01 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8535908020 Height 0.38 in Height [Metric] 0.9652 cm Length 2.38 in Length [Metric] 6.0452 cm Overall Length 2.38 in Returnable Y Series YAZ Specifications 1-5/16 in L Wire Stripe Standard UL 486A-486B Sub Brand HYLUG Temperature Rating 90 °C Tongue Size 0.58 in W x 0.08 in THK Tongue Type Straight Type Long Barrel, Skive, Tin Plated UNSPSC 39121405 UPC 11 78181023959 UPC 12 781810239599 Voltage Rating 35,000 V Width 0.58 in Width [Metric] 1.4732 cm Stock Status NONSTOCK Brand BURNDY® Manufacturer BURNDY® Conductor Size 3 AWG Conductor Type Stranded Copper Die Code 9 Material Copper Stud Size 3/8 in Wire Termination Features: UL Listed 90 DEG C, 600 V - 35 KV, 45 DEG And 90 DEG Angles Are Available, With Inspection Window, Finish: Electro-Tin Plated, Temperature Rating: 90 DEG C, Wire Strip Length: 1-5/16 IN, Tongue Angle: Straight, Color Code: White, Tools, Die Set Catalog Number, And (number Of Crimps): Mechanical: MD6, OUR840, MD7-34R Tool, W3CRT Die, (2), Hydraulic: BCT500HS, Y500CTHS Tool, W3CRT Die, (2), Y35, Y39, Y750, PAT750 Tool, U3CRT Die, (2), Y46 Tool, U3CRT Die With PUADP-1 Adapter, (2), Die Index: 9, Dieless Tools (number Of Crimps): Y644HS Tool, (1), Y81KFT, Y81KFTMBH, PAT81KFT-18V, MY29-3, MY29-11, MRC840 Tool, (2), Y1MRTC Tool, (4) For mechanical: MD6, OUR840, MD7-34R tool, (2), W3CRT die, hydraulic: BCT500HS, Y500CTHS tool, (2), W3CRT die, Y35, Y39, Y750, PAT750 tool, (2), U3CRT die, Y46 tool, (2), U3CRT die with PUADP-1 adapter, dieless tools (number Of Crimps): (2),Y644HS, Y81KFT, Y81KFTMBH, PAT81KFT-18V, MY29-3, MY29-11, MRC840 tool, (4) Y1MRTC tool installation tool 50 (19) navy cable size, 3 AWG copper stranded, 2 AWG copper solid conductor size 3 AWG stranded/solid conductor size 1-5/16 in L Strip Electro Tin Plated Copper
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | Wire Termination |
| ARRA Compliant | C |
| Barrel Size | 1-1/4 in L |
| Barrel Type | Long/Skived |
| Buy American Compliant | C |
| Catalog Number | YAZ3CTC38 |
| Color | White |
| Color Code | White |
| Country of Origin | US |
| EU RoHS Indicator | Y |
| Gross Weight Per Pack | 0.0300 lb |
| Gross Weight per Pack Metric | 0.01 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8535908020 |
| Height | 0.38 in |
| Height [Metric] | 0.9652 cm |
| Length | 2.38 in |
| Length [Metric] | 6.0452 cm |
| Overall Length | 2.38 in |
| Returnable | Y |
| Series | YAZ |
| Specifications | 1-5/16 in L Wire Stripe |
| Standard | UL 486A-486B |
| Sub Brand | HYLUG |
| Temperature Rating | 90 °C |
| Tongue Size | 0.58 in W x 0.08 in THK |
| Tongue Type | Straight |
| Type | Long Barrel, Skive, Tin Plated |
| UNSPSC | 39121405 |
| UPC 11 | 78181023959 |
| UPC 12 | 781810239599 |
| Voltage Rating | 35,000 V |
| Width | 0.58 in |
| Width [Metric] | 1.4732 cm |
| Stock Status | NONSTOCK |
| Brand | BURNDY® |
| Manufacturer | BURNDY® |
| Conductor Size | 3 AWG |
| Conductor Type | Stranded Copper |
| Die Code | 9 |
| Material | Copper |
| Stud Size | 3/8 in |
| Wire Termination |
| Features: UL Listed 90 DEG C, 600 V - 35 KV, 45 DEG And 90 DEG Angles Are Available, With Inspection Window, Finish: Electro-Tin Plated, Temperature Rating: 90 DEG C, Wire Strip Length: 1-5/16 IN, Tongue Angle: Straight, Color Code: White, Tools, Die Set Catalog Number, And (number Of Crimps): Mechanical: MD6, OUR840, MD7-34R Tool, W3CRT Die, (2), Hydraulic: BCT500HS, Y500CTHS Tool, W3CRT Die, (2), Y35, Y39, Y750, PAT750 Tool, U3CRT Die, (2), Y46 Tool, U3CRT Die With PUADP-1 Adapter, (2), Die Index: 9, Dieless Tools (number Of Crimps): Y644HS Tool, (1), Y81KFT, Y81KFTMBH, PAT81KFT-18V, MY29-3, MY29-11, MRC840 Tool, (2), Y1MRTC Tool, (4) |
| For mechanical: MD6, OUR840, MD7-34R tool, (2), W3CRT die, hydraulic: BCT500HS, Y500CTHS tool, (2), W3CRT die, Y35, Y39, Y750, PAT750 tool, (2), U3CRT die, Y46 tool, (2), U3CRT die with PUADP-1 adapter, dieless tools (number Of Crimps): (2),Y644HS, Y81KFT, Y81KFTMBH, PAT81KFT-18V, MY29-3, MY29-11, MRC840 tool, (4) Y1MRTC tool installation tool |
| 50 (19) navy cable size, 3 AWG copper stranded, 2 AWG copper solid conductor size |
| 3 AWG stranded/solid conductor size |
| 1-5/16 in L Strip |
| Electro Tin Plated Copper |
