BURNDY®

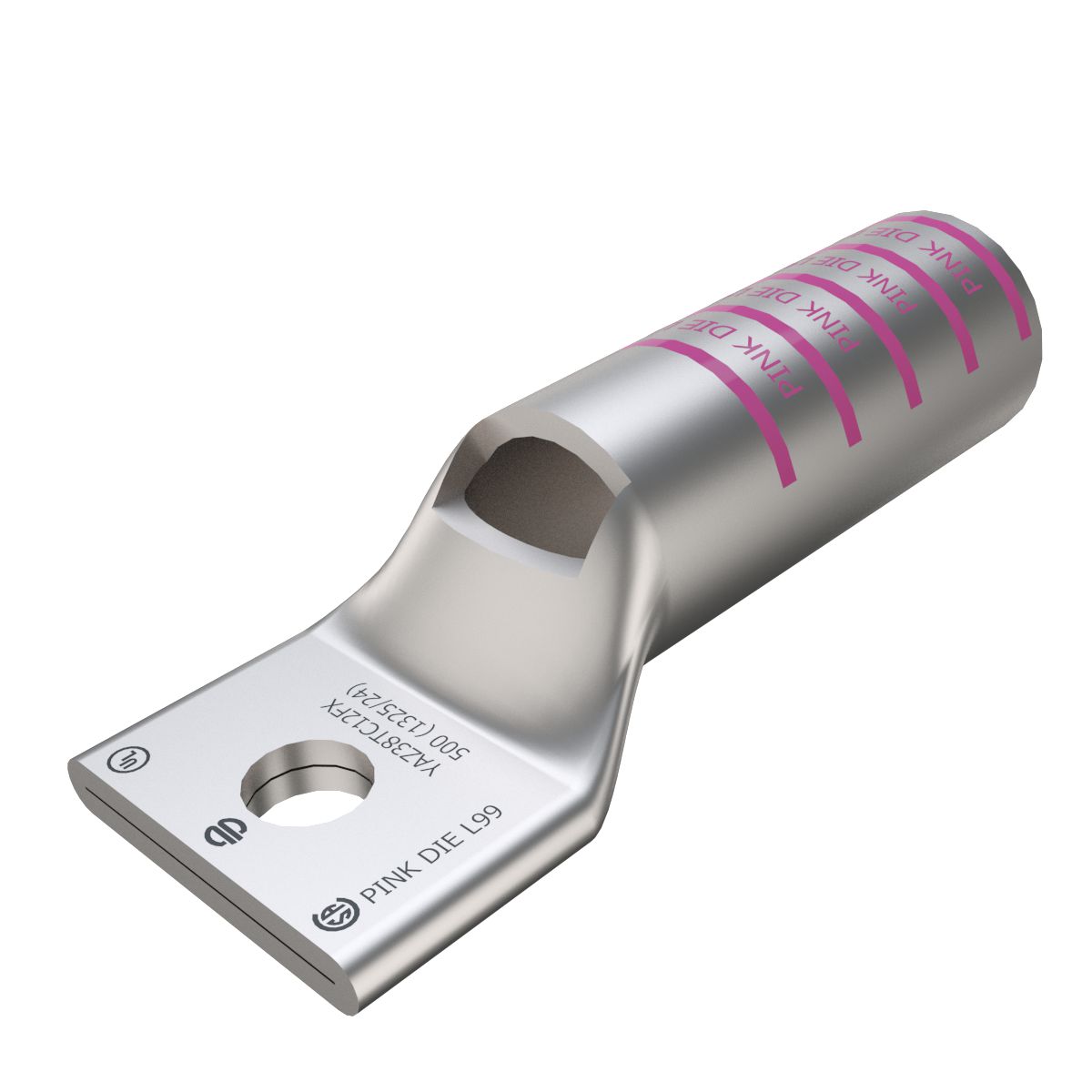

Burndy® YAZ38TC12FX HYLUG™ YAZ 1-Hole Compression Lug With Inspection Window, 500 kcmil, 1/2 in Stud, L99, Copper
Custom_Product_Images_Illustration
BURNDY®
Burndy® YAZ38TC12FX HYLUG™ YAZ 1-Hole Compression Lug With Inspection Window, 500 kcmil, 1/2 in Stud, L99, Copper
SKU461975
MFGR #YAZ38TC12FX
$/ea
BURNDY's compression connectors are designed for reliable and controllable electrical connections. The complete installation is fully inspectable. They are high conductivity copper and operate cooler than the wire on which they are installed. The connectors withstand a wide range of electrical and environmental conditions, including current surges, temperatures, corrosion and vibrations, for a wide variety of applications. These features mean a consistently high quality connection at a low installed cost.
BURNDY's compression connectors are designed for reliable and controllable electrical connections. The complete installation is fully inspectable. They are high conductivity copper and operate cooler than the wire on which they are installed. The connectors withstand a wide range of electrical and environmental conditions, including current surges, temperatures, corrosion and vibrations, for a wide variety of applications. These features mean a consistently high quality connection at a low installed cost.
Application Wire Termination ARRA Compliant C Barrel Size 2.81 in L Barrel Type Long/Skived Buy American Compliant C Catalog Number YAZ38TC12FX Color Pink Color Code Pink Country of Origin US EU RoHS Indicator Y Gross Weight Per Pack 0.7100 lb Gross Weight per Pack Metric 0.32 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8535908020 Height 1.25 in Height [Metric] 3.1750 cm Length 4.77 in Length [Metric] 12.1158 cm Overall Length 4.77 in Returnable Y Series YAZ Specifications 2 -7/8 in L Wire Stripe Standard UL 486A-486B Sub Brand HYLUG Temperature Rating 90 °C Tongue Size 1.84 in W x 0.27 in THK Tongue Type Straight Type Long Barrel, Skive UNSPSC 39121405 UPC 11 78181024206 UPC 12 781810242063 Voltage Rating 35,000 V Width 1.84 in Width [Metric] 4.6736 cm Stock Status NONSTOCK Brand BURNDY® Manufacturer BURNDY® Conductor Size 535.3 kcmil Die Code L99 Material Copper Stud Size 1/2 in Wire Termination UL Listed 90 DEG C, 600 V - 35 KV, 45 DEG And 90 DEG Angles Are Available, With Inspection Window, Tongue Angle: Straight, Temperature Rating: 90 DEG C, Finish: Electro-Tin Plated, Wire Strip Length: 2-7/8 IN, Die Index: L99, Color Code: Pink, Tools, Die Set Catalog Number, And (number Of Crimps): Hydraulic: Y35, Y39, Y750, PAT750 Tool, U38XRT Die, (4), Y46 Tool, U38XRT Die With PUADP-1 Adapter, (4), Dieless Tools (number Of Crimps): Y644HS Tool, (1), Y81KFT, Y81KFTMBH, PAT81KFT-18V Tool, (2), Conductor Type: Flexible For hydraulic: Y35, Y39, Y750, PAT750 tool, (4), U38XRT die, Y46 tool, (4), U38XRT die with PUADP-1 adapter, dieless tools (number Of Crimps): Y644HS tool, (1), Y81KFT, (2),Y81KFTMBH, PAT81KFT-18V tool, installation tool 500 kcmil (1325/NO 24) DLO size, 535.5 kcmil flex conductor size Flex conductor 2 -7/8 in L Strip Electro Tin Plated Copper
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | Wire Termination |
| ARRA Compliant | C |
| Barrel Size | 2.81 in L |
| Barrel Type | Long/Skived |
| Buy American Compliant | C |
| Catalog Number | YAZ38TC12FX |
| Color | Pink |
| Color Code | Pink |
| Country of Origin | US |
| EU RoHS Indicator | Y |
| Gross Weight Per Pack | 0.7100 lb |
| Gross Weight per Pack Metric | 0.32 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8535908020 |
| Height | 1.25 in |
| Height [Metric] | 3.1750 cm |
| Length | 4.77 in |
| Length [Metric] | 12.1158 cm |
| Overall Length | 4.77 in |
| Returnable | Y |
| Series | YAZ |
| Specifications | 2 -7/8 in L Wire Stripe |
| Standard | UL 486A-486B |
| Sub Brand | HYLUG |
| Temperature Rating | 90 °C |
| Tongue Size | 1.84 in W x 0.27 in THK |
| Tongue Type | Straight |
| Type | Long Barrel, Skive |
| UNSPSC | 39121405 |
| UPC 11 | 78181024206 |
| UPC 12 | 781810242063 |
| Voltage Rating | 35,000 V |
| Width | 1.84 in |
| Width [Metric] | 4.6736 cm |
| Stock Status | NONSTOCK |
| Brand | BURNDY® |
| Manufacturer | BURNDY® |
| Conductor Size | 535.3 kcmil |
| Die Code | L99 |
| Material | Copper |
| Stud Size | 1/2 in |
| Wire Termination |
| UL Listed 90 DEG C, 600 V - 35 KV, 45 DEG And 90 DEG Angles Are Available, With Inspection Window, Tongue Angle: Straight, Temperature Rating: 90 DEG C, Finish: Electro-Tin Plated, Wire Strip Length: 2-7/8 IN, Die Index: L99, Color Code: Pink, Tools, Die Set Catalog Number, And (number Of Crimps): Hydraulic: Y35, Y39, Y750, PAT750 Tool, U38XRT Die, (4), Y46 Tool, U38XRT Die With PUADP-1 Adapter, (4), Dieless Tools (number Of Crimps): Y644HS Tool, (1), Y81KFT, Y81KFTMBH, PAT81KFT-18V Tool, (2), Conductor Type: Flexible |
| For hydraulic: Y35, Y39, Y750, PAT750 tool, (4), U38XRT die, Y46 tool, (4), U38XRT die with PUADP-1 adapter, dieless tools (number Of Crimps): Y644HS tool, (1), Y81KFT, (2),Y81KFTMBH, PAT81KFT-18V tool, installation tool |
| 500 kcmil (1325/NO 24) DLO size, 535.5 kcmil flex conductor size |
| Flex conductor |
| 2 -7/8 in L Strip |
| Electro Tin Plated Copper |
