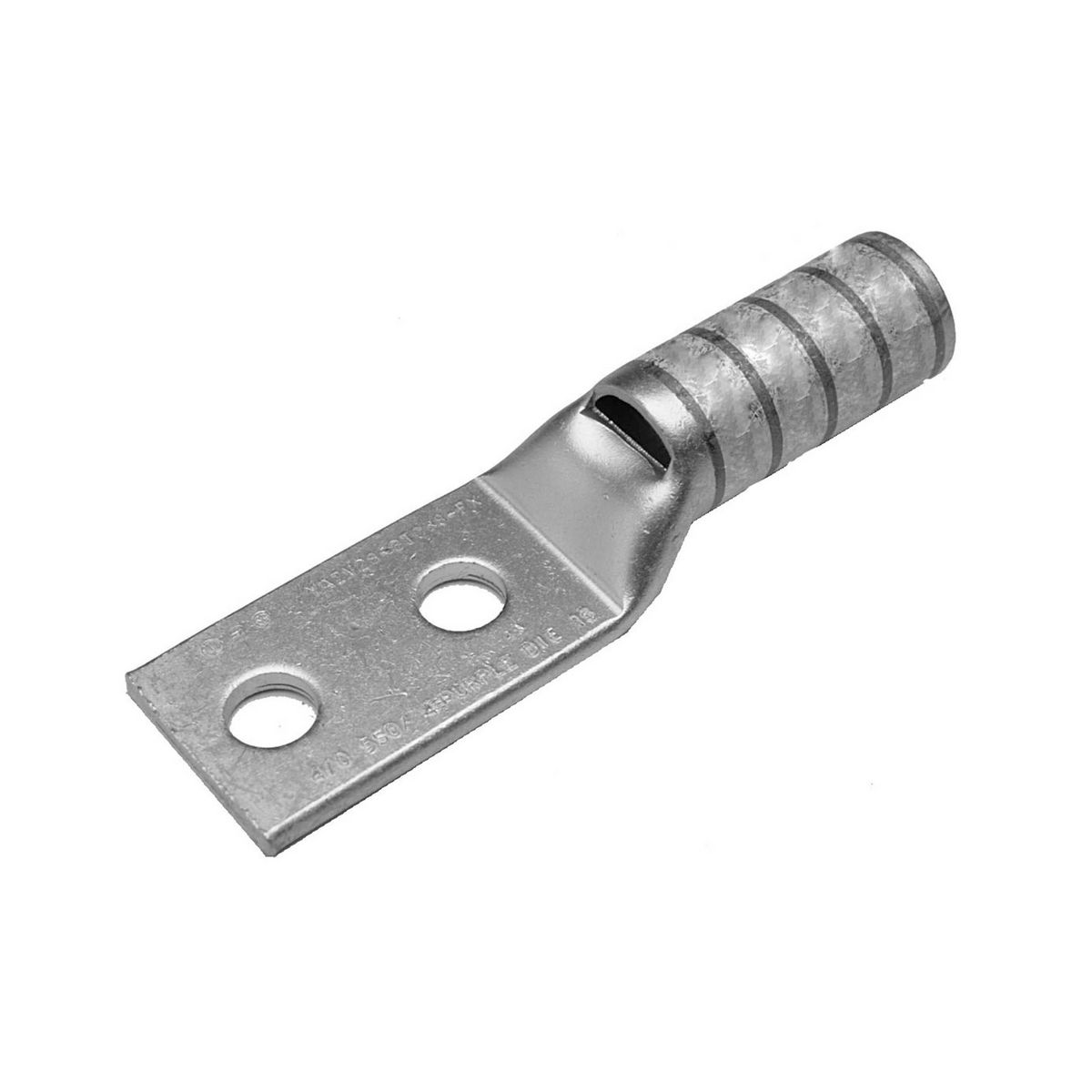

Burndy® YAZ382NTCFX HYLUG™ YAZ-FX 2-Hole Compression Lug With Inspection Window, 500 kcmil, 1/2 in Stud, L99, Copper
Custom_Product_Images_Illustration
Burndy® YAZ382NTCFX HYLUG™ YAZ-FX 2-Hole Compression Lug With Inspection Window, 500 kcmil, 1/2 in Stud, L99, Copper
SKU372690
MFGR #YAZ382NTCFX
Your Cost: $146.34/ea
BURNDY's compression connectors are designed for reliable and controllable electrical connections. The complete installation is fully inspectable. They are high conductivity copper and operate cooler than the wire on which they are installed. The connectors withstand a wide range of electrical and environmental conditions, including current surges, temperatures, corrosion and vibrations, for a wide variety of applications. These features mean a consistently high quality connection at a low installed cost.
BURNDY's compression connectors are designed for reliable and controllable electrical connections. The complete installation is fully inspectable. They are high conductivity copper and operate cooler than the wire on which they are installed. The connectors withstand a wide range of electrical and environmental conditions, including current surges, temperatures, corrosion and vibrations, for a wide variety of applications. These features mean a consistently high quality connection at a low installed cost.
Application Wire Termination ARRA Compliant C Barrel Size 2.81 in L Barrel Type Long/Skived Buy American Compliant C Catalog Number YAZ382NTCFX Color Pink Color Code Pink Country of Origin US EU RoHS Indicator Y Gross Weight Per Pack 0.9100 lb Gross Weight per Pack Metric 0.41 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8535908020 Height 1.25 in Height [Metric] 3.1750 cm Length 6.72 in Length [Metric] 17.0688 cm Overall Length 6.72 in Returnable Y Series YAZ-FX Specifications 2-3/4 in L Wire Stripe, 1-3/4 in Hole Spacing Standard UL 486A-486B Standards UL Listed, CSA Certified and RoHS Compliant Sub Brand HYLUG Temperature Rating 90 °C Tongue Size 1.84 in W x 0.27 in THK Tongue Type Straight Type Long Barrel, Skive UNSPSC 39121405 UPC 11 78181022867 UPC 12 781810228678 Voltage Rating 35,000 V Width 1.62 in Width [Metric] 4.1148 cm Stock Status NONSTOCK Brand BURNDY® Manufacturer BURNDY® Conductor Size 535.3 kcmil Die Code L99 Material Copper Stud Size 1/2 in Wire Termination Features: UL Listed 90 DEG C, 600 V - 35 KV, 45 DEG And 90 DEG Angles Are Available, With Inspection Window, Wire Strip Length: 2-7/8 IN, Die Index: L99, Finish: Electro-Tin Plated, Temperature Rating: 90 DEG C, Tongue Angle: Straight, Color Code: Pink, Tools, Die Set Catalog Number, And (number Of Crimps): Hydraulic: Y35, Y39, Y750, PAT750 Tool, U38XRT Die, (4), Y46 Tool, U38XRT Die With PUADP-1 Adapter, (4), Conductor Type: Flexible, Dieless Tools (number Of Crimps): Y644HS Tool, (1), Y81KFT, Y81KFTMBH, PAT81KFT-18V Tool, (2) For hydraulic: Y35, Y39, Y750, PAT750 tool, (4), U38XRT die, Y46 tool, (4), U38XRT die with PUADP-1 adapter, Conductor Type: Flexible, dieless tools (number Of Crimps): Y644HS tool, (1), Y81KFT, (2), Y81KFTMBH, PAT81KFT-18V tool installation tool 535.5 kcmil (1325/NO 24) DLO size, 500 kcmil flex conductor size Flex conductor 2-3/4 in L Strip, 1.75 in Hole Center to Center Distance Electro Tin Plated Copper
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | Wire Termination |
| ARRA Compliant | C |
| Barrel Size | 2.81 in L |
| Barrel Type | Long/Skived |
| Buy American Compliant | C |
| Catalog Number | YAZ382NTCFX |
| Color | Pink |
| Color Code | Pink |
| Country of Origin | US |
| EU RoHS Indicator | Y |
| Gross Weight Per Pack | 0.9100 lb |
| Gross Weight per Pack Metric | 0.41 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8535908020 |
| Height | 1.25 in |
| Height [Metric] | 3.1750 cm |
| Length | 6.72 in |
| Length [Metric] | 17.0688 cm |
| Overall Length | 6.72 in |
| Returnable | Y |
| Series | YAZ-FX |
| Specifications | 2-3/4 in L Wire Stripe, 1-3/4 in Hole Spacing |
| Standard | UL 486A-486B |
| Standards | UL Listed, CSA Certified and RoHS Compliant |
| Sub Brand | HYLUG |
| Temperature Rating | 90 °C |
| Tongue Size | 1.84 in W x 0.27 in THK |
| Tongue Type | Straight |
| Type | Long Barrel, Skive |
| UNSPSC | 39121405 |
| UPC 11 | 78181022867 |
| UPC 12 | 781810228678 |
| Voltage Rating | 35,000 V |
| Width | 1.62 in |
| Width [Metric] | 4.1148 cm |
| Stock Status | NONSTOCK |
| Brand | BURNDY® |
| Manufacturer | BURNDY® |
| Conductor Size | 535.3 kcmil |
| Die Code | L99 |
| Material | Copper |
| Stud Size | 1/2 in |
| Wire Termination |
| Features: UL Listed 90 DEG C, 600 V - 35 KV, 45 DEG And 90 DEG Angles Are Available, With Inspection Window, Wire Strip Length: 2-7/8 IN, Die Index: L99, Finish: Electro-Tin Plated, Temperature Rating: 90 DEG C, Tongue Angle: Straight, Color Code: Pink, Tools, Die Set Catalog Number, And (number Of Crimps): Hydraulic: Y35, Y39, Y750, PAT750 Tool, U38XRT Die, (4), Y46 Tool, U38XRT Die With PUADP-1 Adapter, (4), Conductor Type: Flexible, Dieless Tools (number Of Crimps): Y644HS Tool, (1), Y81KFT, Y81KFTMBH, PAT81KFT-18V Tool, (2) |
| For hydraulic: Y35, Y39, Y750, PAT750 tool, (4), U38XRT die, Y46 tool, (4), U38XRT die with PUADP-1 adapter, Conductor Type: Flexible, dieless tools (number Of Crimps): Y644HS tool, (1), Y81KFT, (2), Y81KFTMBH, PAT81KFT-18V tool installation tool |
| 535.5 kcmil (1325/NO 24) DLO size, 500 kcmil flex conductor size |
| Flex conductor |
| 2-3/4 in L Strip, 1.75 in Hole Center to Center Distance |
| Electro Tin Plated Copper |
