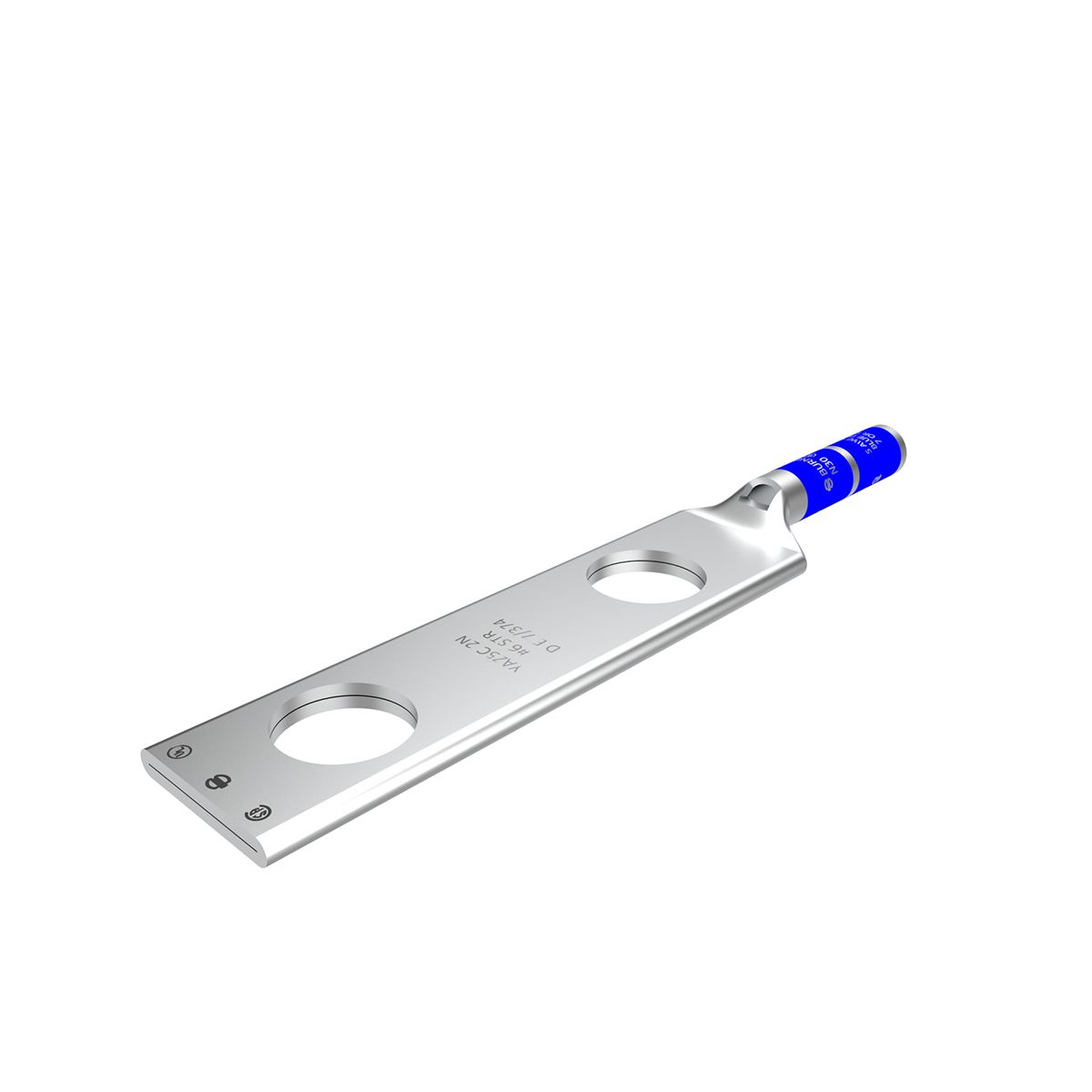

Burndy® YAZ2C2N HYLUG™ YAZ-2N 2-Hole Compression Lug With Inspection Window, 2 AWG Copper Conductor, 1/2 in Stud, 10, Copper
Custom_Product_Images_Illustration
Burndy® YAZ2C2N HYLUG™ YAZ-2N 2-Hole Compression Lug With Inspection Window, 2 AWG Copper Conductor, 1/2 in Stud, 10, Copper
SKU605247
MFGR #YAZ2C2N
$/ea
BURNDY's compression connectors are designed for reliable and controllable electrical connections. The complete installation is fully inspectable. They are high conductivity copper and operate cooler than the wire on which they are installed. The connectors withstand a wide range of electrical and environmental conditions, including current surges, temperatures, corrosion and vibrations, for a wide variety of applications. These features mean a consistently high quality connection at a low installed cost. Copper compression connectors are manufactured from high-conductivity electrolytic copper. The connectors are normally tinplated, lead-plated, or plated with proprietary BURNDY® brite finish to provide durable long-lasting corrosion resistance. The connector design has been matched to the cable size to provide the necessary physical strength requirements for reliable electrical performance.
BURNDY's compression connectors are designed for reliable and controllable electrical connections. The complete installation is fully inspectable. They are high conductivity copper and operate cooler than the wire on which they are installed. The connectors withstand a wide range of electrical and environmental conditions, including current surges, temperatures, corrosion and vibrations, for a wide variety of applications. These features mean a consistently high quality connection at a low installed cost. Copper compression connectors are manufactured from high-conductivity electrolytic copper. The connectors are normally tinplated, lead-plated, or plated with proprietary BURNDY® brite finish to provide durable long-lasting corrosion resistance. The connector design has been matched to the cable size to provide the necessary physical strength requirements for reliable electrical performance.
Application Wire Termination ARRA Compliant C Barrel Size 1-1/4 in L Barrel Type Long/Skived Buy American Compliant C Catalog Number YAZ2C2N Color Brown Color Code Brown Country of Origin US EU RoHS Indicator Y Gross Weight Per Pack 0.0800 lb Gross Weight per Pack Metric 0.04 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8535908020 Height 0.42 in Height [Metric] 1.0668 cm Length 4.64 in Length [Metric] 11.7856 cm Overall Length 4.64 in Returnable Y Series YAZ-2N Specifications 1-5/16 in L Wire Stripe, 1-3/4 in Hole Spacing Standard UL 486A-486B Standards UL468A-468B, CSA Certified and RoHS Compliant Sub Brand HYLUG Temperature Rating 90 °C Tongue Size 0.83 in W x 0.12 in THK Tongue Type Straight Type Long Barrel, Skive, Tin Plated UNSPSC 39121405 UPC 11 78181020855 UPC 12 781810208557 Voltage Rating 35,000 V Width 0.83 in Width [Metric] 2.1082 cm Stock Status NONSTOCK Brand BURNDY® Manufacturer BURNDY® Conductor Size 2 AWG Conductor Type Stranded Copper Die Code 10 Material Copper Stud Size 1/2 in Wire Termination Features: UL Listed 90 DEG C, 600 V - 35 KV, 45 DEG And 90 DEG Angles Are Available, With Inspection Window, Finish: Electro-Tin Plated, Tongue Angle: Straight, Temperature Rating: 90 DEG C, Wire Strip Length: 1-5/16 IN, Color Code: Brown, Tools, Die Set Catalog Number, And (number Of Crimps): Mechanical: MD6, OUR840, MD7-34R Tool, W2CVT, W2CRT, X2CRT Die, (2), Hydraulic: BCT500HS, Y500CTHS Tool, W2CVT, W2CRT, X2CRT Die, (2), Y35, Y39, Y750, PAT750 Tool, U2CRT Die, (2), Y46 Tool, U2CRT Die With PUADP-1 Adapter, (2), Dieless Tools (number Of Crimps): Y644HS Tool, (1), Y81KFT, Y81KFTMBH, PAT81KFT-18V, MY29-3, MY29-11, MRC840 Tool, (2), Y1MRTC Tool, (4), Die Index: 10 For mechanical: MD6, OUR840, MD7-34R tool, (2), W2CVT, W2CRT, X2CRT die, hydraulic: BCT500HS, Y500CTHS tool, (2), W2CVT, W2CRT, X2CRT die, Y35, Y39, Y750, PAT750 tool, (2), U2CRT die, Y46 tool, (2), U2CRT die with PUADP-1 adapter, dieless tools (number Of crimps): Y644HS tool, (1), Y81KFT, Y81KFTMBH, PAT81KFT-18V, MY29-3, MY29-11, MRC840 tool, (2), Y1MRTC tool installation tool 60 (37) navy cable size, 2 AWG copper stranded conductor size 2 AWG stranded conductor size 1-5/16 in L Strip, 1.75 in Hole Center to Center Distance Electro Tin Plated Copper
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | Wire Termination |
| ARRA Compliant | C |
| Barrel Size | 1-1/4 in L |
| Barrel Type | Long/Skived |
| Buy American Compliant | C |
| Catalog Number | YAZ2C2N |
| Color | Brown |
| Color Code | Brown |
| Country of Origin | US |
| EU RoHS Indicator | Y |
| Gross Weight Per Pack | 0.0800 lb |
| Gross Weight per Pack Metric | 0.04 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8535908020 |
| Height | 0.42 in |
| Height [Metric] | 1.0668 cm |
| Length | 4.64 in |
| Length [Metric] | 11.7856 cm |
| Overall Length | 4.64 in |
| Returnable | Y |
| Series | YAZ-2N |
| Specifications | 1-5/16 in L Wire Stripe, 1-3/4 in Hole Spacing |
| Standard | UL 486A-486B |
| Standards | UL468A-468B, CSA Certified and RoHS Compliant |
| Sub Brand | HYLUG |
| Temperature Rating | 90 °C |
| Tongue Size | 0.83 in W x 0.12 in THK |
| Tongue Type | Straight |
| Type | Long Barrel, Skive, Tin Plated |
| UNSPSC | 39121405 |
| UPC 11 | 78181020855 |
| UPC 12 | 781810208557 |
| Voltage Rating | 35,000 V |
| Width | 0.83 in |
| Width [Metric] | 2.1082 cm |
| Stock Status | NONSTOCK |
| Brand | BURNDY® |
| Manufacturer | BURNDY® |
| Conductor Size | 2 AWG |
| Conductor Type | Stranded Copper |
| Die Code | 10 |
| Material | Copper |
| Stud Size | 1/2 in |
| Wire Termination |
| Features: UL Listed 90 DEG C, 600 V - 35 KV, 45 DEG And 90 DEG Angles Are Available, With Inspection Window, Finish: Electro-Tin Plated, Tongue Angle: Straight, Temperature Rating: 90 DEG C, Wire Strip Length: 1-5/16 IN, Color Code: Brown, Tools, Die Set Catalog Number, And (number Of Crimps): Mechanical: MD6, OUR840, MD7-34R Tool, W2CVT, W2CRT, X2CRT Die, (2), Hydraulic: BCT500HS, Y500CTHS Tool, W2CVT, W2CRT, X2CRT Die, (2), Y35, Y39, Y750, PAT750 Tool, U2CRT Die, (2), Y46 Tool, U2CRT Die With PUADP-1 Adapter, (2), Dieless Tools (number Of Crimps): Y644HS Tool, (1), Y81KFT, Y81KFTMBH, PAT81KFT-18V, MY29-3, MY29-11, MRC840 Tool, (2), Y1MRTC Tool, (4), Die Index: 10 |
| For mechanical: MD6, OUR840, MD7-34R tool, (2), W2CVT, W2CRT, X2CRT die, hydraulic: BCT500HS, Y500CTHS tool, (2), W2CVT, W2CRT, X2CRT die, Y35, Y39, Y750, PAT750 tool, (2), U2CRT die, Y46 tool, (2), U2CRT die with PUADP-1 adapter, dieless tools (number Of crimps): Y644HS tool, (1), Y81KFT, Y81KFTMBH, PAT81KFT-18V, MY29-3, MY29-11, MRC840 tool, (2), Y1MRTC tool installation tool |
| 60 (37) navy cable size, 2 AWG copper stranded conductor size |
| 2 AWG stranded conductor size |
| 1-5/16 in L Strip, 1.75 in Hole Center to Center Distance |
| Electro Tin Plated Copper |
