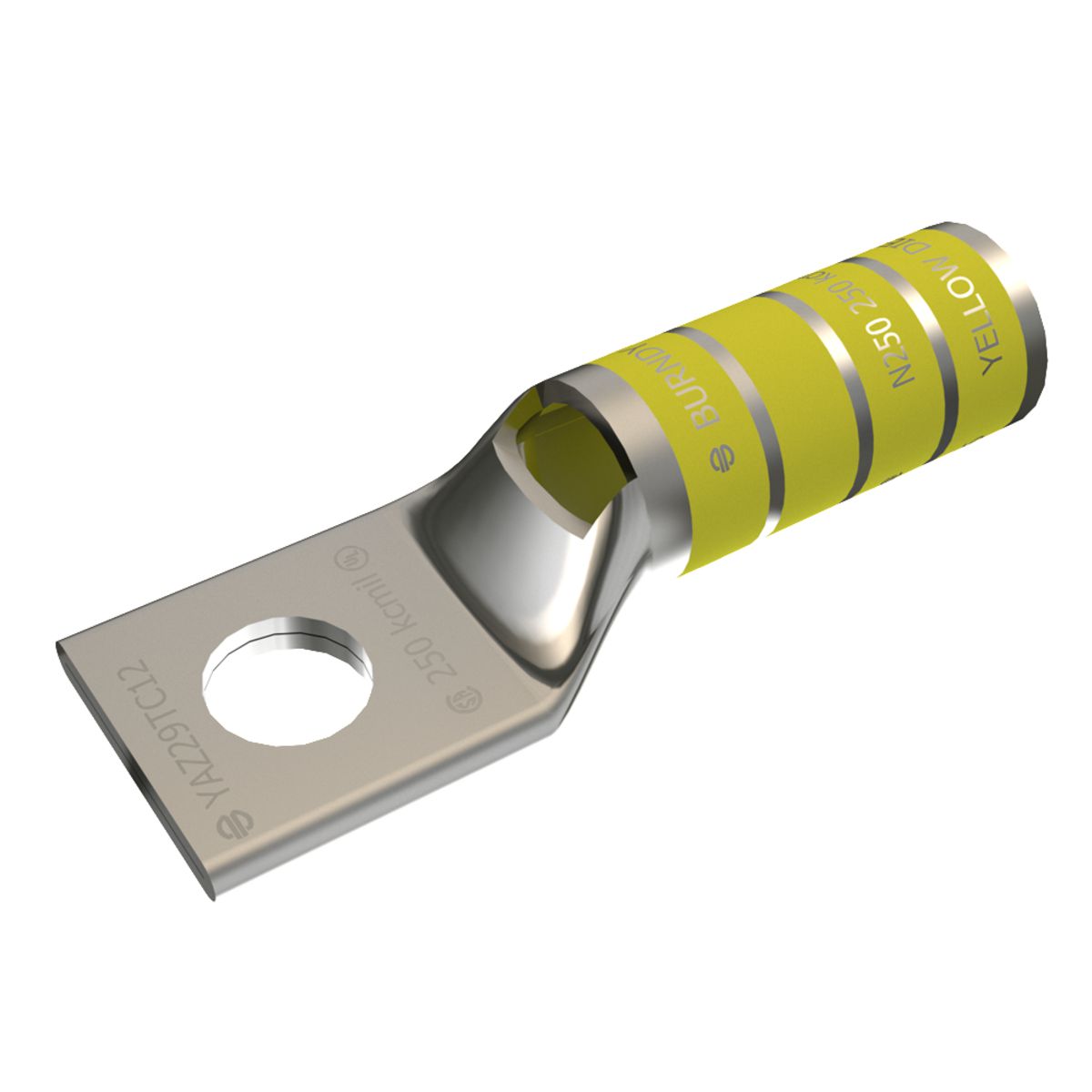

Burndy® YAZ29TC38 HYLUG™ YAZ 1-Hole Non-Insulated Compression Lug With Inspection Window, 250 kcmil Copper Conductor, 3/8 in Stud
Custom_Product_Images_Illustration
Burndy® YAZ29TC38 HYLUG™ YAZ 1-Hole Non-Insulated Compression Lug With Inspection Window, 250 kcmil Copper Conductor, 3/8 in Stud
SKU319071
MFGR #YAZ29TC38
$/ea
BURNDY's compression connectors are designed for reliable and controllable electrical connections. The complete installation is fully inspectable. They are high conductivity copper and operate cooler than the wire on which they are installed. The connectors withstand a wide range of electrical and environmental conditions, including current surges, temperatures, corrosion and vibrations, for a wide variety of applications. These features mean a consistently high quality connection at a low installed cost. Copper compression connectors are manufactured from high-conductivity electrolytic copper. The connectors are normally tinplated, lead-plated, or plated with proprietary BURNDY® brite finish to provide durable long-lasting corrosion resistance. The connector design has been matched to the cable size to provide the necessary physical strength requirements for reliable electrical performance.
BURNDY's compression connectors are designed for reliable and controllable electrical connections. The complete installation is fully inspectable. They are high conductivity copper and operate cooler than the wire on which they are installed. The connectors withstand a wide range of electrical and environmental conditions, including current surges, temperatures, corrosion and vibrations, for a wide variety of applications. These features mean a consistently high quality connection at a low installed cost. Copper compression connectors are manufactured from high-conductivity electrolytic copper. The connectors are normally tinplated, lead-plated, or plated with proprietary BURNDY® brite finish to provide durable long-lasting corrosion resistance. The connector design has been matched to the cable size to provide the necessary physical strength requirements for reliable electrical performance.
Application Wire Termination ARRA Compliant C Barrel Size 1.62 in L Barrel Type Long/Skived Buy American Compliant C Catalog Number YAZ29TC38 Color Yellow Color Code Yellow Country of Origin US EU RoHS Indicator Y Gross Weight Per Pack 0.1500 lb Gross Weight per Pack Metric 0.07 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8535908020 Height 0.75 in Height [Metric] 1.9050 cm Length 2.98 in Length [Metric] 7.5692 cm Overall Length 2.98 in Returnable Y Series YAZ Specifications 1-11/16 in L Wire Stripe Standard UL 486A-486B Standards UL Listed, CSA Certified and RoHS Compliant Sub Brand HYLUG Temperature Rating 90 °C Tongue Size 1.1 in W x 0.16 in THK Tongue Type Straight Type Long Barrel, Skive, Tin Plated UNSPSC 39121405 UPC 11 78181024015 UPC 12 781810240151 Voltage Rating 35,000 V Width 1.10 in Width [Metric] 2.7940 cm Stock Status NONSTOCK Brand BURNDY® Manufacturer BURNDY® Conductor Size 250 kcmil Conductor Type Stranded Copper Die Code 16 Material Copper Stud Size 3/8 in Wire Termination Features: UL Listed 90 DEG C, 600 V - 35 KV, 45 DEG And 90 DEG Angles Are Available, With Inspection Window, Temperature Rating: 90 DEG C, Finish: Electro-Tin Plated, Tongue Angle: Straight, Wire Strip Length: 1-11/16 IN, Color Code: Yellow, Tools, Die Set Catalog Number, And (number Of Crimps): Mechanical: MD6, OUR840, MD7-34R Tool, W29VT Die, (4), X29RT Die, (8), Hydraulic: BCT500HS, Y500CTHS Tool, W29VT, W29RT Die, (4), X29RT Die, (6), Y35, Y39, Y750, PAT750 Tool, U29RT Die, (2), Y46 Tool, U29RT Die With PUADP-1 Adapter, (2), Dieless Tools (number Of Crimps): Y644HS Tool, (1), Y81KFT, Y81KFTMBH, PAT81KFT-18V, MY29-3, MY29-11 Tool, (2), Die Index: 16 For mechanical: MD6, OUR840, MD7-34R tool, (4), W29VT die, (8), X29RT die, hydraulic: BCT500HS, Y500CTHS tool, (4), W29VT, W29RT die, X29RT die, (6), Y35, Y39, Y750, PAT750 tool, (2), U29RT die, Y46 tool, (2), U29RT die with PUADP-1 adapter, dieless tools (number Of crimps): Y644HS tool, (1), Y81KFT, Y81KFTMBH, PAT81KFT-18V, MY29-3, MY29-11 tool installation tool 150 (61) navy cable size, 250 kcmil copper stranded conductor size 250 kcmil stranded conductor size 1-11/16 in L Strip Electro Tin Plated Copper
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | Wire Termination |
| ARRA Compliant | C |
| Barrel Size | 1.62 in L |
| Barrel Type | Long/Skived |
| Buy American Compliant | C |
| Catalog Number | YAZ29TC38 |
| Color | Yellow |
| Color Code | Yellow |
| Country of Origin | US |
| EU RoHS Indicator | Y |
| Gross Weight Per Pack | 0.1500 lb |
| Gross Weight per Pack Metric | 0.07 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8535908020 |
| Height | 0.75 in |
| Height [Metric] | 1.9050 cm |
| Length | 2.98 in |
| Length [Metric] | 7.5692 cm |
| Overall Length | 2.98 in |
| Returnable | Y |
| Series | YAZ |
| Specifications | 1-11/16 in L Wire Stripe |
| Standard | UL 486A-486B |
| Standards | UL Listed, CSA Certified and RoHS Compliant |
| Sub Brand | HYLUG |
| Temperature Rating | 90 °C |
| Tongue Size | 1.1 in W x 0.16 in THK |
| Tongue Type | Straight |
| Type | Long Barrel, Skive, Tin Plated |
| UNSPSC | 39121405 |
| UPC 11 | 78181024015 |
| UPC 12 | 781810240151 |
| Voltage Rating | 35,000 V |
| Width | 1.10 in |
| Width [Metric] | 2.7940 cm |
| Stock Status | NONSTOCK |
| Brand | BURNDY® |
| Manufacturer | BURNDY® |
| Conductor Size | 250 kcmil |
| Conductor Type | Stranded Copper |
| Die Code | 16 |
| Material | Copper |
| Stud Size | 3/8 in |
| Wire Termination |
| Features: UL Listed 90 DEG C, 600 V - 35 KV, 45 DEG And 90 DEG Angles Are Available, With Inspection Window, Temperature Rating: 90 DEG C, Finish: Electro-Tin Plated, Tongue Angle: Straight, Wire Strip Length: 1-11/16 IN, Color Code: Yellow, Tools, Die Set Catalog Number, And (number Of Crimps): Mechanical: MD6, OUR840, MD7-34R Tool, W29VT Die, (4), X29RT Die, (8), Hydraulic: BCT500HS, Y500CTHS Tool, W29VT, W29RT Die, (4), X29RT Die, (6), Y35, Y39, Y750, PAT750 Tool, U29RT Die, (2), Y46 Tool, U29RT Die With PUADP-1 Adapter, (2), Dieless Tools (number Of Crimps): Y644HS Tool, (1), Y81KFT, Y81KFTMBH, PAT81KFT-18V, MY29-3, MY29-11 Tool, (2), Die Index: 16 |
| For mechanical: MD6, OUR840, MD7-34R tool, (4), W29VT die, (8), X29RT die, hydraulic: BCT500HS, Y500CTHS tool, (4), W29VT, W29RT die, X29RT die, (6), Y35, Y39, Y750, PAT750 tool, (2), U29RT die, Y46 tool, (2), U29RT die with PUADP-1 adapter, dieless tools (number Of crimps): Y644HS tool, (1), Y81KFT, Y81KFTMBH, PAT81KFT-18V, MY29-3, MY29-11 tool installation tool |
| 150 (61) navy cable size, 250 kcmil copper stranded conductor size |
| 250 kcmil stranded conductor size |
| 1-11/16 in L Strip |
| Electro Tin Plated Copper |
