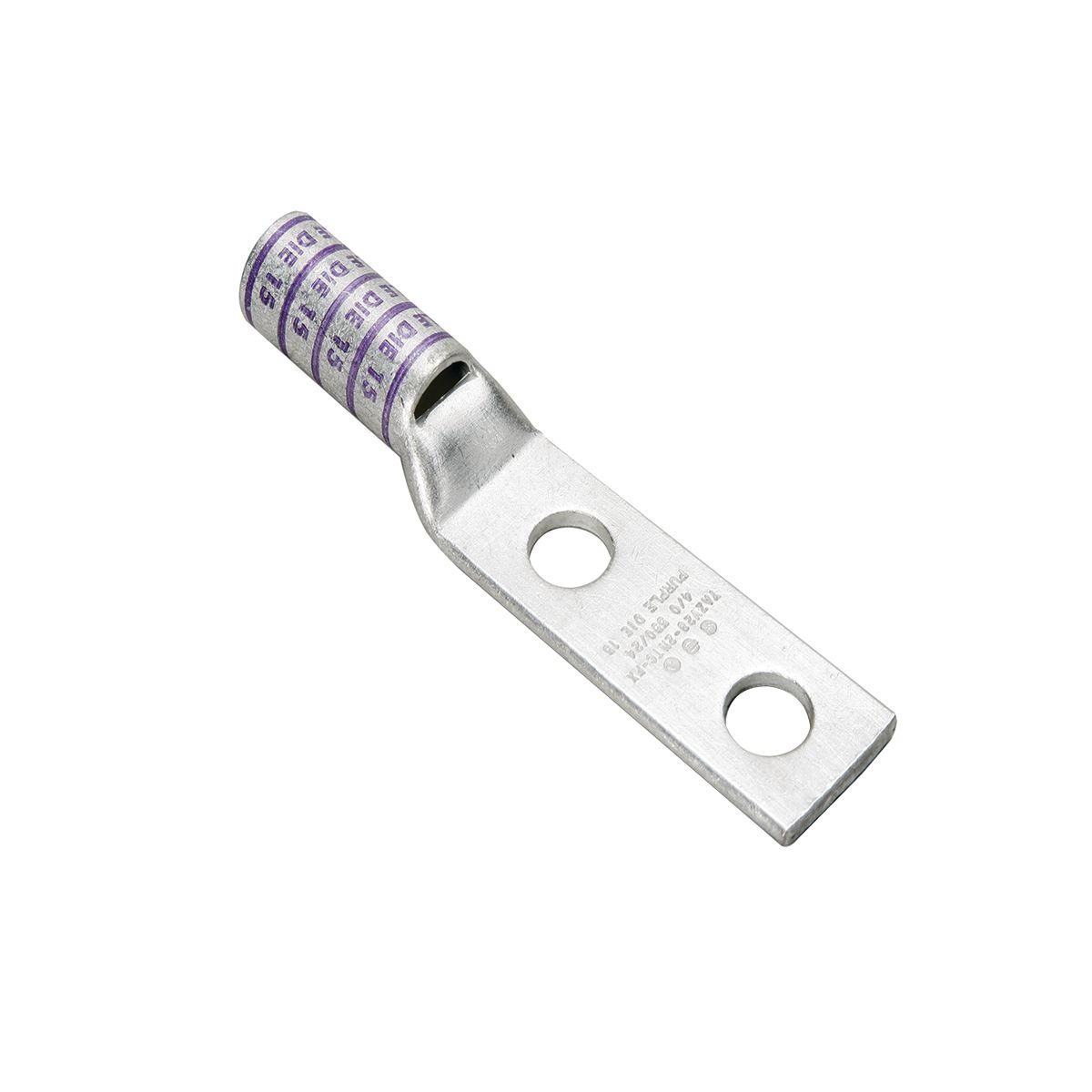

Burndy® YAZ282N HYLUG™ YAZ-2N 2-Hole Compression Lug With Inspection Window, 4/0 AWG Copper Conductor, 1/2 in Stud, 15, Copper
Custom_Product_Images_Illustration
Burndy® YAZ282N HYLUG™ YAZ-2N 2-Hole Compression Lug With Inspection Window, 4/0 AWG Copper Conductor, 1/2 in Stud, 15, Copper
SKU459875
MFGR #YAZ282N
$/ea
BURNDY's compression connectors are designed for reliable and controllable electrical connections. The complete installation is fully inspectable. They are high conductivity copper and operate cooler than the wire on which they are installed. The connectors withstand a wide range of electrical and environmental conditions, including current surges, temperatures, corrosion and vibrations, for a wide variety of applications. These features mean a consistently high quality connection at a low installed cost. Copper compression connectors are manufactured from high-conductivity electrolytic copper. The connectors are normally tinplated, lead-plated, or plated with proprietary BURNDY® brite finish to provide durable long-lasting corrosion resistance. The connector design has been matched to the cable size to provide the necessary physical strength requirements for reliable electrical performance.
BURNDY's compression connectors are designed for reliable and controllable electrical connections. The complete installation is fully inspectable. They are high conductivity copper and operate cooler than the wire on which they are installed. The connectors withstand a wide range of electrical and environmental conditions, including current surges, temperatures, corrosion and vibrations, for a wide variety of applications. These features mean a consistently high quality connection at a low installed cost. Copper compression connectors are manufactured from high-conductivity electrolytic copper. The connectors are normally tinplated, lead-plated, or plated with proprietary BURNDY® brite finish to provide durable long-lasting corrosion resistance. The connector design has been matched to the cable size to provide the necessary physical strength requirements for reliable electrical performance.
Application Wire Termination ARRA Compliant C Barrel Size 1.62 in L Barrel Type Long/Skived Buy American Compliant C Catalog Number YAZ282N Color Purple Color Code Purple Country of Origin US EU RoHS Indicator Y Gross Weight Per Pack 0.2200 lb Gross Weight per Pack Metric 0.10 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8535908020 Height 0.69 in Height [Metric] 1.7526 cm Length 5.15 in Length [Metric] 13.0810 cm Overall Length 5.15 in Returnable Y Series YAZ-2N Specifications 1-11/16 in L Wire Stripe, 1-3/4 in Hole Spacing Standard UL 486A-486B Standards UL468A-468B, CSA Certified and RoHS Compliant Sub Brand HYLUG Temperature Rating 90 °C Tongue Size 1.02 in W x 0.14 in THK Tongue Type Straight Type Long Barrel, Skive, Tin Plated UNSPSC 39121405 UPC 11 78181020859 UPC 12 781810208595 Voltage Rating 35,000 V Width 1.02 in Width [Metric] 2.5908 cm Stock Status NONSTOCK Brand BURNDY® Manufacturer BURNDY® Conductor Size 4/0 AWG Conductor Type Stranded Copper Die Code 15 Material Copper Stud Size 1/2 in Wire Termination Features: UL Listed 90 DEG C, 600 V - 35 KV, 45 DEG And 90 DEG Angles Are Available, With Inspection Window, Tongue Angle: Straight, Finish: Electro-Tin Plated, Temperature Rating: 90 DEG C, Wire Strip Length: 1-11/16 IN, Tools, Die Set Catalog Number, And (number Of Crimps): Mechanical: MD6, OUR840, MD7-34R Tool, W28VT, W28RT Die, (4), X28RT Die, (6), Hydraulic: BCT500HS, Y500CTHS Tool, W28VT, W28RT Die, (4), X28RT Die, (6), Y35, Y39, Y750, PAT750 Tool, U28RT Die, (2), Y46 Tool, U28RT Die With PUADP-1 Adapter, (2), Color Code: Purple, Dieless Tools (number Of Crimps): Y644HS Tool, (1), Y81KFT, Y81KFTMBH, PAT81KFT-18V, MY29-3, MY29-11 Tool, (2), MRC840 Tool, (4), Die Index: 15 For mechanical: MD6, OUR840, MD7-34R tool, (4), W28VT, W28RT die, (6), X28RT die, hydraulic: BCT500HS, Y500CTHS tool, (4), W28VT, W28RT die, X28RT die, (6), Y35, Y39, Y750, PAT750 tool, (2), U28RT die, Y46 tool, U28RT die with PUADP-1 adapter, dieless tools (number Of crimps): Y644HS tool, (1), Y81KFT, Y81KFTMBH, PAT81KFT-18V, MY29-3, MY29-11 tool, (2), MRC840 tool installation tool 200 (61) navy cable size, 4/0 AWG copper stranded conductor size 4/0 AWG stranded conductor size 1-11/16 in L Strip, 1.75 in Hole Center to Center Distance Electro Tin Plated Copper
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | Wire Termination |
| ARRA Compliant | C |
| Barrel Size | 1.62 in L |
| Barrel Type | Long/Skived |
| Buy American Compliant | C |
| Catalog Number | YAZ282N |
| Color | Purple |
| Color Code | Purple |
| Country of Origin | US |
| EU RoHS Indicator | Y |
| Gross Weight Per Pack | 0.2200 lb |
| Gross Weight per Pack Metric | 0.10 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8535908020 |
| Height | 0.69 in |
| Height [Metric] | 1.7526 cm |
| Length | 5.15 in |
| Length [Metric] | 13.0810 cm |
| Overall Length | 5.15 in |
| Returnable | Y |
| Series | YAZ-2N |
| Specifications | 1-11/16 in L Wire Stripe, 1-3/4 in Hole Spacing |
| Standard | UL 486A-486B |
| Standards | UL468A-468B, CSA Certified and RoHS Compliant |
| Sub Brand | HYLUG |
| Temperature Rating | 90 °C |
| Tongue Size | 1.02 in W x 0.14 in THK |
| Tongue Type | Straight |
| Type | Long Barrel, Skive, Tin Plated |
| UNSPSC | 39121405 |
| UPC 11 | 78181020859 |
| UPC 12 | 781810208595 |
| Voltage Rating | 35,000 V |
| Width | 1.02 in |
| Width [Metric] | 2.5908 cm |
| Stock Status | NONSTOCK |
| Brand | BURNDY® |
| Manufacturer | BURNDY® |
| Conductor Size | 4/0 AWG |
| Conductor Type | Stranded Copper |
| Die Code | 15 |
| Material | Copper |
| Stud Size | 1/2 in |
| Wire Termination |
| Features: UL Listed 90 DEG C, 600 V - 35 KV, 45 DEG And 90 DEG Angles Are Available, With Inspection Window, Tongue Angle: Straight, Finish: Electro-Tin Plated, Temperature Rating: 90 DEG C, Wire Strip Length: 1-11/16 IN, Tools, Die Set Catalog Number, And (number Of Crimps): Mechanical: MD6, OUR840, MD7-34R Tool, W28VT, W28RT Die, (4), X28RT Die, (6), Hydraulic: BCT500HS, Y500CTHS Tool, W28VT, W28RT Die, (4), X28RT Die, (6), Y35, Y39, Y750, PAT750 Tool, U28RT Die, (2), Y46 Tool, U28RT Die With PUADP-1 Adapter, (2), Color Code: Purple, Dieless Tools (number Of Crimps): Y644HS Tool, (1), Y81KFT, Y81KFTMBH, PAT81KFT-18V, MY29-3, MY29-11 Tool, (2), MRC840 Tool, (4), Die Index: 15 |
| For mechanical: MD6, OUR840, MD7-34R tool, (4), W28VT, W28RT die, (6), X28RT die, hydraulic: BCT500HS, Y500CTHS tool, (4), W28VT, W28RT die, X28RT die, (6), Y35, Y39, Y750, PAT750 tool, (2), U28RT die, Y46 tool, U28RT die with PUADP-1 adapter, dieless tools (number Of crimps): Y644HS tool, (1), Y81KFT, Y81KFTMBH, PAT81KFT-18V, MY29-3, MY29-11 tool, (2), MRC840 tool installation tool |
| 200 (61) navy cable size, 4/0 AWG copper stranded conductor size |
| 4/0 AWG stranded conductor size |
| 1-11/16 in L Strip, 1.75 in Hole Center to Center Distance |
| Electro Tin Plated Copper |
