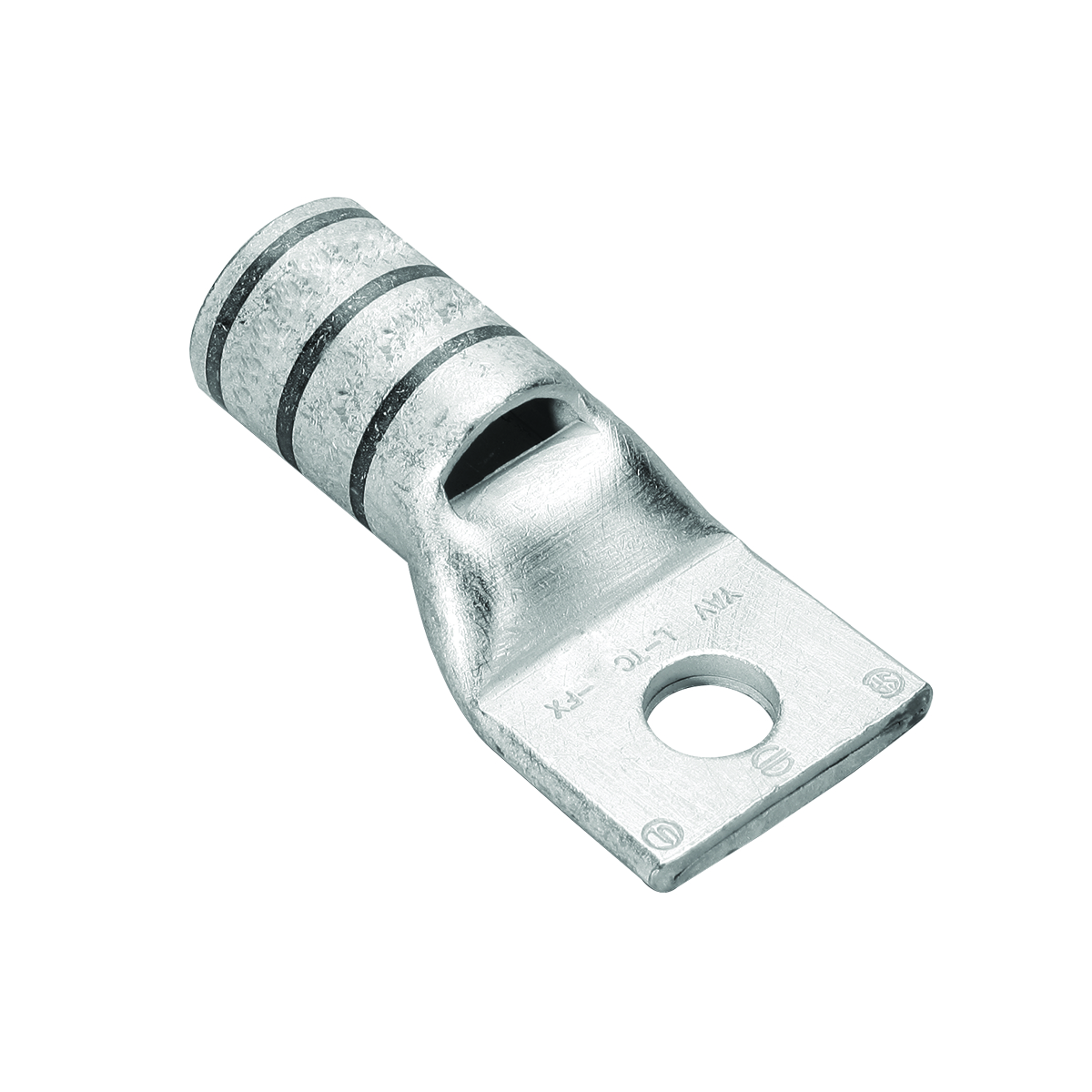

Burndy® YAV8CLBOX HYLUG™ YAV-L 1-Hole Heavy Duty Compression Lug With Inspection Window, 8 AWG Copper Conductor

Lug Compression Connectors
19574 MFG #: YAV8CLBOX
BURNDY®
2.63000 / ea
10969_98FQG3WPDEOX6RMH
BURNDY's compression connectors are designed for reliable and controllable electrical connections. The complete installation is fully inspectable. They are high conductivity copper and operate cooler than the wire on which they are installed. The connectors withstand a wide range of electrical and environmental conditions, including current surges, temperatures, corrosion and vibrations, for a wide variety of applications. These features mean a consistently high quality connection at a low installed cost. Copper compression connectors are manufactured from high-conductivity electrolytic copper. The connectors are normally tinplated, lead-plated, or plated with proprietary BURNDY® brite finish to provide durable long-lasting corrosion resistance. The connector design has been matched to the cable size to provide the necessary physical strength requirements for reliable electrical performance.
QTY
Add to Wishlist
  • Applications
  • Features
For Use On Type AN Aircraft Cable, Extra Flexible Conductors And Commercial (Code) Conductors, Industrials, Hospitals, Electric Utilities, Marine, Computers, And Other Equipment Subject To Vibration Or Requiring Dependable Electrical Performance
Features: HYLUG Type YAV Is A Seamless, Heavy Duty Uninsulated Compression Terminal Manufactured From Electrolytic Copper And Is For Use On Type AN Aircraft Cable, Extra Flexible Conductors And Commercial (Code) Conductors, The Seamless Tubing Produces A Double Thick Tongue And Seamless Barrel Design Provides A Strong Connector For Demanding Applications Requiring High Reliability, Applications Include Aircraft, Industrials, Hospitals, Electric Utilities, Marine, Computers, And Other Equipment Subject To Vibration Or Requiring Dependable Electrical Performance, The YAV HYLUG Terminals Meet The Requirements Of SAE-AS7928 And Are Listed Per AS20659 For Use With Copper Aircraft Cable Per MIL-W-5086, The Benefits Of YAV-L Connectors Are The Same As YAV Connectors For Stranded Conductors, Tools, Die Nest Catalog Number, Die Indentor Catalog Number: HYPRESS: Y29B, Y29NC Tool, DV8L-1 Die Nest, Y29PL Die Indentor, (1) Crimp, Y35, Y39, Y750 Tool, UV8L Die Nest, Y34PL Die Indentor, (1) Crimp, Finish: Electro-Tin Plated, Package: Box, Wire Shroud: No, Installation Tool: HYTOOL: Non-Ratchet: MY29-11 Tool, Ratchet: MR4C, MR8-9Q, Y8MRB-1, M8ND Tool With N8CT Die, Ms20659 Dash Number: -107, Die Index: 38, Conductor Type: Commercial/Military Stranded Copper, Tongue Angle: Straight, Wire Strip Length: 1/2 IN
Uninsulated compression terminal manufactured from electrolytic copper and is for use on type AN aircraft cable, extra flexible conductors and commercial (code) conductors
The seamless tubing produces a double thick tongue and seamless barrel design provides a strong connector for demanding applications requiring high reliability
Used for other equipment that is subject to vibration or requiring dependable electrical performance
The benefits of YAV-L connectors are the same as YAV connectors for stranded conductors
For HYtool MY29-11 non-ratchet, MR4C, MR8-9Q, Y8MRB-1, M8ND tool with N8CT die ratchet, HYPRESS Y29B, Y29NC tool, DV8L-1 die nest, Y29PL die indentor, (1) crimp, Y35, Y39, Y750 tool, UV8L die nest, Y34PL die indentor, (1) crimp installation tools
Box packaging
AN 8 aircraft cable size, 9 to 8 AWG copper stranded conductor
Copper/flex conductor
Pure electrolytic tin plated
0.94 in hole center to barrel end, 0.28 in hole center to barrel
1/2 in L Strip, 0.94 in Hole Center to Barrel End, 0.28 in Hole Center to Barrel
