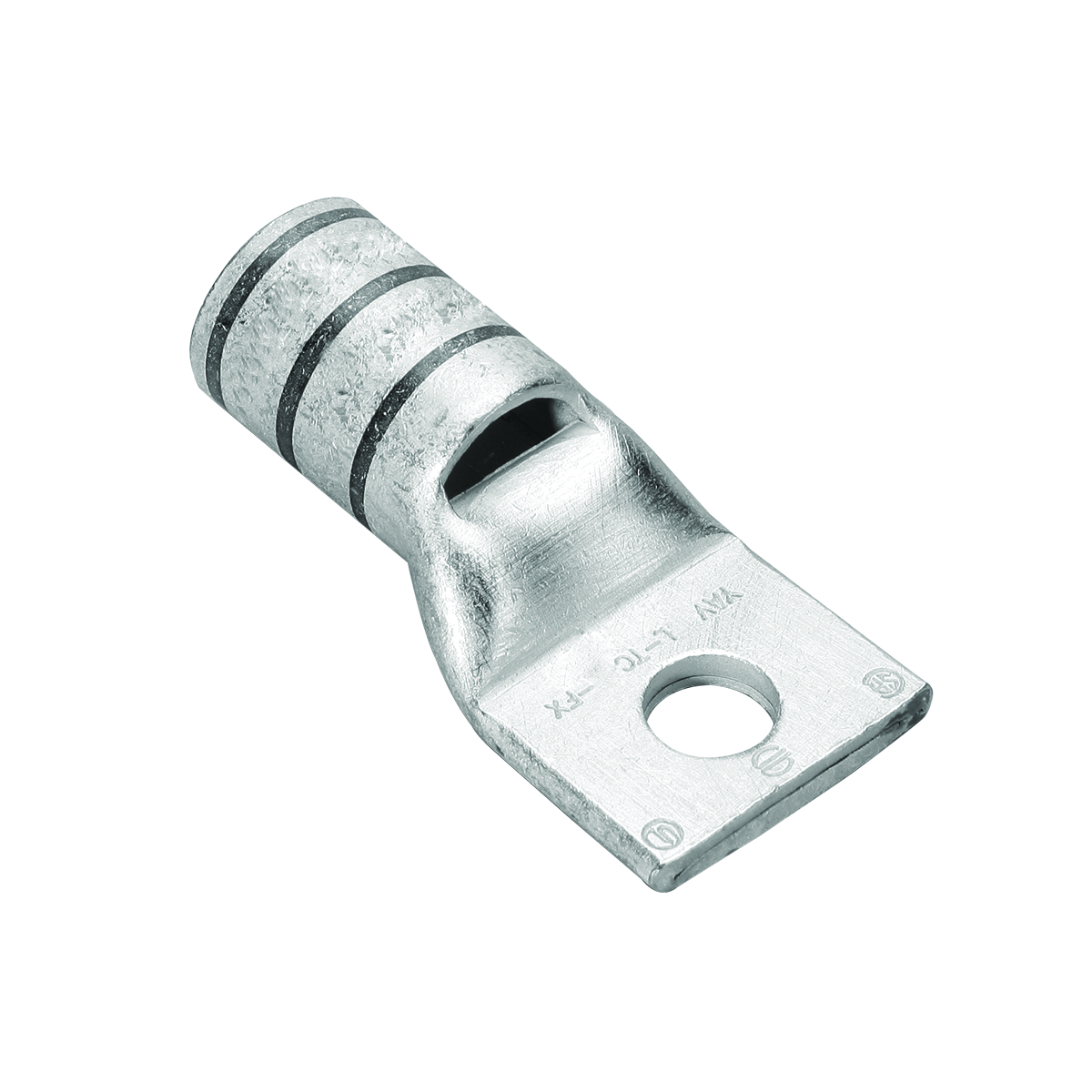

Burndy® YAV6CL HYLUG™ YAV-L 1-Hole Heavy Duty Compression Lug With Inspection Hole, 6 AWG Copper Conductor
Custom_Product_Images_Illustration
Burndy® YAV6CL HYLUG™ YAV-L 1-Hole Heavy Duty Compression Lug With Inspection Hole, 6 AWG Copper Conductor
SKU743850
MFGR #YAV6CL
Your Cost: $1.91/ea
BURNDY's compression connectors are designed for reliable and controllable electrical connections. The complete installation is fully inspectable. They are high conductivity copper and operate cooler than the wire on which they are installed. The connectors withstand a wide range of electrical and environmental conditions, including current surges, temperatures, corrosion and vibrations, for a wide variety of applications. These features mean a consistently high quality connection at a low installed cost. Copper compression connectors are manufactured from high-conductivity electrolytic copper. The connectors are normally tinplated, lead-plated, or plated with proprietary BURNDY® brite finish to provide durable long-lasting corrosion resistance. The connector design has been matched to the cable size to provide the necessary physical strength requirements for reliable electrical performance.
BURNDY's compression connectors are designed for reliable and controllable electrical connections. The complete installation is fully inspectable. They are high conductivity copper and operate cooler than the wire on which they are installed. The connectors withstand a wide range of electrical and environmental conditions, including current surges, temperatures, corrosion and vibrations, for a wide variety of applications. These features mean a consistently high quality connection at a low installed cost. Copper compression connectors are manufactured from high-conductivity electrolytic copper. The connectors are normally tinplated, lead-plated, or plated with proprietary BURNDY® brite finish to provide durable long-lasting corrosion resistance. The connector design has been matched to the cable size to provide the necessary physical strength requirements for reliable electrical performance.
Application For Use On Type AN Aircraft Cable, Extra Flexible Conductors And Commercial (Code) Conductors, Industrials, Hospitals, Electric Utilities, Marine, Computers, And Other Equipment Subject To Vibration Or Requiring Dependable Electrical Performance ARRA Compliant C Barrel Size 0.47 in L Barrel Type Short Buy American Compliant C Catalog Number YAV6CL Country of Origin US EU RoHS Indicator Y Gross Weight Per Pack 0.0100 lb Gross Weight per Pack Metric 0.00 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8535908020 Height 0.30 in Height [Metric] 0.7620 cm Length 1.31 in Length [Metric] 3.3274 cm Overall Length 1.31 in Returnable Y Series YAV-L Specifications 1/2 in L Wire Strip Standard UL467;Military Specified (Mil-Spec) Standards ARRA CompliantBuy American Act CompliantRoHS CompliantUL 467 Military Specified Class 1CSA CertifiedSAE-AS7928 Sub Brand HYLUG Tongue Size 0.48 in W x 0.07 in THK Tongue Type Ring Straight Type Ring Tongue UNSPSC 39121405 UPC 11 78181002559 UPC 12 781810025598 Voltage Rating 600 VAC Width 0.48 in Width [Metric] 1.2192 cm Stock Status NONSTOCK Brand BURNDY® Manufacturer BURNDY® Conductor Size 6 to 5 AWG Conductor Type Stranded Copper Die Code 39 Material Copper Stud Size 1/4 in For Use On Type AN Aircraft Cable, Extra Flexible Conductors And Commercial (Code) Conductors, Industrials, Hospitals, Electric Utilities, Marine, Computers, And Other Equipment Subject To Vibration Or Requiring Dependable Electrical Performance Features: HYLUG Type YAV Is A Seamless, Heavy Duty Uninsulated Compression Terminal Manufactured From Electrolytic Copper And Is For Use On Type AN Aircraft Cable, Extra Flexible Conductors And Commercial (Code) Conductors, The Seamless Tubing Produces A Double Thick Tongue And Seamless Barrel Design Provides A Strong Connector For Demanding Applications Requiring High Reliability, Applications Include Aircraft, Industrials, Hospitals, Electric Utilities, Marine, Computers, And Other Equipment Subject To Vibration Or Requiring Dependable Electrical Performance, The YAV HYLUG Terminals Meet The Requirements Of SAE-AS7928 And Are Listed Per AS20659 For Use With Copper Aircraft Cable Per MIL-W-5086, The Benefits Of YAV-L Connectors Are The Same As YAV Connectors For Stranded Conductors, Package: Bulk, Tools, Die Nest Catalog Number, Die Indentor Catalog Number: HYPRESS: Y29NC, Y29B Tool, DV6L Die Nest, Y29PL Die Indentor, (1) Crimp, Y35, Y39 Tool, UV6L Die Nest, Y35P3 Die Indentor, (1) Crimp, Y750 Tool, UV6L Die Nest, Y34PLA Die Indentor, (1) Crimp, Ms20659 Dash Number: -109, Die Index: 39, Wire Strip Length: 1/2 IN, Installation Tool: HYTOOL: Non-Ratchet: MY28, MY29-11 Tool, Ratchet: MR4C Tool, Finish: Electro-Tin Plated Uninsulated compression terminal manufactured from electrolytic copper and is for use on type AN aircraft cable, extra flexible conductors and commercial (code) conductors The seamless tubing produces a double thick tongue and seamless barrel design provides a strong connector for demanding applications requiring high reliability Used for other equipment that is subject to vibration or requiring dependable electrical performance The benefits of YAV-L connectors are the same as YAV connectors for stranded conductors For HYtool MY28, MY29-11 non-ratchet, MR4C ratchet, HYPRESS Y29NC, Y29B, DV6L die nest, Y29PL die indentor, (1) crimp, Y35, Y39, UV6L die nest, Y35P3 die indentor, (1) crimp, Y750, UV6L die nest, Y34PLA die indentor, (1) crimp installation tools Bulk packaging AN 6 aircraft cable size, 6 AWG copper solid/stranded conductor Copper/flex conductor 1.06 in hole center to barrel end, 0.29 in hole center to barrel Electro tin plated Electro Tin Plated Copper
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | For Use On Type AN Aircraft Cable, Extra Flexible Conductors And Commercial (Code) Conductors, Industrials, Hospitals, Electric Utilities, Marine, Computers, And Other Equipment Subject To Vibration Or Requiring Dependable Electrical Performance |
| ARRA Compliant | C |
| Barrel Size | 0.47 in L |
| Barrel Type | Short |
| Buy American Compliant | C |
| Catalog Number | YAV6CL |
| Country of Origin | US |
| EU RoHS Indicator | Y |
| Gross Weight Per Pack | 0.0100 lb |
| Gross Weight per Pack Metric | 0.00 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8535908020 |
| Height | 0.30 in |
| Height [Metric] | 0.7620 cm |
| Length | 1.31 in |
| Length [Metric] | 3.3274 cm |
| Overall Length | 1.31 in |
| Returnable | Y |
| Series | YAV-L |
| Specifications | 1/2 in L Wire Strip |
| Standard | UL467;Military Specified (Mil-Spec) |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantUL 467 Military Specified Class 1CSA CertifiedSAE-AS7928 |
| Sub Brand | HYLUG |
| Tongue Size | 0.48 in W x 0.07 in THK |
| Tongue Type | Ring Straight |
| Type | Ring Tongue |
| UNSPSC | 39121405 |
| UPC 11 | 78181002559 |
| UPC 12 | 781810025598 |
| Voltage Rating | 600 VAC |
| Width | 0.48 in |
| Width [Metric] | 1.2192 cm |
| Stock Status | NONSTOCK |
| Brand | BURNDY® |
| Manufacturer | BURNDY® |
| Conductor Size | 6 to 5 AWG |
| Conductor Type | Stranded Copper |
| Die Code | 39 |
| Material | Copper |
| Stud Size | 1/4 in |
| For Use On Type AN Aircraft Cable, Extra Flexible Conductors And Commercial (Code) Conductors, Industrials, Hospitals, Electric Utilities, Marine, Computers, And Other Equipment Subject To Vibration Or Requiring Dependable Electrical Performance |
| Features: HYLUG Type YAV Is A Seamless, Heavy Duty Uninsulated Compression Terminal Manufactured From Electrolytic Copper And Is For Use On Type AN Aircraft Cable, Extra Flexible Conductors And Commercial (Code) Conductors, The Seamless Tubing Produces A Double Thick Tongue And Seamless Barrel Design Provides A Strong Connector For Demanding Applications Requiring High Reliability, Applications Include Aircraft, Industrials, Hospitals, Electric Utilities, Marine, Computers, And Other Equipment Subject To Vibration Or Requiring Dependable Electrical Performance, The YAV HYLUG Terminals Meet The Requirements Of SAE-AS7928 And Are Listed Per AS20659 For Use With Copper Aircraft Cable Per MIL-W-5086, The Benefits Of YAV-L Connectors Are The Same As YAV Connectors For Stranded Conductors, Package: Bulk, Tools, Die Nest Catalog Number, Die Indentor Catalog Number: HYPRESS: Y29NC, Y29B Tool, DV6L Die Nest, Y29PL Die Indentor, (1) Crimp, Y35, Y39 Tool, UV6L Die Nest, Y35P3 Die Indentor, (1) Crimp, Y750 Tool, UV6L Die Nest, Y34PLA Die Indentor, (1) Crimp, Ms20659 Dash Number: -109, Die Index: 39, Wire Strip Length: 1/2 IN, Installation Tool: HYTOOL: Non-Ratchet: MY28, MY29-11 Tool, Ratchet: MR4C Tool, Finish: Electro-Tin Plated |
| Uninsulated compression terminal manufactured from electrolytic copper and is for use on type AN aircraft cable, extra flexible conductors and commercial (code) conductors |
| The seamless tubing produces a double thick tongue and seamless barrel design provides a strong connector for demanding applications requiring high reliability |
| Used for other equipment that is subject to vibration or requiring dependable electrical performance |
| The benefits of YAV-L connectors are the same as YAV connectors for stranded conductors |
| For HYtool MY28, MY29-11 non-ratchet, MR4C ratchet, HYPRESS Y29NC, Y29B, DV6L die nest, Y29PL die indentor, (1) crimp, Y35, Y39, UV6L die nest, Y35P3 die indentor, (1) crimp, Y750, UV6L die nest, Y34PLA die indentor, (1) crimp installation tools |
| Bulk packaging |
| AN 6 aircraft cable size, 6 AWG copper solid/stranded conductor |
| Copper/flex conductor |
| 1.06 in hole center to barrel end, 0.29 in hole center to barrel |
| Electro tin plated |
| Electro Tin Plated Copper |
