BURNDY®

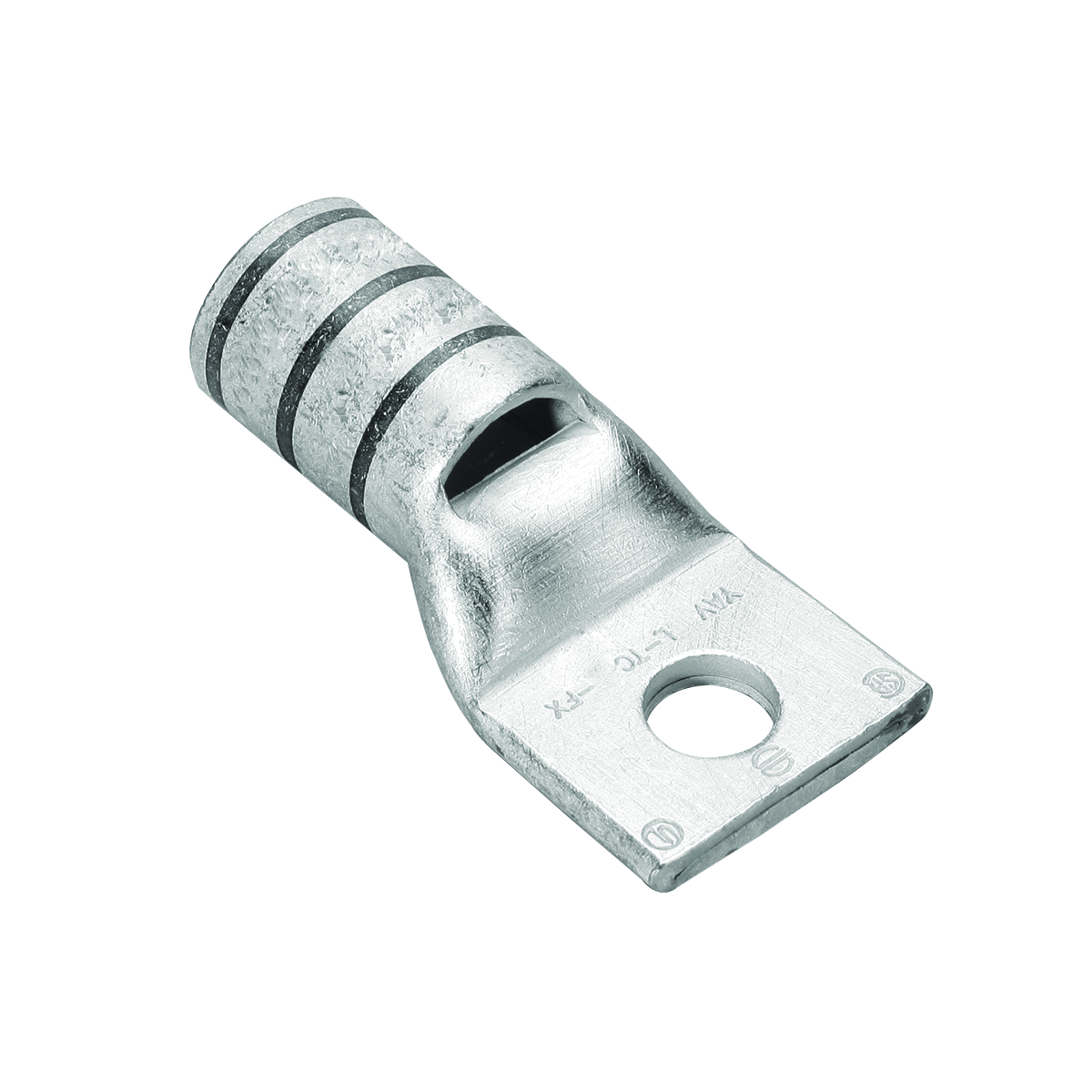

Burndy® YAV4CLTC14FX HYLUG™ YAV-L-FX 1-Hole Compression Lug With Inspection Window, 4 AWG Copper Conductor, 1/4 in Stud, 8, Copper
Custom_Product_Images_Illustration
BURNDY®
Burndy® YAV4CLTC14FX HYLUG™ YAV-L-FX 1-Hole Compression Lug With Inspection Window, 4 AWG Copper Conductor, 1/4 in Stud, 8, Copper
SKU366969
MFGR #YAV4CLTC14FX
Your Cost: $5.75/ea
List: BURNDY's compression connectors are designed for reliable and controllable electrical connections. The complete installation is fully inspectable. They are high conductivity copper and operate cooler than the wire on which they are installed. The connectors withstand a wide range of electrical and environmental conditions, including current surges, temperatures, corrosion and vibrations, for a wide variety of applications. These features mean a consistently high quality connection at a low installed cost. Copper compression connectors are manufactured from high-conductivity electrolytic copper. The connectors are normally tinplated, lead-plated, or plated with proprietary BURNDY® brite finish to provide durable long-lasting corrosion resistance. The connector design has been matched to the cable size to provide the necessary physical strength requirements for reliable electrical performance.
BURNDY's compression connectors are designed for reliable and controllable electrical connections. The complete installation is fully inspectable. They are high conductivity copper and operate cooler than the wire on which they are installed. The connectors withstand a wide range of electrical and environmental conditions, including current surges, temperatures, corrosion and vibrations, for a wide variety of applications. These features mean a consistently high quality connection at a low installed cost. Copper compression connectors are manufactured from high-conductivity electrolytic copper. The connectors are normally tinplated, lead-plated, or plated with proprietary BURNDY® brite finish to provide durable long-lasting corrosion resistance. The connector design has been matched to the cable size to provide the necessary physical strength requirements for reliable electrical performance.
Application Wire Termination ARRA Compliant C Barrel Size 1/2 in L Barrel Type Chamfered/Short/Standard Buy American Compliant C Catalog Number YAV4CLTC14FX Color Gray Color Code Gray Country of Origin US EU RoHS Indicator Y Gross Weight Per Pack 0.0200 lb Gross Weight per Pack Metric 0.01 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8535908020 Height 0.38 in Height [Metric] 0.9652 cm Length 1.44 in Length [Metric] 3.6576 cm Overall Length 1.44 in Returnable Y Series YAV-L-FX Specifications 1/2 in L Wire Strip Standard UL 486A-486B Sub Brand HYLUG Temperature Rating 90 °C Tongue Size 0.55 in W x 0.09 in THK Tongue Type Standard Straight Type 1-Hole UNSPSC 39121405 UPC 11 78181002257 UPC 12 781810022573 Voltage Rating 600 VAC to 35 kV Width 0.55 in Width [Metric] 1.3970 cm Stock Status NONSTOCK Brand BURNDY® Manufacturer BURNDY® Conductor Size 4 AWG Conductor Type Solid/Stranded Copper Die Code 8 Material Copper Stud Size 1/4 in Wire Termination Features: UL Listed 90 DEG C, 600 V - 35 KV, 45 DEG And 90 DEG Angles Are Available, Tongue Angle: Straight, Wire Strip Length: 1/2 IN, Temperature Rating: 90 DEG C, Die Index: 8, Finish: Electro-Tin Plated, Tools, Die Set Catalog Number, And (number Of Crimps): Mechanical: MD6, OUR840, MD7-34R Tool, W4CVT, W4CRT, X4CRT Die, (1), Hydraulic: BCT500HS, Y500CTHS Tool, W4CVT, W4CRT, X4CRT Die, (1), Y35, Y39, Y750, PAT750 Tool, U4CRT Die, (1), Y46 Tool, U4CRT Die With PUADP-1 Adapter, (1), Color Code: Gray, Conductor Type: Commercial Stranded Copper, Flexible Copper, Dieless Tools (number Of Crimps): Y81KFT, Y81KFTMBH, PAT81KFT-18V, MY29-11 Tool, (1), Y1MRTC Tool, (2) For die set catalog number and (number of crimps): mechanical MD6, OUR840, MD7-34R tool, (1) W4CVT, W4CRT, X4CRT die, hydraulic BCT500HS, Y500CTHS tool, (1) W4CVT, W4CRT, X4CRT die, Y35, Y39, Y750, PAT750 tool, (1) U4CRT die, Y46 tool, (1) U4CRT die with PUADP-1 adapter, color code: gray, dieless tools (number of crimps): (1) Y81KFT, Y81KFTMBH, PAT81KFT-18V, MY29-11 tool, (2) Y1MRTC tool installation tool 4 AWG flex (Class G, H, I) size, 5 (91/NO 24) DLO-4 (105/NO 24) DLO size, 4 AWG copper stranded/solid conductor Electro tin plated 4 AWG stranded/solid conductor size 1/2 in L Strip Electro Tin Plated Copper
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | Wire Termination |
| ARRA Compliant | C |
| Barrel Size | 1/2 in L |
| Barrel Type | Chamfered/Short/Standard |
| Buy American Compliant | C |
| Catalog Number | YAV4CLTC14FX |
| Color | Gray |
| Color Code | Gray |
| Country of Origin | US |
| EU RoHS Indicator | Y |
| Gross Weight Per Pack | 0.0200 lb |
| Gross Weight per Pack Metric | 0.01 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8535908020 |
| Height | 0.38 in |
| Height [Metric] | 0.9652 cm |
| Length | 1.44 in |
| Length [Metric] | 3.6576 cm |
| Overall Length | 1.44 in |
| Returnable | Y |
| Series | YAV-L-FX |
| Specifications | 1/2 in L Wire Strip |
| Standard | UL 486A-486B |
| Sub Brand | HYLUG |
| Temperature Rating | 90 °C |
| Tongue Size | 0.55 in W x 0.09 in THK |
| Tongue Type | Standard Straight |
| Type | 1-Hole |
| UNSPSC | 39121405 |
| UPC 11 | 78181002257 |
| UPC 12 | 781810022573 |
| Voltage Rating | 600 VAC to 35 kV |
| Width | 0.55 in |
| Width [Metric] | 1.3970 cm |
| Stock Status | NONSTOCK |
| Brand | BURNDY® |
| Manufacturer | BURNDY® |
| Conductor Size | 4 AWG |
| Conductor Type | Solid/Stranded Copper |
| Die Code | 8 |
| Material | Copper |
| Stud Size | 1/4 in |
| Wire Termination |
| Features: UL Listed 90 DEG C, 600 V - 35 KV, 45 DEG And 90 DEG Angles Are Available, Tongue Angle: Straight, Wire Strip Length: 1/2 IN, Temperature Rating: 90 DEG C, Die Index: 8, Finish: Electro-Tin Plated, Tools, Die Set Catalog Number, And (number Of Crimps): Mechanical: MD6, OUR840, MD7-34R Tool, W4CVT, W4CRT, X4CRT Die, (1), Hydraulic: BCT500HS, Y500CTHS Tool, W4CVT, W4CRT, X4CRT Die, (1), Y35, Y39, Y750, PAT750 Tool, U4CRT Die, (1), Y46 Tool, U4CRT Die With PUADP-1 Adapter, (1), Color Code: Gray, Conductor Type: Commercial Stranded Copper, Flexible Copper, Dieless Tools (number Of Crimps): Y81KFT, Y81KFTMBH, PAT81KFT-18V, MY29-11 Tool, (1), Y1MRTC Tool, (2) |
| For die set catalog number and (number of crimps): mechanical MD6, OUR840, MD7-34R tool, (1) W4CVT, W4CRT, X4CRT die, hydraulic BCT500HS, Y500CTHS tool, (1) W4CVT, W4CRT, X4CRT die, Y35, Y39, Y750, PAT750 tool, (1) U4CRT die, Y46 tool, (1) U4CRT die with PUADP-1 adapter, color code: gray, dieless tools (number of crimps): (1) Y81KFT, Y81KFTMBH, PAT81KFT-18V, MY29-11 tool, (2) Y1MRTC tool installation tool |
| 4 AWG flex (Class G, H, I) size, 5 (91/NO 24) DLO-4 (105/NO 24) DLO size, 4 AWG copper stranded/solid conductor |
| Electro tin plated |
| 4 AWG stranded/solid conductor size |
| 1/2 in L Strip |
| Electro Tin Plated Copper |
