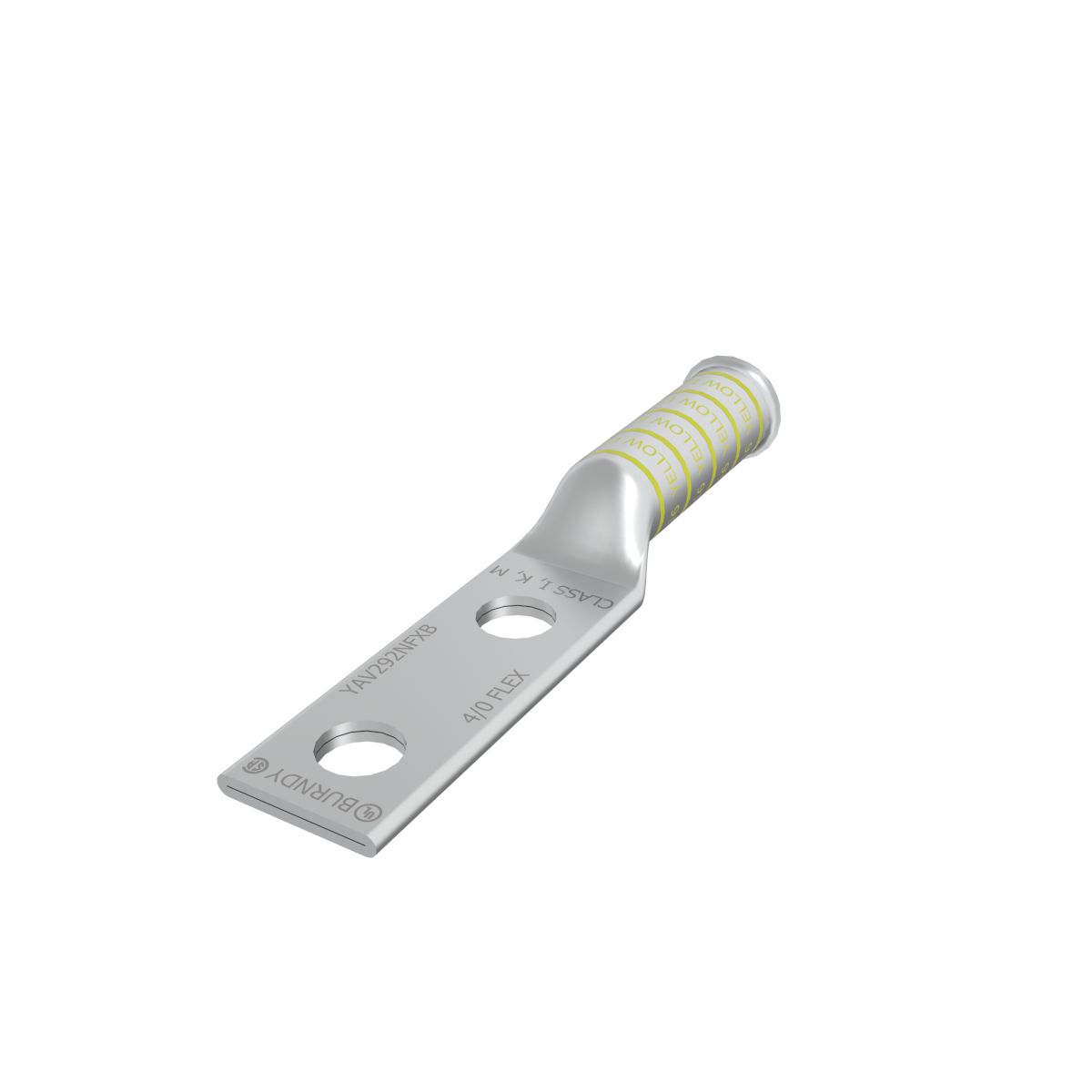

Burndy® YAV292NFXB BELLUG-4/0FX-NEMA-YELLOW
SKU497174
MFGR #YAV292NFXB
$/ea
Cu compression long barrel flex conductor, 2 holes/W/O/ insp window, 4/0 Flex class I,K,M, 1/2" stud,Tin plated,Yellow, 16 index
Cu compression long barrel flex conductor, 2 holes/W/O/ insp window, 4/0 Flex class I,K,M, 1/2" stud,Tin plated,Yellow, 16 index
Application Wire Termination ARRA Compliant C Buy American Compliant C Cable Size 4/0 AWG Flex Catalog Number YAV292NFXB Color Yellow Color Code Yellow Country of Origin US EU RoHS Indicator C Gross Weight Per Pack 0.3340 lb Gross Weight per Pack Metric 0.15 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8535908020 Height 0.80 in Height [Metric] 2.0320 cm Length 5.81 in Length [Metric] 14.7574 cm Mounting 1.75 In Stud Hole Spacing Number Of Holes 2 Returnable Y Standard UL 486A-486B Sub Brand HYLUG Type Long Barrel, Tin Plated UNSPSC 39121405 UPC 11 78181026506 UPC 12 781810265062 Voltage Rating 35,000 V Width 1.18 in Width [Metric] 2.9972 cm Stock Status NONSTOCK Brand BURNDY® Manufacturer BURNDY® Material Copper Stud Size 0.5 in Wire Termination Long barrel allows for an increased number of crimps which will increase the mechanical strength of the connection.No inspection window is ideal for more corrosive environments as the barrel transition is not open
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | Wire Termination |
| ARRA Compliant | C |
| Buy American Compliant | C |
| Cable Size | 4/0 AWG Flex |
| Catalog Number | YAV292NFXB |
| Color | Yellow |
| Color Code | Yellow |
| Country of Origin | US |
| EU RoHS Indicator | C |
| Gross Weight Per Pack | 0.3340 lb |
| Gross Weight per Pack Metric | 0.15 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8535908020 |
| Height | 0.80 in |
| Height [Metric] | 2.0320 cm |
| Length | 5.81 in |
| Length [Metric] | 14.7574 cm |
| Mounting | 1.75 In Stud Hole Spacing |
| Number Of Holes | 2 |
| Returnable | Y |
| Standard | UL 486A-486B |
| Sub Brand | HYLUG |
| Type | Long Barrel, Tin Plated |
| UNSPSC | 39121405 |
| UPC 11 | 78181026506 |
| UPC 12 | 781810265062 |
| Voltage Rating | 35,000 V |
| Width | 1.18 in |
| Width [Metric] | 2.9972 cm |
| Stock Status | NONSTOCK |
| Brand | BURNDY® |
| Manufacturer | BURNDY® |
| Material | Copper |
| Stud Size | 0.5 in |
| Wire Termination |
| Long barrel allows for an increased number of crimps which will increase the mechanical strength of the connection.No inspection window is ideal for more corrosive environments as the barrel transition is not open |
