BURNDY®

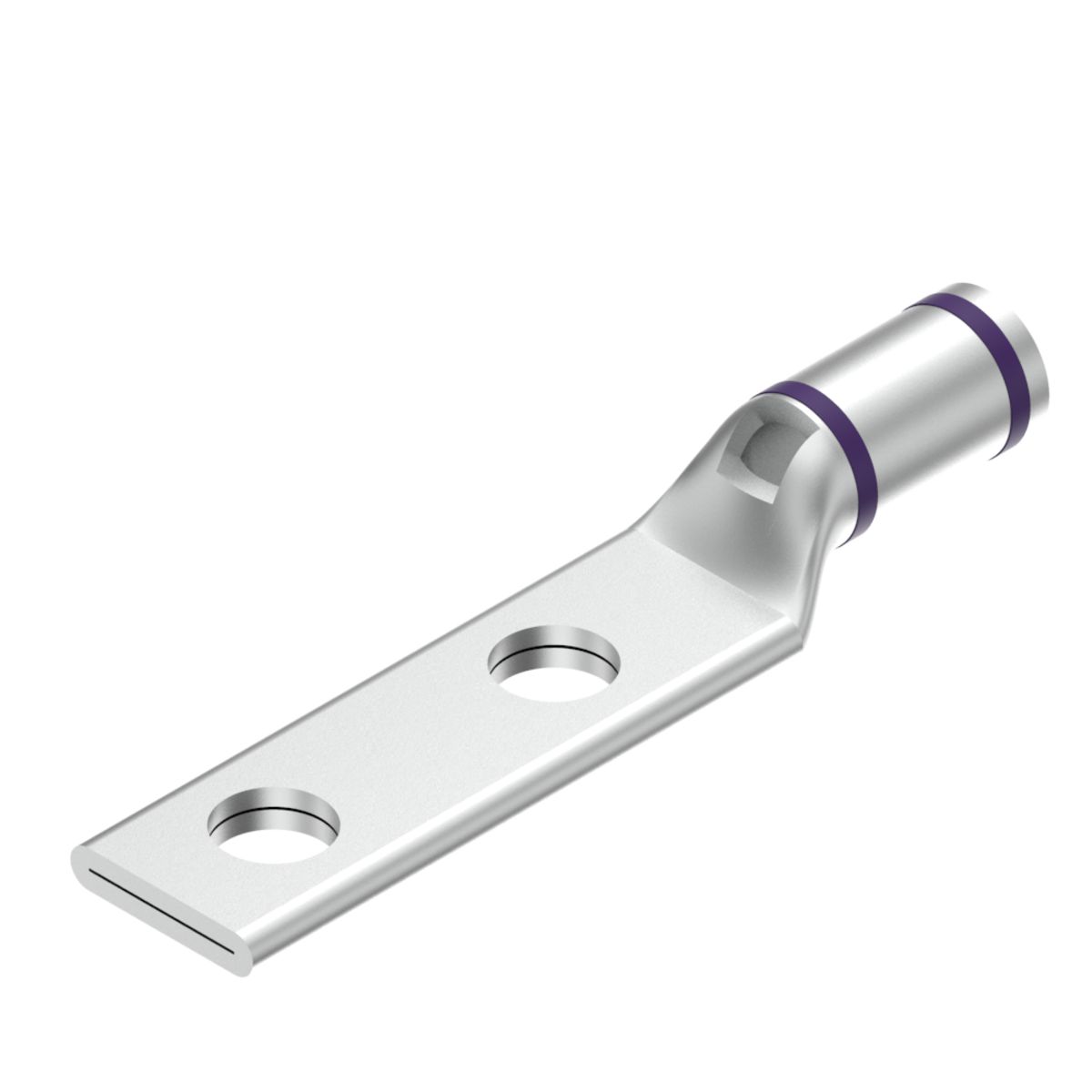

Burndy® YAV28L2TC38FX HYLUG™ YAV-L-2TC-FX 2-Hole Compression Lug With Inspection Window, 4/0 AWG Stranded Copper Conductor, 15, Copper
Custom_Product_Images_Illustration
BURNDY®
Burndy® YAV28L2TC38FX HYLUG™ YAV-L-2TC-FX 2-Hole Compression Lug With Inspection Window, 4/0 AWG Stranded Copper Conductor, 15, Copper
SKU299171
MFGR #YAV28L2TC38FX
Your Cost: $14.65/ea
List: BURNDY'™s HYLUG™ terminals, redesigned for terminating copper conductors in a wide variety of electrical connections, including heavy-duty industrial, utility, commercial, and telecommunications applications. The HYLUG™ terminals require simple cable preparation for an easily installed permanent and inspectable cable termination. The terminals are listed by UL (UL STD. 486A) and CSA certified to 600 volts, when applied with the proper tool and die combination. The terminals may be used in applications to 35 KV.
BURNDY'™s HYLUG™ terminals, redesigned for terminating copper conductors in a wide variety of electrical connections, including heavy-duty industrial, utility, commercial, and telecommunications applications. The HYLUG™ terminals require simple cable preparation for an easily installed permanent and inspectable cable termination. The terminals are listed by UL (UL STD. 486A) and CSA certified to 600 volts, when applied with the proper tool and die combination. The terminals may be used in applications to 35 KV.
Application Wire Termination ARRA Compliant C Barrel Size 0.77 in OD x 1.03 in L Barrel Type Chamfered/Short/Skived/Standard Buy American Compliant C Catalog Number YAV28L2TC38FX Color Purple Color Code Purple Country of Origin US EU RoHS Indicator Y Gross Weight Per Pack 0.1700 lb Gross Weight per Pack Metric 0.08 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8535908020 Height 0.77 in Height [Metric] 1.9558 cm Length 3.43 in Length [Metric] 8.7122 cm Overall Length 3.43 in Returnable Y Series YAV-L-2TC-FX Specifications 1-1/16 in L Wire Strip, 1 in Stud Hole Spacing Standard UL 486A-486B Sub Brand HYLUG Temperature Rating 90 °C Tongue Size 1.14 in W x 0.15 in THK Tongue Type Standard Straight Type Standard Barrel, Tin Plated UNSPSC 39121405 UPC 11 78181002187 UPC 12 781810021873 Voltage Rating 35,000 V Width 1.14 in Width [Metric] 2.8956 cm Stock Status NONSTOCK Brand BURNDY® Manufacturer BURNDY® Conductor Size 4/0 AWG Conductor Type Stranded Copper Die Code 15 Material Copper Stud Size 3/8 in Wire Termination Features: UL Listed 90 DEG C, 600 V - 35 KV, 45 DEG And 90 DEG Angles Are Available, Tongue Angle: Straight, Finish: Electro-Tin Plated, Wire Strip Length: 1-1/16 IN, Die Index: 15, Temperature Rating: 90 DEG C, Tools, Die Set Catalog Number, And (number Of Crimps): Mechanical: MD6, OUR840, MD7-34R Tool, W28VT, W28RT Die, (2), X28RT Die, (3), Hydraulic: BCT500HS, Y500CTHS Tool, W28VT, W28RT Die, (2), X28RT Die, (3), Y35, Y39, Y750, PAT750 Tool, U28RT Die, (1), Y46 Tool, U28RT Die With PUADP-1 Adapter, (1), Color Code: Purple, Dieless Tools (number Of Crimps): Y644HS, Y81KFT, Y81KFTMBH, PAT81KFT-18V, MY29-11 Tool, (1), Conductor Type: Flexible Copper 4/0 AWG (Class G, H, I) and DLO conductor Standard barre
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | Wire Termination |
| ARRA Compliant | C |
| Barrel Size | 0.77 in OD x 1.03 in L |
| Barrel Type | Chamfered/Short/Skived/Standard |
| Buy American Compliant | C |
| Catalog Number | YAV28L2TC38FX |
| Color | Purple |
| Color Code | Purple |
| Country of Origin | US |
| EU RoHS Indicator | Y |
| Gross Weight Per Pack | 0.1700 lb |
| Gross Weight per Pack Metric | 0.08 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8535908020 |
| Height | 0.77 in |
| Height [Metric] | 1.9558 cm |
| Length | 3.43 in |
| Length [Metric] | 8.7122 cm |
| Overall Length | 3.43 in |
| Returnable | Y |
| Series | YAV-L-2TC-FX |
| Specifications | 1-1/16 in L Wire Strip, 1 in Stud Hole Spacing |
| Standard | UL 486A-486B |
| Sub Brand | HYLUG |
| Temperature Rating | 90 °C |
| Tongue Size | 1.14 in W x 0.15 in THK |
| Tongue Type | Standard Straight |
| Type | Standard Barrel, Tin Plated |
| UNSPSC | 39121405 |
| UPC 11 | 78181002187 |
| UPC 12 | 781810021873 |
| Voltage Rating | 35,000 V |
| Width | 1.14 in |
| Width [Metric] | 2.8956 cm |
| Stock Status | NONSTOCK |
| Brand | BURNDY® |
| Manufacturer | BURNDY® |
| Conductor Size | 4/0 AWG |
| Conductor Type | Stranded Copper |
| Die Code | 15 |
| Material | Copper |
| Stud Size | 3/8 in |
| Wire Termination |
| Features: UL Listed 90 DEG C, 600 V - 35 KV, 45 DEG And 90 DEG Angles Are Available, Tongue Angle: Straight, Finish: Electro-Tin Plated, Wire Strip Length: 1-1/16 IN, Die Index: 15, Temperature Rating: 90 DEG C, Tools, Die Set Catalog Number, And (number Of Crimps): Mechanical: MD6, OUR840, MD7-34R Tool, W28VT, W28RT Die, (2), X28RT Die, (3), Hydraulic: BCT500HS, Y500CTHS Tool, W28VT, W28RT Die, (2), X28RT Die, (3), Y35, Y39, Y750, PAT750 Tool, U28RT Die, (1), Y46 Tool, U28RT Die With PUADP-1 Adapter, (1), Color Code: Purple, Dieless Tools (number Of Crimps): Y644HS, Y81KFT, Y81KFTMBH, PAT81KFT-18V, MY29-11 Tool, (1), Conductor Type: Flexible Copper |
| 4/0 AWG (Class G, H, I) and DLO conductor |
| Standard barre |
