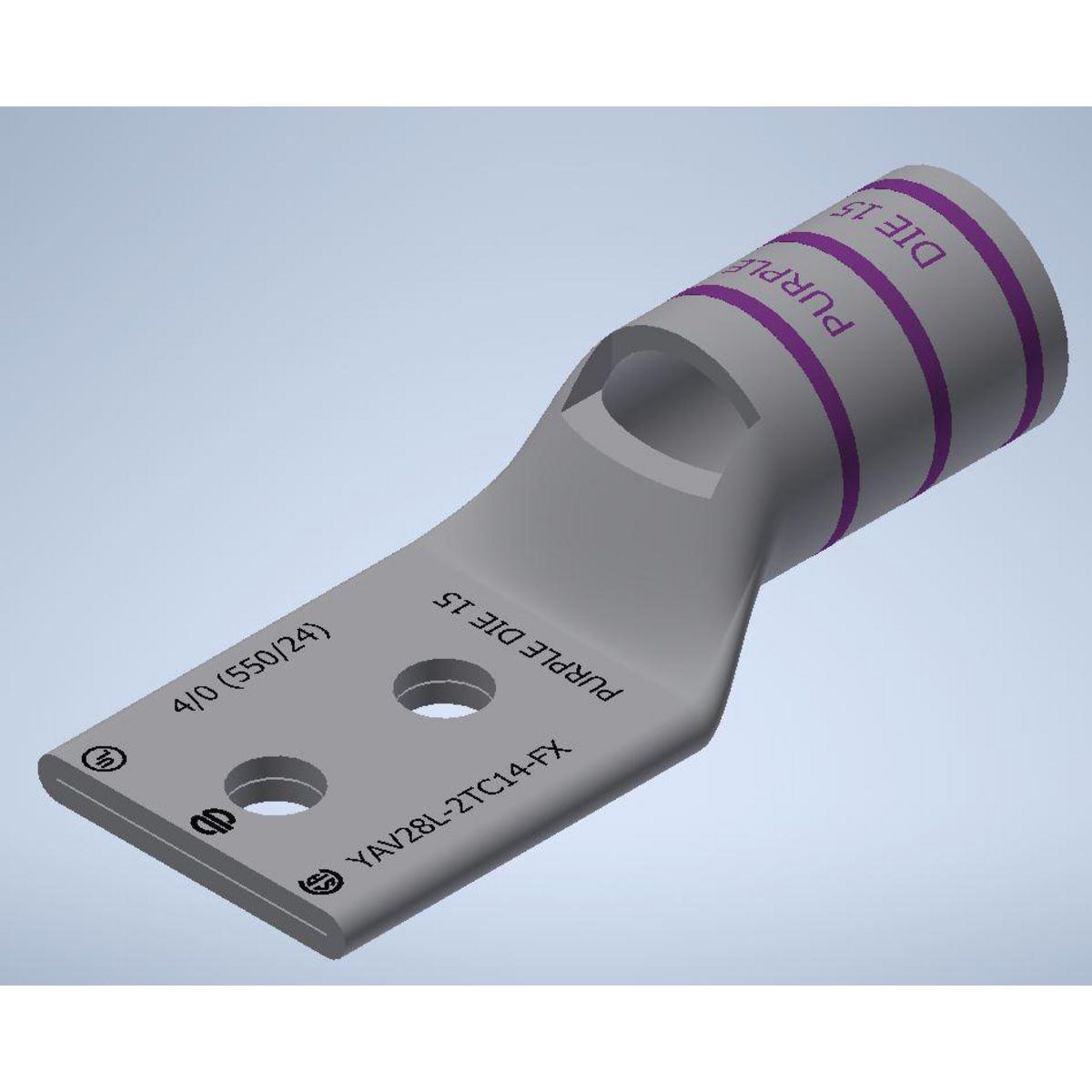

Burndy® YAV28L2TC14FX HYLUG™ YAV-L-2TC-FX 2-Hole Compression Lug With Inspection Hole, 4/0 AWG Stranded Copper Conductor, 1/4 in Stud
Custom_Product_Images_Illustration
Burndy® YAV28L2TC14FX HYLUG™ YAV-L-2TC-FX 2-Hole Compression Lug With Inspection Hole, 4/0 AWG Stranded Copper Conductor, 1/4 in Stud
SKU517212
MFGR #YAV28L2TC14FX
$/ea
BURNDY® HYLUG™ terminals, redesigned for terminating copper conductors in a wide variety of electrical connections, including heavy-duty industrial, utility, commercial, and telecommunications applications. The HYLUG™ terminals require simple cable preparation for an easily installed permanent and inspectable cable termination. The terminals are listed by UL (UL STD. 486A) and CSA certified to 600 volts, when applied with the proper tool and die combination. The terminals may be used in applications to 35 KV.
BURNDY® HYLUG™ terminals, redesigned for terminating copper conductors in a wide variety of electrical connections, including heavy-duty industrial, utility, commercial, and telecommunications applications. The HYLUG™ terminals require simple cable preparation for an easily installed permanent and inspectable cable termination. The terminals are listed by UL (UL STD. 486A) and CSA certified to 600 volts, when applied with the proper tool and die combination. The terminals may be used in applications to 35 KV.
Application Wire Termination ARRA Compliant C Barrel Size 0.77 in OD x 1.03 in L V Barrel Style Chamfered/Short/Skived/Standard Buy American Compliant C Catalog Number YAV28L2TC14FX Color Purple Color Code Purple Country of Origin US EU RoHS Indicator Y Gross Weight Per Pack 0.1400 lb Gross Weight per Pack Metric 0.06 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8535908020 Height 0.77 in Height [Metric] 1.9558 cm Length 2.86 in Length [Metric] 7.2644 cm Overall Length 2.86 in Returnable Y Specifications 1-1/16 in L Wire Stripe, 5/8 in Hole Spacing Standard UL 486A-486B Standards UL Listed, CSA Certified, RoHS Compliant Sub Brand HYLUG Temperature Rating 90 °C Tongue Size 1.14 in W x 0.15 in THK in Tongue Style Standard/Straight Type Standard Barrel, Tin Plated UNSPSC 39121405 UPC 11 78181010309 UPC 12 781810103098 Voltage Rating 35,000 V Width 1.14 in Width [Metric] 2.8956 cm Stock Status NONSTOCK Brand BURNDY® Manufacturer BURNDY® Material Copper Stud Size 1/4 in Wire Termination Features: UL Listed 90 DEG C, 600 V - 35 KV, 45 DEG And 90 DEG Angles Are Available, Finish: Electro-Tin Plated, Wire Strip Length: 1-1/16 IN, Tongue Angle: Straight, Die Index: 15, Temperature Rating: 90 DEG C, Color Code: Purple, Tools, Die Set Catalog Number, And (number Of Crimps): Mechanical: MD6, OUR840, MD7-34R Tool, W28VT, W28RT Die, (2), X28RT Die, (3), Hydraulic: BCT500HS, Y500CTHS Tool, W28VT, W28RT Die, (2), X28RT Die, (3), Y35, Y39, Y750, PAT750 Tool, U28RT Die, (1), Y46 Tool, U28RT Die With PUADP-1 Adapter, (1), Conductor Type: Flexible Copper, Dieless Tools (number Of Crimps): Y644HS, Y81KFT, Y81KFTMBH, PAT81KFT-18V, MY29-11 Tool, (1) 4/0 AWG (Class G, H, I), 4/0 (550/NO 24) DLO conductor size Standard barre
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | Wire Termination |
| ARRA Compliant | C |
| Barrel Size | 0.77 in OD x 1.03 in L V |
| Barrel Style | Chamfered/Short/Skived/Standard |
| Buy American Compliant | C |
| Catalog Number | YAV28L2TC14FX |
| Color | Purple |
| Color Code | Purple |
| Country of Origin | US |
| EU RoHS Indicator | Y |
| Gross Weight Per Pack | 0.1400 lb |
| Gross Weight per Pack Metric | 0.06 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8535908020 |
| Height | 0.77 in |
| Height [Metric] | 1.9558 cm |
| Length | 2.86 in |
| Length [Metric] | 7.2644 cm |
| Overall Length | 2.86 in |
| Returnable | Y |
| Specifications | 1-1/16 in L Wire Stripe, 5/8 in Hole Spacing |
| Standard | UL 486A-486B |
| Standards | UL Listed, CSA Certified, RoHS Compliant |
| Sub Brand | HYLUG |
| Temperature Rating | 90 °C |
| Tongue Size | 1.14 in W x 0.15 in THK in |
| Tongue Style | Standard/Straight |
| Type | Standard Barrel, Tin Plated |
| UNSPSC | 39121405 |
| UPC 11 | 78181010309 |
| UPC 12 | 781810103098 |
| Voltage Rating | 35,000 V |
| Width | 1.14 in |
| Width [Metric] | 2.8956 cm |
| Stock Status | NONSTOCK |
| Brand | BURNDY® |
| Manufacturer | BURNDY® |
| Material | Copper |
| Stud Size | 1/4 in |
| Wire Termination |
| Features: UL Listed 90 DEG C, 600 V - 35 KV, 45 DEG And 90 DEG Angles Are Available, Finish: Electro-Tin Plated, Wire Strip Length: 1-1/16 IN, Tongue Angle: Straight, Die Index: 15, Temperature Rating: 90 DEG C, Color Code: Purple, Tools, Die Set Catalog Number, And (number Of Crimps): Mechanical: MD6, OUR840, MD7-34R Tool, W28VT, W28RT Die, (2), X28RT Die, (3), Hydraulic: BCT500HS, Y500CTHS Tool, W28VT, W28RT Die, (2), X28RT Die, (3), Y35, Y39, Y750, PAT750 Tool, U28RT Die, (1), Y46 Tool, U28RT Die With PUADP-1 Adapter, (1), Conductor Type: Flexible Copper, Dieless Tools (number Of Crimps): Y644HS, Y81KFT, Y81KFTMBH, PAT81KFT-18V, MY29-11 Tool, (1) |
| 4/0 AWG (Class G, H, I), 4/0 (550/NO 24) DLO conductor size |
| Standard barre |
