Burndy® YAV26L2TC14FX HYLUG™ YAV-L-2TC-FX 2-Hole Compression Lug With Inspection Hole, 2/0 AWG Stranded Copper Conductor, 1/4 in Stud

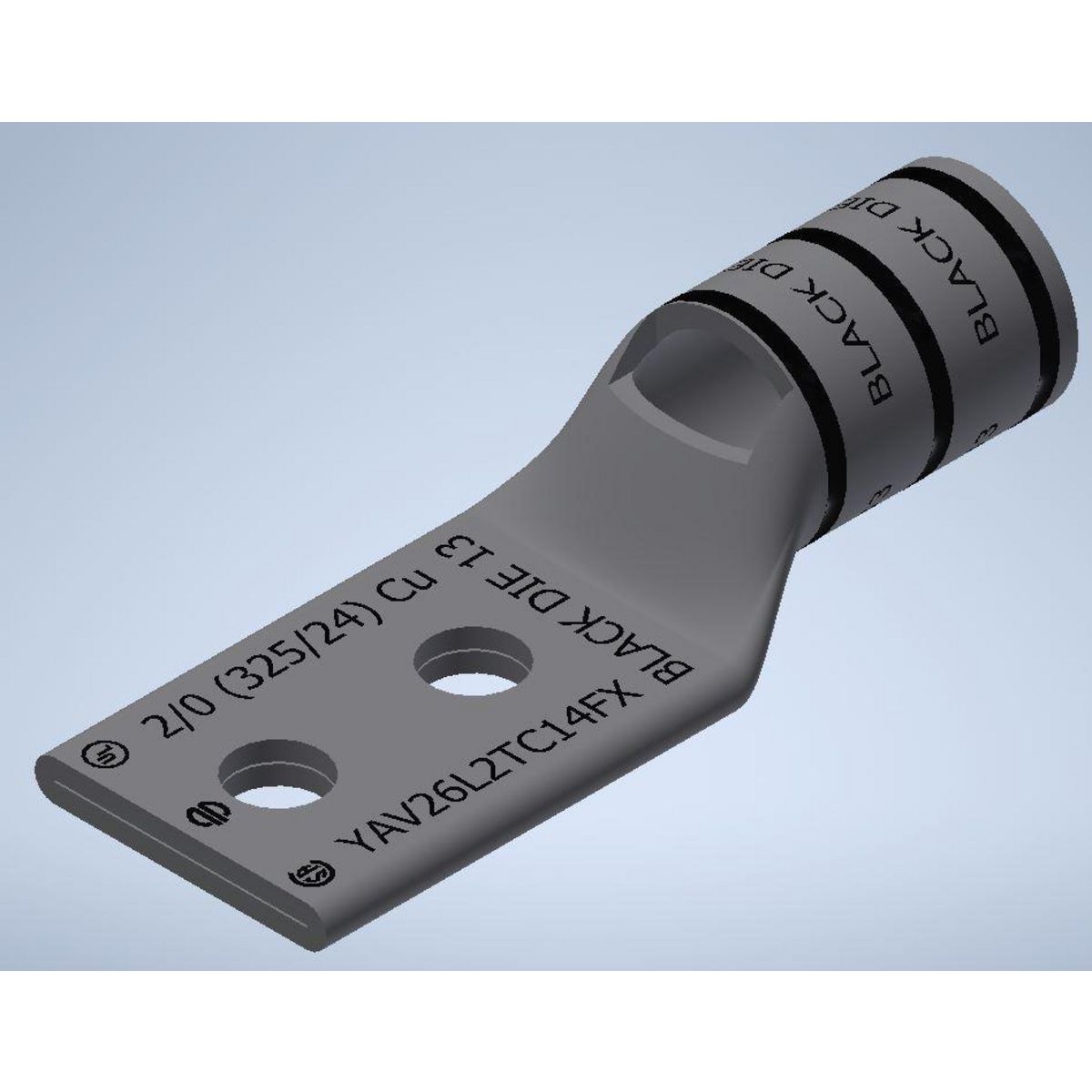

Custom_Product_Images_Illustration
Burndy® YAV26L2TC14FX HYLUG™ YAV-L-2TC-FX 2-Hole Compression Lug With Inspection Hole, 2/0 AWG Stranded Copper Conductor, 1/4 in Stud
SKU366942
MFGR #YAV26L2TC14FX
$/ea
BURNDY® HYLUG™ terminals, redesigned for terminating copper conductors in a wide variety of electrical connections, including heavy-duty industrial, utility, commercial, and telecommunications applications. The HYLUG™ terminals require simple cable preparation for an easily installed permanent and inspectable cable termination. The terminals are listed by UL (UL STD. 486A) and CSA certified to 600 volts, when applied with the proper tool and die combination. The terminals may be used in applications to 35 KV.
BURNDY® HYLUG™ terminals, redesigned for terminating copper conductors in a wide variety of electrical connections, including heavy-duty industrial, utility, commercial, and telecommunications applications. The HYLUG™ terminals require simple cable preparation for an easily installed permanent and inspectable cable termination. The terminals are listed by UL (UL STD. 486A) and CSA certified to 600 volts, when applied with the proper tool and die combination. The terminals may be used in applications to 35 KV.
Application Wire Termination ARRA Compliant C Barrel Size 0.63 in OD x 0.81 in L Barrel Type Chamfered/Short/Skived/Standard Buy American Compliant C Catalog Number YAV26L2TC14FX Color Black Color Code Black Country of Origin US EU RoHS Indicator Y Gross Weight Per Pack 0.0900 lb Gross Weight per Pack Metric 0.04 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8535908020 Height 0.63 in Height [Metric] 1.6002 cm Length 2.56 in Length [Metric] 6.5024 cm Overall Length 2.56 in Returnable Y Series YAV-L-2TC-FX Specifications 13/16 in L Wire Stripe, 5/8 in Hole Spacing Standard UL 486A-486B Sub Brand HYLUG Temperature Rating 90 °C Tongue Size 0.93 in W x 0.13 in THK Tongue Type Straight Type Standard Barrel, Tin Plated UNSPSC 39121405 UPC 11 78181003573 UPC 12 781810035733 Voltage Rating 35,000 V Width 0.93 in Width [Metric] 2.3622 cm Stock Status NONSTOCK Brand BURNDY® Manufacturer BURNDY® Conductor Size 2/0 AWG Conductor Type Stranded Copper Die Code 13 Material Copper Stud Size 1/4 in Wire Termination Features: UL Listed 90 DEG C, 600 V - 35 KV, 45 DEG And 90 DEG Angles Are Available, Finish: Electro-Tin Plated, Temperature Rating: 90 DEG C, Wire Strip Length: 13/16 IN, Die Index: 13, Tongue Angle: Straight, Color Code: Black, Tools, Die Set Catalog Number, And (number Of Crimps): Mechanical: MD6, OUR840, MD7-34R Tool, W26VT, W26RT, X26RT Die, (2), Hydraulic: BCT500HS, Y500CTHS Tool, W26VT, W26RT, X26RT Die, (2), Y35, Y39, Y750, PAT750 Tool, U26RT Die, (1), Y46 Tool, U26RT Die With PUADP-1 Adapter, (1), Conductor Type: Flexible, Dieless Tools (number Of Crimps): Y644HS, Y81KFT, Y81KFTMBH, PAT81KFT-18V, MY29-11 Tool, (1) 2/0 AWG (Class G, H, I), 2/0 (375/NO 24) DLO conductor size Standard barre
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | Wire Termination |
| ARRA Compliant | C |
| Barrel Size | 0.63 in OD x 0.81 in L |
| Barrel Type | Chamfered/Short/Skived/Standard |
| Buy American Compliant | C |
| Catalog Number | YAV26L2TC14FX |
| Color | Black |
| Color Code | Black |
| Country of Origin | US |
| EU RoHS Indicator | Y |
| Gross Weight Per Pack | 0.0900 lb |
| Gross Weight per Pack Metric | 0.04 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8535908020 |
| Height | 0.63 in |
| Height [Metric] | 1.6002 cm |
| Length | 2.56 in |
| Length [Metric] | 6.5024 cm |
| Overall Length | 2.56 in |
| Returnable | Y |
| Series | YAV-L-2TC-FX |
| Specifications | 13/16 in L Wire Stripe, 5/8 in Hole Spacing |
| Standard | UL 486A-486B |
| Sub Brand | HYLUG |
| Temperature Rating | 90 °C |
| Tongue Size | 0.93 in W x 0.13 in THK |
| Tongue Type | Straight |
| Type | Standard Barrel, Tin Plated |
| UNSPSC | 39121405 |
| UPC 11 | 78181003573 |
| UPC 12 | 781810035733 |
| Voltage Rating | 35,000 V |
| Width | 0.93 in |
| Width [Metric] | 2.3622 cm |
| Stock Status | NONSTOCK |
| Brand | BURNDY® |
| Manufacturer | BURNDY® |
| Conductor Size | 2/0 AWG |
| Conductor Type | Stranded Copper |
| Die Code | 13 |
| Material | Copper |
| Stud Size | 1/4 in |
| Wire Termination |
| Features: UL Listed 90 DEG C, 600 V - 35 KV, 45 DEG And 90 DEG Angles Are Available, Finish: Electro-Tin Plated, Temperature Rating: 90 DEG C, Wire Strip Length: 13/16 IN, Die Index: 13, Tongue Angle: Straight, Color Code: Black, Tools, Die Set Catalog Number, And (number Of Crimps): Mechanical: MD6, OUR840, MD7-34R Tool, W26VT, W26RT, X26RT Die, (2), Hydraulic: BCT500HS, Y500CTHS Tool, W26VT, W26RT, X26RT Die, (2), Y35, Y39, Y750, PAT750 Tool, U26RT Die, (1), Y46 Tool, U26RT Die With PUADP-1 Adapter, (1), Conductor Type: Flexible, Dieless Tools (number Of Crimps): Y644HS, Y81KFT, Y81KFTMBH, PAT81KFT-18V, MY29-11 Tool, (1) |
| 2/0 AWG (Class G, H, I), 2/0 (375/NO 24) DLO conductor size |
| Standard barre |
