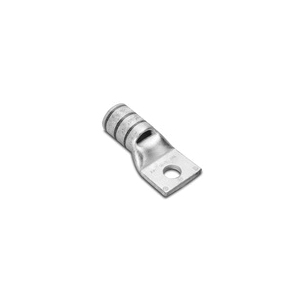

Burndy® YAV25L2BOX HYLUG™ YAV25-L2-BOX 1-Hole Heavy Duty Compression Terminal Lug, 1/0 AWG Stranded Copper Conductor, 5/16 in Stud
BURNDY®
Burndy® YAV25L2BOX HYLUG™ YAV25-L2-BOX 1-Hole Heavy Duty Compression Terminal Lug, 1/0 AWG Stranded Copper Conductor, 5/16 in Stud
SKU400605
MFGR #YAV25L2BOX
$/ea
BURNDY® HYLUG™ Compression Terminal Lug, 1-Hole Heavy Duty, Stranded Copper Conductor, 1/0 AWG Conductor, Die Code: 43, 5/16 in Stud, Ring/Straight Tongue, 0.83 in W Tongue, 2.03 in Overall Length, Short, 11/16 in Wire Stripe Length, Tin Electro Plated Copper
BURNDY® HYLUG™ Compression Terminal Lug, 1-Hole Heavy Duty, Stranded Copper Conductor, 1/0 AWG Conductor, Die Code: 43, 5/16 in Stud, Ring/Straight Tongue, 0.83 in W Tongue, 2.03 in Overall Length, Short, 11/16 in Wire Stripe Length, Tin Electro Plated Copper
Barrel Type Short Catalog Number YAV25L2BOX Country of Origin US Gross Weight Per Pack 0.0630 lb Overall Length 2.03 in Specifications 11/16 in L Wire Strip Standards CSA Certified, Industry Standards UL467, Military Specified, RoHS Compliant, UL Listed Tongue Size 0.83 in W Tongue Type Ring Straight Type 1-Hole Heavy Duty UNSPSC 39121405 UPC 11 78181053998 UPC 12 781810539989 Stock Status NONSTOCK Brand BURNDY® Manufacturer BURNDY® Conductor Size 1/0 AWG Conductor Type Stranded Copper Die Code 43 Material Tin Electro Plated Copper Stud Size 5/16 in Features: HYLUG™Type YAV Is A Seamless, Heavy Duty Uninsulated Compression Terminal Manufactured From Electrolytic Copper And Is For Use On Type AN Aircraft Cable, Extra Flexible Conductors And Commercial (Code) Conductors; The Seamless Tubing Produces A Double Thick Tongue And Seamless Barrel Design Provides A Strong Connector For Demanding Applications Requiring High Reliability; Applications Include Aircraft, Industrials, Hospitals, Electric Utilities, Marine, Computers, And Other Equipment Subject To Vibration Or Requiring Dependable Electrical Performance; The YAV HYLUG™Terminals Meet The Requirements Of SAE-AS7928 And Are Listed Per AS20659 For Use With Copper Aircraft Cable Per MIL-W-5086; The Benefits Of YAV-L Connectors Are The Same As YAV Connectors For Stranded Conductors; Wire Shroud: No; Package: Box; Tools, Die Nest Catalog Number, Die Indentor Cata 1/0 AWG copper stranded cable An 0 aircraft cable
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Barrel Type | Short |
| Catalog Number | YAV25L2BOX |
| Country of Origin | US |
| Gross Weight Per Pack | 0.0630 lb |
| Overall Length | 2.03 in |
| Specifications | 11/16 in L Wire Strip |
| Standards | CSA Certified, Industry Standards UL467, Military Specified, RoHS Compliant, UL Listed |
| Tongue Size | 0.83 in W |
| Tongue Type | Ring Straight |
| Type | 1-Hole Heavy Duty |
| UNSPSC | 39121405 |
| UPC 11 | 78181053998 |
| UPC 12 | 781810539989 |
| Stock Status | NONSTOCK |
| Brand | BURNDY® |
| Manufacturer | BURNDY® |
| Conductor Size | 1/0 AWG |
| Conductor Type | Stranded Copper |
| Die Code | 43 |
| Material | Tin Electro Plated Copper |
| Stud Size | 5/16 in |
| Features: HYLUG™Type YAV Is A Seamless, Heavy Duty Uninsulated Compression Terminal Manufactured From Electrolytic Copper And Is For Use On Type AN Aircraft Cable, Extra Flexible Conductors And Commercial (Code) Conductors; The Seamless Tubing Produces A Double Thick Tongue And Seamless Barrel Design Provides A Strong Connector For Demanding Applications Requiring High Reliability; Applications Include Aircraft, Industrials, Hospitals, Electric Utilities, Marine, Computers, And Other Equipment Subject To Vibration Or Requiring Dependable Electrical Performance; The YAV HYLUG™Terminals Meet The Requirements Of SAE-AS7928 And Are Listed Per AS20659 For Use With Copper Aircraft Cable Per MIL-W-5086; The Benefits Of YAV-L Connectors Are The Same As YAV Connectors For Stranded Conductors; Wire Shroud: No; Package: Box; Tools, Die Nest Catalog Number, Die Indentor Cata |
| 1/0 AWG copper stranded cable |
| An 0 aircraft cable |
