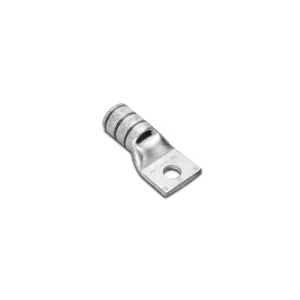

Burndy® YAV1CLBOX HYLUG™ YAV1C-L-BOX 1-Hole Heavy Duty Compression Terminal Lug With Inspection Window, 1 AWG, 3/8 in Stud
Burndy® YAV1CLBOX HYLUG™ YAV1C-L-BOX 1-Hole Heavy Duty Compression Terminal Lug With Inspection Window, 1 AWG, 3/8 in Stud
SKU400587
MFGR #YAV1CLBOX
$/ea
BURNDY® HYLUG™ Compression Terminal Lug, 1-Hole Heavy Duty, Stranded Copper Conductor, 1 AWG Conductor, Die Code: 42, 3/8 in Stud, Ring/Straight Tongue, 0.76 in W Tongue, 1.84 in Overall Length, Short, 3/8 in Wire Stripe Length, Tin Electro Plated
BURNDY® HYLUG™ Compression Terminal Lug, 1-Hole Heavy Duty, Stranded Copper Conductor, 1 AWG Conductor, Die Code: 42, 3/8 in Stud, Ring/Straight Tongue, 0.76 in W Tongue, 1.84 in Overall Length, Short, 3/8 in Wire Stripe Length, Tin Electro Plated
Barrel Type Short Catalog Number YAV1CLBOX Country of Origin US Gross Weight Per Pack 0.0500 lb Overall Length 1.84 in Specifications 3/8 in L Wire Strip Standards CSA Certified, Industry Standards UL467, RoHS Compliant, UL Listed Tongue Size 0.76 in W Tongue Type Ring Straight Type 1-Hole Heavy Duty UNSPSC 39121405 UPC 11 78181053985 UPC 12 781810539859 Stock Status NONSTOCK Brand BURNDY® Manufacturer BURNDY® Conductor Size 1 AWG Conductor Type Stranded Copper Die Code 42 Material Tin Electro Plated Stud Size 3/8 in Features: HYLUG™Type YAV Is A Seamless, Heavy Duty Uninsulated Compression Terminal Manufactured From Electrolytic Copper And Is For Use On Type AN Aircraft Cable, Extra Flexible Conductors And Commercial (Code) Conductors; The Seamless Tubing Produces A Double Thick Tongue And Seamless Barrel Design Provides A Strong Connector For Demanding Applications Requiring High Reliability; Applications Include Aircraft, Industrials, Hospitals, Electric Utilities, Marine, Computers, And Other Equipment Subject To Vibration Or Requiring Dependable Electrical Performance; The YAV HYLUG™Terminals Meet The Requirements Of SAE-AS7928 And Are Listed Per AS20659 For Use With Copper Aircraft Cable Per MIL-W-5086; The Benefits Of YAV-L Connectors Are The Same As YAV Connectors For Stranded Conductors; Tools, Die Nest Catalog Number, Die Indentor Catalog Number: HYPRESS: Y29B, Y29N 1 AWG copper stranded cable 1 AWG aircraft cable
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Barrel Type | Short |
| Catalog Number | YAV1CLBOX |
| Country of Origin | US |
| Gross Weight Per Pack | 0.0500 lb |
| Overall Length | 1.84 in |
| Specifications | 3/8 in L Wire Strip |
| Standards | CSA Certified, Industry Standards UL467, RoHS Compliant, UL Listed |
| Tongue Size | 0.76 in W |
| Tongue Type | Ring Straight |
| Type | 1-Hole Heavy Duty |
| UNSPSC | 39121405 |
| UPC 11 | 78181053985 |
| UPC 12 | 781810539859 |
| Stock Status | NONSTOCK |
| Brand | BURNDY® |
| Manufacturer | BURNDY® |
| Conductor Size | 1 AWG |
| Conductor Type | Stranded Copper |
| Die Code | 42 |
| Material | Tin Electro Plated |
| Stud Size | 3/8 in |
| Features: HYLUG™Type YAV Is A Seamless, Heavy Duty Uninsulated Compression Terminal Manufactured From Electrolytic Copper And Is For Use On Type AN Aircraft Cable, Extra Flexible Conductors And Commercial (Code) Conductors; The Seamless Tubing Produces A Double Thick Tongue And Seamless Barrel Design Provides A Strong Connector For Demanding Applications Requiring High Reliability; Applications Include Aircraft, Industrials, Hospitals, Electric Utilities, Marine, Computers, And Other Equipment Subject To Vibration Or Requiring Dependable Electrical Performance; The YAV HYLUG™Terminals Meet The Requirements Of SAE-AS7928 And Are Listed Per AS20659 For Use With Copper Aircraft Cable Per MIL-W-5086; The Benefits Of YAV-L Connectors Are The Same As YAV Connectors For Stranded Conductors; Tools, Die Nest Catalog Number, Die Indentor Catalog Number: HYPRESS: Y29B, Y29N |
| 1 AWG copper stranded cable |
| 1 AWG aircraft cable |
