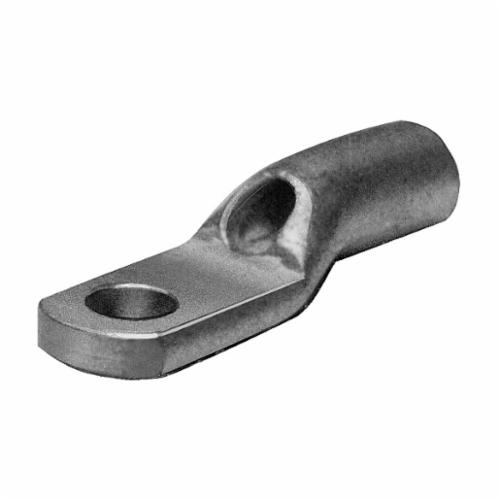

Burndy® YAV18T4 HYLUG™ YAV 1-Hole Heavy Duty Compression Lug, 22 to 18 AWG Copper Conductor, #3/4 Stud, Copper
Custom_Product_Images_Illustration
Burndy® YAV18T4 HYLUG™ YAV 1-Hole Heavy Duty Compression Lug, 22 to 18 AWG Copper Conductor, #3/4 Stud, Copper
SKU762962
MFGR #YAV18T4
$/ea
BURNDY's compression connectors are designed for reliable and controllable electrical connections. The complete installation is fully inspectable. They are high conductivity copper and operate cooler than the wire on which they are installed. The connectors withstand a wide range of electrical and environmental conditions, including current surges, temperatures, corrosion and vibrations, for a wide variety of applications. These features mean a consistently high quality connection at a low installed cost. Copper compression connectors are manufactured from high-conductivity electrolytic copper. The connectors are normally tinplated, lead-plated, or plated with proprietary BURNDY® brite finish to provide durable long-lasting corrosion resistance. The connector design has been matched to the cable size to provide the necessary physical strength requirements for reliable electrical performance.
BURNDY's compression connectors are designed for reliable and controllable electrical connections. The complete installation is fully inspectable. They are high conductivity copper and operate cooler than the wire on which they are installed. The connectors withstand a wide range of electrical and environmental conditions, including current surges, temperatures, corrosion and vibrations, for a wide variety of applications. These features mean a consistently high quality connection at a low installed cost. Copper compression connectors are manufactured from high-conductivity electrolytic copper. The connectors are normally tinplated, lead-plated, or plated with proprietary BURNDY® brite finish to provide durable long-lasting corrosion resistance. The connector design has been matched to the cable size to provide the necessary physical strength requirements for reliable electrical performance.
Barrel Size 0.27 in L Barrel Type Beveled/Chamfered/Standard Catalog Number YAV18T4 Country of Origin US Gross Weight Per Pack 0.0020 lb Overall Length 0.59 in Series YAV Specifications 9/32 in L Wire Strip Standards ARRA CompliantBuy American Act CompliantRoHS CompliantUL 467MIL-T-7928CSA CertifiedMIL-T-7928 Temperature Rating 650 °F Tongue Size 0.19 in W x 0.04 in THK Tongue Type Ring Straight Type 1-Hole Heavy Duty Non-Insulated UNSPSC 39121405 UPC 11 78181002536 UPC 12 781810025369 Stock Status NONSTOCK Brand BURNDY® Manufacturer BURNDY® Conductor Size 22 to 18 AWG Conductor Type Solid/Stranded Copper Material Copper Stud Size #3 to #4 Features: Seamless Uninsulated Compression Heavy Duty Ring Tongue Terminal, HYLUG Type YAV Is A Seamless, Heavy Duty Uninsulated Compression Ring Tongue Terminal Manufactured From Pure Electrolytic Copper Tubing And Is For Use On Copper Commercial (Code) Cable, Type AN Aircraft Cable And Extra Flexible Conductors, Because Of Its Seamless Design, The YAV HYLUG Also Accommodates Solid Conductors, The Seamless Tubing Produces A Double Thick Tongue And A Strong Connector For Demanding Applications That Require High Reliability, Applications Include Industrials, Hospitals, Electric Utilities, Air Craft, Shipboard And Marine, Computers, Steel Mills, Mining Equipment And Other Equipment That Is Subject To Vibration Or Requiring Dependable Electrical Performance, Manufactured From Seamless Pure Electrolytic Copper Tubing: Provides Maximum Conductivity, Low Resistance And Manufactured from seamless pure electrolytic copper tubing provides maximum conductivity, low resistance and excellent ductility for crimping Seamless tubular crimp barrel design has no seams to split resulting in a very high quality electrical connection Also can be used on solid conductor Double thick tongue provides a very strong terminal Produced from tubular extra copper material assures the compression connector will operate cooler than the conductors it connects Internally beveled barrel provides easy cable entry, especially for flexible conductors Inspection hole provides easy visual check for proper conductor insertion Electro tin plated provides long lasting durable corrosion resistance A strong connector for demanding applications that require high reliability For use on copper commercial (code) cable, Type AN aircraft cable and extra flexible conductors Used for other equipment that is subject to vibration or requiring dependable electrical performance Uninsulated compression ring tongue terminal For Y10D, Y10-22 non-ratchet, Y8MRB-1, MR20, MR8G98, MR8-9Q ratchet installation tools Range of copper tube formed terminals taking wires from 0.3 - 1000 sq-mm Heat resistant up to 125 deg C Bulk packaging 0.54 in hole center to barrel end, 0.16 in hole center to barrel 9/32 in L Strip, 0.54 in Hole Center to Barrel End, 0.16 in Hole Center to Barre
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Barrel Size | 0.27 in L |
| Barrel Type | Beveled/Chamfered/Standard |
| Catalog Number | YAV18T4 |
| Country of Origin | US |
| Gross Weight Per Pack | 0.0020 lb |
| Overall Length | 0.59 in |
| Series | YAV |
| Specifications | 9/32 in L Wire Strip |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantUL 467MIL-T-7928CSA CertifiedMIL-T-7928 |
| Temperature Rating | 650 °F |
| Tongue Size | 0.19 in W x 0.04 in THK |
| Tongue Type | Ring Straight |
| Type | 1-Hole Heavy Duty Non-Insulated |
| UNSPSC | 39121405 |
| UPC 11 | 78181002536 |
| UPC 12 | 781810025369 |
| Stock Status | NONSTOCK |
| Brand | BURNDY® |
| Manufacturer | BURNDY® |
| Conductor Size | 22 to 18 AWG |
| Conductor Type | Solid/Stranded Copper |
| Material | Copper |
| Stud Size | #3 to #4 |
| Features: Seamless Uninsulated Compression Heavy Duty Ring Tongue Terminal, HYLUG Type YAV Is A Seamless, Heavy Duty Uninsulated Compression Ring Tongue Terminal Manufactured From Pure Electrolytic Copper Tubing And Is For Use On Copper Commercial (Code) Cable, Type AN Aircraft Cable And Extra Flexible Conductors, Because Of Its Seamless Design, The YAV HYLUG Also Accommodates Solid Conductors, The Seamless Tubing Produces A Double Thick Tongue And A Strong Connector For Demanding Applications That Require High Reliability, Applications Include Industrials, Hospitals, Electric Utilities, Air Craft, Shipboard And Marine, Computers, Steel Mills, Mining Equipment And Other Equipment That Is Subject To Vibration Or Requiring Dependable Electrical Performance, Manufactured From Seamless Pure Electrolytic Copper Tubing: Provides Maximum Conductivity, Low Resistance And |
| Manufactured from seamless pure electrolytic copper tubing provides maximum conductivity, low resistance and excellent ductility for crimping |
| Seamless tubular crimp barrel design has no seams to split resulting in a very high quality electrical connection |
| Also can be used on solid conductor |
| Double thick tongue provides a very strong terminal |
| Produced from tubular extra copper material assures the compression connector will operate cooler than the conductors it connects |
| Internally beveled barrel provides easy cable entry, especially for flexible conductors |
| Inspection hole provides easy visual check for proper conductor insertion |
| Electro tin plated provides long lasting durable corrosion resistance |
| A strong connector for demanding applications that require high reliability |
| For use on copper commercial (code) cable, Type AN aircraft cable and extra flexible conductors |
| Used for other equipment that is subject to vibration or requiring dependable electrical performance |
| Uninsulated compression ring tongue terminal |
| For Y10D, Y10-22 non-ratchet, Y8MRB-1, MR20, MR8G98, MR8-9Q ratchet installation tools |
| Range of copper tube formed terminals taking wires from 0.3 - 1000 sq-mm |
| Heat resistant up to 125 deg C |
| Bulk packaging |
| 0.54 in hole center to barrel end, 0.16 in hole center to barrel |
| 9/32 in L Strip, 0.54 in Hole Center to Barrel End, 0.16 in Hole Center to Barre |
