BURNDY®

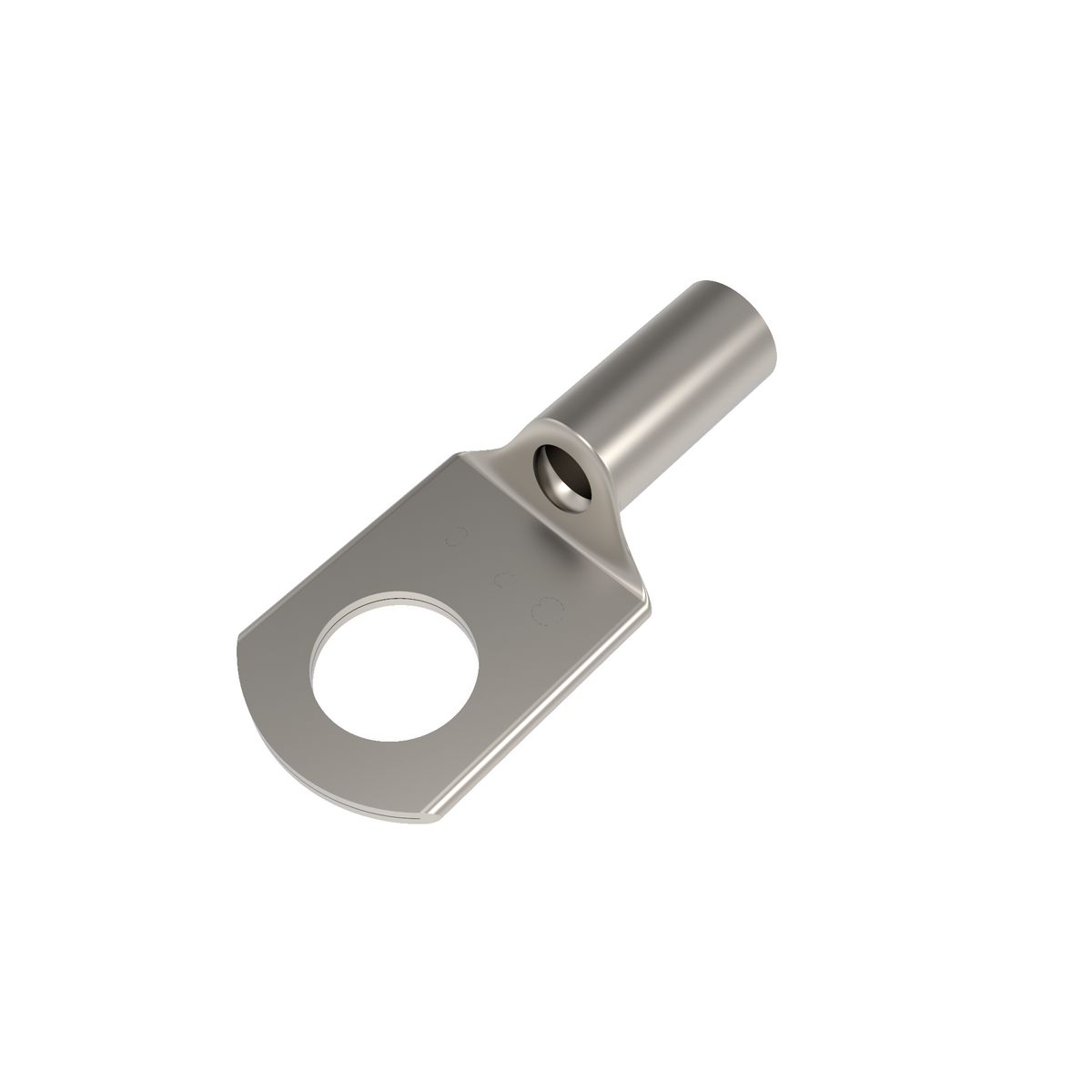

Burndy® YAV10T3BOX HYLUG™ YAV 1-Hole Heavy Duty Compression Lug With Inspection Window, 12 to 10 AWG Copper Conductor
Custom_Product_Images_Illustration
BURNDY®
Burndy® YAV10T3BOX HYLUG™ YAV 1-Hole Heavy Duty Compression Lug With Inspection Window, 12 to 10 AWG Copper Conductor
SKU86005
MFGR #YAV10T3BOX
Your Cost: $1.53/ea
BURNDY's compression connectors are designed for reliable and controllable electrical connections. The complete installation is fully inspectable. They are high conductivity copper and operate cooler than the wire on which they are installed. The connectors withstand a wide range of electrical and environmental conditions, including current surges, temperatures, corrosion and vibrations, for a wide variety of applications. These features mean a consistently high quality connection at a low installed cost. Copper compression connectors are manufactured from high-conductivity electrolytic copper. The connectors are normally tinplated, lead-plated, or plated with proprietary BURNDY® brite finish to provide durable long-lasting corrosion resistance. The connector design has been matched to the cable size to provide the necessary physical strength requirements for reliable electrical performance.
BURNDY's compression connectors are designed for reliable and controllable electrical connections. The complete installation is fully inspectable. They are high conductivity copper and operate cooler than the wire on which they are installed. The connectors withstand a wide range of electrical and environmental conditions, including current surges, temperatures, corrosion and vibrations, for a wide variety of applications. These features mean a consistently high quality connection at a low installed cost. Copper compression connectors are manufactured from high-conductivity electrolytic copper. The connectors are normally tinplated, lead-plated, or plated with proprietary BURNDY® brite finish to provide durable long-lasting corrosion resistance. The connector design has been matched to the cable size to provide the necessary physical strength requirements for reliable electrical performance.
ARRA Compliant C Barrel Size 1/4 in L Barrel Type Beveled/Seamless/Short Brand BURNDY® Buy American Compliant C Catalog Number YAV10T3BOX Conductor Size 12 to 10 AWG Conductor Type Solid/Stranded Copper Country of Origin US Die Code 2 EU RoHS Indicator Y Gross Weight Per Pack 0.0100 lb Gross Weight per Pack Metric 0.00 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8535908020 Height 0.21 in Height [Metric] 0.5334 cm Length 1.10 in Length [Metric] 2.7940 cm Manufacturer BURNDY® Material Copper Overall Length 1.1 in Returnable Y Series YAV Specifications 7/16 in L Wire Strip Standard UL467 Stock Status NORMALLY STOCKED Stud Size 1/4 in Sub Brand HYLUG Temperature Rating 650 °F Tongue Size 0.45 in W Tongue Type Ring Straight Type 1-Hole Heavy Duty Non-Insulated UNSPSC 39121405 UPC 11 78181054170 UPC 12 781810541708 Voltage Rating 600 VAC to 35 kV Width 0.45 in Width [Metric] 1.1430 cm For Use On Copper Commercial (Code) Cable, Type AN Aircraft Cable And Extra Flexible Conductors, Industrials, Hospitals, Electric Utilities, Shipboard And Marine, Computers, Steel Mills, Mining Equipment And Other Equipment That Is Subject To Vibration Or Requiring Dependable Electrical Performance Features: Seamless Uninsulated Compression Heavy Duty Ring Tongue Terminal, HYLUG Type YAV Is A Seamless, Heavy Duty Uninsulated Compression Ring Tongue Terminal Manufactured From Pure Electrolytic Copper Tubing And Is For Use On Copper Commercial (Code) Cable, Type AN Aircraft Cable And Extra Flexible Conductors, Because Of Its Seamless Design, The YAV HYLUG Also Accommodates Solid Conductors, The Seamless Tubing Produces A Double Thick Tongue And A Strong Connector For Demanding Applications That Require High Reliability, Applications Include Industrials, Hospitals, Electric Utilities, Air Craft, Shipboard And Marine, Computers, Steel Mills, Mining Equipment And Other Equipment That Is Subject To Vibration Or Requiring Dependable Electrical Performance, Manufactured From Seamless Pure Electrolytic Copper Tubing: Provides Maximum Conductivity, Low Resistance And Manufactured from seamless pure electrolytic copper tubing Provides maximum conductivity, low resistance and excellent ductility for crimping Seamless tubular crimp barrel design No seams to split resulting in a very high quality electrical connection Also can be used on solid conductor Double thick tongue Provides a very strong terminal tongue Produced from tubular copper Extra copper material assures the compression connector will operate cooler than the conductors it connects Internally beveled barrel Provides easy cable entry, especially for flexible conductors Provides easy visual check for proper conductor insertion Provides long lasting durable corrosion resistance Box Packaging For non-ratchet: Y10D, Y1022 tool, ratchet: MR8-G98, MR8-9Q, Y8MRB-1, MR20 tool with N10HT, N10HT-24 die installation tool 0.87 in hole center to barrel end, 0.32 in hole center to barrel 7/16 in L Strip, 0.87 in Hole Center to Barrel End, 0.32 in Hole Center to Barrel
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| ARRA Compliant | C |
| Barrel Size | 1/4 in L |
| Barrel Type | Beveled/Seamless/Short |
| Brand | BURNDY® |
| Buy American Compliant | C |
| Catalog Number | YAV10T3BOX |
| Conductor Size | 12 to 10 AWG |
| Conductor Type | Solid/Stranded Copper |
| Country of Origin | US |
| Die Code | 2 |
| EU RoHS Indicator | Y |
| Gross Weight Per Pack | 0.0100 lb |
| Gross Weight per Pack Metric | 0.00 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8535908020 |
| Height | 0.21 in |
| Height [Metric] | 0.5334 cm |
| Length | 1.10 in |
| Length [Metric] | 2.7940 cm |
| Manufacturer | BURNDY® |
| Material | Copper |
| Overall Length | 1.1 in |
| Returnable | Y |
| Series | YAV |
| Specifications | 7/16 in L Wire Strip |
| Standard | UL467 |
| Stock Status | NORMALLY STOCKED |
| Stud Size | 1/4 in |
| Sub Brand | HYLUG |
| Temperature Rating | 650 °F |
| Tongue Size | 0.45 in W |
| Tongue Type | Ring Straight |
| Type | 1-Hole Heavy Duty Non-Insulated |
| UNSPSC | 39121405 |
| UPC 11 | 78181054170 |
| UPC 12 | 781810541708 |
| Voltage Rating | 600 VAC to 35 kV |
| Width | 0.45 in |
| Width [Metric] | 1.1430 cm |
| For Use On Copper Commercial (Code) Cable, Type AN Aircraft Cable And Extra Flexible Conductors, Industrials, Hospitals, Electric Utilities, Shipboard And Marine, Computers, Steel Mills, Mining Equipment And Other Equipment That Is Subject To Vibration Or Requiring Dependable Electrical Performance |
| Features: Seamless Uninsulated Compression Heavy Duty Ring Tongue Terminal, HYLUG Type YAV Is A Seamless, Heavy Duty Uninsulated Compression Ring Tongue Terminal Manufactured From Pure Electrolytic Copper Tubing And Is For Use On Copper Commercial (Code) Cable, Type AN Aircraft Cable And Extra Flexible Conductors, Because Of Its Seamless Design, The YAV HYLUG Also Accommodates Solid Conductors, The Seamless Tubing Produces A Double Thick Tongue And A Strong Connector For Demanding Applications That Require High Reliability, Applications Include Industrials, Hospitals, Electric Utilities, Air Craft, Shipboard And Marine, Computers, Steel Mills, Mining Equipment And Other Equipment That Is Subject To Vibration Or Requiring Dependable Electrical Performance, Manufactured From Seamless Pure Electrolytic Copper Tubing: Provides Maximum Conductivity, Low Resistance And |
| Manufactured from seamless pure electrolytic copper tubing |
| Provides maximum conductivity, low resistance and excellent ductility for crimping |
| Seamless tubular crimp barrel design |
| No seams to split resulting in a very high quality electrical connection |
| Also can be used on solid conductor |
| Double thick tongue |
| Provides a very strong terminal tongue |
| Produced from tubular copper |
| Extra copper material assures the compression connector will operate cooler than the conductors it connects |
| Internally beveled barrel |
| Provides easy cable entry, especially for flexible conductors |
| Provides easy visual check for proper conductor insertion |
| Provides long lasting durable corrosion resistance |
| Box Packaging |
| For non-ratchet: Y10D, Y1022 tool, ratchet: MR8-G98, MR8-9Q, Y8MRB-1, MR20 tool with N10HT, N10HT-24 die installation tool |
| 0.87 in hole center to barrel end, 0.32 in hole center to barrel |
| 7/16 in L Strip, 0.87 in Hole Center to Barrel End, 0.32 in Hole Center to Barrel |
