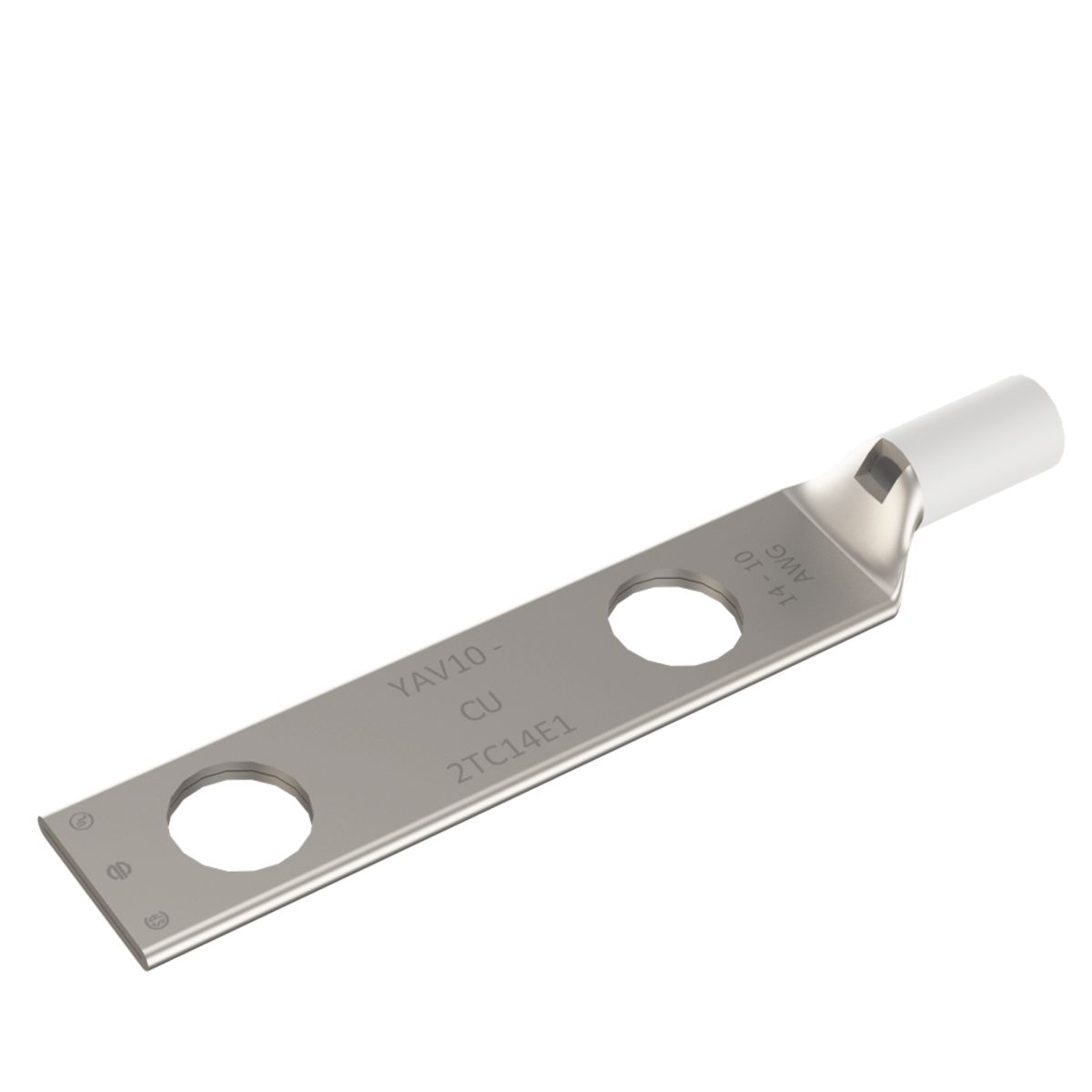

Burndy® YAV102TC38 HYLUG™ YAV-2TC 2-Hole Compression Lug With Inspection Window, 14 to 10 AWG Copper Conductor, 3/8 in Stud, Copper
Custom_Product_Images_Illustration
Burndy® YAV102TC38 HYLUG™ YAV-2TC 2-Hole Compression Lug With Inspection Window, 14 to 10 AWG Copper Conductor, 3/8 in Stud, Copper
SKU303034
MFGR #YAV102TC38
$/ea
BURNDY's compression connectors are designed for reliable and controllable electrical connections. The complete installation is fully inspectable. They are high conductivity copper and operate cooler than the wire on which they are installed. The connectors withstand a wide range of electrical and environmental conditions, including current surges, temperatures, corrosion and vibrations, for a wide variety of applications. These features mean a consistently high quality connection at a low installed cost. Copper compression connectors are manufactured from high-conductivity electrolytic copper. The connectors are normally tinplated, lead-plated, or plated with proprietary BURNDY® brite finish to provide durable long-lasting corrosion resistance. The connector design has been matched to the cable size to provide the necessary physical strength requirements for reliable electrical performance.
BURNDY's compression connectors are designed for reliable and controllable electrical connections. The complete installation is fully inspectable. They are high conductivity copper and operate cooler than the wire on which they are installed. The connectors withstand a wide range of electrical and environmental conditions, including current surges, temperatures, corrosion and vibrations, for a wide variety of applications. These features mean a consistently high quality connection at a low installed cost. Copper compression connectors are manufactured from high-conductivity electrolytic copper. The connectors are normally tinplated, lead-plated, or plated with proprietary BURNDY® brite finish to provide durable long-lasting corrosion resistance. The connector design has been matched to the cable size to provide the necessary physical strength requirements for reliable electrical performance.
Application Wire Termination ARRA Compliant C Barrel Size 0.38 in L Barrel Type Chamfered/Standard Buy American Compliant C Catalog Number YAV102TC38 Country of Origin US EU RoHS Indicator Y Gross Weight Per Pack 0.0100 lb Gross Weight per Pack Metric 0.00 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8535908020 Height 0.21 in Height [Metric] 0.5334 cm Length 2.40 in Length [Metric] 6.0960 cm Mounting Hole Size 3/8 in Overall Length 2.4 in Returnable Y Series YAV-2TC Specifications 7/16 in L Wire Strip, 1 in Hole Spacing Standard UL 486A-486B Standards ARRA CompliantBuy American Act CompliantRoHS CompliantUL ListedCSA Certified Sub Brand HYLUG Temperature Rating 90 °C Tongue Size 0.56 in W x 0.04 in THK Tongue Type Standard Straight Type 2-Hole UNSPSC 39121405 UPC 11 78181002185 UPC 12 781810021859 Voltage Rating 600 VAC to 35 kV Width 0.56 in Width [Metric] 1.4224 cm Stock Status NONSTOCK Brand BURNDY® Manufacturer BURNDY® Conductor Size 14 to 10 AWG Conductor Type Stranded Copper Die Code 2 Scribe Material Copper Stud Size 3/8 in Wire Termination Features: UL Listed 90 DEG C, 600 V - 35 KV, 45 DEG And 90 DEG Angles Are Available, Temperature Rating: 90 DEG C, Tongue Angle: Straight, Finish: Electro-Tin Plated, Dieless Tools (number Of Crimps): Y8MRB-1 Tool, (1), Conductor Type: Commercial Stranded Copper, Wire Strip Length: 7/16 IN, Die Index: 2 SCRIBE Dieless tools (number of crimps) - (1) Y8MRB-1 tool 14 to 10 AWG stranded, 12 to 10 AWG solid, 6 sq-mm for class 2 conductor cable 14 to 10 AWG stranded, 12 to 10 AWG solid conductor Electro tin plated Electro Tin Plated Copper
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | Wire Termination |
| ARRA Compliant | C |
| Barrel Size | 0.38 in L |
| Barrel Type | Chamfered/Standard |
| Buy American Compliant | C |
| Catalog Number | YAV102TC38 |
| Country of Origin | US |
| EU RoHS Indicator | Y |
| Gross Weight Per Pack | 0.0100 lb |
| Gross Weight per Pack Metric | 0.00 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8535908020 |
| Height | 0.21 in |
| Height [Metric] | 0.5334 cm |
| Length | 2.40 in |
| Length [Metric] | 6.0960 cm |
| Mounting Hole Size | 3/8 in |
| Overall Length | 2.4 in |
| Returnable | Y |
| Series | YAV-2TC |
| Specifications | 7/16 in L Wire Strip, 1 in Hole Spacing |
| Standard | UL 486A-486B |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantUL ListedCSA Certified |
| Sub Brand | HYLUG |
| Temperature Rating | 90 °C |
| Tongue Size | 0.56 in W x 0.04 in THK |
| Tongue Type | Standard Straight |
| Type | 2-Hole |
| UNSPSC | 39121405 |
| UPC 11 | 78181002185 |
| UPC 12 | 781810021859 |
| Voltage Rating | 600 VAC to 35 kV |
| Width | 0.56 in |
| Width [Metric] | 1.4224 cm |
| Stock Status | NONSTOCK |
| Brand | BURNDY® |
| Manufacturer | BURNDY® |
| Conductor Size | 14 to 10 AWG |
| Conductor Type | Stranded Copper |
| Die Code | 2 Scribe |
| Material | Copper |
| Stud Size | 3/8 in |
| Wire Termination |
| Features: UL Listed 90 DEG C, 600 V - 35 KV, 45 DEG And 90 DEG Angles Are Available, Temperature Rating: 90 DEG C, Tongue Angle: Straight, Finish: Electro-Tin Plated, Dieless Tools (number Of Crimps): Y8MRB-1 Tool, (1), Conductor Type: Commercial Stranded Copper, Wire Strip Length: 7/16 IN, Die Index: 2 SCRIBE |
| Dieless tools (number of crimps) - (1) Y8MRB-1 tool |
| 14 to 10 AWG stranded, 12 to 10 AWG solid, 6 sq-mm for class 2 conductor cable |
| 14 to 10 AWG stranded, 12 to 10 AWG solid conductor |
| Electro tin plated |
| Electro Tin Plated Copper |
