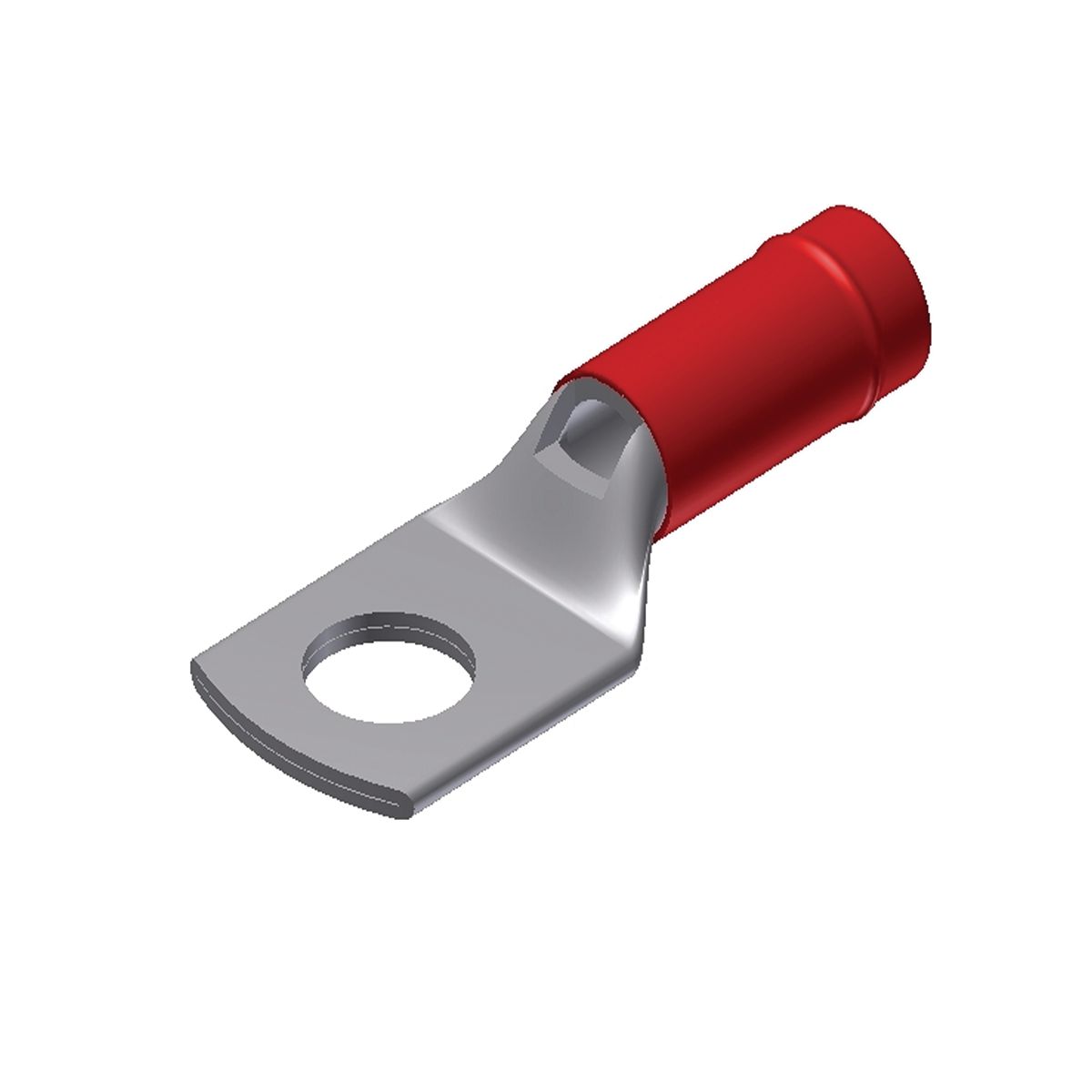

Burndy® YAEV8CLBOX INSULUG™ YAEV-L 1-Hole Heavy Duty Compression Terminal Lug, 8 AWG Copper Conductor, #8/10 Stud, Copper
Custom_Product_Images_Illustration
Burndy® YAEV8CLBOX INSULUG™ YAEV-L 1-Hole Heavy Duty Compression Terminal Lug, 8 AWG Copper Conductor, #8/10 Stud, Copper
SKU345621
MFGR #YAEV8CLBOX
$/ea
The INSULUG™ type YAEV is designed for very demanding high vibration applications encountered in aircraft and aboard ships as well as motor lead applications in hospitals, industrials and generating plants. The nylon insulated seamless, electrolytic copper barrel with double thick tongue provides an extra strong insulated connection. The terminal is rated 105 degC and meets SAE-AS7928 requirements.
The INSULUG™ type YAEV is designed for very demanding high vibration applications encountered in aircraft and aboard ships as well as motor lead applications in hospitals, industrials and generating plants. The nylon insulated seamless, electrolytic copper barrel with double thick tongue provides an extra strong insulated connection. The terminal is rated 105 degC and meets SAE-AS7928 requirements.
Application For Very Demanding High Vibration Applications Encountered In Aircraft And Aboard Ships As Well As Motor Lead Applications In Hospitals, Industrials And Generating Plants ARRA Compliant C Barrel Size 0.356 in L Barrel Type Seamless Buy American Compliant C Catalog Number YAEV8CLBOX Color Red Color Code Red Country of Origin US EU RoHS Indicator Y Gross Weight Per Pack 0.0100 lb Gross Weight per Pack Metric 0.01 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536904000 Height 0.36 in Height [Metric] 0.9144 cm Insulation Y Length 1.40 in Length [Metric] 3.5560 cm Overall Length 1.4 in Returnable Y Series YAEV-L Specifications 7/16 in L Wire Strip Standard UL486;Military Specified (Mil-Spec) Standards ARRA CompliantBuy American Act CompliantRoHS CompliantMilitary Specified UL486/MS15036-115 ListedCSA Certified Sub Brand INSULUG Temperature Rating 105 °C Tongue Size 0.41 in ID Tongue Type Ring Straight Type YAEV-L, Heavy Duty UNSPSC 39121405 UPC 11 78181056500 UPC 12 781810565001 Voltage Rating 300 VAC Width 0.41 in Width [Metric] 1.0414 cm Stock Status NONSTOCK Brand BURNDY® Manufacturer BURNDY® Conductor Size 8 AWG Conductor Type Stranded Copper Material Copper Stud Size #8 to #10 For Very Demanding High Vibration Applications Encountered In Aircraft And Aboard Ships As Well As Motor Lead Applications In Hospitals, Industrials And Generating Plants Features: The INSULUG Type YAEV-L Is Designed For Very Demanding High Vibration Applications Encountered In Aircraft And Aboard Ships As Well As Motor Lead Applications In Hospitals, Industrials And Generating Plants, The Nylon Insulated Seamless, Electrolytic Copper Barrel With Double Thick Tongue Provides An Extra Strong Insulated Connection, The Terminal Is Rated 105 DEG C And Meets SAE-AS7928 Requirements, Double Thick Tongue: Provides Maximum Reliability And Electrical Capacity Plus An Extra Strong Terminal Tongue, Manufactured From One-Piece Pure Electrolytic Copper: Provides High Conductivity, Low Resistance With No Seams To Split Plus Ductility For Excellent Crimp Forming Properties, Electro-Tin Plated: Provides Long-Lasting Corrosion Resistance, Nylon Insulation Is Locked In Place: Insulation Will Not Move Or Twist Off, 300 Volt Nylon Insulation: High Dielectric Strength And Stability In Demanding Oily Environmental Conditions, Color Coded: Provides Quick, Easy Wire Size Connector Selection, Sae-as25036: -115, Finish: Electro-Tin Plated, Tools, Die Nest Catalog Number, Die Indentor Catalog Number: HYPRESS: Y29NC Tool, DV8L Die Nest, Y29PLE-1 Die Indentor, Package: Box, Installation Tool: Ratchet: M8ND Tool With N8CET-2 Die, Non-Ratchet: MY28-6 Tool, Hydraulic: Y35, Y39 Tool With U8CET Die Set, Insulation Diameter (maximum): 0.258 IN, Temperature Rating: 105 DEG C Maximum, Wire Shroud: No, Conductor Type: Commercial/Military Stranded Copper, Color Code: Red, Wire Strip Length: 7/16 IN, Tongue Angle: Straight Double thick tongue Provides maximum reliability and electrical capacity plus an extra strong terminal tongue Manufactured from one-piece pure electrolytic copper, provides high conductivity, low resistance with no seams to split plus ductility for excellent crimp forming properties Electro-tin plated, provides long lasting corrosion resistance Nylon insulation is locked in place: insulation will not move or twist off 300 volt nylon insulation: high dielectric strength and stability in demanding oily environmental conditions For installation tool: ratchet: M8ND tool with N8CET-2 die, non-ratchet: MY28-6 tool, hydraulic: Y35, Y39 tool with U8CET die set Nylon insulation AN 8 aircraft cable size, 8 AWG copper stranded conductor size 8 AWG stranded conductor size Pure electrolytic tin plated copper 7/16 in L Strip, 0.28 in Hole to End, 1.2 in Hole to Barrel Length, 0.258 in Dia Maximum Insulation
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | For Very Demanding High Vibration Applications Encountered In Aircraft And Aboard Ships As Well As Motor Lead Applications In Hospitals, Industrials And Generating Plants |
| ARRA Compliant | C |
| Barrel Size | 0.356 in L |
| Barrel Type | Seamless |
| Buy American Compliant | C |
| Catalog Number | YAEV8CLBOX |
| Color | Red |
| Color Code | Red |
| Country of Origin | US |
| EU RoHS Indicator | Y |
| Gross Weight Per Pack | 0.0100 lb |
| Gross Weight per Pack Metric | 0.01 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536904000 |
| Height | 0.36 in |
| Height [Metric] | 0.9144 cm |
| Insulation | Y |
| Length | 1.40 in |
| Length [Metric] | 3.5560 cm |
| Overall Length | 1.4 in |
| Returnable | Y |
| Series | YAEV-L |
| Specifications | 7/16 in L Wire Strip |
| Standard | UL486;Military Specified (Mil-Spec) |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantMilitary Specified UL486/MS15036-115 ListedCSA Certified |
| Sub Brand | INSULUG |
| Temperature Rating | 105 °C |
| Tongue Size | 0.41 in ID |
| Tongue Type | Ring Straight |
| Type | YAEV-L, Heavy Duty |
| UNSPSC | 39121405 |
| UPC 11 | 78181056500 |
| UPC 12 | 781810565001 |
| Voltage Rating | 300 VAC |
| Width | 0.41 in |
| Width [Metric] | 1.0414 cm |
| Stock Status | NONSTOCK |
| Brand | BURNDY® |
| Manufacturer | BURNDY® |
| Conductor Size | 8 AWG |
| Conductor Type | Stranded Copper |
| Material | Copper |
| Stud Size | #8 to #10 |
| For Very Demanding High Vibration Applications Encountered In Aircraft And Aboard Ships As Well As Motor Lead Applications In Hospitals, Industrials And Generating Plants |
| Features: The INSULUG Type YAEV-L Is Designed For Very Demanding High Vibration Applications Encountered In Aircraft And Aboard Ships As Well As Motor Lead Applications In Hospitals, Industrials And Generating Plants, The Nylon Insulated Seamless, Electrolytic Copper Barrel With Double Thick Tongue Provides An Extra Strong Insulated Connection, The Terminal Is Rated 105 DEG C And Meets SAE-AS7928 Requirements, Double Thick Tongue: Provides Maximum Reliability And Electrical Capacity Plus An Extra Strong Terminal Tongue, Manufactured From One-Piece Pure Electrolytic Copper: Provides High Conductivity, Low Resistance With No Seams To Split Plus Ductility For Excellent Crimp Forming Properties, Electro-Tin Plated: Provides Long-Lasting Corrosion Resistance, Nylon Insulation Is Locked In Place: Insulation Will Not Move Or Twist Off, 300 Volt Nylon Insulation: High Dielectric Strength And Stability In Demanding Oily Environmental Conditions, Color Coded: Provides Quick, Easy Wire Size Connector Selection, Sae-as25036: -115, Finish: Electro-Tin Plated, Tools, Die Nest Catalog Number, Die Indentor Catalog Number: HYPRESS: Y29NC Tool, DV8L Die Nest, Y29PLE-1 Die Indentor, Package: Box, Installation Tool: Ratchet: M8ND Tool With N8CET-2 Die, Non-Ratchet: MY28-6 Tool, Hydraulic: Y35, Y39 Tool With U8CET Die Set, Insulation Diameter (maximum): 0.258 IN, Temperature Rating: 105 DEG C Maximum, Wire Shroud: No, Conductor Type: Commercial/Military Stranded Copper, Color Code: Red, Wire Strip Length: 7/16 IN, Tongue Angle: Straight |
| Double thick tongue Provides maximum reliability and electrical capacity plus an extra strong terminal tongue |
| Manufactured from one-piece pure electrolytic copper, provides high conductivity, low resistance with no seams to split plus ductility for excellent crimp forming properties |
| Electro-tin plated, provides long lasting corrosion resistance |
| Nylon insulation is locked in place: insulation will not move or twist off |
| 300 volt nylon insulation: high dielectric strength and stability in demanding oily environmental conditions |
| For installation tool: ratchet: M8ND tool with N8CET-2 die, non-ratchet: MY28-6 tool, hydraulic: Y35, Y39 tool with U8CET die set |
| Nylon insulation |
| AN 8 aircraft cable size, 8 AWG copper stranded conductor size |
| 8 AWG stranded conductor size |
| Pure electrolytic tin plated copper |
| 7/16 in L Strip, 0.28 in Hole to End, 1.2 in Hole to Barrel Length, 0.258 in Dia Maximum Insulation |
