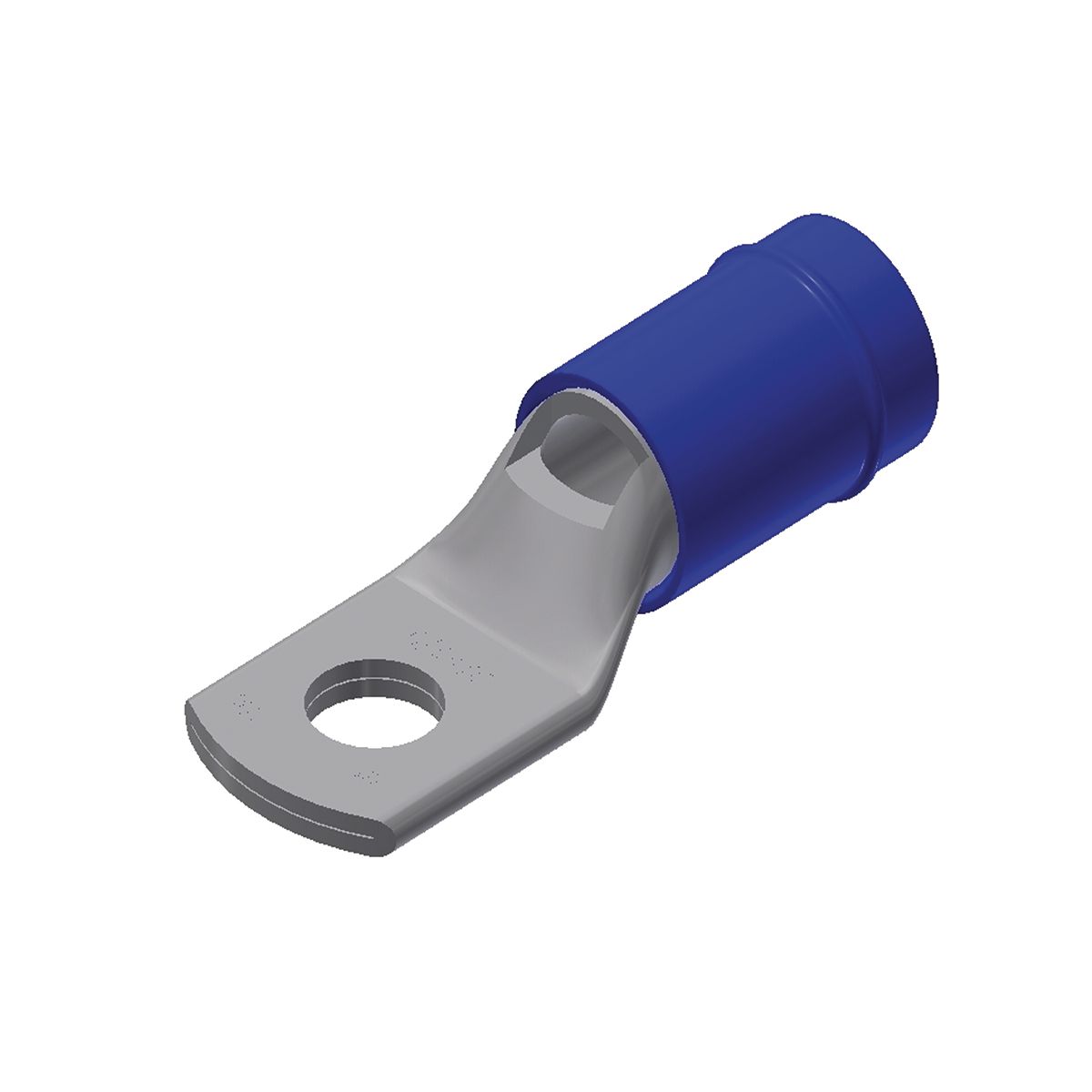

Burndy® YAEV6CL INSULUG™ YAEV-L 1-Hole Heavy Duty Compression Terminal Lug With Inspection Hole, 6 AWG Copper Conductor, Copper
Custom_Product_Images_Illustration
Burndy® YAEV6CL INSULUG™ YAEV-L 1-Hole Heavy Duty Compression Terminal Lug With Inspection Hole, 6 AWG Copper Conductor, Copper
SKU914637
MFGR #YAEV6CL
$/ea
The INSULUG™ type YAEV is designed for very demanding high vibration applications encountered in aircraft and aboard ships as well as motor lead applications in hospitals, industrials and generating plants. The nylon insulated seamless, electrolytic copper barrel with double thick tongue provides an extra strong insulated connection. The terminal is rated 105 degC and meets SAE-AS7928 requirements.
The INSULUG™ type YAEV is designed for very demanding high vibration applications encountered in aircraft and aboard ships as well as motor lead applications in hospitals, industrials and generating plants. The nylon insulated seamless, electrolytic copper barrel with double thick tongue provides an extra strong insulated connection. The terminal is rated 105 degC and meets SAE-AS7928 requirements.
Application For Very Demanding High Vibration Applications Encountered In Aircraft And Aboard Ships As Well As Motor Lead Applications In Hospitals, Industrials And Generating Plants ARRA Compliant C Barrel Size 0.418 in L Barrel Type Short Buy American Compliant C Catalog Number YAEV6CL Color Blue Color Code Blue Country of Origin US EU RoHS Indicator Y Gross Weight Per Pack 0.0100 lb Gross Weight per Pack Metric 0.01 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536904000 Height 0.42 in Height [Metric] 1.0668 cm Insulation Y Length 1.56 in Length [Metric] 3.9624 cm Overall Length 1.56 in Returnable Y Series YAEV-L Specifications 1/2 in L Wire Strip Standard UL486;Military Specified (Mil-Spec) Standards ARRA CompliantBuy American Act CompliantRoHS CompliantMilitary Specified UL486MIL-T-7928CSA Certified Sub Brand INSULUG Temperature Rating 105 °C Tongue Size 0.6 in W Tongue Type Ring Straight Type 1-Hole Heavy Duty UNSPSC 39121405 UPC 11 78181002770 UPC 12 781810027707 Voltage Rating 300 VAC Width 0.50 in Width [Metric] 1.2700 cm Stock Status NONSTOCK Brand BURNDY® Manufacturer BURNDY® Conductor Size 6 AWG Conductor Type Stranded Copper Material Copper Stud Size 1/4 in For Very Demanding High Vibration Applications Encountered In Aircraft And Aboard Ships As Well As Motor Lead Applications In Hospitals, Industrials And Generating Plants Features: The INSULUG Type YAEV-L Is Designed For Very Demanding High Vibration Applications Encountered In Aircraft And Aboard Ships As Well As Motor Lead Applications In Hospitals, Industrials And Generating Plants, The Nylon Insulated Seamless, Electrolytic Copper Barrel With Double Thick Tongue Provides An Extra Strong Insulated Connection, The Terminal Is Rated 105 DEG C And Meets SAE-AS7928 Requirements, Double Thick Tongue: Provides Maximum Reliability And Electrical Capacity Plus An Extra Strong Terminal Tongue, Manufactured From One-Piece Pure Electrolytic Copper: Provides High Conductivity, Low Resistance With No Seams To Split Plus Ductility For Excellent Crimp Forming Properties, Electro-Tin Plated: Provides Long-Lasting Corrosion Resistance, Nylon Insulation Is Locked In Place: Insulation Will Not Move Or Twist Off, 300 Volt Nylon Insulation: High Di Double thick tongue Provides maximum reliability and electrical capacity plus an extra strong terminal tongue Manufactured from 1-piece pure electrolytic copper, provides high conductivity, low resistance with no seams to split plus ductility for excellent crimp forming properties Electro tin plated, provides long lasting corrosion resistance Nylon insulation is locked in place: insulation will not move or twist off 300 volt nylon insulation: high dielectric strength and stability in demanding oily environmental conditions For installation tool: non-ratchet: MY28-6 tool, hydraulic: Y35, Y39 tool with U6CET die set, tools, die nest catalog number, die indentor catalog number: HYPRESS: Y29NC tool, DEV6L die nest, Y29PLE-1 die indentor Nylon insulation AN 6 aircraft cable size, 6 AWG copper stranded conductor Pure electrolytic tin plated 0.29 in hole to end, 1.33 in hole to barrel length, 0.313 in Dia maximum insulation 1/2 in L Strip, 0.29 in Hole to End, 1.33 in Hole to Barrel Length, 0.313 in Dia Maximum Insulation
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | For Very Demanding High Vibration Applications Encountered In Aircraft And Aboard Ships As Well As Motor Lead Applications In Hospitals, Industrials And Generating Plants |
| ARRA Compliant | C |
| Barrel Size | 0.418 in L |
| Barrel Type | Short |
| Buy American Compliant | C |
| Catalog Number | YAEV6CL |
| Color | Blue |
| Color Code | Blue |
| Country of Origin | US |
| EU RoHS Indicator | Y |
| Gross Weight Per Pack | 0.0100 lb |
| Gross Weight per Pack Metric | 0.01 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536904000 |
| Height | 0.42 in |
| Height [Metric] | 1.0668 cm |
| Insulation | Y |
| Length | 1.56 in |
| Length [Metric] | 3.9624 cm |
| Overall Length | 1.56 in |
| Returnable | Y |
| Series | YAEV-L |
| Specifications | 1/2 in L Wire Strip |
| Standard | UL486;Military Specified (Mil-Spec) |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantMilitary Specified UL486MIL-T-7928CSA Certified |
| Sub Brand | INSULUG |
| Temperature Rating | 105 °C |
| Tongue Size | 0.6 in W |
| Tongue Type | Ring Straight |
| Type | 1-Hole Heavy Duty |
| UNSPSC | 39121405 |
| UPC 11 | 78181002770 |
| UPC 12 | 781810027707 |
| Voltage Rating | 300 VAC |
| Width | 0.50 in |
| Width [Metric] | 1.2700 cm |
| Stock Status | NONSTOCK |
| Brand | BURNDY® |
| Manufacturer | BURNDY® |
| Conductor Size | 6 AWG |
| Conductor Type | Stranded Copper |
| Material | Copper |
| Stud Size | 1/4 in |
| For Very Demanding High Vibration Applications Encountered In Aircraft And Aboard Ships As Well As Motor Lead Applications In Hospitals, Industrials And Generating Plants |
| Features: The INSULUG Type YAEV-L Is Designed For Very Demanding High Vibration Applications Encountered In Aircraft And Aboard Ships As Well As Motor Lead Applications In Hospitals, Industrials And Generating Plants, The Nylon Insulated Seamless, Electrolytic Copper Barrel With Double Thick Tongue Provides An Extra Strong Insulated Connection, The Terminal Is Rated 105 DEG C And Meets SAE-AS7928 Requirements, Double Thick Tongue: Provides Maximum Reliability And Electrical Capacity Plus An Extra Strong Terminal Tongue, Manufactured From One-Piece Pure Electrolytic Copper: Provides High Conductivity, Low Resistance With No Seams To Split Plus Ductility For Excellent Crimp Forming Properties, Electro-Tin Plated: Provides Long-Lasting Corrosion Resistance, Nylon Insulation Is Locked In Place: Insulation Will Not Move Or Twist Off, 300 Volt Nylon Insulation: High Di |
| Double thick tongue Provides maximum reliability and electrical capacity plus an extra strong terminal tongue |
| Manufactured from 1-piece pure electrolytic copper, provides high conductivity, low resistance with no seams to split plus ductility for excellent crimp forming properties |
| Electro tin plated, provides long lasting corrosion resistance |
| Nylon insulation is locked in place: insulation will not move or twist off |
| 300 volt nylon insulation: high dielectric strength and stability in demanding oily environmental conditions |
| For installation tool: non-ratchet: MY28-6 tool, hydraulic: Y35, Y39 tool with U6CET die set, tools, die nest catalog number, die indentor catalog number: HYPRESS: Y29NC tool, DEV6L die nest, Y29PLE-1 die indentor |
| Nylon insulation |
| AN 6 aircraft cable size, 6 AWG copper stranded conductor |
| Pure electrolytic tin plated |
| 0.29 in hole to end, 1.33 in hole to barrel length, 0.313 in Dia maximum insulation |
| 1/2 in L Strip, 0.29 in Hole to End, 1.33 in Hole to Barrel Length, 0.313 in Dia Maximum Insulation |
