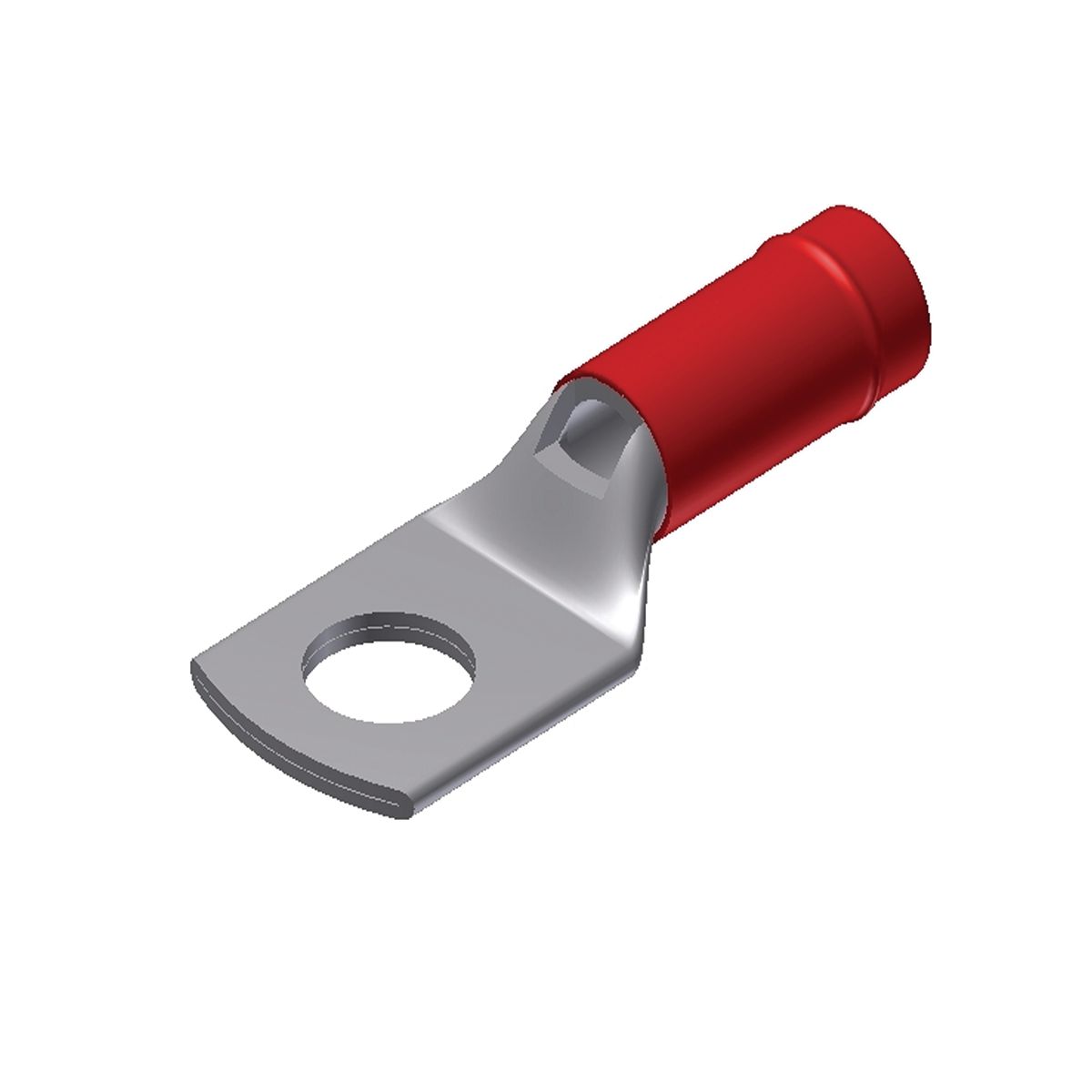

Burndy® YAEV18 INSULUG™ YAEV Heavy Duty Compression Terminal Lug, 22 to 18 AWG Copper Conductor, #8/10 Stud, Copper
Custom_Product_Images_Illustration
Burndy® YAEV18 INSULUG™ YAEV Heavy Duty Compression Terminal Lug, 22 to 18 AWG Copper Conductor, #8/10 Stud, Copper
SKU914634
MFGR #YAEV18
Your Cost: $1.30/ea
The INSULUG™ type YAEV is designed for very demanding high vibration applications encountered in aircraft and aboard ships as well as motor lead applications in hospitals, industrials and generating plants. The nylon insulated seamless, electrolytic copper barrel with double thick tongue provides an extra strong insulated connection. The terminal is rated 105 degC and meets SAE-AS7928 requirements.
The INSULUG™ type YAEV is designed for very demanding high vibration applications encountered in aircraft and aboard ships as well as motor lead applications in hospitals, industrials and generating plants. The nylon insulated seamless, electrolytic copper barrel with double thick tongue provides an extra strong insulated connection. The terminal is rated 105 degC and meets SAE-AS7928 requirements.
Application For High Vibration Applications Encountered In Aircraft And Aboard Ships As Well As Motor Lead Applications In Hospitals, Industrials And Generating Plants ARRA Compliant C Barrel Type Seamless Buy American Compliant C Catalog Number YAEV18 Color Red Color Code Red Country of Origin US EU RoHS Indicator Y Gross Weight Per Pack 0.0020 lb Gross Weight per Pack Metric 0.00 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536904000 Height 0.18 in Height [Metric] 0.4572 cm Insulation Y Length 0.91 in Length [Metric] 2.3114 cm Overall Length 0.91 in Returnable Y Series YAEV Specifications 1/4 in L Wire Strip Standard UL486;Military Specified (Mil-Spec) Standards ARRA CompliantBuy American Act CompliantRoHS CompliantMilitary Specified UL486/MIL-T-7928 ListedCSA Certified Sub Brand INSULUG Temperature Rating 105 °C Tongue Size 0.31 in W Tongue Type Ring Straight Type YAEV, Heavy Duty UNSPSC 39121405 UPC 11 78181002481 UPC 12 781810024812 Voltage Rating 300 VAC Width 0.31 in Width [Metric] 0.7874 cm Stock Status NONSTOCK Brand BURNDY® Manufacturer BURNDY® Conductor Size 22 to 18 AWG Conductor Type Stranded Copper Material Copper Stud Size #8 to #10 For High Vibration Applications Encountered In Aircraft And Aboard Ships As Well As Motor Lead Applications In Hospitals, Industrials And Generating Plants Features: The INSULUG Type YAEV Is Designed For Very Demanding High Vibration Applications Encountered In Aircraft And Aboard Ships As Well As Motor Lead Applications In Hospitals, Industrials And Generating Plants, The Nylon Insulated Seamless, Electrolytic Copper Barrel With Double Thick Tongue Provides An Extra Strong Insulated Connection, The Terminal Is Rated 105 DEG C And Meets SAE-AS7928 Requirements, Double Thick Tongue: Provides Maximum Reliability And Electrical Capacity Plus An Extra Strong Terminal Tongue, Manufactured From One-Piece Pure Electrolytic Copper: Provides High Conductivity, Low Resistance With No Seams To Split Plus Ductility For Excellent Crimp Forming Properties, Electro-Tin Plated: Provides Long-Lasting Corrosion Resistance, Nylon Insulation Is Locked In Place: Insulation Will Not Move Or Twist Off, 300 Volt Nylon Insulation: High Dielectric Strength And Stability In Demanding Oily Environmental Conditions, Color Coded: Provides Quick, Easy Wire Size Connector Selection, Package: Bulk, Wire Shroud: No, Temperature Rating: 105 DEG C Maximum, Finish: Electro-Tin Plated, Insulation Diameter (maximum): 0.125 IN, Installation Tool: Ratchet: MR8D94 Tool, Conductor Type: Commercial/Military Stranded Copper, Color Code: Red, Wire Strip Length: 1/4 IN, Tongue Angle: Straight Double thick tongue Provides maximum reliability and electrical capacity plus an extra strong terminal tongue Manufactured from 1-piece pure electrolytic copper, provides high conductivity, low resistance with no seams to split plus ductility for excellent crimp forming properties Electro tin plated, provides long lasting corrosion resistance Nylon insulation is locked in place: insulation will not move or twist off 300 volt nylon insulation: high dielectric strength and stability in demanding oily environmental conditions For installation tool: ratchet: MR8D94 tool Nylon insulation AN 22 to AN 18 aircraft cable size, 1 (1) to 2 (7) navy cable size, 22 to 18 AWG copper stranded/Solid conductor Pure electrolytic tin plated 0.24 in hole to end, 0.77 in hole to barrel length, 0.125 in Dia maximum insulation 1/4 in L Strip, 0.24 in Hole to End, 0.77 in Hole to Barrel Length, 0.125 in Dia Maximum Insulation
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | For High Vibration Applications Encountered In Aircraft And Aboard Ships As Well As Motor Lead Applications In Hospitals, Industrials And Generating Plants |
| ARRA Compliant | C |
| Barrel Type | Seamless |
| Buy American Compliant | C |
| Catalog Number | YAEV18 |
| Color | Red |
| Color Code | Red |
| Country of Origin | US |
| EU RoHS Indicator | Y |
| Gross Weight Per Pack | 0.0020 lb |
| Gross Weight per Pack Metric | 0.00 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536904000 |
| Height | 0.18 in |
| Height [Metric] | 0.4572 cm |
| Insulation | Y |
| Length | 0.91 in |
| Length [Metric] | 2.3114 cm |
| Overall Length | 0.91 in |
| Returnable | Y |
| Series | YAEV |
| Specifications | 1/4 in L Wire Strip |
| Standard | UL486;Military Specified (Mil-Spec) |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantMilitary Specified UL486/MIL-T-7928 ListedCSA Certified |
| Sub Brand | INSULUG |
| Temperature Rating | 105 °C |
| Tongue Size | 0.31 in W |
| Tongue Type | Ring Straight |
| Type | YAEV, Heavy Duty |
| UNSPSC | 39121405 |
| UPC 11 | 78181002481 |
| UPC 12 | 781810024812 |
| Voltage Rating | 300 VAC |
| Width | 0.31 in |
| Width [Metric] | 0.7874 cm |
| Stock Status | NONSTOCK |
| Brand | BURNDY® |
| Manufacturer | BURNDY® |
| Conductor Size | 22 to 18 AWG |
| Conductor Type | Stranded Copper |
| Material | Copper |
| Stud Size | #8 to #10 |
| For High Vibration Applications Encountered In Aircraft And Aboard Ships As Well As Motor Lead Applications In Hospitals, Industrials And Generating Plants |
| Features: The INSULUG Type YAEV Is Designed For Very Demanding High Vibration Applications Encountered In Aircraft And Aboard Ships As Well As Motor Lead Applications In Hospitals, Industrials And Generating Plants, The Nylon Insulated Seamless, Electrolytic Copper Barrel With Double Thick Tongue Provides An Extra Strong Insulated Connection, The Terminal Is Rated 105 DEG C And Meets SAE-AS7928 Requirements, Double Thick Tongue: Provides Maximum Reliability And Electrical Capacity Plus An Extra Strong Terminal Tongue, Manufactured From One-Piece Pure Electrolytic Copper: Provides High Conductivity, Low Resistance With No Seams To Split Plus Ductility For Excellent Crimp Forming Properties, Electro-Tin Plated: Provides Long-Lasting Corrosion Resistance, Nylon Insulation Is Locked In Place: Insulation Will Not Move Or Twist Off, 300 Volt Nylon Insulation: High Dielectric Strength And Stability In Demanding Oily Environmental Conditions, Color Coded: Provides Quick, Easy Wire Size Connector Selection, Package: Bulk, Wire Shroud: No, Temperature Rating: 105 DEG C Maximum, Finish: Electro-Tin Plated, Insulation Diameter (maximum): 0.125 IN, Installation Tool: Ratchet: MR8D94 Tool, Conductor Type: Commercial/Military Stranded Copper, Color Code: Red, Wire Strip Length: 1/4 IN, Tongue Angle: Straight |
| Double thick tongue Provides maximum reliability and electrical capacity plus an extra strong terminal tongue |
| Manufactured from 1-piece pure electrolytic copper, provides high conductivity, low resistance with no seams to split plus ductility for excellent crimp forming properties |
| Electro tin plated, provides long lasting corrosion resistance |
| Nylon insulation is locked in place: insulation will not move or twist off |
| 300 volt nylon insulation: high dielectric strength and stability in demanding oily environmental conditions |
| For installation tool: ratchet: MR8D94 tool |
| Nylon insulation |
| AN 22 to AN 18 aircraft cable size, 1 (1) to 2 (7) navy cable size, 22 to 18 AWG copper stranded/Solid conductor |
| Pure electrolytic tin plated |
| 0.24 in hole to end, 0.77 in hole to barrel length, 0.125 in Dia maximum insulation |
| 1/4 in L Strip, 0.24 in Hole to End, 0.77 in Hole to Barrel Length, 0.125 in Dia Maximum Insulation |
