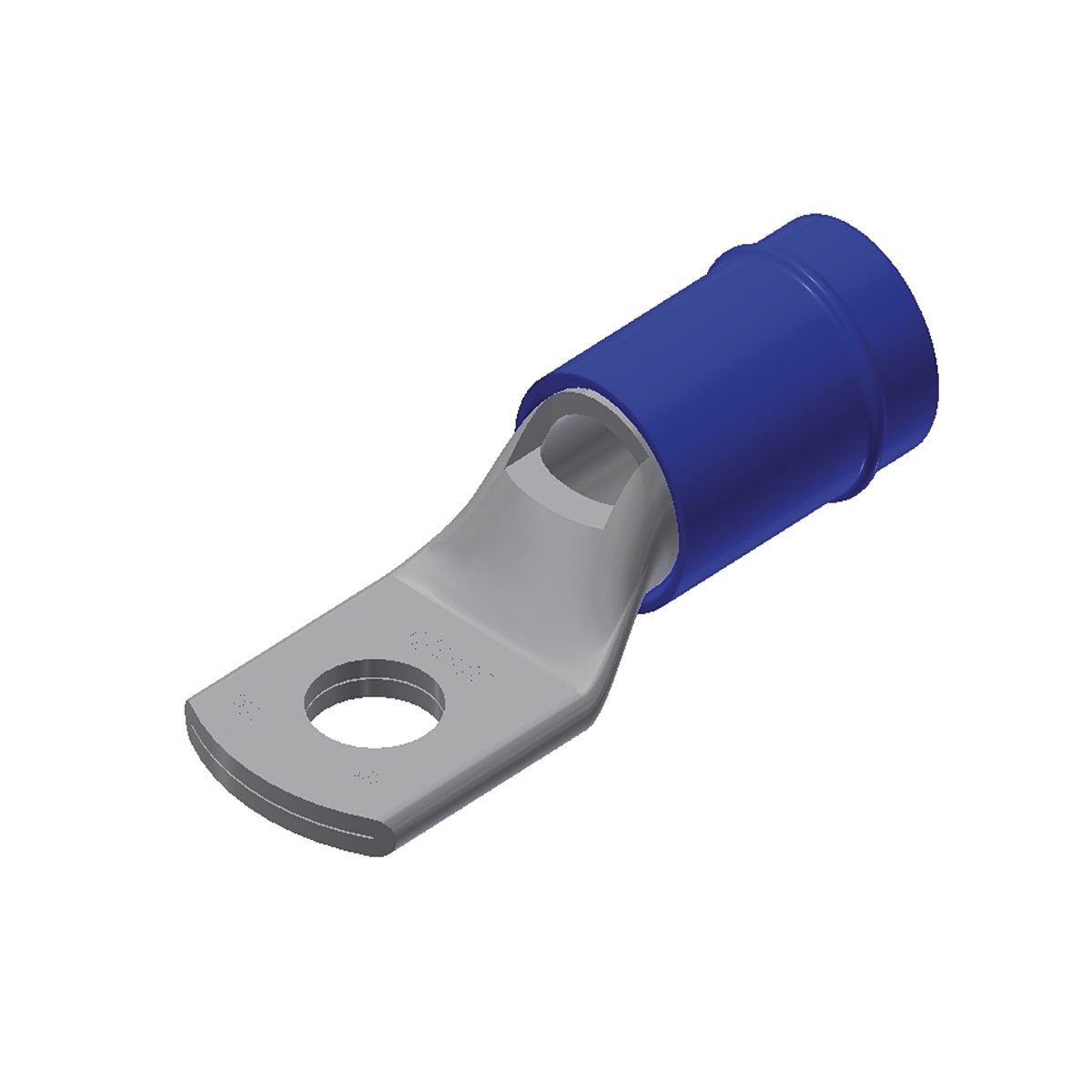

Burndy® YAEV14 INSULUG™ YAEV Heavy Duty Compression Terminal Lug With Inspection Window, 18 to 14 AWG Copper Conductor, Copper
Custom_Product_Images_Illustration
Burndy® YAEV14 INSULUG™ YAEV Heavy Duty Compression Terminal Lug With Inspection Window, 18 to 14 AWG Copper Conductor, Copper
SKU914631
MFGR #YAEV14
Your Cost: $1.20/ea
The INSULUG™ type YAEV is designed for very demanding high vibration applications encountered in aircraft and aboard ships as well as motor lead applications in hospitals, industrials and generating plants. The nylon insulated seamless, electrolytic copper barrel with double thick tongue provides an extra strong insulated connection. The terminal is rated 105 degC and meets SAE-AS7928 requirements.
The INSULUG™ type YAEV is designed for very demanding high vibration applications encountered in aircraft and aboard ships as well as motor lead applications in hospitals, industrials and generating plants. The nylon insulated seamless, electrolytic copper barrel with double thick tongue provides an extra strong insulated connection. The terminal is rated 105 degC and meets SAE-AS7928 requirements.
Application For High Vibration Applications Encountered In Aircraft And Aboard Ships As Well As Motor Lead Applications In Hospitals, Industrials And Generating Plants ARRA Compliant C Barrel Type Seamless Buy American Compliant C Catalog Number YAEV14 Color Blue Color Code Blue Country of Origin US EU RoHS Indicator Y Gross Weight Per Pack 0.0030 lb Gross Weight per Pack Metric 0.00 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536904000 Height 0.25 in Height [Metric] 0.6350 cm Insulation Y Length 0.97 in Length [Metric] 2.4638 cm Overall Length 0.94 in Returnable Y Series YAEV Specifications 1/4 in L Wire Strip Standard UL486;Military Specified (Mil-Spec) Standards ARRA CompliantBuy American Act CompliantRoHS CompliantMilitary Specified UL486MIL-T-7928CSA Certified Sub Brand INSULUG Temperature Rating 105 °C Tongue Size 0.41 in W x 0.42 in THK Tongue Type Ring Straight Type YAEV, Heavy Duty UNSPSC 39121405 UPC 11 78181002778 UPC 12 781810027783 Voltage Rating 300 VAC Width 0.31 in Width [Metric] 0.7874 cm Stock Status NONSTOCK Brand BURNDY® Manufacturer BURNDY® Conductor Size 18 to 14 AWG Conductor Type Stranded Copper Material Copper Stud Size #8 to #10 For High Vibration Applications Encountered In Aircraft And Aboard Ships As Well As Motor Lead Applications In Hospitals, Industrials And Generating Plants Features: The INSULUG Type YAEV Is Designed For Very Demanding High Vibration Applications Encountered In Aircraft And Aboard Ships As Well As Motor Lead Applications In Hospitals, Industrials And Generating Plants, The Nylon Insulated Seamless, Electrolytic Copper Barrel With Double Thick Tongue Provides An Extra Strong Insulated Connection, The Terminal Is Rated 105 DEG C And Meets SAE-AS7928 Requirements, Double Thick Tongue: Provides Maximum Reliability And Electrical Capacity Plus An Extra Strong Terminal Tongue, Manufactured From One-Piece Pure Electrolytic Copper: Provides High Conductivity, Low Resistance With No Seams To Split Plus Ductility For Excellent Crimp Forming Properties, Electro-Tin Plated: Provides Long-Lasting Corrosion Resistance, Nylon Insulation Is Locked In Place: Insulation Will Not Move Or Twist Off, 300 Volt Nylon Insulation: High Dielectric Strength And Stability In Demanding Oily Environmental Conditions, Color Coded: Provides Quick, Easy Wire Size Connector Selection, Finish: Electro-Tin Plated, Wire Shroud: No, Package: Bulk, Insulation Diameter (maximum): 0.154 IN, Installation Tool: Ratchet: MR8D94 Tool, Temperature Rating: 105 DEG C Maximum, Color Code: Blue, Conductor Type: Commercial/Military Stranded Copper, Wire Strip Length: 1/4 IN, Tongue Angle: Straight Double thick tongue Provides maximum reliability and electrical capacity plus an extra strong terminal tongue Manufactured from 1-piece pure electrolytic copper, provides high conductivity, low resistance with no seams to split plus ductility for excellent crimp forming properties Electro tin plated, provides long lasting corrosion resistance Nylon insulation is locked in place: insulation will not move or twist off 300 volt nylon insulation: high dielectric strength and stability in demanding oily environmental conditions For installation tool: ratchet: MR8D94 tool Nylon insulation AN 18-AN 14 aircraft cable size, 18 to 14 AWG copper stranded conductor Pure electrolytic tin plated 0.24 in hole to end, 0.88 in hole to barrel length, 0.154 in Dia maximum insulation 1/4 in L Strip, 0.24 in Hole to End, 0.88 in Hole to Barrel Length, 0.154 in Dia Maximum Insulation
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | For High Vibration Applications Encountered In Aircraft And Aboard Ships As Well As Motor Lead Applications In Hospitals, Industrials And Generating Plants |
| ARRA Compliant | C |
| Barrel Type | Seamless |
| Buy American Compliant | C |
| Catalog Number | YAEV14 |
| Color | Blue |
| Color Code | Blue |
| Country of Origin | US |
| EU RoHS Indicator | Y |
| Gross Weight Per Pack | 0.0030 lb |
| Gross Weight per Pack Metric | 0.00 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536904000 |
| Height | 0.25 in |
| Height [Metric] | 0.6350 cm |
| Insulation | Y |
| Length | 0.97 in |
| Length [Metric] | 2.4638 cm |
| Overall Length | 0.94 in |
| Returnable | Y |
| Series | YAEV |
| Specifications | 1/4 in L Wire Strip |
| Standard | UL486;Military Specified (Mil-Spec) |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantMilitary Specified UL486MIL-T-7928CSA Certified |
| Sub Brand | INSULUG |
| Temperature Rating | 105 °C |
| Tongue Size | 0.41 in W x 0.42 in THK |
| Tongue Type | Ring Straight |
| Type | YAEV, Heavy Duty |
| UNSPSC | 39121405 |
| UPC 11 | 78181002778 |
| UPC 12 | 781810027783 |
| Voltage Rating | 300 VAC |
| Width | 0.31 in |
| Width [Metric] | 0.7874 cm |
| Stock Status | NONSTOCK |
| Brand | BURNDY® |
| Manufacturer | BURNDY® |
| Conductor Size | 18 to 14 AWG |
| Conductor Type | Stranded Copper |
| Material | Copper |
| Stud Size | #8 to #10 |
| For High Vibration Applications Encountered In Aircraft And Aboard Ships As Well As Motor Lead Applications In Hospitals, Industrials And Generating Plants |
| Features: The INSULUG Type YAEV Is Designed For Very Demanding High Vibration Applications Encountered In Aircraft And Aboard Ships As Well As Motor Lead Applications In Hospitals, Industrials And Generating Plants, The Nylon Insulated Seamless, Electrolytic Copper Barrel With Double Thick Tongue Provides An Extra Strong Insulated Connection, The Terminal Is Rated 105 DEG C And Meets SAE-AS7928 Requirements, Double Thick Tongue: Provides Maximum Reliability And Electrical Capacity Plus An Extra Strong Terminal Tongue, Manufactured From One-Piece Pure Electrolytic Copper: Provides High Conductivity, Low Resistance With No Seams To Split Plus Ductility For Excellent Crimp Forming Properties, Electro-Tin Plated: Provides Long-Lasting Corrosion Resistance, Nylon Insulation Is Locked In Place: Insulation Will Not Move Or Twist Off, 300 Volt Nylon Insulation: High Dielectric Strength And Stability In Demanding Oily Environmental Conditions, Color Coded: Provides Quick, Easy Wire Size Connector Selection, Finish: Electro-Tin Plated, Wire Shroud: No, Package: Bulk, Insulation Diameter (maximum): 0.154 IN, Installation Tool: Ratchet: MR8D94 Tool, Temperature Rating: 105 DEG C Maximum, Color Code: Blue, Conductor Type: Commercial/Military Stranded Copper, Wire Strip Length: 1/4 IN, Tongue Angle: Straight |
| Double thick tongue Provides maximum reliability and electrical capacity plus an extra strong terminal tongue |
| Manufactured from 1-piece pure electrolytic copper, provides high conductivity, low resistance with no seams to split plus ductility for excellent crimp forming properties |
| Electro tin plated, provides long lasting corrosion resistance |
| Nylon insulation is locked in place: insulation will not move or twist off |
| 300 volt nylon insulation: high dielectric strength and stability in demanding oily environmental conditions |
| For installation tool: ratchet: MR8D94 tool |
| Nylon insulation |
| AN 18-AN 14 aircraft cable size, 18 to 14 AWG copper stranded conductor |
| Pure electrolytic tin plated |
| 0.24 in hole to end, 0.88 in hole to barrel length, 0.154 in Dia maximum insulation |
| 1/4 in L Strip, 0.24 in Hole to End, 0.88 in Hole to Barrel Length, 0.154 in Dia Maximum Insulation |
