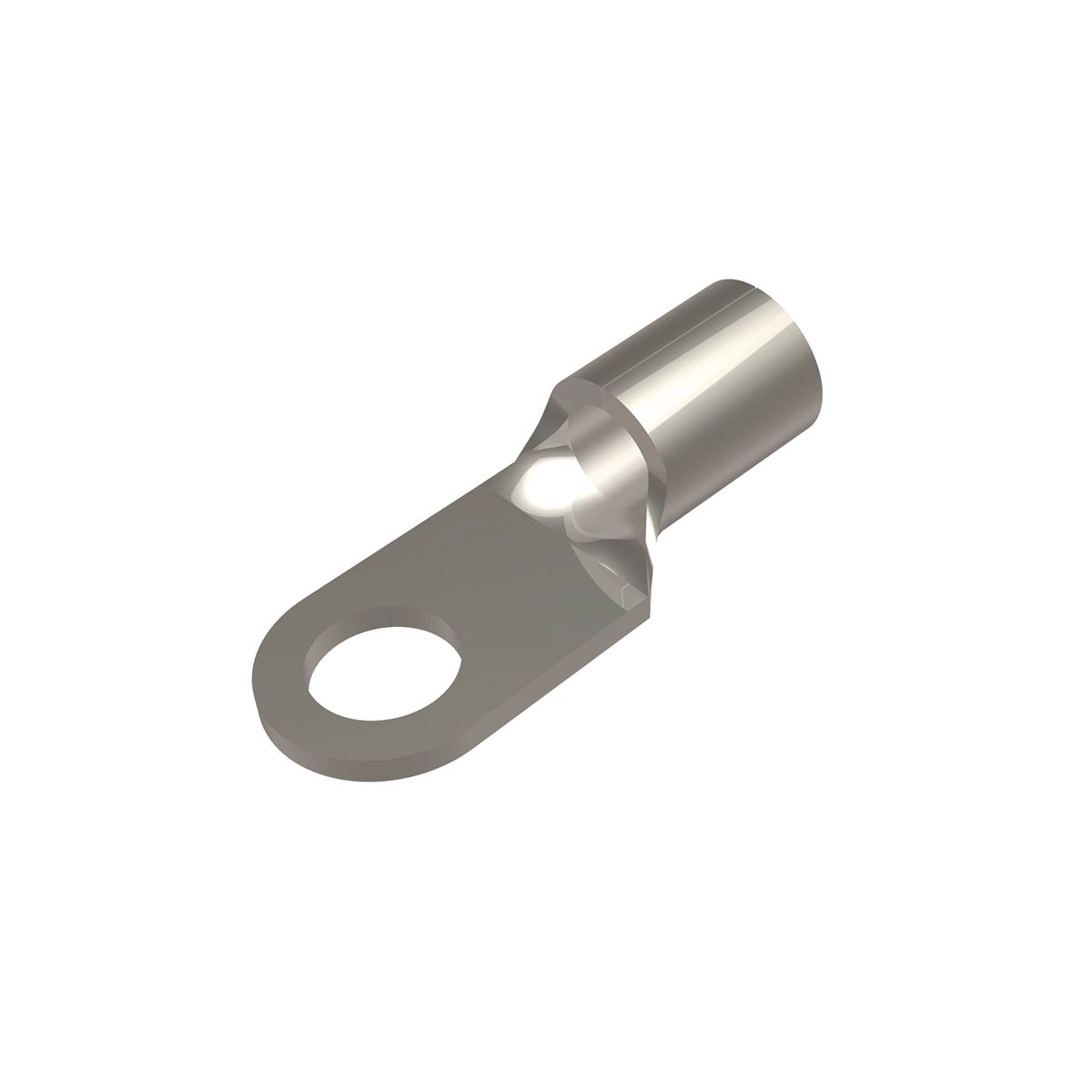

Burndy® YAD28M12E12 HYLUG™ YAD 1-Hole Non-Insulated Compression Lug, 4/0 AWG Copper Conductor, 1/2 in Stud, 1026, Copper
Custom_Product_Images_Illustration
Burndy® YAD28M12E12 HYLUG™ YAD 1-Hole Non-Insulated Compression Lug, 4/0 AWG Copper Conductor, 1/2 in Stud, 1026, Copper
SKU713487
MFGR #YAD28M12E12
$/ea
BURNDY's compression connectors are designed for reliable and controllable electrical connections. The complete installation is fully inspectable. They are high conductivity copper and operate cooler than the wire on which they are installed. The connectors withstand a wide range of electrical and environmental conditions, including current surges, temperatures, corrosion and vibrations, for a wide variety of applications. These features mean a consistently high quality connection at a low installed cost. Copper compression connectors are manufactured from high-conductivity electrolytic copper. The connectors are normally tinplated, lead-plated, or plated with proprietary BURNDY® brite finish to provide durable long-lasting corrosion resistance. The connector design has been matched to the cable size to provide the necessary physical strength requirements for reliable electrical performance.
BURNDY's compression connectors are designed for reliable and controllable electrical connections. The complete installation is fully inspectable. They are high conductivity copper and operate cooler than the wire on which they are installed. The connectors withstand a wide range of electrical and environmental conditions, including current surges, temperatures, corrosion and vibrations, for a wide variety of applications. These features mean a consistently high quality connection at a low installed cost. Copper compression connectors are manufactured from high-conductivity electrolytic copper. The connectors are normally tinplated, lead-plated, or plated with proprietary BURNDY® brite finish to provide durable long-lasting corrosion resistance. The connector design has been matched to the cable size to provide the necessary physical strength requirements for reliable electrical performance.
Application The YAD uninsulated OEM lug terminal is constructed of electrolytic copper ARRA Compliant C Barrel Size 0.89 in OD x 0.87 in L Barrel Type Brazed Seam Buy American Compliant C Catalog Number YAD28M12E12 Country of Origin TW EU RoHS Indicator N Gross Weight Per Pack 0.1200 lb Gross Weight per Pack Metric 0.05 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8535908020 Height 0.89 in Height [Metric] 2.2606 cm Length 2.20 in Length [Metric] 5.5880 cm Mounting Hole Size 0.51 in Overall Length 2.2 in Returnable Y Series YAD Specifications 1 in L Wire Stripe Standard UL467 Sub Brand TERMINALS, HYLUG Temperature Rating 90 °C Tongue Size 0.95 in W x 0.12 in THK Tongue Type Ring Type Ring Tongue UNSPSC 39121405 UPC 11 78181054955 UPC 12 781810549551 Width 0.85 in Width [Metric] 2.1590 cm Stock Status NONSTOCK Brand BURNDY® Manufacturer BURNDY® Conductor Size 4/0 AWG Conductor Type Stranded Copper Die Code 1026 Material Copper Stud Size 1/2 in The YAD uninsulated OEM lug terminal is constructed of electrolytic copper Features:Terminals utilize a brazed seam, Provide execellent high conductivity connections, Electro-tin plated for durable long lasting corrosion resistance, Vibration resistance and tensile strength is well within the limits of commercial specificatoins Designed with a brazed seam barrel, standard neck, V groove inner serrations and electro tin plated Round ring tongue provides for a secure termination under the screw head that cannot be removed without the complete removal of the screw Two or more terminals can easily be stacked on a common stud Ideal for use with code or flex cable Terminals utilize a brazed seam Provide excellent high conductivity connections Electro tin plated for durable long lasting corrosion resistance Vibration resistance and tensile strength is well within the limits of commercial specifications For Y35 crimper, Y39 crimper, Y750 crimper, PAT750 crimper, U32D1 die nest, Y34PR2 indentor die installation tool 1.73 in Dia pin 1 in L Strip, 1.73 in Dia Pin
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | The YAD uninsulated OEM lug terminal is constructed of electrolytic copper |
| ARRA Compliant | C |
| Barrel Size | 0.89 in OD x 0.87 in L |
| Barrel Type | Brazed Seam |
| Buy American Compliant | C |
| Catalog Number | YAD28M12E12 |
| Country of Origin | TW |
| EU RoHS Indicator | N |
| Gross Weight Per Pack | 0.1200 lb |
| Gross Weight per Pack Metric | 0.05 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8535908020 |
| Height | 0.89 in |
| Height [Metric] | 2.2606 cm |
| Length | 2.20 in |
| Length [Metric] | 5.5880 cm |
| Mounting Hole Size | 0.51 in |
| Overall Length | 2.2 in |
| Returnable | Y |
| Series | YAD |
| Specifications | 1 in L Wire Stripe |
| Standard | UL467 |
| Sub Brand | TERMINALS, HYLUG |
| Temperature Rating | 90 °C |
| Tongue Size | 0.95 in W x 0.12 in THK |
| Tongue Type | Ring |
| Type | Ring Tongue |
| UNSPSC | 39121405 |
| UPC 11 | 78181054955 |
| UPC 12 | 781810549551 |
| Width | 0.85 in |
| Width [Metric] | 2.1590 cm |
| Stock Status | NONSTOCK |
| Brand | BURNDY® |
| Manufacturer | BURNDY® |
| Conductor Size | 4/0 AWG |
| Conductor Type | Stranded Copper |
| Die Code | 1026 |
| Material | Copper |
| Stud Size | 1/2 in |
| The YAD uninsulated OEM lug terminal is constructed of electrolytic copper |
| Features:Terminals utilize a brazed seam, Provide execellent high conductivity connections, Electro-tin plated for durable long lasting corrosion resistance, Vibration resistance and tensile strength is well within the limits of commercial specificatoins |
| Designed with a brazed seam barrel, standard neck, V groove inner serrations and electro tin plated |
| Round ring tongue provides for a secure termination under the screw head that cannot be removed without the complete removal of the screw |
| Two or more terminals can easily be stacked on a common stud |
| Ideal for use with code or flex cable |
| Terminals utilize a brazed seam |
| Provide excellent high conductivity connections |
| Electro tin plated for durable long lasting corrosion resistance |
| Vibration resistance and tensile strength is well within the limits of commercial specifications |
| For Y35 crimper, Y39 crimper, Y750 crimper, PAT750 crimper, U32D1 die nest, Y34PR2 indentor die installation tool |
| 1.73 in Dia pin |
| 1 in L Strip, 1.73 in Dia Pin |
