BURNDY®

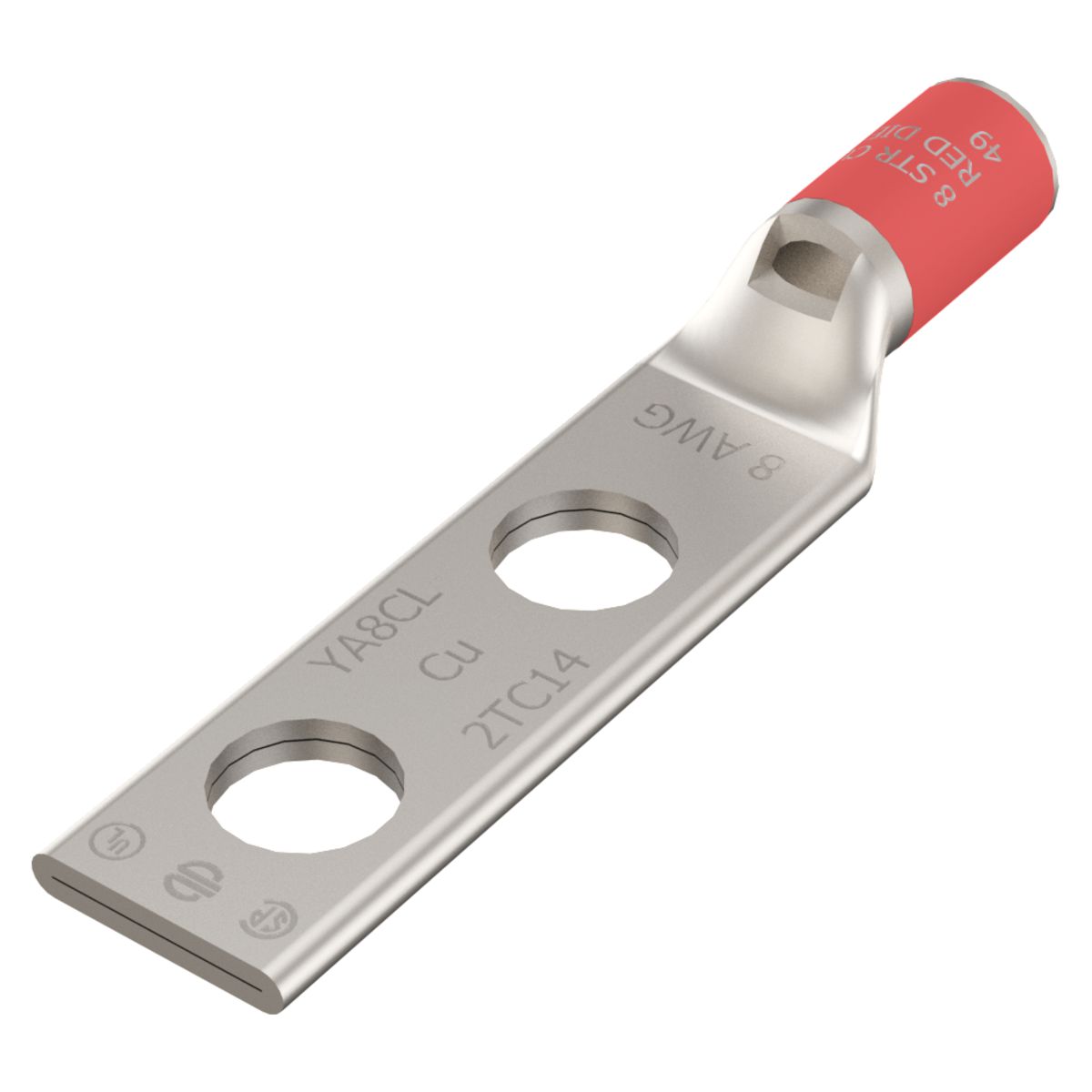

Burndy® YA8CL2TC14 HYLUG™ YA-L-2TC 2-Hole Compression Lug With Inspection Window, 8 AWG/6 AWG Stranded Solid Copper Conductor
Custom_Product_Images_Illustration
BURNDY®
Burndy® YA8CL2TC14 HYLUG™ YA-L-2TC 2-Hole Compression Lug With Inspection Window, 8 AWG/6 AWG Stranded Solid Copper Conductor
SKU472600
MFGR #YA8CL2TC14
Your Cost: $5.21/ea
List: BURNDY'™s HYLUG™ terminals, redesigned for terminating copper conductors in a wide variety of electrical connections, including heavy-duty industrial, utility, commercial, and telecommunications applications. The HYLUG™ terminals require simple cable preparation for an easily installed permanent and inspectable cable termination. The terminals are listed by UL (UL STD. 486A) and CSA certified to 600 volts, when applied with the proper tool and die combination. The terminals may be used in applications to 35 KV.
BURNDY'™s HYLUG™ terminals, redesigned for terminating copper conductors in a wide variety of electrical connections, including heavy-duty industrial, utility, commercial, and telecommunications applications. The HYLUG™ terminals require simple cable preparation for an easily installed permanent and inspectable cable termination. The terminals are listed by UL (UL STD. 486A) and CSA certified to 600 volts, when applied with the proper tool and die combination. The terminals may be used in applications to 35 KV.
Application Wire Termination ARRA Compliant C Buy American Compliant C Catalog Number YA8CL2TC14 Color Code Red Country of Origin US EU RoHS Indicator Y Gross Weight Per Pack 0.0200 lb Gross Weight per Pack Metric 0.01 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8535908020 Height 0.27 in Height [Metric] 0.6858 cm Length 1.95 in Length [Metric] 4.9530 cm Returnable Y Standard UL 486A-486B Standards UL Listed, CSA Certified Sub Brand HYLUG Type Standard Barrel, Tin Plated UNSPSC 39121405 UPC 11 78181050359 UPC 12 781810503591 Voltage Rating 35,000 V Width 0.44 in Width [Metric] 1.1176 cm Stock Status NONSTOCK Brand BURNDY® Manufacturer BURNDY® Material Copper Wire Termination Features: UL Listed 90 DEG C, 600 V - 35 KV, 45 DEG And 90 DEG Angles Are Available, Finish: Electro-Tin Plated, Die Index: 49, Temperature Rating: 90 DEG C, Tongue Angle: Straight, Wire Strip Length: 1/2 IN, Color Code: Red, Tools, Die Set Catalog Number, And (number Of Crimps): Mechanical: MD6, OUR840, MD7-34R Tool, W8CVT, W8CRT, X8CRT Die, (1), Hydraulic: BCT500HS, Y500CTHS Tool, W8CVT, W8CRT, X8CRT Die, (1), Y35, Y39, Y750, PAT750 Tool, U8CRT Die, (1), Y46 Tool, U8CRT Die With PUADP-1 Adapter, (1), Dieless Tools (number Of Crimps): Y81KFT, Y81KFTMBH, Y1MRTC, Y8MRB-1, PAT81KFT-18V, MY29-3, MY29-11, MRC840 Tool, (1), Conductor Type: Commercial Stranded Copper, Flexible Copper, Solid Copper NO 8 AWG and weld, 37/24, NO 6 AWG solid conductor size
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | Wire Termination |
| ARRA Compliant | C |
| Buy American Compliant | C |
| Catalog Number | YA8CL2TC14 |
| Color Code | Red |
| Country of Origin | US |
| EU RoHS Indicator | Y |
| Gross Weight Per Pack | 0.0200 lb |
| Gross Weight per Pack Metric | 0.01 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8535908020 |
| Height | 0.27 in |
| Height [Metric] | 0.6858 cm |
| Length | 1.95 in |
| Length [Metric] | 4.9530 cm |
| Returnable | Y |
| Standard | UL 486A-486B |
| Standards | UL Listed, CSA Certified |
| Sub Brand | HYLUG |
| Type | Standard Barrel, Tin Plated |
| UNSPSC | 39121405 |
| UPC 11 | 78181050359 |
| UPC 12 | 781810503591 |
| Voltage Rating | 35,000 V |
| Width | 0.44 in |
| Width [Metric] | 1.1176 cm |
| Stock Status | NONSTOCK |
| Brand | BURNDY® |
| Manufacturer | BURNDY® |
| Material | Copper |
| Wire Termination |
| Features: UL Listed 90 DEG C, 600 V - 35 KV, 45 DEG And 90 DEG Angles Are Available, Finish: Electro-Tin Plated, Die Index: 49, Temperature Rating: 90 DEG C, Tongue Angle: Straight, Wire Strip Length: 1/2 IN, Color Code: Red, Tools, Die Set Catalog Number, And (number Of Crimps): Mechanical: MD6, OUR840, MD7-34R Tool, W8CVT, W8CRT, X8CRT Die, (1), Hydraulic: BCT500HS, Y500CTHS Tool, W8CVT, W8CRT, X8CRT Die, (1), Y35, Y39, Y750, PAT750 Tool, U8CRT Die, (1), Y46 Tool, U8CRT Die With PUADP-1 Adapter, (1), Dieless Tools (number Of Crimps): Y81KFT, Y81KFTMBH, Y1MRTC, Y8MRB-1, PAT81KFT-18V, MY29-3, MY29-11, MRC840 Tool, (1), Conductor Type: Commercial Stranded Copper, Flexible Copper, Solid Copper |
| NO 8 AWG and weld, 37/24, NO 6 AWG solid conductor size |
