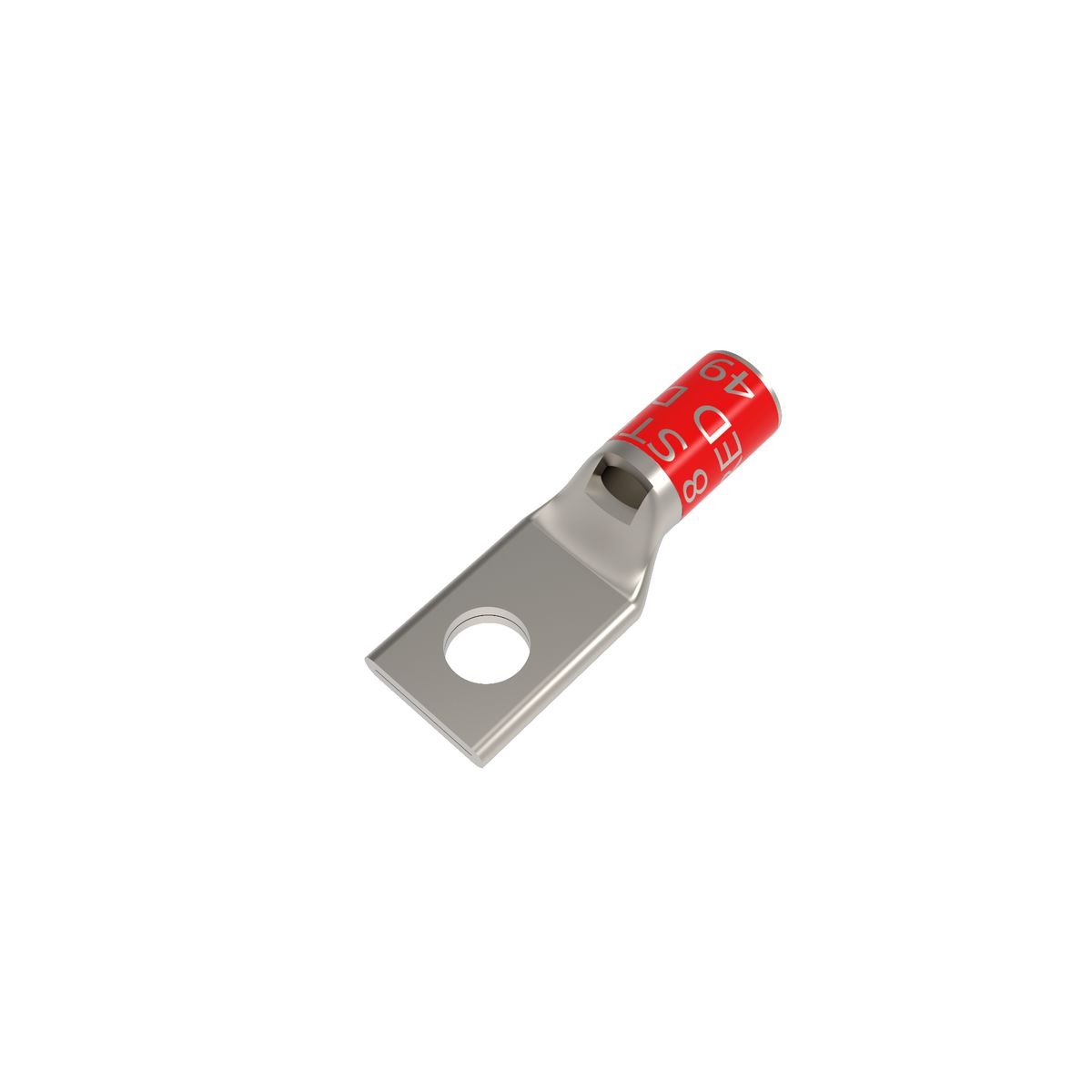

Burndy® YA8CL2BOX HYLUG™ YA-L 1-Hole Compression Lug With Inspection Window, 8 AWG Copper Conductor, 5/16 in Stud, 49, Copper
Custom_Product_Images_Illustration
Burndy® YA8CL2BOX HYLUG™ YA-L 1-Hole Compression Lug With Inspection Window, 8 AWG Copper Conductor, 5/16 in Stud, 49, Copper
SKU85985
MFGR #YA8CL2BOX
$/ea
BURNDY's compression connectors are designed for reliable and controllable electrical connections. The complete installation is fully inspectable. They are high conductivity copper and operate cooler than the wire on which they are installed. The connectors withstand a wide range of electrical and environmental conditions, including current surges, temperatures, corrosion and vibrations, for a wide variety of applications. These features mean a consistently high quality connection at a low installed cost. Copper compression connectors are manufactured from high-conductivity electrolytic copper. The connectors are normally tinplated, lead-plated, or plated with proprietary BURNDY® brite finish to provide durable long-lasting corrosion resistance. The connector design has been matched to the cable size to provide the necessary physical strength requirements for reliable electrical performance.
BURNDY's compression connectors are designed for reliable and controllable electrical connections. The complete installation is fully inspectable. They are high conductivity copper and operate cooler than the wire on which they are installed. The connectors withstand a wide range of electrical and environmental conditions, including current surges, temperatures, corrosion and vibrations, for a wide variety of applications. These features mean a consistently high quality connection at a low installed cost. Copper compression connectors are manufactured from high-conductivity electrolytic copper. The connectors are normally tinplated, lead-plated, or plated with proprietary BURNDY® brite finish to provide durable long-lasting corrosion resistance. The connector design has been matched to the cable size to provide the necessary physical strength requirements for reliable electrical performance.
Application Wire Termination ARRA Compliant C Barrel Size 0.44 in L Barrel Type Chamfered/Short/Standard Buy American Compliant C Catalog Number YA8CL2BOX Color Red Color Code Red Country of Origin US EU RoHS Indicator Y Gross Weight Per Pack 0.0100 lb Gross Weight per Pack Metric 0.00 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8535908020 Height 0.27 in Height [Metric] 0.6858 cm Length 1.38 in Length [Metric] 3.5052 cm Overall Length 1.38 in Returnable Y Series YA-L Specifications 7/16 in L Wire Strip Standard UL 486A-486B Standards UL Listed, CSA Certified and RoHS Compliant Sub Brand HYLUG Temperature Rating 90 °C Tongue Size 0.52 in W x 0.06 in THK Tongue Type Standard Straight Type 1-Hole UNSPSC 39121405 UPC 11 78181052568 UPC 12 781810525685 Voltage Rating 600 VAC to 35 kV Width 0.52 in Width [Metric] 1.3208 cm Stock Status NONSTOCK Brand BURNDY® Manufacturer BURNDY® Conductor Size 8 AWG Conductor Type Stranded/Solid Copper Die Code 49 Material Copper Stud Size 5/16 in Wire Termination Features: UL Listed 90 DEG C, 600 V - 35 KV, 45 DEG And 90 DEG Angles Are Available, Temperature Rating: 90 DEG C, Finish: Electro-Tin Plated, Wire Strip Length: 1/2 IN, Tongue Angle: Straight, Package: Box, Die Index: 49, Color Code: Red, Tools, Die Set Catalog Number, And (number Of Crimps): Mechanical: MD6, OUR840, MD7-34R Tool, W8CVT, W8CRT, X8CRT Die, (1), Hydraulic: BCT500HS, Y500CTHS Tool, W8CVT, W8CRT, X8CRT Die, (1), Y35, Y39, Y750, PAT750 Tool, U8CRT Die, (1), Y46 Tool, U8CRT Die With PUADP-1 Adapter, (1), Conductor Type: Commercial Stranded Copper, Flexible Copper, Solid Copper, Dieless Tools (number Of Crimps): Y81KFT, Y81KFTMBH, Y1MRTC, Y8MRB-1, PAT81KFT-18V, MY29-3, MY29-11, MRC840 Tool, (1) For mechanical: MD6, OUR840, MD7-34R tool, (1) W8CVT, W8CRT, X8CRT die, hydraulic: BCT500HS, Y500CTHS tool, (1) W8CVT, W8CRT, X8CRT die, Y35, Y39, Y750, PAT750 tool, (1) U8CRT die, Y46 tool, (1) U8CRT die with PUADP-1 adapter, dieless tools (number of crimps): (1) Y81KFT, Y81KFTMBH, Y1MRTC, Y8MRB-1, PAT81KFT-18V, MY29-3, MY29-11, MRC840 tool installation tool 8 AWG stranded, 6 AWG solid conductor size 7/16 in L Strip Electro Tin Plated Copper
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | Wire Termination |
| ARRA Compliant | C |
| Barrel Size | 0.44 in L |
| Barrel Type | Chamfered/Short/Standard |
| Buy American Compliant | C |
| Catalog Number | YA8CL2BOX |
| Color | Red |
| Color Code | Red |
| Country of Origin | US |
| EU RoHS Indicator | Y |
| Gross Weight Per Pack | 0.0100 lb |
| Gross Weight per Pack Metric | 0.00 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8535908020 |
| Height | 0.27 in |
| Height [Metric] | 0.6858 cm |
| Length | 1.38 in |
| Length [Metric] | 3.5052 cm |
| Overall Length | 1.38 in |
| Returnable | Y |
| Series | YA-L |
| Specifications | 7/16 in L Wire Strip |
| Standard | UL 486A-486B |
| Standards | UL Listed, CSA Certified and RoHS Compliant |
| Sub Brand | HYLUG |
| Temperature Rating | 90 °C |
| Tongue Size | 0.52 in W x 0.06 in THK |
| Tongue Type | Standard Straight |
| Type | 1-Hole |
| UNSPSC | 39121405 |
| UPC 11 | 78181052568 |
| UPC 12 | 781810525685 |
| Voltage Rating | 600 VAC to 35 kV |
| Width | 0.52 in |
| Width [Metric] | 1.3208 cm |
| Stock Status | NONSTOCK |
| Brand | BURNDY® |
| Manufacturer | BURNDY® |
| Conductor Size | 8 AWG |
| Conductor Type | Stranded/Solid Copper |
| Die Code | 49 |
| Material | Copper |
| Stud Size | 5/16 in |
| Wire Termination |
| Features: UL Listed 90 DEG C, 600 V - 35 KV, 45 DEG And 90 DEG Angles Are Available, Temperature Rating: 90 DEG C, Finish: Electro-Tin Plated, Wire Strip Length: 1/2 IN, Tongue Angle: Straight, Package: Box, Die Index: 49, Color Code: Red, Tools, Die Set Catalog Number, And (number Of Crimps): Mechanical: MD6, OUR840, MD7-34R Tool, W8CVT, W8CRT, X8CRT Die, (1), Hydraulic: BCT500HS, Y500CTHS Tool, W8CVT, W8CRT, X8CRT Die, (1), Y35, Y39, Y750, PAT750 Tool, U8CRT Die, (1), Y46 Tool, U8CRT Die With PUADP-1 Adapter, (1), Conductor Type: Commercial Stranded Copper, Flexible Copper, Solid Copper, Dieless Tools (number Of Crimps): Y81KFT, Y81KFTMBH, Y1MRTC, Y8MRB-1, PAT81KFT-18V, MY29-3, MY29-11, MRC840 Tool, (1) |
| For mechanical: MD6, OUR840, MD7-34R tool, (1) W8CVT, W8CRT, X8CRT die, hydraulic: BCT500HS, Y500CTHS tool, (1) W8CVT, W8CRT, X8CRT die, Y35, Y39, Y750, PAT750 tool, (1) U8CRT die, Y46 tool, (1) U8CRT die with PUADP-1 adapter, dieless tools (number of crimps): (1) Y81KFT, Y81KFTMBH, Y1MRTC, Y8MRB-1, PAT81KFT-18V, MY29-3, MY29-11, MRC840 tool installation tool |
| 8 AWG stranded, 6 AWG solid conductor size |
| 7/16 in L Strip |
| Electro Tin Plated Copper |
