BURNDY®

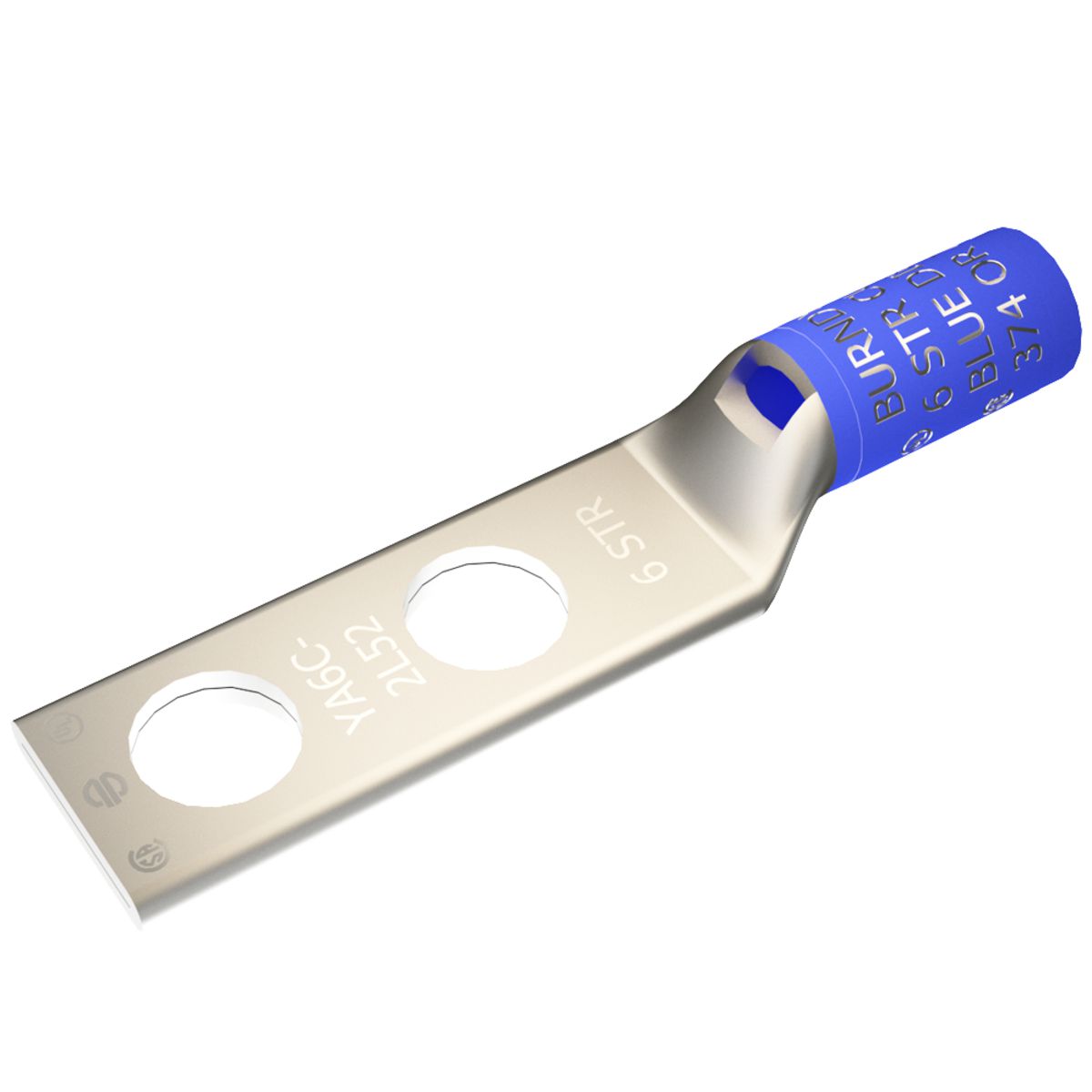

Burndy® YA6CL2TC14E2 HYLUG™ YA-L-2TC 2-Hole Compression Lug With Inspection Window, 6 AWG Stranded Copper Conductor, 1/4 in Stud
Custom_Product_Images_Illustration
BURNDY®
Burndy® YA6CL2TC14E2 HYLUG™ YA-L-2TC 2-Hole Compression Lug With Inspection Window, 6 AWG Stranded Copper Conductor, 1/4 in Stud
SKU471014
MFGR #YA6CL2TC14E2
$/ea
BURNDY's HYLUG™ terminals, redesigned for terminating copper conductors in a wide variety of electrical connections, including heavy-duty industrial, utility, commercial, and telecommunications applications. The HYLUG™ terminals require simple cable preparation for an easily installed permanent and inspectable cable termination. The terminals are listed by UL (UL STD. 486A) and CSA certified to 600 volts, when applied with the proper tool and die combination. The terminals may be used in applications to 35 KV.
BURNDY's HYLUG™ terminals, redesigned for terminating copper conductors in a wide variety of electrical connections, including heavy-duty industrial, utility, commercial, and telecommunications applications. The HYLUG™ terminals require simple cable preparation for an easily installed permanent and inspectable cable termination. The terminals are listed by UL (UL STD. 486A) and CSA certified to 600 volts, when applied with the proper tool and die combination. The terminals may be used in applications to 35 KV.
Application Wire Termination ARRA Compliant C Buy American Compliant C Catalog Number YA6CL2TC14E2 Color Code Blue Country of Origin US EU RoHS Indicator Y Gross Weight Per Pack 0.0200 lb Gross Weight per Pack Metric 0.01 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8535908020 Height 0.29 in Height [Metric] 0.7366 cm Length 2.19 in Length [Metric] 5.5626 cm Returnable Y Standard UL 486A-486B Sub Brand HYLUG Type Standard Barrel, Tin Plated UNSPSC 39121405 UPC 11 78181001834 UPC 12 781810018347 Voltage Rating 35,000 V Width 0.45 in Width [Metric] 1.1430 cm Stock Status NONSTOCK Brand BURNDY® Manufacturer BURNDY® Material Copper Wire Termination Features: UL Listed 90 DEG C, 600 V - 35 KV, 45 DEG And 90 DEG Angles Are Available, Temperature Rating: 90 DEG C, Finish: Electro-Tin Plated, Tongue Angle: Straight, Die Index: 7, Wire Strip Length: 7/8 IN, Tools, Die Set Catalog Number, And (number Of Crimps): Mechanical: MD6, OUR840, MD7-34R Tool, W5CVT, W5CRT, X5CRT, X8CART Die, (1), Hydraulic: BCT500HS, Y500CTHS Tool, W5CVT, W5CRT, X5CRT, X8CART Die, (1), Y35, Y39, Y750, PAT750 Tool, U5CRT, U8CABT Die, (1), Y46 Tool, U5CRT, U8CABT Die With PUADP-1 Adapter, (1), Color Code: Blue, Dieless Tools (number Of Crimps): Y81KFT, Y81KFTMBH, Y1MRTC, PAT81KFT-18V, MY29-3, MY29-11, MRC840 Tool, (1), Conductor Type: Commercial Stranded Copper Die set catalog number and (number of crimps): mechanical: MD6, OUR840, MD7-34R tool, W5CVT, W5CRT, X5CRT, X8CART die, (1), hydraulic: BCT500HS, Y500CTHS tool, W5CVT, W5CRT, X5CRT, X8CART die, (1), Y35, Y39, Y750, PAT750 tool, U5CRT, U8CABT die, (1), Y46 tool, U5CRT, U8CABT die with PUADP-1 adapter, (1), color code: Blue, dieless tools (number of crimps): Y81KFT, Y81KFTMBH, Y1MRTC, PAT81KFT-18V, MY29-3, MY29-11, MRC840 tool, (1), conductor type: commercial stranded copper
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | Wire Termination |
| ARRA Compliant | C |
| Buy American Compliant | C |
| Catalog Number | YA6CL2TC14E2 |
| Color Code | Blue |
| Country of Origin | US |
| EU RoHS Indicator | Y |
| Gross Weight Per Pack | 0.0200 lb |
| Gross Weight per Pack Metric | 0.01 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8535908020 |
| Height | 0.29 in |
| Height [Metric] | 0.7366 cm |
| Length | 2.19 in |
| Length [Metric] | 5.5626 cm |
| Returnable | Y |
| Standard | UL 486A-486B |
| Sub Brand | HYLUG |
| Type | Standard Barrel, Tin Plated |
| UNSPSC | 39121405 |
| UPC 11 | 78181001834 |
| UPC 12 | 781810018347 |
| Voltage Rating | 35,000 V |
| Width | 0.45 in |
| Width [Metric] | 1.1430 cm |
| Stock Status | NONSTOCK |
| Brand | BURNDY® |
| Manufacturer | BURNDY® |
| Material | Copper |
| Wire Termination |
| Features: UL Listed 90 DEG C, 600 V - 35 KV, 45 DEG And 90 DEG Angles Are Available, Temperature Rating: 90 DEG C, Finish: Electro-Tin Plated, Tongue Angle: Straight, Die Index: 7, Wire Strip Length: 7/8 IN, Tools, Die Set Catalog Number, And (number Of Crimps): Mechanical: MD6, OUR840, MD7-34R Tool, W5CVT, W5CRT, X5CRT, X8CART Die, (1), Hydraulic: BCT500HS, Y500CTHS Tool, W5CVT, W5CRT, X5CRT, X8CART Die, (1), Y35, Y39, Y750, PAT750 Tool, U5CRT, U8CABT Die, (1), Y46 Tool, U5CRT, U8CABT Die With PUADP-1 Adapter, (1), Color Code: Blue, Dieless Tools (number Of Crimps): Y81KFT, Y81KFTMBH, Y1MRTC, PAT81KFT-18V, MY29-3, MY29-11, MRC840 Tool, (1), Conductor Type: Commercial Stranded Copper |
| Die set catalog number and (number of crimps): mechanical: MD6, OUR840, MD7-34R tool, W5CVT, W5CRT, X5CRT, X8CART die, (1), hydraulic: BCT500HS, Y500CTHS tool, W5CVT, W5CRT, X5CRT, X8CART die, (1), Y35, Y39, Y750, PAT750 tool, U5CRT, U8CABT die, (1), Y46 tool, U5CRT, U8CABT die with PUADP-1 adapter, (1), color code: Blue, dieless tools (number of crimps): Y81KFT, Y81KFTMBH, Y1MRTC, PAT81KFT-18V, MY29-3, MY29-11, MRC840 tool, (1), conductor type: commercial stranded copper |
