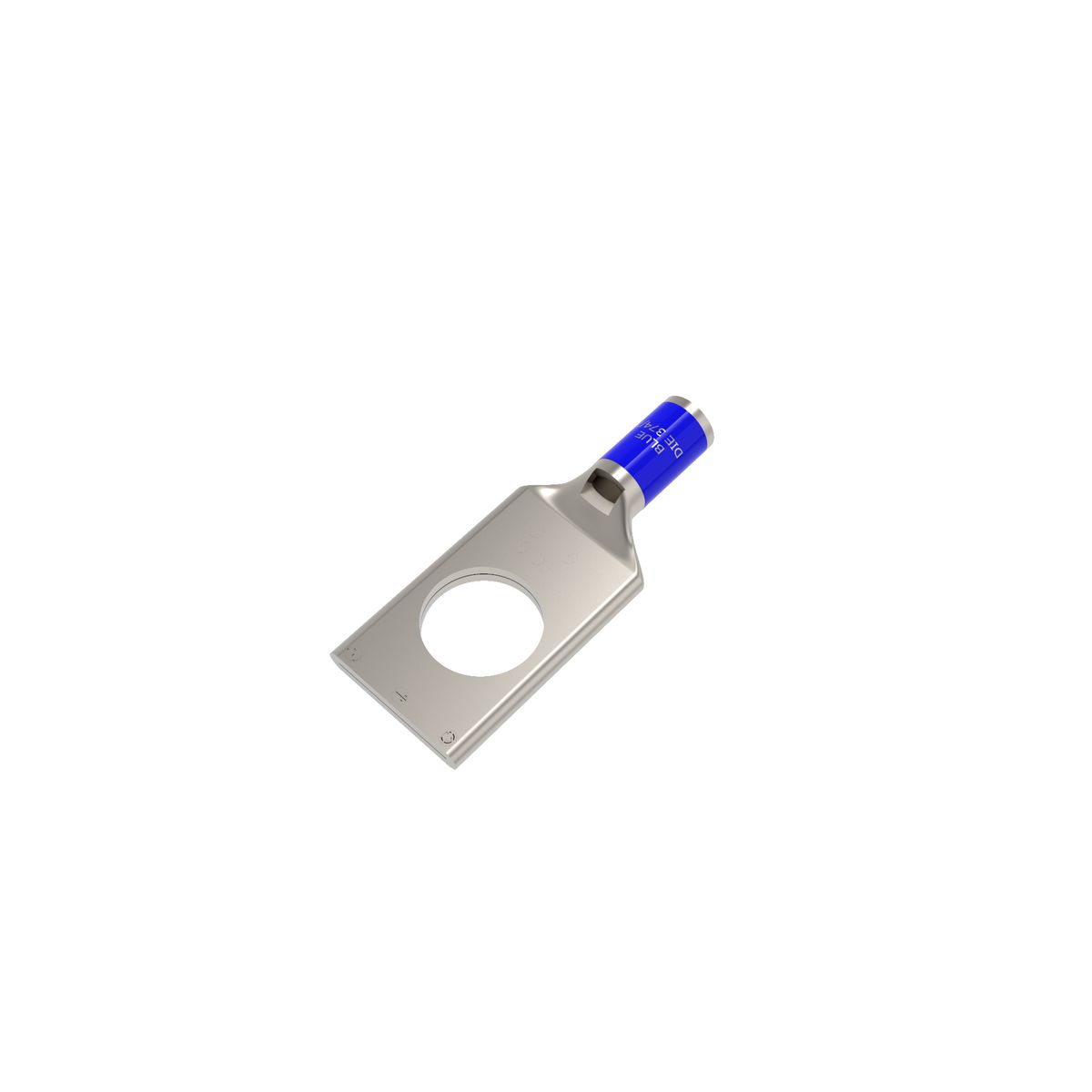

Burndy® YA6CL1BOX HYLUG™ YA-L 1-Hole Compression Lug With Inspection Window, 6 AWG Copper Conductor, #8/10 Stud, 7/374, Copper
Custom_Product_Images_Illustration
Burndy® YA6CL1BOX HYLUG™ YA-L 1-Hole Compression Lug With Inspection Window, 6 AWG Copper Conductor, #8/10 Stud, 7/374, Copper
SKU19586
MFGR #YA6CL1BOX
$/ea
BURNDY's compression connectors are designed for reliable and controllable electrical connections. The complete installation is fully inspectable. They are high conductivity copper and operate cooler than the wire on which they are installed. The connectors withstand a wide range of electrical and environmental conditions, including current surges, temperatures, corrosion and vibrations, for a wide variety of applications. These features mean a consistently high quality connection at a low installed cost. Copper compression connectors are manufactured from high-conductivity electrolytic copper. The connectors are normally tinplated, lead-plated, or plated with proprietary BURNDY® brite finish to provide durable long-lasting corrosion resistance. The connector design has been matched to the cable size to provide the necessary physical strength requirements for reliable electrical performance.
BURNDY's compression connectors are designed for reliable and controllable electrical connections. The complete installation is fully inspectable. They are high conductivity copper and operate cooler than the wire on which they are installed. The connectors withstand a wide range of electrical and environmental conditions, including current surges, temperatures, corrosion and vibrations, for a wide variety of applications. These features mean a consistently high quality connection at a low installed cost. Copper compression connectors are manufactured from high-conductivity electrolytic copper. The connectors are normally tinplated, lead-plated, or plated with proprietary BURNDY® brite finish to provide durable long-lasting corrosion resistance. The connector design has been matched to the cable size to provide the necessary physical strength requirements for reliable electrical performance.
Application Wire Termination ARRA Compliant C Barrel Size 0.54 in L Barrel Type Chamfered/Short/Skived/Standard Buy American Compliant C Catalog Number YA6CL1BOX Color Blue Color Code Blue Country of Origin US EU RoHS Indicator Y Gross Weight Per Pack 0.0200 lb Gross Weight per Pack Metric 0.01 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8535908020 Height 0.29 in Height [Metric] 0.7366 cm Length 1.27 in Length [Metric] 3.2258 cm Overall Length 1.27 in Returnable Y Series YA-L Specifications 9/16 in L Wire Strip Standard UL 486A-486B Standards UL Listed, CSA Certified and RoHS Compliant Sub Brand HYLUG Temperature Rating 90 °C Tongue Size 0.41 in W x 0.09 in THK Tongue Type Standard Straight Type Standard Barrel, Tin Plated UNSPSC 39121405 UPC 11 78181055280 UPC 12 781810552803 Voltage Rating 35,000 V Width 0.41 in Width [Metric] 1.0414 cm Stock Status NONSTOCK Brand BURNDY® Manufacturer BURNDY® Conductor Size 6 AWG Conductor Type Stranded Copper Die Code 7/374 Material Copper Stud Size #8 to #10 Wire Termination Features: UL Listed 90 DEG C, 600 V - 35 KV, 45 DEG And 90 DEG Angles Are Available, Tongue Angle: Straight, Finish: Electro-Tin Plated, Package: Box, Temperature Rating: 90 DEG C, Wire Strip Length: 7/8 IN, Die Index: 7, Tools, Die Set Catalog Number, And (number Of Crimps): Mechanical: MD6, OUR840, MD7-34R Tool, W5CVT, W5CRT, X5CRT, X8CART Die, (1), Hydraulic: BCT500HS, Y500CTHS Tool, W5CVT, W5CRT, X5CRT, X8CART Die, (1), Y35, Y39, Y750, PAT750 Tool, U5CRT Die, (1), Y46 Tool, U5CRT Die With PUADP-1 Adapter, (1), Color Code: Blue, Conductor Type: Commercial Stranded Copper, Dieless Tools (number Of Crimps): Y81KFT, Y81KFTMBH, Y1MRTC, PAT81KFT-18V, MY29-3, MY29-11, MRC840 Tool, (1) For die set catalog number, and (number of crimps): mechanical: MD6, OUR840, MD7-34R tool, (1) W5CVT, W5CRT, X5CRT, X8CART die, hydraulic: BCT500HS, Y500CTHS tool, (1) W5CVT, W5CRT, X5CRT, X8CART die, Y35, Y39, Y750, PAT750 tool, (1) U5CRT die, Y46 tool, (1) U5CRT die with PUADP-1 adapter, dieless tools (number of crimps): (1) Y81KFT, Y81KFTMBH, Y1MRTC, PAT81KFT-18V, MY29-3, MY29-11, MRC840 tool installation tool Electro tin plated 6 AWG stranded conductor size 9/16 in L Strip
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | Wire Termination |
| ARRA Compliant | C |
| Barrel Size | 0.54 in L |
| Barrel Type | Chamfered/Short/Skived/Standard |
| Buy American Compliant | C |
| Catalog Number | YA6CL1BOX |
| Color | Blue |
| Color Code | Blue |
| Country of Origin | US |
| EU RoHS Indicator | Y |
| Gross Weight Per Pack | 0.0200 lb |
| Gross Weight per Pack Metric | 0.01 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8535908020 |
| Height | 0.29 in |
| Height [Metric] | 0.7366 cm |
| Length | 1.27 in |
| Length [Metric] | 3.2258 cm |
| Overall Length | 1.27 in |
| Returnable | Y |
| Series | YA-L |
| Specifications | 9/16 in L Wire Strip |
| Standard | UL 486A-486B |
| Standards | UL Listed, CSA Certified and RoHS Compliant |
| Sub Brand | HYLUG |
| Temperature Rating | 90 °C |
| Tongue Size | 0.41 in W x 0.09 in THK |
| Tongue Type | Standard Straight |
| Type | Standard Barrel, Tin Plated |
| UNSPSC | 39121405 |
| UPC 11 | 78181055280 |
| UPC 12 | 781810552803 |
| Voltage Rating | 35,000 V |
| Width | 0.41 in |
| Width [Metric] | 1.0414 cm |
| Stock Status | NONSTOCK |
| Brand | BURNDY® |
| Manufacturer | BURNDY® |
| Conductor Size | 6 AWG |
| Conductor Type | Stranded Copper |
| Die Code | 7/374 |
| Material | Copper |
| Stud Size | #8 to #10 |
| Wire Termination |
| Features: UL Listed 90 DEG C, 600 V - 35 KV, 45 DEG And 90 DEG Angles Are Available, Tongue Angle: Straight, Finish: Electro-Tin Plated, Package: Box, Temperature Rating: 90 DEG C, Wire Strip Length: 7/8 IN, Die Index: 7, Tools, Die Set Catalog Number, And (number Of Crimps): Mechanical: MD6, OUR840, MD7-34R Tool, W5CVT, W5CRT, X5CRT, X8CART Die, (1), Hydraulic: BCT500HS, Y500CTHS Tool, W5CVT, W5CRT, X5CRT, X8CART Die, (1), Y35, Y39, Y750, PAT750 Tool, U5CRT Die, (1), Y46 Tool, U5CRT Die With PUADP-1 Adapter, (1), Color Code: Blue, Conductor Type: Commercial Stranded Copper, Dieless Tools (number Of Crimps): Y81KFT, Y81KFTMBH, Y1MRTC, PAT81KFT-18V, MY29-3, MY29-11, MRC840 Tool, (1) |
| For die set catalog number, and (number of crimps): mechanical: MD6, OUR840, MD7-34R tool, (1) W5CVT, W5CRT, X5CRT, X8CART die, hydraulic: BCT500HS, Y500CTHS tool, (1) W5CVT, W5CRT, X5CRT, X8CART die, Y35, Y39, Y750, PAT750 tool, (1) U5CRT die, Y46 tool, (1) U5CRT die with PUADP-1 adapter, dieless tools (number of crimps): (1) Y81KFT, Y81KFTMBH, Y1MRTC, PAT81KFT-18V, MY29-3, MY29-11, MRC840 tool installation tool |
| Electro tin plated |
| 6 AWG stranded conductor size |
| 9/16 in L Strip |
