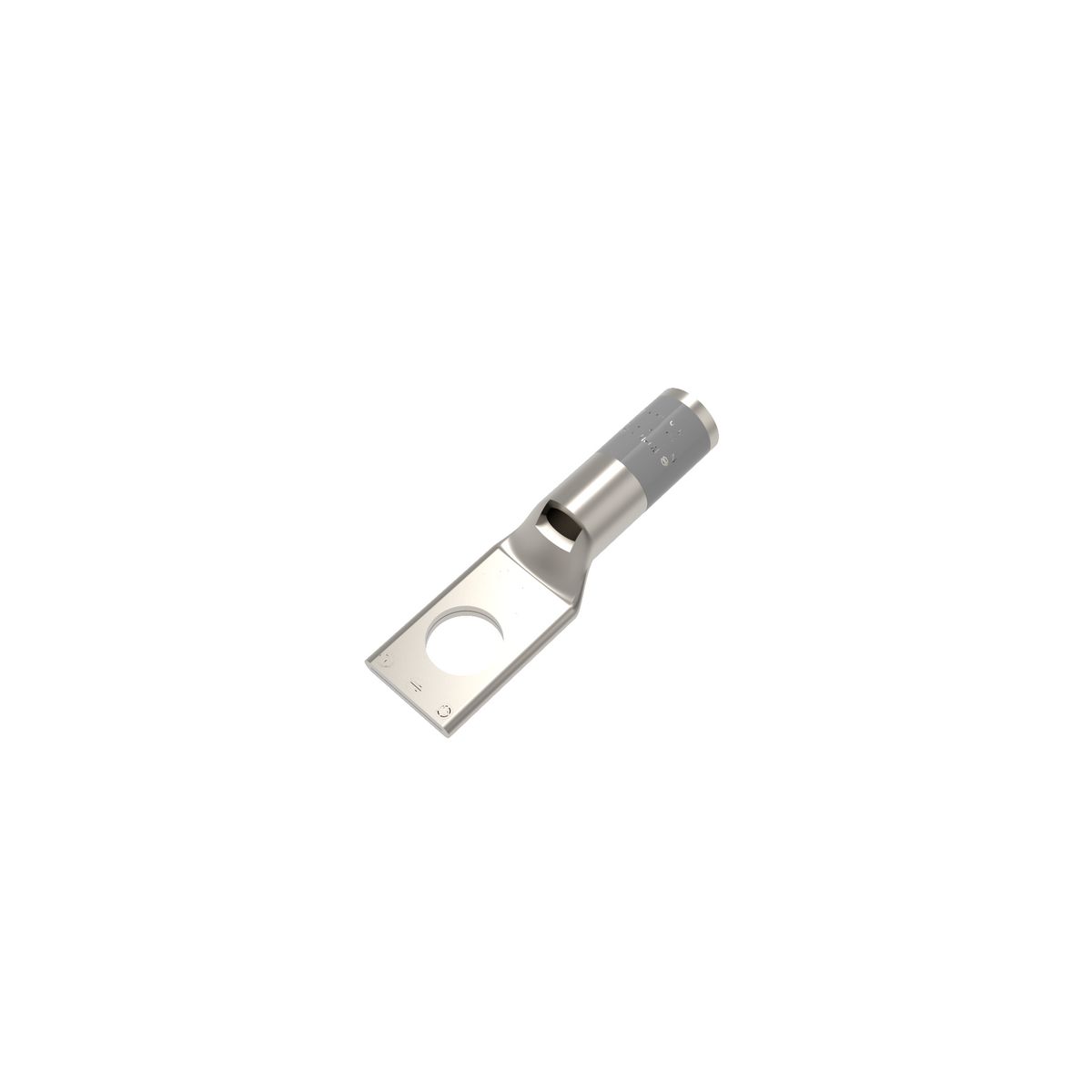

Burndy® YA4CL6BOX HYLUG™ YA-L 1-Hole Compression Lug With Inspection Window, 4 AWG Stranded Copper Conductor, 1/2 in Stud
Custom_Product_Images_Illustration
Burndy® YA4CL6BOX HYLUG™ YA-L 1-Hole Compression Lug With Inspection Window, 4 AWG Stranded Copper Conductor, 1/2 in Stud
SKU86014
MFGR #YA4CL6BOX
$/ea
BURNDY® HYLUG™ terminals, redesigned for terminating copper conductors in a wide variety of electrical connections, including heavy-duty industrial, utility, commercial, and telecommunications applications. The HYLUG™ terminals require simple cable preparation for an easily installed permanent and inspectable cable termination. The terminals are listed by UL (UL STD. 486A) and CSA certified to 600 volts, when applied with the proper tool and die combination. The terminals may be used in applications to 35 KV.
BURNDY® HYLUG™ terminals, redesigned for terminating copper conductors in a wide variety of electrical connections, including heavy-duty industrial, utility, commercial, and telecommunications applications. The HYLUG™ terminals require simple cable preparation for an easily installed permanent and inspectable cable termination. The terminals are listed by UL (UL STD. 486A) and CSA certified to 600 volts, when applied with the proper tool and die combination. The terminals may be used in applications to 35 KV.
Application Wire Termination ARRA Compliant C Barrel Size 0.34 in OD x 0.81 in L Barrel Type Chamfered/Skived/Standard Buy American Compliant C Catalog Number YA4CL6BOX Color Gray Color Code Gray Country of Origin US EU RoHS Indicator Y Gross Weight Per Pack 0.0400 lb Gross Weight per Pack Metric 0.02 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8535908020 Height 0.34 in Height [Metric] 0.8636 cm Length 2.20 in Length [Metric] 5.5880 cm Overall Length 2.2 in Returnable Y Series YA-L Specifications 7/8 in L Wire Strip Standard UL 486A-486B Sub Brand HYLUG Temperature Rating 90 °C Tongue Size 0.71 in W x 0.06 in THK Tongue Type Standard Straight Type Standard Barrel, Nickel Plated UNSPSC 39121405 UPC 11 78181055255 UPC 12 781810552551 Voltage Rating 35,000 V Width 0.71 in Width [Metric] 1.8034 cm Stock Status NONSTOCK Brand BURNDY® Manufacturer BURNDY® Conductor Size 4 AWG Conductor Type Stranded Copper Die Code 8 Material Copper Stud Size 1/2 in Wire Termination Features: UL Listed 90 DEG C, 600 V - 35 KV, 45 DEG And 90 DEG Angles Are Available, Finish: Electro-Tin Plated, Tongue Angle: Straight, Wire Strip Length: 7/8 IN, Temperature Rating: 90 DEG C, Die Index: 8, Package: Box, Color Code: Gray, Tools, Die Set Catalog Number, And (number Of Crimps): Mechanical: MD6, OUR840, MD7-34R Tool, W4CVT, W4CRT, X4CRT Die, (1), Hydraulic: BCT500HS, Y500CTHS Tool, W4CVT, W4CRT, X4CRT Die, (1), Y35, Y39, Y750, PAT750 Tool, U4CRT, U6CABT Die, (1), Y46 Tool, U4CRT, U6CABT Die With PUADP-1 Adapter, (1), Conductor Type: Commercial Stranded Copper, Dieless Tools (number Of Crimps): Y644HS, Y81KFT, Y81KFTMBH, PAT81KFT-18V, MY29-3, MY29-11, MRC840 Tool, (1), Y1MRTC Tool, (2) Standard, short barrel
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | Wire Termination |
| ARRA Compliant | C |
| Barrel Size | 0.34 in OD x 0.81 in L |
| Barrel Type | Chamfered/Skived/Standard |
| Buy American Compliant | C |
| Catalog Number | YA4CL6BOX |
| Color | Gray |
| Color Code | Gray |
| Country of Origin | US |
| EU RoHS Indicator | Y |
| Gross Weight Per Pack | 0.0400 lb |
| Gross Weight per Pack Metric | 0.02 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8535908020 |
| Height | 0.34 in |
| Height [Metric] | 0.8636 cm |
| Length | 2.20 in |
| Length [Metric] | 5.5880 cm |
| Overall Length | 2.2 in |
| Returnable | Y |
| Series | YA-L |
| Specifications | 7/8 in L Wire Strip |
| Standard | UL 486A-486B |
| Sub Brand | HYLUG |
| Temperature Rating | 90 °C |
| Tongue Size | 0.71 in W x 0.06 in THK |
| Tongue Type | Standard Straight |
| Type | Standard Barrel, Nickel Plated |
| UNSPSC | 39121405 |
| UPC 11 | 78181055255 |
| UPC 12 | 781810552551 |
| Voltage Rating | 35,000 V |
| Width | 0.71 in |
| Width [Metric] | 1.8034 cm |
| Stock Status | NONSTOCK |
| Brand | BURNDY® |
| Manufacturer | BURNDY® |
| Conductor Size | 4 AWG |
| Conductor Type | Stranded Copper |
| Die Code | 8 |
| Material | Copper |
| Stud Size | 1/2 in |
| Wire Termination |
| Features: UL Listed 90 DEG C, 600 V - 35 KV, 45 DEG And 90 DEG Angles Are Available, Finish: Electro-Tin Plated, Tongue Angle: Straight, Wire Strip Length: 7/8 IN, Temperature Rating: 90 DEG C, Die Index: 8, Package: Box, Color Code: Gray, Tools, Die Set Catalog Number, And (number Of Crimps): Mechanical: MD6, OUR840, MD7-34R Tool, W4CVT, W4CRT, X4CRT Die, (1), Hydraulic: BCT500HS, Y500CTHS Tool, W4CVT, W4CRT, X4CRT Die, (1), Y35, Y39, Y750, PAT750 Tool, U4CRT, U6CABT Die, (1), Y46 Tool, U4CRT, U6CABT Die With PUADP-1 Adapter, (1), Conductor Type: Commercial Stranded Copper, Dieless Tools (number Of Crimps): Y644HS, Y81KFT, Y81KFTMBH, PAT81KFT-18V, MY29-3, MY29-11, MRC840 Tool, (1), Y1MRTC Tool, (2) |
| Standard, short barrel |
