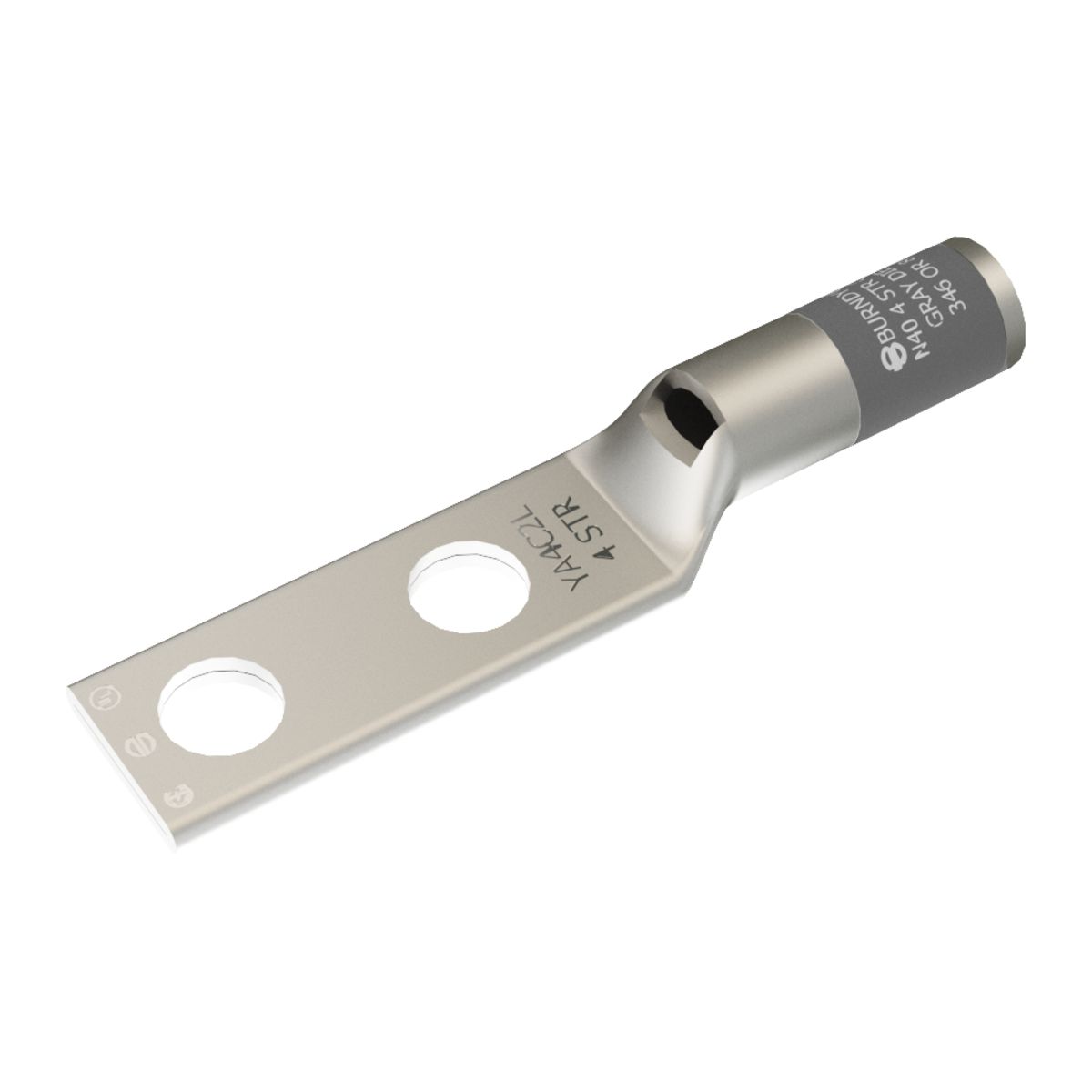

Burndy® YA4CL2TC38 HYLUG™ YA-L-2TC 2-Hole Compression Lug With Inspection Window, 750 kcmil, 3/8 in Stud, 8/346, Copper
Custom_Product_Images_Illustration
Burndy® YA4CL2TC38 HYLUG™ YA-L-2TC 2-Hole Compression Lug With Inspection Window, 750 kcmil, 3/8 in Stud, 8/346, Copper
SKU290272
MFGR #YA4CL2TC38
$/ea
BURNDY's compression connectors are designed for reliable and controllable electrical connections. The complete installation is fully inspectable. They are high conductivity copper and operate cooler than the wire on which they are installed. The connectors withstand a wide range of electrical and environmental conditions, including current surges, temperatures, corrosion and vibrations, for a wide variety of applications. These features mean a consistently high quality connection at a low installed cost.
BURNDY's compression connectors are designed for reliable and controllable electrical connections. The complete installation is fully inspectable. They are high conductivity copper and operate cooler than the wire on which they are installed. The connectors withstand a wide range of electrical and environmental conditions, including current surges, temperatures, corrosion and vibrations, for a wide variety of applications. These features mean a consistently high quality connection at a low installed cost.
Application Wire Termination ARRA Compliant C Barrel Size 13/16 in L Barrel Type Chamfered/Short/Skived/Standard Buy American Compliant C Catalog Number YA4CL2TC38 Color Gray Color Code Gray Country of Origin US EU RoHS Indicator Y Gross Weight Per Pack 0.0300 lb Gross Weight per Pack Metric 0.01 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8535908020 Height 0.34 in Height [Metric] 0.8636 cm Length 2.96 in Length [Metric] 7.5184 cm Overall Length 2.96 in Returnable Y Series YA-L-2TC Specifications 1-5/8 in L Wire Strip, 1 in Hole Spacing Standard UL 486A-486B Sub Brand HYLUG Temperature Rating 90 °C Tongue Size 2.19 in W x 0.33 in THK Tongue Type Standard Straight Type 2-Hole UNSPSC 39121405 UPC 11 78181001818 UPC 12 781810018187 Voltage Rating 600 VAC to 35 kV Width 0.58 in Width [Metric] 1.4732 cm Stock Status NONSTOCK Brand BURNDY® Manufacturer BURNDY® Conductor Size 4 AWG Conductor Type Stranded Copper Die Code 8/346 Material Copper Stud Size 3/8 in Wire Termination Features: UL Listed 90 DEG C, 600 V - 35 KV, 45 DEG And 90 DEG Angles Are Available, Tongue Angle: Straight, Temperature Rating: 90 DEG C, Die Index: 8, Wire Strip Length: 7/8 IN, Finish: Electro-Tin Plated, Color Code: Gray, Tools, Die Set Catalog Number, And (number Of Crimps): Mechanical: MD6, OUR840, MD7-34R Tool, W4CVT, W4CRT, X4CRT Die, (1), Hydraulic: BCT500HS, Y500CTHS Tool, W4CVT, W4CRT, X4CRT Die, (1), Y35, Y39, Y750, PAT750 Tool, U4CRT, U6CABT Die, (1), Y46 Tool, U4CRT, U6CABT Die With PUADP-1 Adapter, (1), Conductor Type: Commercial Stranded Copper, Dieless Tools (number Of Crimps): Y644HS, Y81KFT, Y81KFTMBH, PAT81KFT-18V, MY29-3, MY29-11, MRC840 Tool, (1), Y1MRTC Tool, (2) For die set catalog number and (number of crimps): mechanical: MD6, OUR840, MD7-34R tool, (1) W4CVT, W4CRT, X4CRT die, hydraulic: BCT500HS, Y500CTHS tool, (1) W4CVT, W4CRT, X4CRT die, Y35, Y39, Y750, PAT750 tool, (1) U4CRT, U6CABT die, Y46 tool, (1) U4CRT, U6CABT die With PUADP-1 adapter, dieless tools (number of crimps): (1) Y644HS, Y81KFT, Y81KFTMBH, PAT81KFT-18V, MY29-3, MY29-11, MRC840 tool, (2) Y1MRTC installation tool 750 flex (Class G, H, I) size, 777.7 (1925/NO 24) DLO size conductor Flex conductor Electro tin plated Electro Tin Plated Copper
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | Wire Termination |
| ARRA Compliant | C |
| Barrel Size | 13/16 in L |
| Barrel Type | Chamfered/Short/Skived/Standard |
| Buy American Compliant | C |
| Catalog Number | YA4CL2TC38 |
| Color | Gray |
| Color Code | Gray |
| Country of Origin | US |
| EU RoHS Indicator | Y |
| Gross Weight Per Pack | 0.0300 lb |
| Gross Weight per Pack Metric | 0.01 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8535908020 |
| Height | 0.34 in |
| Height [Metric] | 0.8636 cm |
| Length | 2.96 in |
| Length [Metric] | 7.5184 cm |
| Overall Length | 2.96 in |
| Returnable | Y |
| Series | YA-L-2TC |
| Specifications | 1-5/8 in L Wire Strip, 1 in Hole Spacing |
| Standard | UL 486A-486B |
| Sub Brand | HYLUG |
| Temperature Rating | 90 °C |
| Tongue Size | 2.19 in W x 0.33 in THK |
| Tongue Type | Standard Straight |
| Type | 2-Hole |
| UNSPSC | 39121405 |
| UPC 11 | 78181001818 |
| UPC 12 | 781810018187 |
| Voltage Rating | 600 VAC to 35 kV |
| Width | 0.58 in |
| Width [Metric] | 1.4732 cm |
| Stock Status | NONSTOCK |
| Brand | BURNDY® |
| Manufacturer | BURNDY® |
| Conductor Size | 4 AWG |
| Conductor Type | Stranded Copper |
| Die Code | 8/346 |
| Material | Copper |
| Stud Size | 3/8 in |
| Wire Termination |
| Features: UL Listed 90 DEG C, 600 V - 35 KV, 45 DEG And 90 DEG Angles Are Available, Tongue Angle: Straight, Temperature Rating: 90 DEG C, Die Index: 8, Wire Strip Length: 7/8 IN, Finish: Electro-Tin Plated, Color Code: Gray, Tools, Die Set Catalog Number, And (number Of Crimps): Mechanical: MD6, OUR840, MD7-34R Tool, W4CVT, W4CRT, X4CRT Die, (1), Hydraulic: BCT500HS, Y500CTHS Tool, W4CVT, W4CRT, X4CRT Die, (1), Y35, Y39, Y750, PAT750 Tool, U4CRT, U6CABT Die, (1), Y46 Tool, U4CRT, U6CABT Die With PUADP-1 Adapter, (1), Conductor Type: Commercial Stranded Copper, Dieless Tools (number Of Crimps): Y644HS, Y81KFT, Y81KFTMBH, PAT81KFT-18V, MY29-3, MY29-11, MRC840 Tool, (1), Y1MRTC Tool, (2) |
| For die set catalog number and (number of crimps): mechanical: MD6, OUR840, MD7-34R tool, (1) W4CVT, W4CRT, X4CRT die, hydraulic: BCT500HS, Y500CTHS tool, (1) W4CVT, W4CRT, X4CRT die, Y35, Y39, Y750, PAT750 tool, (1) U4CRT, U6CABT die, Y46 tool, (1) U4CRT, U6CABT die With PUADP-1 adapter, dieless tools (number of crimps): (1) Y644HS, Y81KFT, Y81KFTMBH, PAT81KFT-18V, MY29-3, MY29-11, MRC840 tool, (2) Y1MRTC installation tool |
| 750 flex (Class G, H, I) size, 777.7 (1925/NO 24) DLO size conductor |
| Flex conductor |
| Electro tin plated |
| Electro Tin Plated Copper |
