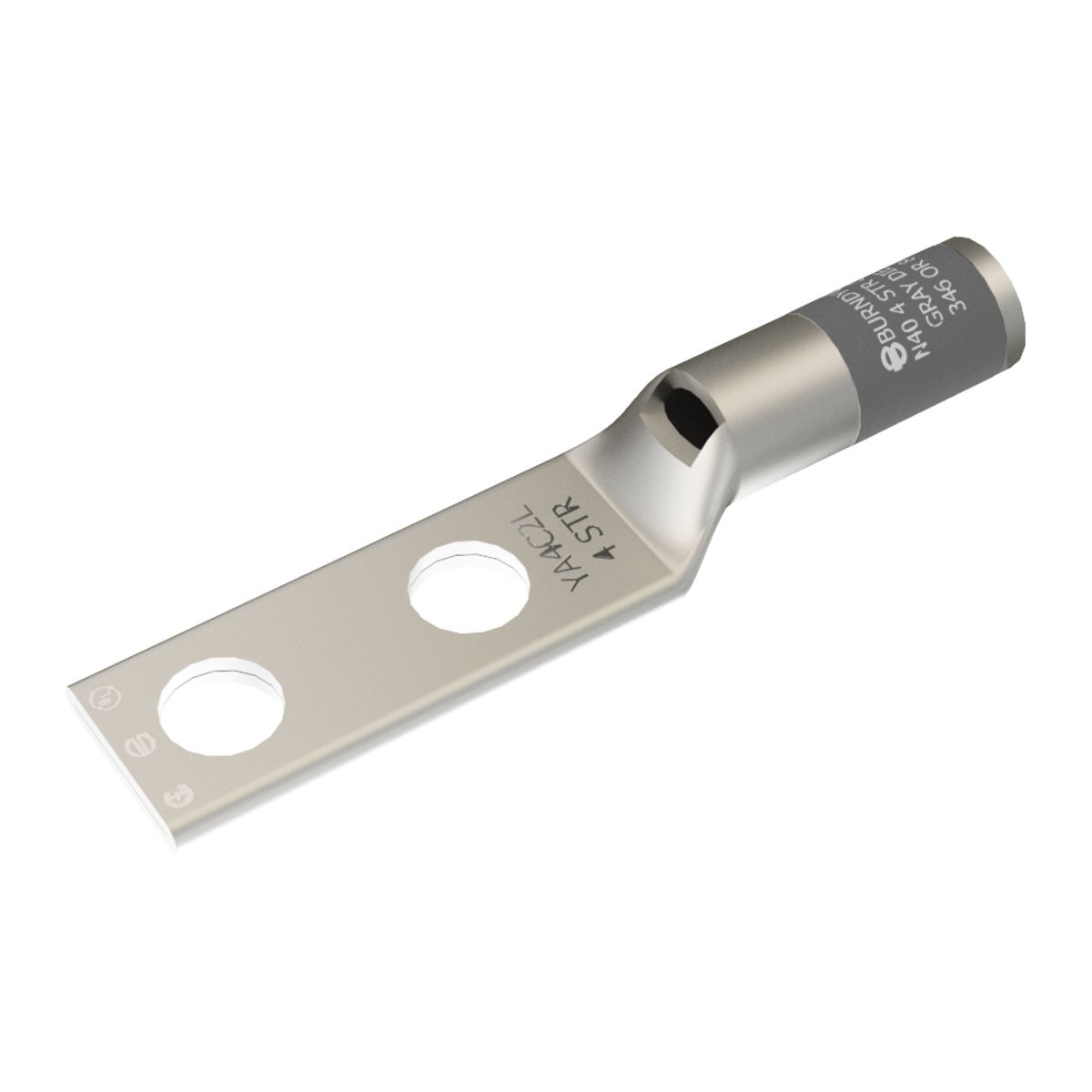

Burndy® YA4C2LN HYLUG™ YA-2LN 2-Hole Compression Lug With Inspection Window, 4 AWG Stranded Copper Conductor, 1/2 in Stud
Custom_Product_Images_Illustration
Burndy® YA4C2LN HYLUG™ YA-2LN 2-Hole Compression Lug With Inspection Window, 4 AWG Stranded Copper Conductor, 1/2 in Stud
SKU85908
MFGR #YA4C2LN
$/ea
BURNDY'™s HYLUG™ terminals, redesigned for terminating copper conductors in a wide variety of electrical connections, including heavy-duty industrial, utility, commercial, and telecommunications applications. The HYLUG™ terminals require simple cable preparation for an easily installed permanent and inspectable cable termination. The terminals are listed by UL (UL STD. 486A) and CSA certified to 600 volts, when applied with the proper tool and die combination. The terminals may be used in applications to 35 KV.
BURNDY'™s HYLUG™ terminals, redesigned for terminating copper conductors in a wide variety of electrical connections, including heavy-duty industrial, utility, commercial, and telecommunications applications. The HYLUG™ terminals require simple cable preparation for an easily installed permanent and inspectable cable termination. The terminals are listed by UL (UL STD. 486A) and CSA certified to 600 volts, when applied with the proper tool and die combination. The terminals may be used in applications to 35 KV.
Application Wire Termination ARRA Compliant C Buy American Compliant C Catalog Number YA4C2LN Color Code Gray Country of Origin US EU RoHS Indicator Y Gross Weight Per Pack 0.0900 lb Gross Weight per Pack Metric 0.04 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8535908020 Height 0.34 in Height [Metric] 0.8636 cm Length 4.14 in Length [Metric] 10.5156 cm Returnable Y Standard UL 486A-486B Standards UL Listed, CSA Certified, RoHS Compliant Sub Brand HYLUG Type Standard Barrel, Tin Plated UNSPSC 39121405 UPC 11 78181050147 UPC 12 781810501474 Voltage Rating 35,000 V Width 0.83 in Width [Metric] 2.1082 cm Stock Status NONSTOCK Brand BURNDY® Manufacturer BURNDY® Material Copper Wire Termination Features: UL Listed 90 DEG C, 600 V - 35 KV, 45 DEG And 90 DEG Angles Are Available, Wire Strip Length: 7/8 IN, Finish: Electro-Tin Plated, Die Index: 8, Tongue Angle: Straight, Temperature Rating: 90 DEG C, Color Code: Gray, Tools, Die Set Catalog Number, And (number Of Crimps): Mechanical: MD6, OUR840, MD7-34R Tool, W4CVT Die, (1), Hydraulic: BCT500HS, Y500CTHS Tool, X4CRT Die, (1), Y35, Y39, Y750, PAT750 Tool, U4CRT Die, (1), Y46 Tool, U4CRT Die With PUADP-1 Adapter, (1), Dieless Tools (number Of Crimps): Y644HS, Y81KFT, Y81KFTMBH, PAT81KFT-18V, MY29-3, MY29-11, MRC840 Tool, (1), Y1MRTC Tool, (2), Conductor Type: Commercial Stranded Copper
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | Wire Termination |
| ARRA Compliant | C |
| Buy American Compliant | C |
| Catalog Number | YA4C2LN |
| Color Code | Gray |
| Country of Origin | US |
| EU RoHS Indicator | Y |
| Gross Weight Per Pack | 0.0900 lb |
| Gross Weight per Pack Metric | 0.04 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8535908020 |
| Height | 0.34 in |
| Height [Metric] | 0.8636 cm |
| Length | 4.14 in |
| Length [Metric] | 10.5156 cm |
| Returnable | Y |
| Standard | UL 486A-486B |
| Standards | UL Listed, CSA Certified, RoHS Compliant |
| Sub Brand | HYLUG |
| Type | Standard Barrel, Tin Plated |
| UNSPSC | 39121405 |
| UPC 11 | 78181050147 |
| UPC 12 | 781810501474 |
| Voltage Rating | 35,000 V |
| Width | 0.83 in |
| Width [Metric] | 2.1082 cm |
| Stock Status | NONSTOCK |
| Brand | BURNDY® |
| Manufacturer | BURNDY® |
| Material | Copper |
| Wire Termination |
| Features: UL Listed 90 DEG C, 600 V - 35 KV, 45 DEG And 90 DEG Angles Are Available, Wire Strip Length: 7/8 IN, Finish: Electro-Tin Plated, Die Index: 8, Tongue Angle: Straight, Temperature Rating: 90 DEG C, Color Code: Gray, Tools, Die Set Catalog Number, And (number Of Crimps): Mechanical: MD6, OUR840, MD7-34R Tool, W4CVT Die, (1), Hydraulic: BCT500HS, Y500CTHS Tool, X4CRT Die, (1), Y35, Y39, Y750, PAT750 Tool, U4CRT Die, (1), Y46 Tool, U4CRT Die With PUADP-1 Adapter, (1), Dieless Tools (number Of Crimps): Y644HS, Y81KFT, Y81KFTMBH, PAT81KFT-18V, MY29-3, MY29-11, MRC840 Tool, (1), Y1MRTC Tool, (2), Conductor Type: Commercial Stranded Copper |
