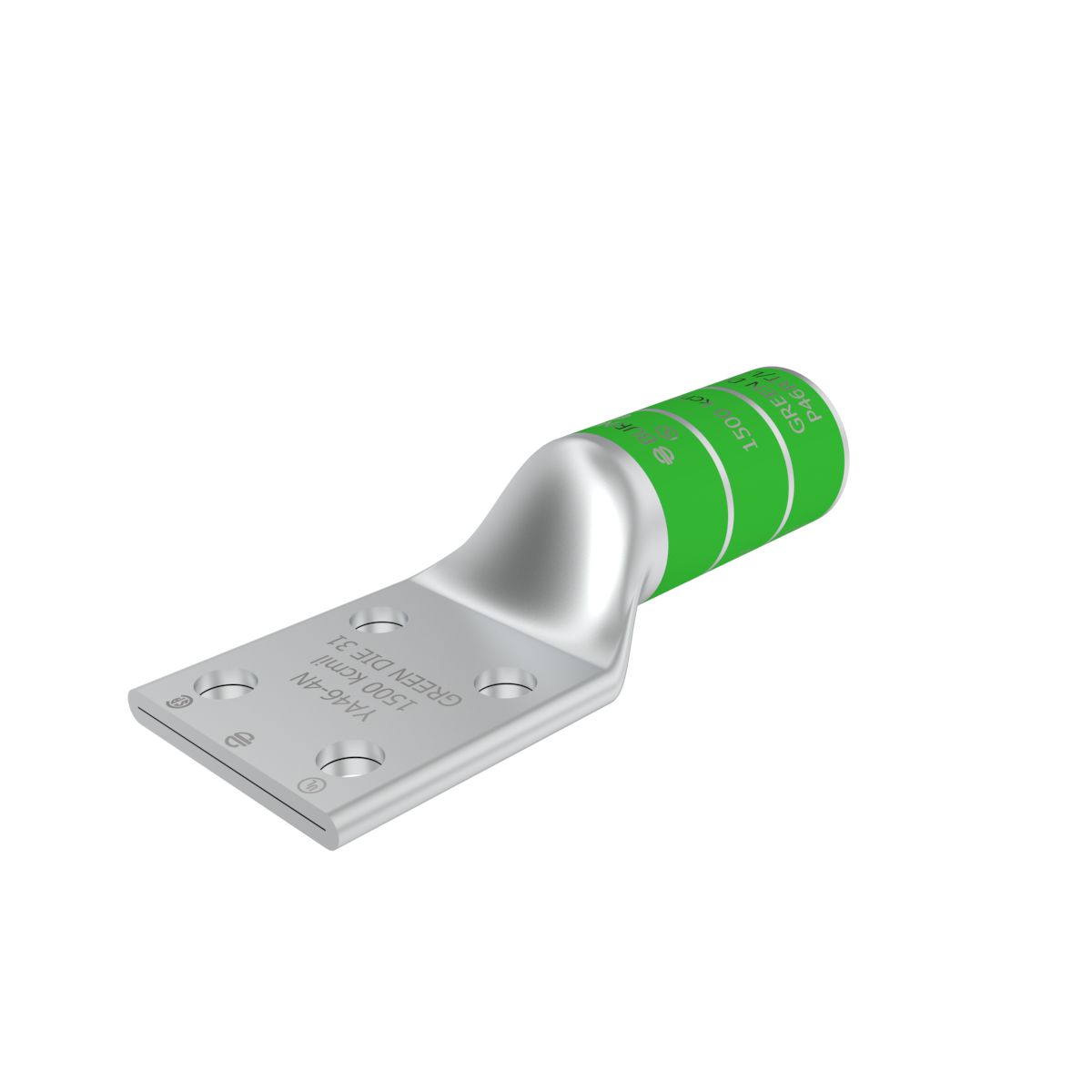

Burndy® YA464N HYLUG™ YA Series 4-Hole Compression Lug Without Inspection Window, 1500 kcmil Stranded Copper Conductor
Custom_Product_Images_Illustration
Burndy® YA464N HYLUG™ YA Series 4-Hole Compression Lug Without Inspection Window, 1500 kcmil Stranded Copper Conductor
SKU85625
MFGR #YA464N
Your Cost: $187.75/ea
List: BURNDY™s HYLUG™ terminals, redesigned for terminating copper conductors in a wide variety of electrical connections, including heavy-duty industrial, utility, commercial, and telecommunications applications. The HYLUG™ terminals require simple cable preparation for an easily installed permanent and inspectable cable termination. The terminals are listed by UL (UL STD. 486A) and CSA certified to 600 volts, when applied with the proper tool and die combination. The terminals may be used in applications to 35 KV.
BURNDY™s HYLUG™ terminals, redesigned for terminating copper conductors in a wide variety of electrical connections, including heavy-duty industrial, utility, commercial, and telecommunications applications. The HYLUG™ terminals require simple cable preparation for an easily installed permanent and inspectable cable termination. The terminals are listed by UL (UL STD. 486A) and CSA certified to 600 volts, when applied with the proper tool and die combination. The terminals may be used in applications to 35 KV.
Application Wire Termination ARRA Compliant C Barrel Size 1.84 in OD x 3.19 in L Barrel Type Chamfered/Long Brand BURNDY® Buy American Compliant C Catalog Number YA464N Color Green Color Code Green Conductor Size 1500 kcmil Conductor Type Stranded Copper Country of Origin US Die Code 31 EU RoHS Indicator Y Gross Weight Per Pack 2.8500 lb Gross Weight per Pack Metric 1.29 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8535908020 Height 1.84 in Height [Metric] 4.6736 cm Length 7.55 in Length [Metric] 19.1770 cm Manufacturer BURNDY® Material Copper Overall Length 7.55 in Returnable Y Series YA Series Specifications 3-1/4 in L Wire Stripe, 1-3/4 in Hole Spacing Standard UL 486A-486B Stock Status NONSTOCK Stud Size 1/2 in Sub Brand HYLUG Temperature Rating 90 °C Tongue Size 3 in W x 0.34 in THK Tongue Type Straight Type Long Barrel, Tin Plated UNSPSC 39121405 UPC 11 78181008605 UPC 12 781810086056 Voltage Rating 35,000 V Width 3.00 in Width [Metric] 7.6200 cm Wire Termination Features: 45 DEG And 90 DEG Angles Are Available, Tongue Angle: Straight, Tools, Die Set Catalog Number, And (number Of Crimps): Hydraulic: Y46 Tool, P46RT Die, Color Code: Green, Die Index: 31, Wire Strip Length: 3-1/4 IN
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | Wire Termination |
| ARRA Compliant | C |
| Barrel Size | 1.84 in OD x 3.19 in L |
| Barrel Type | Chamfered/Long |
| Brand | BURNDY® |
| Buy American Compliant | C |
| Catalog Number | YA464N |
| Color | Green |
| Color Code | Green |
| Conductor Size | 1500 kcmil |
| Conductor Type | Stranded Copper |
| Country of Origin | US |
| Die Code | 31 |
| EU RoHS Indicator | Y |
| Gross Weight Per Pack | 2.8500 lb |
| Gross Weight per Pack Metric | 1.29 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8535908020 |
| Height | 1.84 in |
| Height [Metric] | 4.6736 cm |
| Length | 7.55 in |
| Length [Metric] | 19.1770 cm |
| Manufacturer | BURNDY® |
| Material | Copper |
| Overall Length | 7.55 in |
| Returnable | Y |
| Series | YA Series |
| Specifications | 3-1/4 in L Wire Stripe, 1-3/4 in Hole Spacing |
| Standard | UL 486A-486B |
| Stock Status | NONSTOCK |
| Stud Size | 1/2 in |
| Sub Brand | HYLUG |
| Temperature Rating | 90 °C |
| Tongue Size | 3 in W x 0.34 in THK |
| Tongue Type | Straight |
| Type | Long Barrel, Tin Plated |
| UNSPSC | 39121405 |
| UPC 11 | 78181008605 |
| UPC 12 | 781810086056 |
| Voltage Rating | 35,000 V |
| Width | 3.00 in |
| Width [Metric] | 7.6200 cm |
| Wire Termination |
| Features: 45 DEG And 90 DEG Angles Are Available, Tongue Angle: Straight, Tools, Die Set Catalog Number, And (number Of Crimps): Hydraulic: Y46 Tool, P46RT Die, Color Code: Green, Die Index: 31, Wire Strip Length: 3-1/4 IN |
