BURNDY®

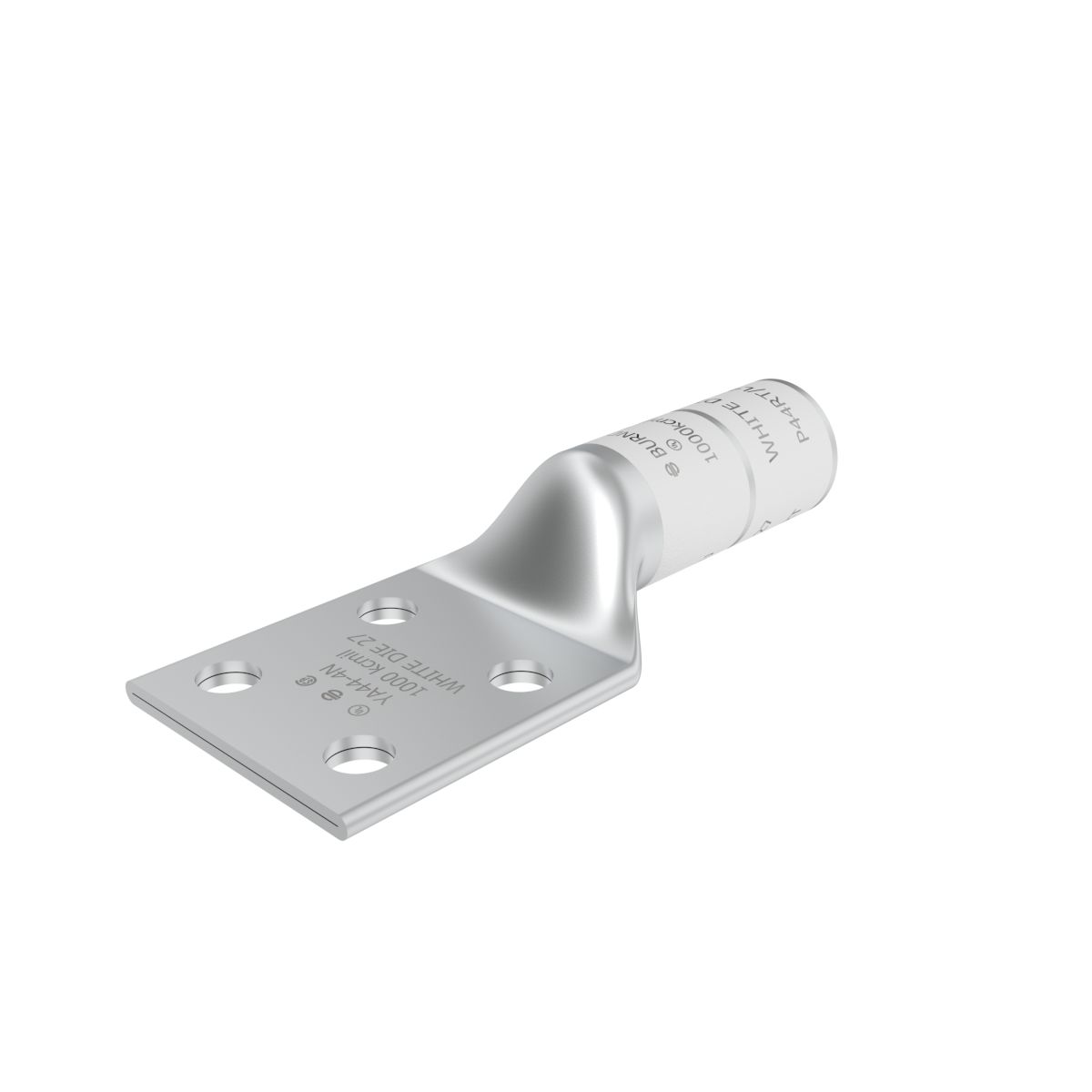

Burndy® YA444N HYLUG™ YA Series 4-Hole Compression Lug Without Inspection Window, 1000 kcmil Stranded Copper Conductor
Custom_Product_Images_Illustration
BURNDY®
Burndy® YA444N HYLUG™ YA Series 4-Hole Compression Lug Without Inspection Window, 1000 kcmil Stranded Copper Conductor
SKU85979
MFGR #YA444N
Your Cost: $153.45/ea
List: BURNDY™s HYLUG™ terminals, redesigned for terminating copper conductors in a wide variety of electrical connections, including heavy-duty industrial, utility, commercial, and telecommunications applications. The HYLUG™ terminals require simple cable preparation for an easily installed permanent and inspectable cable termination. The terminals are listed by UL (UL STD. 486A) and CSA certified to 600 volts, when applied with the proper tool and die combination. The terminals may be used in applications to 35 KV.
BURNDY™s HYLUG™ terminals, redesigned for terminating copper conductors in a wide variety of electrical connections, including heavy-duty industrial, utility, commercial, and telecommunications applications. The HYLUG™ terminals require simple cable preparation for an easily installed permanent and inspectable cable termination. The terminals are listed by UL (UL STD. 486A) and CSA certified to 600 volts, when applied with the proper tool and die combination. The terminals may be used in applications to 35 KV.
Application Wire Termination ARRA Compliant C Barrel Size 1-1/2 in OD x 3 in L Barrel Type Chamfered/Long Buy American Compliant C Catalog Number YA444N Color White Color Code White Country of Origin US EU RoHS Indicator Y Gross Weight Per Pack 1.6800 lb Gross Weight per Pack Metric 0.76 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8535908020 Height 1.50 in Height [Metric] 3.8100 cm Length 7.14 in Length [Metric] 18.1356 cm Overall Length 7.14 in Returnable Y Series YA Series Specifications 3-1/16 in L Wire Stripe, 1-3/4 in Hole Spacing Standard UL 486A-486B Sub Brand HYLUG Temperature Rating 90 °C Tongue Size 3 in W x 0.23 in THK Tongue Type Straight Type Long Barrel, Tin Plated UNSPSC 39121405 UPC 11 78181052401 UPC 12 781810524015 Voltage Rating 35,000 V Width 3.00 in Width [Metric] 7.6200 cm Stock Status NONSTOCK Brand BURNDY® Manufacturer BURNDY® Conductor Size 1000 kcmil Conductor Type Stranded Copper Die Code 27 Material Copper Stud Size 1/2 in Wire Termination Features: 45 DEG And 90 DEG Angles Are Available, Tongue Angle: Straight, Color Code: White, Tools, Die Set Catalog Number, And (number Of Crimps): Hydraulic: Y46 Tool, P44RT Die, Die Index: 27, Wire Strip Length: 3-1/16 IN
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | Wire Termination |
| ARRA Compliant | C |
| Barrel Size | 1-1/2 in OD x 3 in L |
| Barrel Type | Chamfered/Long |
| Buy American Compliant | C |
| Catalog Number | YA444N |
| Color | White |
| Color Code | White |
| Country of Origin | US |
| EU RoHS Indicator | Y |
| Gross Weight Per Pack | 1.6800 lb |
| Gross Weight per Pack Metric | 0.76 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8535908020 |
| Height | 1.50 in |
| Height [Metric] | 3.8100 cm |
| Length | 7.14 in |
| Length [Metric] | 18.1356 cm |
| Overall Length | 7.14 in |
| Returnable | Y |
| Series | YA Series |
| Specifications | 3-1/16 in L Wire Stripe, 1-3/4 in Hole Spacing |
| Standard | UL 486A-486B |
| Sub Brand | HYLUG |
| Temperature Rating | 90 °C |
| Tongue Size | 3 in W x 0.23 in THK |
| Tongue Type | Straight |
| Type | Long Barrel, Tin Plated |
| UNSPSC | 39121405 |
| UPC 11 | 78181052401 |
| UPC 12 | 781810524015 |
| Voltage Rating | 35,000 V |
| Width | 3.00 in |
| Width [Metric] | 7.6200 cm |
| Stock Status | NONSTOCK |
| Brand | BURNDY® |
| Manufacturer | BURNDY® |
| Conductor Size | 1000 kcmil |
| Conductor Type | Stranded Copper |
| Die Code | 27 |
| Material | Copper |
| Stud Size | 1/2 in |
| Wire Termination |
| Features: 45 DEG And 90 DEG Angles Are Available, Tongue Angle: Straight, Color Code: White, Tools, Die Set Catalog Number, And (number Of Crimps): Hydraulic: Y46 Tool, P44RT Die, Die Index: 27, Wire Strip Length: 3-1/16 IN |
