BURNDY®

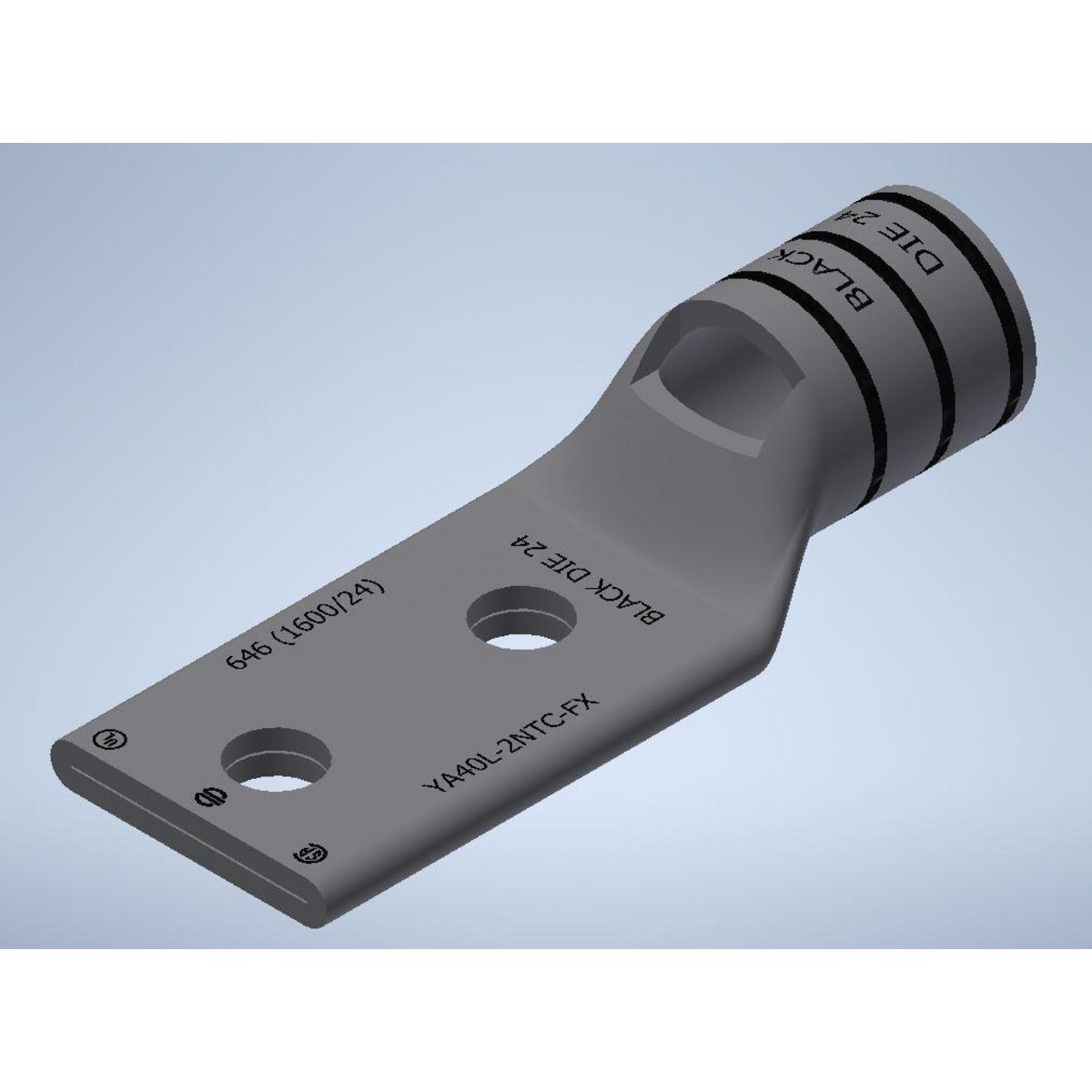

Burndy® YA40L2NTCFX HYLUG™ YA-L-2TC-FX 2-Hole Compression Lug With Inspection Window, 650 kcmil Stranded Copper Conductor
Custom_Product_Images_Illustration
BURNDY®
Burndy® YA40L2NTCFX HYLUG™ YA-L-2TC-FX 2-Hole Compression Lug With Inspection Window, 650 kcmil Stranded Copper Conductor
SKU933998
MFGR #YA40L2NTCFX
$/ea
BURNDY® HYLUG™ terminals, redesigned for terminating copper conductors in a wide variety of electrical connections, including heavy-duty industrial, utility, commercial, and telecommunications applications. The HYLUG™ terminals require simple cable preparation for an easily installed permanent and inspectable cable termination. The terminals are listed by UL (UL STD. 486A) and CSA certified to 600 volts, when applied with the proper tool and die combination. The terminals may be used in applications to 35 KV.
BURNDY® HYLUG™ terminals, redesigned for terminating copper conductors in a wide variety of electrical connections, including heavy-duty industrial, utility, commercial, and telecommunications applications. The HYLUG™ terminals require simple cable preparation for an easily installed permanent and inspectable cable termination. The terminals are listed by UL (UL STD. 486A) and CSA certified to 600 volts, when applied with the proper tool and die combination. The terminals may be used in applications to 35 KV.
Application Wire Termination ARRA Compliant C Barrel Size 1.35 in OD x 1.42 in L Barrel Type Chamfered/Standard Buy American Compliant C Catalog Number YA40L2NTCFX Color Black Country of Origin US EU RoHS Indicator Y Finish Tin Plated Gross Weight Per Pack 0.9400 lb Gross Weight per Pack Metric 0.43 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8535908020 Height 1.35 in Height [Metric] 3.4290 cm Length 5.38 in Length [Metric] 13.6652 cm Overall Length 5.38 in Returnable Y Series YA-L-2TC-FX Specifications 1-5/16 in L Wire Strip, 1-3/4 in Stud Hole Spacing Standard UL 486A-486B Sub Brand HYLUG Temperature Rating 90 °C Tongue Size 1.98 in W x 0.3 in THK Tongue Type Standard Straight Type Standard Barrel, Tin Plated UNSPSC 39121405 UPC 11 78181005674 UPC 12 781810056745 Voltage Rating 35,000 V Width 1.98 in Width [Metric] 5.0292 cm Stock Status NONSTOCK Brand BURNDY® Manufacturer BURNDY® Conductor Size 650 kcmil Conductor Type Copper Die Code 24 Material Copper Stud Size 1/2 in Wire Termination UL Listed 90 DEG C, 600 V - 35 KV, 45 DEG And 90 DEG Angles Are Available,Tongue Angle: Straight 650 (Class G, H, I), 646 (1600/NO 24) DLO size conductor Standard barre
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | Wire Termination |
| ARRA Compliant | C |
| Barrel Size | 1.35 in OD x 1.42 in L |
| Barrel Type | Chamfered/Standard |
| Buy American Compliant | C |
| Catalog Number | YA40L2NTCFX |
| Color | Black |
| Country of Origin | US |
| EU RoHS Indicator | Y |
| Finish | Tin Plated |
| Gross Weight Per Pack | 0.9400 lb |
| Gross Weight per Pack Metric | 0.43 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8535908020 |
| Height | 1.35 in |
| Height [Metric] | 3.4290 cm |
| Length | 5.38 in |
| Length [Metric] | 13.6652 cm |
| Overall Length | 5.38 in |
| Returnable | Y |
| Series | YA-L-2TC-FX |
| Specifications | 1-5/16 in L Wire Strip, 1-3/4 in Stud Hole Spacing |
| Standard | UL 486A-486B |
| Sub Brand | HYLUG |
| Temperature Rating | 90 °C |
| Tongue Size | 1.98 in W x 0.3 in THK |
| Tongue Type | Standard Straight |
| Type | Standard Barrel, Tin Plated |
| UNSPSC | 39121405 |
| UPC 11 | 78181005674 |
| UPC 12 | 781810056745 |
| Voltage Rating | 35,000 V |
| Width | 1.98 in |
| Width [Metric] | 5.0292 cm |
| Stock Status | NONSTOCK |
| Brand | BURNDY® |
| Manufacturer | BURNDY® |
| Conductor Size | 650 kcmil |
| Conductor Type | Copper |
| Die Code | 24 |
| Material | Copper |
| Stud Size | 1/2 in |
| Wire Termination |
| UL Listed 90 DEG C, 600 V - 35 KV, 45 DEG And 90 DEG Angles Are Available,Tongue Angle: Straight |
| 650 (Class G, H, I), 646 (1600/NO 24) DLO size conductor |
| Standard barre |
