BURNDY®

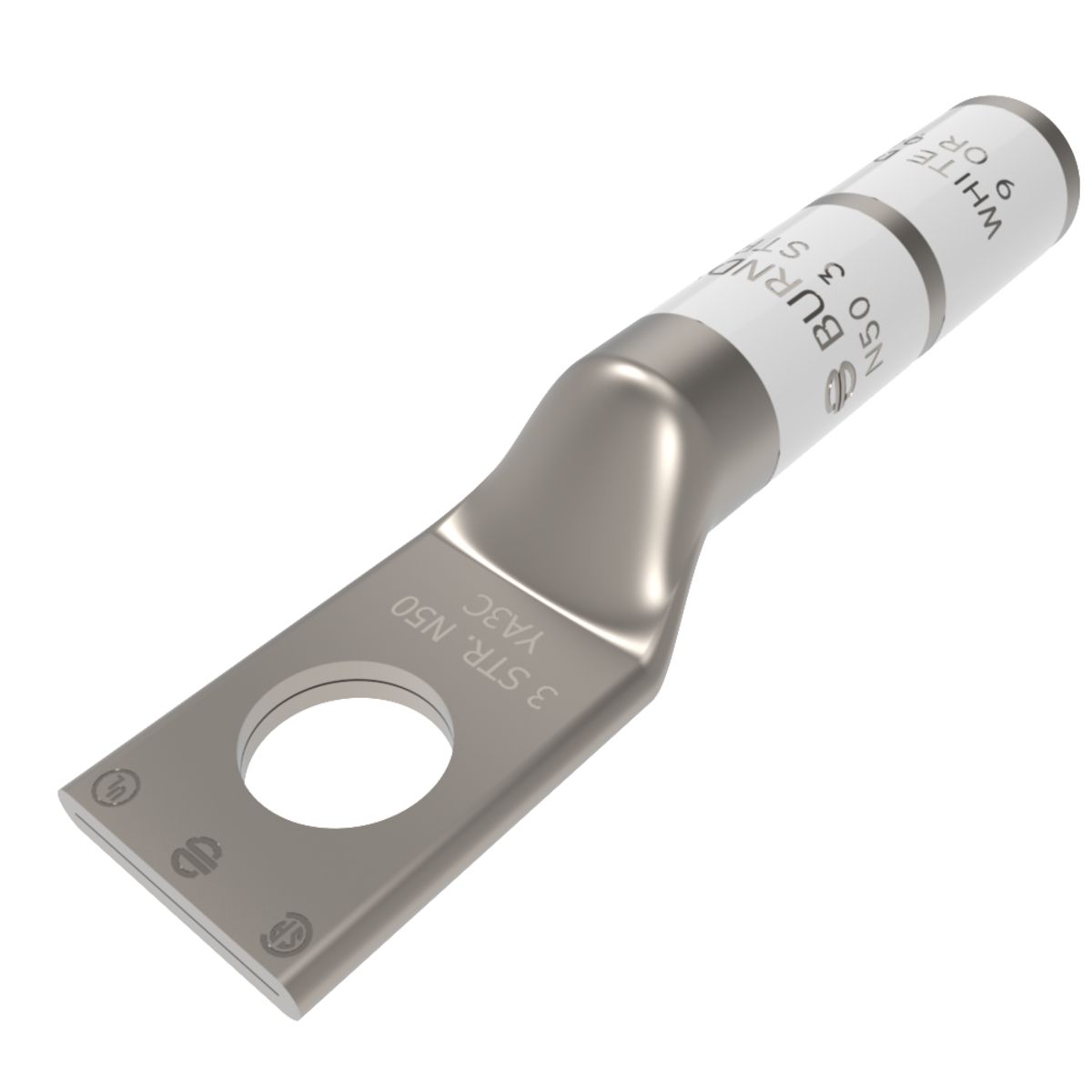

Burndy® YA3CN HYLUG™ YA Series 1-Hole Compression Lug Without Inspection Window, 3/2 AWG Stranded Solid Copper Conductor
Custom_Product_Images_Illustration
BURNDY®
Burndy® YA3CN HYLUG™ YA Series 1-Hole Compression Lug Without Inspection Window, 3/2 AWG Stranded Solid Copper Conductor
SKU196301
MFGR #YA3CN
$/ea
BURNDY'™s HYLUG™ terminals, redesigned for terminating copper conductors in a wide variety of electrical connections, including heavy-duty industrial, utility, commercial, and telecommunications applications. The HYLUG™ terminals require simple cable preparation for an easily installed permanent and inspectable cable termination. The terminals are listed by UL (UL STD. 486A) and CSA certified to 600 volts, when applied with the proper tool and die combination. The terminals may be used in applications to 35 KV.
BURNDY'™s HYLUG™ terminals, redesigned for terminating copper conductors in a wide variety of electrical connections, including heavy-duty industrial, utility, commercial, and telecommunications applications. The HYLUG™ terminals require simple cable preparation for an easily installed permanent and inspectable cable termination. The terminals are listed by UL (UL STD. 486A) and CSA certified to 600 volts, when applied with the proper tool and die combination. The terminals may be used in applications to 35 KV.
Application Wire Termination ARRA Compliant C Barrel Size 0.38 in OD x 1.25 in L Barrel Type Chamfered/Long Buy American Compliant C Catalog Number YA3CN Color White Color Code White Country of Origin US EU RoHS Indicator Y Gross Weight Per Pack 0.0600 lb Gross Weight per Pack Metric 0.03 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8535908020 Height 0.38 in Height [Metric] 0.9652 cm Length 2.86 in Length [Metric] 7.2644 cm Overall Length 2.86 in Returnable Y Series YA Series Specifications 1-5/16 in L Wire Strip Standard UL 486A-486B Standards UL Listed, CSA Certified, RoHS Compliant Sub Brand HYLUG Temperature Rating 90 °C Tongue Size 0.83 in W x 0.12 in THK Tongue Type Standard Straight Type Long Barrel, Tin Plated UNSPSC 39121405 UPC 11 78181001963 UPC 12 781810019634 Voltage Rating 35,000 V Width 0.83 in Width [Metric] 2.1082 cm Stock Status NONSTOCK Brand BURNDY® Manufacturer BURNDY® Conductor Size 3 AWG Conductor Type Solid/Stranded Copper Die Code 9 Material Copper Stud Size 1/2 in Wire Termination Features: UL Listed 90 DEG C, 600 V - 35 KV, 45 DEG And 90 DEG Angles Are Available, Finish: Electro-Tin Plated, Temperature Rating: 90 DEG C, Die Index: 9, Tongue Angle: Straight, Wire Strip Length: 1-1/2 IN, Color Code: White, Tools, Die Set Catalog Number, And (number Of Crimps): Mechanical: MD6, OUR840, MD7-34R Tool, W3CRT Die, (2), Hydraulic: BCT500HS, Y500CTHS Tool, W3CRT Die, (2), Y35, Y39, Y750, PAT750 Tool, U3CRT Die, (2), Y46 Tool, U3CRT Die With PUADP-1 Adapter, (2), Dieless Tools (number Of Crimps): Y644HS Tool, (1), Y81KFT, Y81KFTMBH, PAT81KFT-18V, MY29-3, MY29-11 Tool, (2), Conductor Type: Solid Copper
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | Wire Termination |
| ARRA Compliant | C |
| Barrel Size | 0.38 in OD x 1.25 in L |
| Barrel Type | Chamfered/Long |
| Buy American Compliant | C |
| Catalog Number | YA3CN |
| Color | White |
| Color Code | White |
| Country of Origin | US |
| EU RoHS Indicator | Y |
| Gross Weight Per Pack | 0.0600 lb |
| Gross Weight per Pack Metric | 0.03 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8535908020 |
| Height | 0.38 in |
| Height [Metric] | 0.9652 cm |
| Length | 2.86 in |
| Length [Metric] | 7.2644 cm |
| Overall Length | 2.86 in |
| Returnable | Y |
| Series | YA Series |
| Specifications | 1-5/16 in L Wire Strip |
| Standard | UL 486A-486B |
| Standards | UL Listed, CSA Certified, RoHS Compliant |
| Sub Brand | HYLUG |
| Temperature Rating | 90 °C |
| Tongue Size | 0.83 in W x 0.12 in THK |
| Tongue Type | Standard Straight |
| Type | Long Barrel, Tin Plated |
| UNSPSC | 39121405 |
| UPC 11 | 78181001963 |
| UPC 12 | 781810019634 |
| Voltage Rating | 35,000 V |
| Width | 0.83 in |
| Width [Metric] | 2.1082 cm |
| Stock Status | NONSTOCK |
| Brand | BURNDY® |
| Manufacturer | BURNDY® |
| Conductor Size | 3 AWG |
| Conductor Type | Solid/Stranded Copper |
| Die Code | 9 |
| Material | Copper |
| Stud Size | 1/2 in |
| Wire Termination |
| Features: UL Listed 90 DEG C, 600 V - 35 KV, 45 DEG And 90 DEG Angles Are Available, Finish: Electro-Tin Plated, Temperature Rating: 90 DEG C, Die Index: 9, Tongue Angle: Straight, Wire Strip Length: 1-1/2 IN, Color Code: White, Tools, Die Set Catalog Number, And (number Of Crimps): Mechanical: MD6, OUR840, MD7-34R Tool, W3CRT Die, (2), Hydraulic: BCT500HS, Y500CTHS Tool, W3CRT Die, (2), Y35, Y39, Y750, PAT750 Tool, U3CRT Die, (2), Y46 Tool, U3CRT Die With PUADP-1 Adapter, (2), Dieless Tools (number Of Crimps): Y644HS Tool, (1), Y81KFT, Y81KFTMBH, PAT81KFT-18V, MY29-3, MY29-11 Tool, (2), Conductor Type: Solid Copper |
