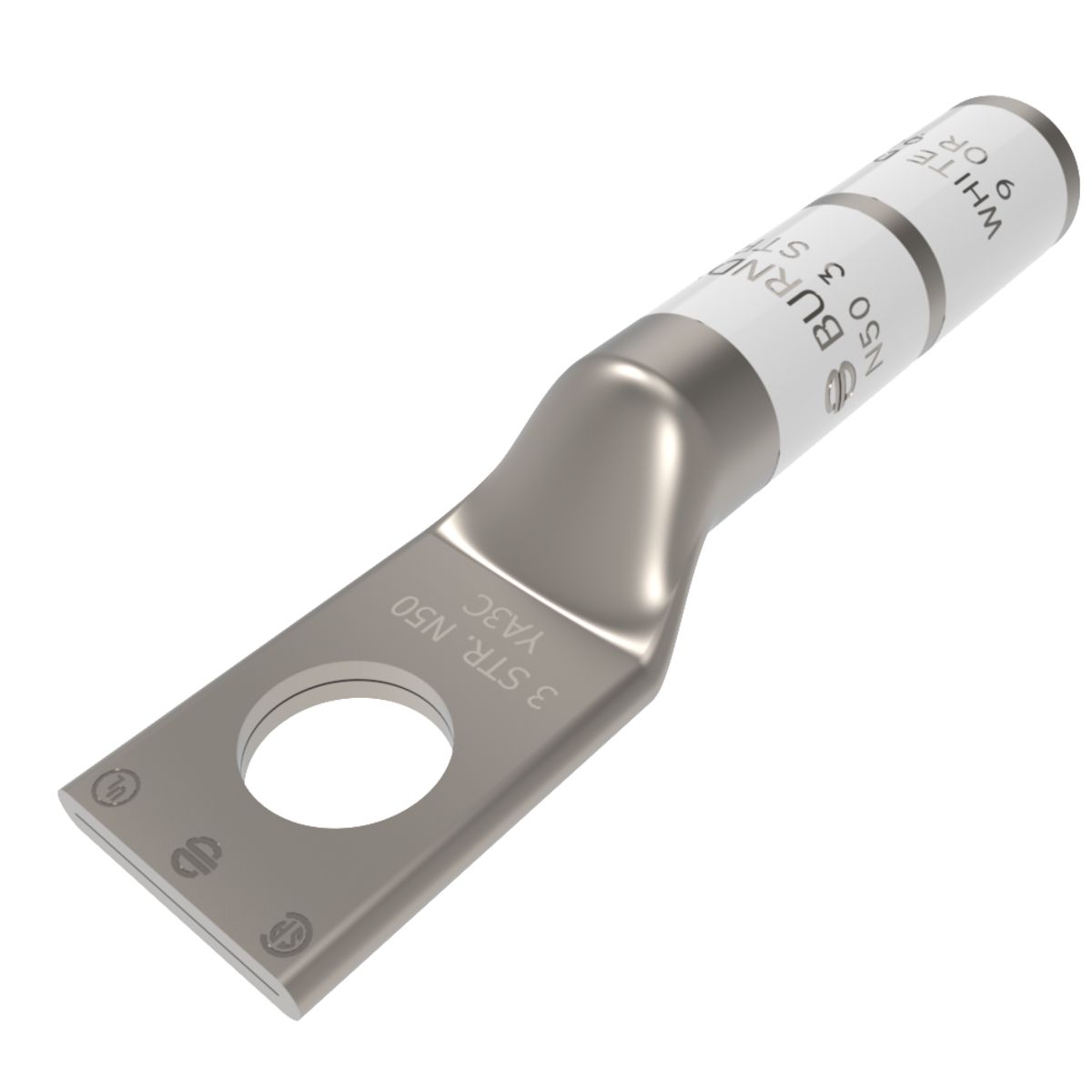

Burndy® YA3C HYLUG™ YA Series 1-Hole Non-Insulated Compression Lug Without Inspection Window, 3 AWG Copper Conductor
Custom_Product_Images_Illustration
Burndy® YA3C HYLUG™ YA Series 1-Hole Non-Insulated Compression Lug Without Inspection Window, 3 AWG Copper Conductor
SKU19513
MFGR #YA3C
Your Cost: $4.91/ea
List: BURNDY's compression connectors are designed for reliable and controllable electrical connections. The complete installation is fully inspectable. They are high conductivity copper and operate cooler than the wire on which they are installed. The connectors withstand a wide range of electrical and environmental conditions, including current surges, temperatures, corrosion and vibrations, for a wide variety of applications. These features mean a consistently high quality connection at a low installed cost. Copper compression connectors are manufactured from high-conductivity electrolytic copper. The connectors are normally tinplated, lead-plated, or plated with proprietary BURNDY® brite finish to provide durable long-lasting corrosion resistance. The connector design has been matched to the cable size to provide the necessary physical strength requirements for reliable electrical performance.
BURNDY's compression connectors are designed for reliable and controllable electrical connections. The complete installation is fully inspectable. They are high conductivity copper and operate cooler than the wire on which they are installed. The connectors withstand a wide range of electrical and environmental conditions, including current surges, temperatures, corrosion and vibrations, for a wide variety of applications. These features mean a consistently high quality connection at a low installed cost. Copper compression connectors are manufactured from high-conductivity electrolytic copper. The connectors are normally tinplated, lead-plated, or plated with proprietary BURNDY® brite finish to provide durable long-lasting corrosion resistance. The connector design has been matched to the cable size to provide the necessary physical strength requirements for reliable electrical performance.
Application Wire Termination ARRA Compliant C Brand BURNDY® Buy American Compliant C Catalog Number YA3C Color Code White Country of Origin US EU RoHS Indicator Y Gross Weight Per Pack 0.0050 lb Gross Weight per Pack Metric 0.01 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8535908020 Height 0.38 in Height [Metric] 0.9652 cm Length 2.30 in Length [Metric] 5.8420 cm Manufacturer BURNDY® Material Copper Returnable Y Standard UL 486A-486B Standards UL468A-468B Listed, CSA Certified and RoHS Compliant Stock Status NORMALLY STOCKED Sub Brand HYLUG Type Long Barrel, Tin Plated UNSPSC 39121405 UPC 11 78181050120 UPC 12 781810501207 Voltage Rating 35,000 V Width 0.55 in Width [Metric] 1.3970 cm Wire Termination Features: UL Listed 90 DEG C, 600 V - 35 KV, 45 DEG And 90 DEG Angles Are Available, Wire Strip Length: 1-1/2 IN, Die Index: 9, Finish: Electro-Tin Plated, Tongue Angle: Straight, Temperature Rating: 90 DEG C, Color Code: White, Tools, Die Set Catalog Number, And (number Of Crimps): Mechanical: MD6, OUR840, MD7-34R Tool, W3CRT Die, (2), Hydraulic: BCT500HS, Y500CTHS Tool, W3CRT Die, (2), Y35, Y39, Y750, PAT750 Tool, U3CRT Die, (2), Y46 Tool, U3CRT Die With PUADP-1 Adapter, (2), Dieless Tools (number Of Crimps): Y644HS Tool, (1), Y81KFT, Y81KFTMBH, PAT81KFT-18V, MY29-3, MY29-11 Tool, (2), Conductor Type: Solid Copper For mechanical: MD6, OUR840, MD7-34R tool, (2) W3CRT die, hydraulic: BCT500HS, Y500CTHS tool, (2) W3CRT die, Y35, Y39, Y750, PAT750 tool, (2) U3CRT die, Y46 tool, (2) U3CRT die with PUADP-1 adapter, dieless tools (number of crimps): (1) Y644HS tool, (2) Y81KFT, Y81KFTMBH, PAT81KFT-18V, MY29-3, MY29-11 tool installation tool Electro tin plated 3 AWG stranded, 2 AWG solid conductor size 1-5/16 in L Strip
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | Wire Termination |
| ARRA Compliant | C |
| Brand | BURNDY® |
| Buy American Compliant | C |
| Catalog Number | YA3C |
| Color Code | White |
| Country of Origin | US |
| EU RoHS Indicator | Y |
| Gross Weight Per Pack | 0.0050 lb |
| Gross Weight per Pack Metric | 0.01 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8535908020 |
| Height | 0.38 in |
| Height [Metric] | 0.9652 cm |
| Length | 2.30 in |
| Length [Metric] | 5.8420 cm |
| Manufacturer | BURNDY® |
| Material | Copper |
| Returnable | Y |
| Standard | UL 486A-486B |
| Standards | UL468A-468B Listed, CSA Certified and RoHS Compliant |
| Stock Status | NORMALLY STOCKED |
| Sub Brand | HYLUG |
| Type | Long Barrel, Tin Plated |
| UNSPSC | 39121405 |
| UPC 11 | 78181050120 |
| UPC 12 | 781810501207 |
| Voltage Rating | 35,000 V |
| Width | 0.55 in |
| Width [Metric] | 1.3970 cm |
| Wire Termination |
| Features: UL Listed 90 DEG C, 600 V - 35 KV, 45 DEG And 90 DEG Angles Are Available, Wire Strip Length: 1-1/2 IN, Die Index: 9, Finish: Electro-Tin Plated, Tongue Angle: Straight, Temperature Rating: 90 DEG C, Color Code: White, Tools, Die Set Catalog Number, And (number Of Crimps): Mechanical: MD6, OUR840, MD7-34R Tool, W3CRT Die, (2), Hydraulic: BCT500HS, Y500CTHS Tool, W3CRT Die, (2), Y35, Y39, Y750, PAT750 Tool, U3CRT Die, (2), Y46 Tool, U3CRT Die With PUADP-1 Adapter, (2), Dieless Tools (number Of Crimps): Y644HS Tool, (1), Y81KFT, Y81KFTMBH, PAT81KFT-18V, MY29-3, MY29-11 Tool, (2), Conductor Type: Solid Copper |
| For mechanical: MD6, OUR840, MD7-34R tool, (2) W3CRT die, hydraulic: BCT500HS, Y500CTHS tool, (2) W3CRT die, Y35, Y39, Y750, PAT750 tool, (2) U3CRT die, Y46 tool, (2) U3CRT die with PUADP-1 adapter, dieless tools (number of crimps): (1) Y644HS tool, (2) Y81KFT, Y81KFTMBH, PAT81KFT-18V, MY29-3, MY29-11 tool installation tool |
| Electro tin plated |
| 3 AWG stranded, 2 AWG solid conductor size |
| 1-5/16 in L Strip |
