BURNDY®

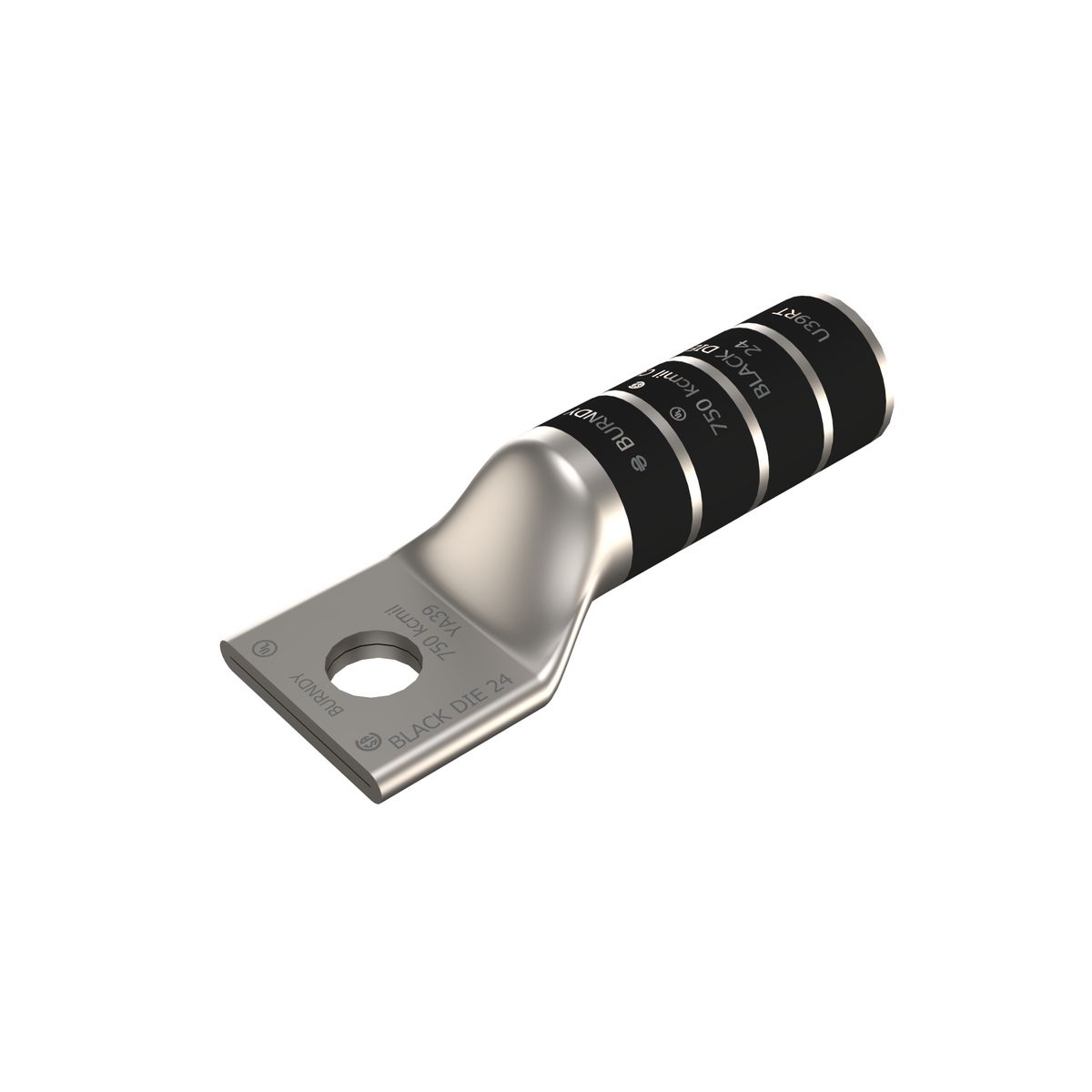

Burndy® YA39N HYLUG™ YA Series 1-Hole Compression Lug Without Inspection Window, 750 kcmil Stranded Copper Conductor
Custom_Product_Images_Illustration
BURNDY®
Burndy® YA39N HYLUG™ YA Series 1-Hole Compression Lug Without Inspection Window, 750 kcmil Stranded Copper Conductor
SKU507468
MFGR #YA39N
$/ea
BURNDY® HYLUG™ terminals, redesigned for terminating copper conductors in a wide variety of electrical connections, including heavy-duty industrial, utility, commercial, and telecommunications applications. The HYLUG™ terminals require simple cable preparation for an easily installed permanent and inspectable cable termination. The terminals are listed by UL (UL STD. 486A) and CSA certified to 600 volts, when applied with the proper tool and die combination. The terminals may be used in applications to 35 KV.
BURNDY® HYLUG™ terminals, redesigned for terminating copper conductors in a wide variety of electrical connections, including heavy-duty industrial, utility, commercial, and telecommunications applications. The HYLUG™ terminals require simple cable preparation for an easily installed permanent and inspectable cable termination. The terminals are listed by UL (UL STD. 486A) and CSA certified to 600 volts, when applied with the proper tool and die combination. The terminals may be used in applications to 35 KV.
Application Wire Termination ARRA Compliant C Barrel Size 1.3 in OD x 2.88 in L Barrel Type Chamfered/Long/Standard Buy American Compliant C Catalog Number YA39N Color Black Color Code Black Country of Origin US EU RoHS Indicator Y Gross Weight Per Pack 0.8000 lb Gross Weight per Pack Metric 0.36 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8535908020 Height 1.30 in Height [Metric] 3.3020 cm Length 5.11 in Length [Metric] 12.9794 cm Overall Length 5.11 in Returnable Y Series YA Series Specifications 2-15/16 in L Wire Strip Standard UL 486A-486B Sub Brand HYLUG Temperature Rating 90 °C Tongue Size 1.91 in W x 0.27 in THK Tongue Type Standard Straight Type Long Barrel, Tin Plated UNSPSC 39121405 UPC 11 78181002124 UPC 12 781810021248 Voltage Rating 35,000 V Width 1.91 in Width [Metric] 4.8514 cm Stock Status NONSTOCK Brand BURNDY® Manufacturer BURNDY® Conductor Size 750 kcmil Conductor Type Stranded Copper Die Code 24 Material Copper Stud Size 1/2 in Wire Termination Features: UL Listed 90 DEG C, 600 V - 35 KV, 45 DEG And 90 DEG Angles Are Available, Die Index: 24, Wire Strip Length: 1-15/16 IN, Tongue Angle: Straight, Temperature Rating: 90 DEG C, Finish: Electro-Tin Plated, Color Code: Black, Tools, Die Set Catalog Number, And (number Of Crimps): Hydraulic: Y35, Y39, Y750, PAT750 Tool, U39RT, P39RT Die, (4), Y46 Tool, U39RT Die With PUADP-1 Adapter, (4), Conductor Type: Commercial Stranded Copper, Dieless Tools (number Of Crimps): Y644HS Tool, (1), Y81KFT, Y81KFTMBH, PAT81KFT-18V Tool, (4) Standard, short barrel
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | Wire Termination |
| ARRA Compliant | C |
| Barrel Size | 1.3 in OD x 2.88 in L |
| Barrel Type | Chamfered/Long/Standard |
| Buy American Compliant | C |
| Catalog Number | YA39N |
| Color | Black |
| Color Code | Black |
| Country of Origin | US |
| EU RoHS Indicator | Y |
| Gross Weight Per Pack | 0.8000 lb |
| Gross Weight per Pack Metric | 0.36 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8535908020 |
| Height | 1.30 in |
| Height [Metric] | 3.3020 cm |
| Length | 5.11 in |
| Length [Metric] | 12.9794 cm |
| Overall Length | 5.11 in |
| Returnable | Y |
| Series | YA Series |
| Specifications | 2-15/16 in L Wire Strip |
| Standard | UL 486A-486B |
| Sub Brand | HYLUG |
| Temperature Rating | 90 °C |
| Tongue Size | 1.91 in W x 0.27 in THK |
| Tongue Type | Standard Straight |
| Type | Long Barrel, Tin Plated |
| UNSPSC | 39121405 |
| UPC 11 | 78181002124 |
| UPC 12 | 781810021248 |
| Voltage Rating | 35,000 V |
| Width | 1.91 in |
| Width [Metric] | 4.8514 cm |
| Stock Status | NONSTOCK |
| Brand | BURNDY® |
| Manufacturer | BURNDY® |
| Conductor Size | 750 kcmil |
| Conductor Type | Stranded Copper |
| Die Code | 24 |
| Material | Copper |
| Stud Size | 1/2 in |
| Wire Termination |
| Features: UL Listed 90 DEG C, 600 V - 35 KV, 45 DEG And 90 DEG Angles Are Available, Die Index: 24, Wire Strip Length: 1-15/16 IN, Tongue Angle: Straight, Temperature Rating: 90 DEG C, Finish: Electro-Tin Plated, Color Code: Black, Tools, Die Set Catalog Number, And (number Of Crimps): Hydraulic: Y35, Y39, Y750, PAT750 Tool, U39RT, P39RT Die, (4), Y46 Tool, U39RT Die With PUADP-1 Adapter, (4), Conductor Type: Commercial Stranded Copper, Dieless Tools (number Of Crimps): Y644HS Tool, (1), Y81KFT, Y81KFTMBH, PAT81KFT-18V Tool, (4) |
| Standard, short barrel |
