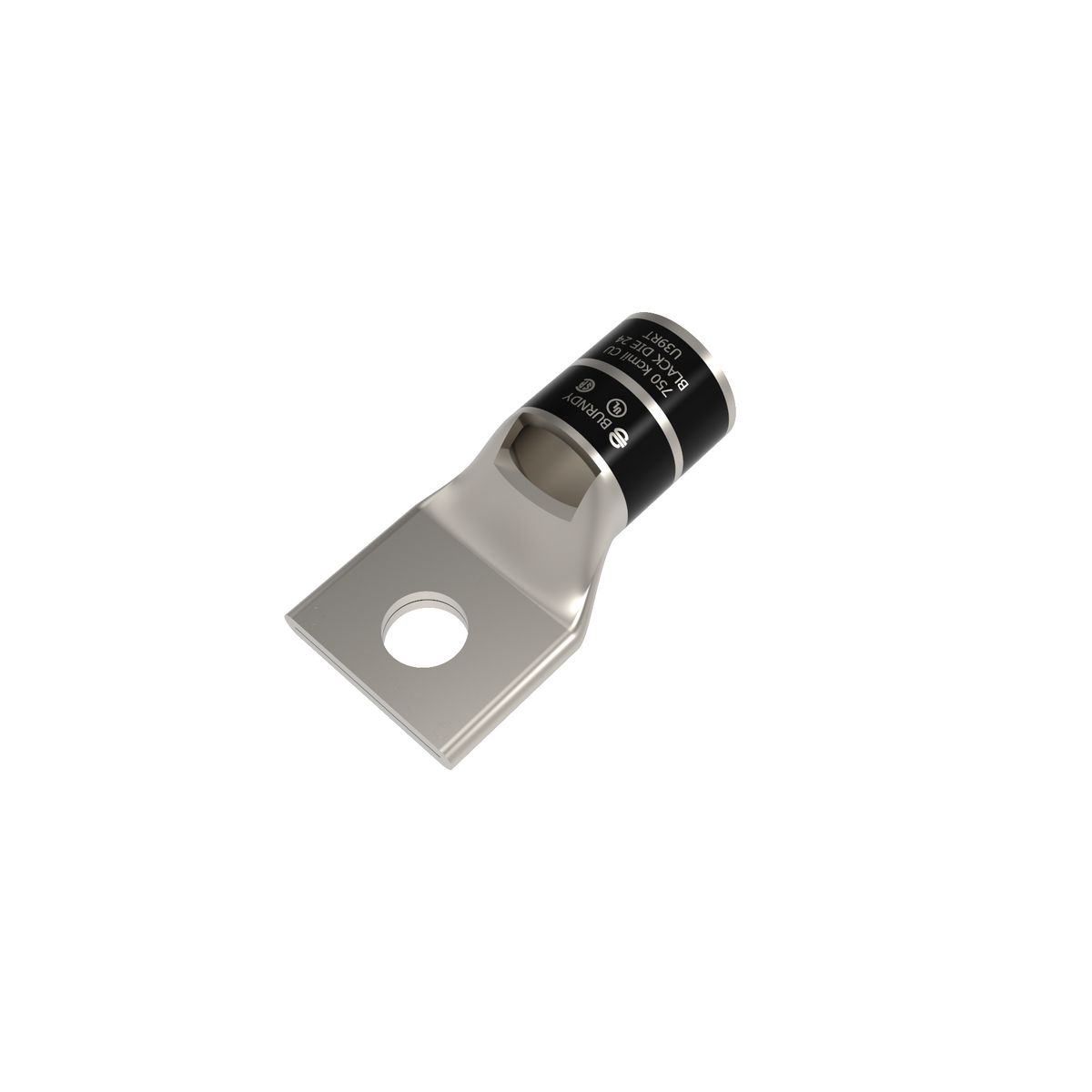

Burndy® YA39L6 HYLUG™ YA-L 1-Hole Compression Lug With Inspection Window, 750 kcmil Stranded Copper Conductor, 1/2 in Stud
Custom_Product_Images_Illustration
Burndy® YA39L6 HYLUG™ YA-L 1-Hole Compression Lug With Inspection Window, 750 kcmil Stranded Copper Conductor, 1/2 in Stud
SKU927634
MFGR #YA39L6
Your Cost: $53.95/ea
List: BURNDY® HYLUG™ terminals, redesigned for terminating copper conductors in a wide variety of electrical connections, including heavy-duty industrial, utility, commercial, and telecommunications applications. The HYLUG™ terminals require simple cable preparation for an easily installed permanent and inspectable cable termination. The terminals are listed by UL (UL STD. 486A) and CSA certified to 600 volts, when applied with the proper tool and die combination. The terminals may be used in applications to 35 KV.
BURNDY® HYLUG™ terminals, redesigned for terminating copper conductors in a wide variety of electrical connections, including heavy-duty industrial, utility, commercial, and telecommunications applications. The HYLUG™ terminals require simple cable preparation for an easily installed permanent and inspectable cable termination. The terminals are listed by UL (UL STD. 486A) and CSA certified to 600 volts, when applied with the proper tool and die combination. The terminals may be used in applications to 35 KV.
Application Wire Termination ARRA Compliant C Barrel Size 1.3 in OD x 1.42 in L Barrel Type Chamfered/Skived/Standard Buy American Compliant C Catalog Number YA39L6 Color Black Color Code Black Country of Origin US EU RoHS Indicator Y Gross Weight Per Pack 0.5500 lb Gross Weight per Pack Metric 0.25 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8535908020 Height 1.30 in Height [Metric] 3.3020 cm Length 3.41 in Length [Metric] 8.6614 cm Overall Length 3.41 in Returnable Y Series YA-L Specifications 1-15/16 in L Wire Stripe Standard UL 486A-486B Sub Brand HYLUG,TERMINALS Temperature Rating 90 °C Tongue Size 1.91 in W x 0.27 in THK Tongue Type Straight Type Standard Barrel, Tin Plated UNSPSC 39121405 UPC 11 78181014727 UPC 12 781810147276 Voltage Rating 35,000 V Width 1.91 in Width [Metric] 4.8514 cm Stock Status NONSTOCK Brand BURNDY® Manufacturer BURNDY® Conductor Size 750 kcmil Conductor Type Stranded Copper Die Code 24 Material Copper Stud Size 1/2 in Wire Termination Features: Compression Terminal, With Inspection Window, Die Index: 24, Wire Strip Length: 1-15/16 IN, Finish: Electro-Tin Plated, Tongue Angle: Straight Standard, short barrel
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | Wire Termination |
| ARRA Compliant | C |
| Barrel Size | 1.3 in OD x 1.42 in L |
| Barrel Type | Chamfered/Skived/Standard |
| Buy American Compliant | C |
| Catalog Number | YA39L6 |
| Color | Black |
| Color Code | Black |
| Country of Origin | US |
| EU RoHS Indicator | Y |
| Gross Weight Per Pack | 0.5500 lb |
| Gross Weight per Pack Metric | 0.25 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8535908020 |
| Height | 1.30 in |
| Height [Metric] | 3.3020 cm |
| Length | 3.41 in |
| Length [Metric] | 8.6614 cm |
| Overall Length | 3.41 in |
| Returnable | Y |
| Series | YA-L |
| Specifications | 1-15/16 in L Wire Stripe |
| Standard | UL 486A-486B |
| Sub Brand | HYLUG,TERMINALS |
| Temperature Rating | 90 °C |
| Tongue Size | 1.91 in W x 0.27 in THK |
| Tongue Type | Straight |
| Type | Standard Barrel, Tin Plated |
| UNSPSC | 39121405 |
| UPC 11 | 78181014727 |
| UPC 12 | 781810147276 |
| Voltage Rating | 35,000 V |
| Width | 1.91 in |
| Width [Metric] | 4.8514 cm |
| Stock Status | NONSTOCK |
| Brand | BURNDY® |
| Manufacturer | BURNDY® |
| Conductor Size | 750 kcmil |
| Conductor Type | Stranded Copper |
| Die Code | 24 |
| Material | Copper |
| Stud Size | 1/2 in |
| Wire Termination |
| Features: Compression Terminal, With Inspection Window, Die Index: 24, Wire Strip Length: 1-15/16 IN, Finish: Electro-Tin Plated, Tongue Angle: Straight |
| Standard, short barrel |
