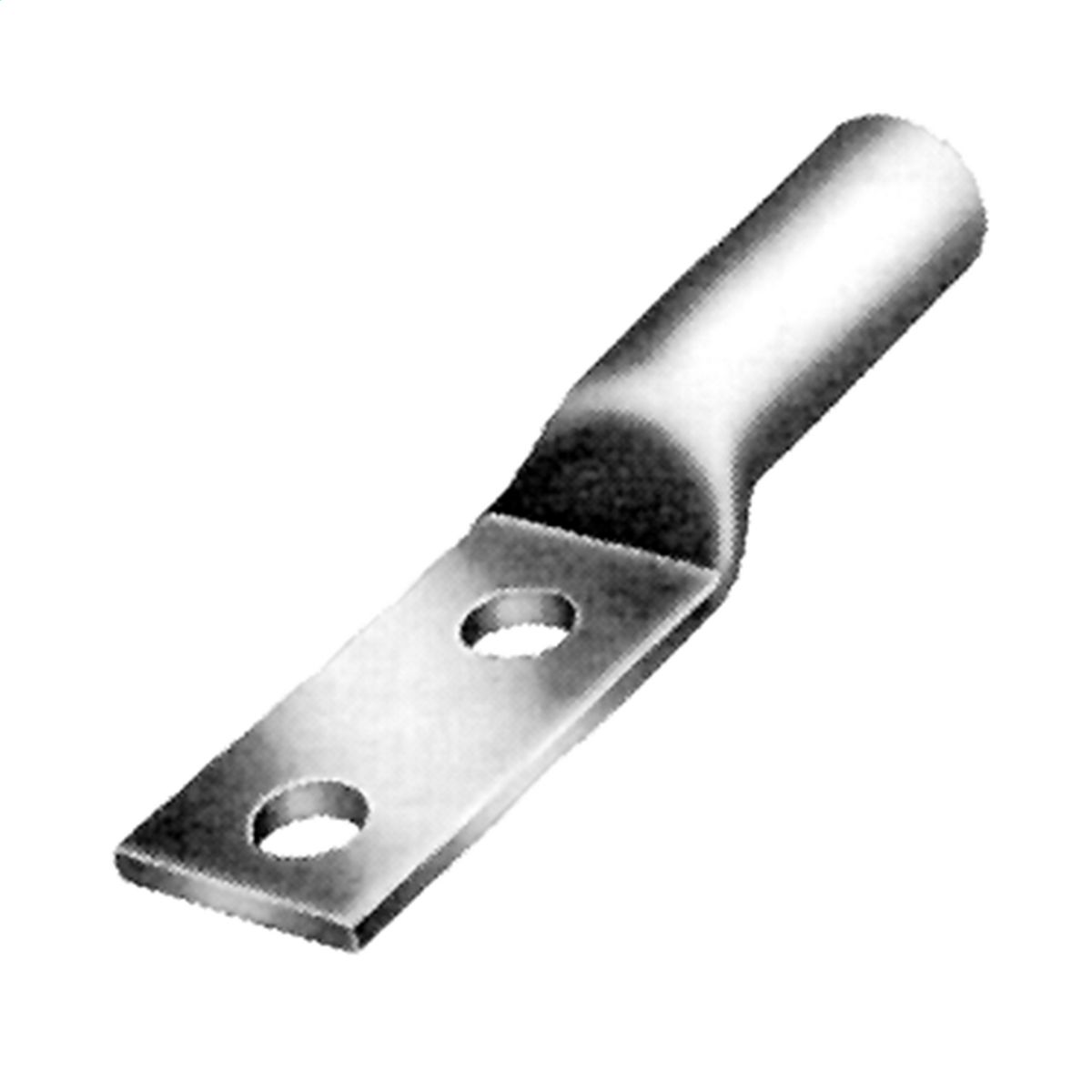

Burndy® YA39A5N131TD12E HYLUG™ YA-E 2-Hole Compression Lug With Inspection Window, 500 kcmil Stranded Copper Conductor, 1/2 in Stud
Custom_Product_Images_Illustration
Burndy® YA39A5N131TD12E HYLUG™ YA-E 2-Hole Compression Lug With Inspection Window, 500 kcmil Stranded Copper Conductor, 1/2 in Stud
SKU426344
MFGR #YA39A5N131TD12E
Your Cost: $228.15/ea
BURNDY® HYLUG™ terminals, redesigned for terminating copper conductors in a wide variety of electrical connections, including heavy-duty industrial, utility, commercial, and telecommunications applications. The HYLUG™ terminals require simple cable preparation for an easily installed permanent and inspectable cable termination. The terminals are listed by UL (UL STD. 486A) and CSA certified to 600 volts, when applied with the proper tool and die combination. The terminals may be used in applications to 35 KV.
BURNDY® HYLUG™ terminals, redesigned for terminating copper conductors in a wide variety of electrical connections, including heavy-duty industrial, utility, commercial, and telecommunications applications. The HYLUG™ terminals require simple cable preparation for an easily installed permanent and inspectable cable termination. The terminals are listed by UL (UL STD. 486A) and CSA certified to 600 volts, when applied with the proper tool and die combination. The terminals may be used in applications to 35 KV.
Application Wire Termination ARRA Compliant C Barrel Size 1.31 in OD x 1.86 in L Buy American Compliant C Catalog Number YA39A5N131TD12E Color Pink Color Code Pink Country of Origin US EU RoHS Indicator Y Gross Weight Per Pack 0.2600 lb Gross Weight per Pack Metric 0.12 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8535908020 Height 1.31 in Height [Metric] 3.3274 cm Length 6.09 in Length [Metric] 15.4686 cm Overall Length 6.09 in Returnable Y Series YA-E Specifications 1-7/8 in L Wire Stripe Standard UL 486A-486B Sub Brand Terminals, HYLUG Temperature Rating 90 °C Tongue Size 1.31 in W x 0.31 in THK Tongue Style Narrow/Straight Type YA-E UNSPSC 39121405 UPC 11 78181029030 UPC 12 781810290309 Voltage Rating 35,000 V Width 1.31 in Width [Metric] 3.3274 cm Stock Status NONSTOCK Brand BURNDY® Manufacturer BURNDY® Conductor Size 500 kcmil Conductor Type Stranded Copper Die Code 300 Material Aluminum Stud Size 1/2 in Wire Termination UL Listed 90 DEG C, 600 V - 35 KV,Tongue Angle: Straight
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | Wire Termination |
| ARRA Compliant | C |
| Barrel Size | 1.31 in OD x 1.86 in L |
| Buy American Compliant | C |
| Catalog Number | YA39A5N131TD12E |
| Color | Pink |
| Color Code | Pink |
| Country of Origin | US |
| EU RoHS Indicator | Y |
| Gross Weight Per Pack | 0.2600 lb |
| Gross Weight per Pack Metric | 0.12 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8535908020 |
| Height | 1.31 in |
| Height [Metric] | 3.3274 cm |
| Length | 6.09 in |
| Length [Metric] | 15.4686 cm |
| Overall Length | 6.09 in |
| Returnable | Y |
| Series | YA-E |
| Specifications | 1-7/8 in L Wire Stripe |
| Standard | UL 486A-486B |
| Sub Brand | Terminals, HYLUG |
| Temperature Rating | 90 °C |
| Tongue Size | 1.31 in W x 0.31 in THK |
| Tongue Style | Narrow/Straight |
| Type | YA-E |
| UNSPSC | 39121405 |
| UPC 11 | 78181029030 |
| UPC 12 | 781810290309 |
| Voltage Rating | 35,000 V |
| Width | 1.31 in |
| Width [Metric] | 3.3274 cm |
| Stock Status | NONSTOCK |
| Brand | BURNDY® |
| Manufacturer | BURNDY® |
| Conductor Size | 500 kcmil |
| Conductor Type | Stranded Copper |
| Die Code | 300 |
| Material | Aluminum |
| Stud Size | 1/2 in |
| Wire Termination |
| UL Listed 90 DEG C, 600 V - 35 KV,Tongue Angle: Straight |
