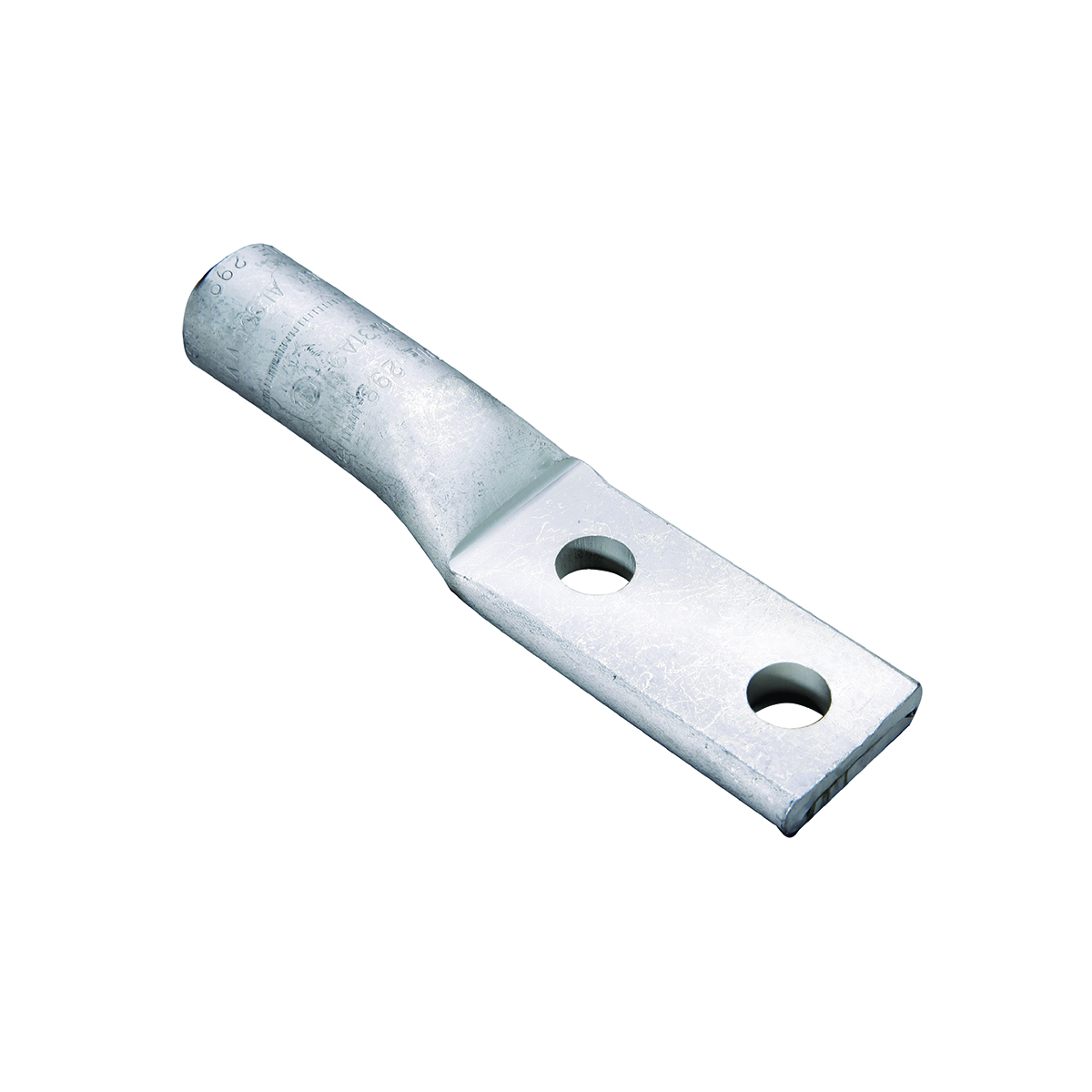

Burndy® YA39A5 HYLUG™ YA-A 2-Hole Non-Insulated Compression Lug Without Inspection Window, 700 kcmil Aluminum/Copper Conductor
Lugs
19660
MFG #: YA39A5
BURNDY®
42.76000
/ ea
BURNDY's compression connectors are designed for reliable and controllable electrical connections. The complete installation is fully inspectable. They are high conductivity copper and operate cooler than the wire on which they are installed. The connectors withstand a wide range of electrical and environmental conditions, including current surges, temperatures, corrosion and vibrations, for a wide variety of applications. These features mean a consistently high quality connection at a low installed cost. Copper compression connectors are manufactured from high-conductivity electrolytic copper. The connectors are normally tinplated, lead-plated, or plated with proprietary BURNDY® brite finish to provide durable long-lasting corrosion resistance. The connector design has been matched to the cable size to provide the necessary physical strength requirements for reliable electrical performance. Aluminum compression connectors are manufactured from high conductivity, high purity wrought aluminum. They are designed with sufficient mass and are electro-tin plated to minimize corrosion due to galvanic action between dissimilar metals. The connector barrels are pre-filled with PENETROX®, BURNDY's oxide inhibiting compound.
- Brochure URL - 10969_YT2MJHL06FNXKV5O.pdf(Brochure URL)
- Brochure URL - BURNDY_YA39A5_Specsheet.pdf(Brochure URL)
- http://www.burndy.com/(Seller Home Page URL)
- http://www.burndy.com(Seller Home Page URL)
- Install Instructions 1 URL - 10969_XZMWISK35NQ1TEHO.pdf(Install Instructions 1 URL)
- Catalog URL - IDW_DOCUMENT_a054045e6e8a7c8dd20c68bc5def0dee5c9f099c0711a6f82d2adb23b39287a4.pdf(Catalog URL)
- Line Drawing URL(Line Drawing URL)
- Install Instructions 1 URL - Aluminum Installation Instructions.pdf(Install Instructions 1 URL)
- Spec Sheet URL - 10969_AB3EWM9OYJVCD2US.pdf(Spec Sheet URL)
- Spec Sheet URL - YA39A5.pdf(Spec Sheet URL)
- Line Drawing URL - 10969_JCGH6Z7DKRB38ONU.pdf(Line Drawing URL)
- Tech Drawing URL - SD..073935-01.pdf(Tech Drawing URL)
- Tech Drawing URL - SD.073935-01.pdf(Tech Drawing URL)
- Applications
- Features
| Wire Termination |
| UL Listed 90 DEG C, 600 V - 35 KV,Tongue Angle: Straight |
| Manufactured from high conductivity, wrought aluminum with heavy duty wall thickness |
| Electro tin plated, provides durable long lasting corrosion resistance |
| Internally beveled barrel, provides easy cable insertion |
| Provides a quality electrical dual connection |
| Connector is clearly marked with wire size, die index, color-code and the proper number and location of crimps |
| Type YA-A aluminum tin plated compression HYLUG017 terminals are dual rated and designed for use on both aluminum and copper conductors from NO 12 sol |
| Pads inhibit connector rotation and increase area contact |
| Designed for heavy duty applications to 35KV |
| YA-A terminals are prefilled with PENETROX® and assembled with color coded end caps |
| The aluminum HYLUG017 terminals are designed for a permanent trouble-free electrical termination |
| Oxide inhibiting compound contains homogeneously suspended metallic particles to penetrate the wires oxides, establish electrical continuity and forms an airtight connection |
| Color coded end caps inserted in barrel end |
| Prevents foreign materials from entering and contaminating the connector prior to usage plus identifies the proper color coded die for a reliable connection |
| These aluminum terminals have the same design features and benefits as the 1-hole YA-A with an added stud hole for a more secure termination to various types of equipment pads |
| Used for Y644HSXT, Y81KFT, Y81KFTMBH, PAT81KFT-18V crimpers |
| Straight tongue angle |
| 700 kcmil stranded conductor |
| 1.75 in hole center to center distance, 0.63 in hole center to end, 0.77 in hole center to barrel |
| Without inspection window |
