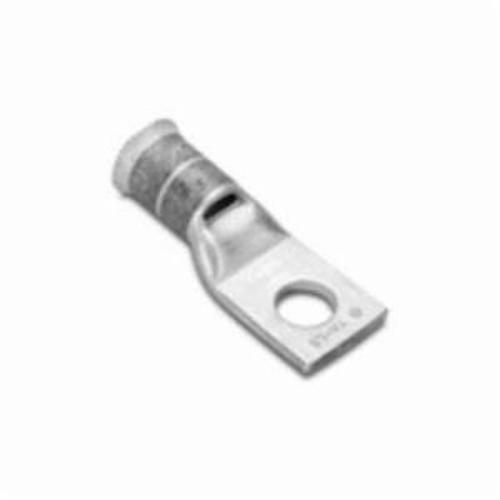

Burndy® YA38LB HYLUG™ YA-LB 1-Hole Compression Lug With Inspection Window, 700 kcmil Stranded Copper Conductor, 5/8 in Stud
Custom_Product_Images_Illustration
Burndy® YA38LB HYLUG™ YA-LB 1-Hole Compression Lug With Inspection Window, 700 kcmil Stranded Copper Conductor, 5/8 in Stud
SKU85948
MFGR #YA38LB
Your Cost: $112.27/ea
BURNDY® HYLUG™ terminals, redesigned for terminating copper conductors in a wide variety of electrical connections, including heavy-duty industrial, utility, commercial, and telecommunications applications. The HYLUG™ terminals require simple cable preparation for an easily installed permanent and inspectable cable termination. The terminals are listed by UL (UL STD. 486A) and CSA certified to 600 volts, when applied with the proper tool and die combination. The terminals may be used in applications to 35 KV.
BURNDY® HYLUG™ terminals, redesigned for terminating copper conductors in a wide variety of electrical connections, including heavy-duty industrial, utility, commercial, and telecommunications applications. The HYLUG™ terminals require simple cable preparation for an easily installed permanent and inspectable cable termination. The terminals are listed by UL (UL STD. 486A) and CSA certified to 600 volts, when applied with the proper tool and die combination. The terminals may be used in applications to 35 KV.
Barrel Size 1.25 in OD x 1.85 in L Barrel Type Belled End/Standard/Short Catalog Number YA38LB Color Pink Country of Origin US Gross Weight Per Pack 0.6600 lb Overall Length 4.31 in Series YA-LB Specifications 1-15/16 in L Wire Strip Temperature Rating 90 °C Tongue Size 1.81 in W x 0.27 in THK Tongue Type Standard Straight Type 1-Hole UNSPSC 39121405 UPC 11 78181050586 UPC 12 781810505861 Voltage Rating 600 VAC to 35 kV Stock Status NONSTOCK Brand BURNDY® Manufacturer BURNDY® Conductor Size 700 kcmil Conductor Type Stranded Copper Die Code 400/1029 Material Copper Stud Size 5/8 in Features: UL Listed 90 DEG C, 600 V - 35 KV, Temperature Rating: 90 DEG C, Tools, Die Nest Catalog Number, Die Indentor Catalog Number: P38D Die Nest, P48PR1 Die Indentor, Finish: Electro-Tin Plated, Dieless Tools (number Of Crimps): Y81KFT, Y81KFTMBH, PAT81KFT-18V Tool, (1) For 500, 535.3 KCMIL, (2) For 550 KCMIL, Conductor Type: Flexible Copper, Welding Cable, Class M (#34 STR), Locomotive Cable, Battery Cable, Class K (#30 STR), Wire Strip Length: 1-15/16 IN, Die Index: 1029 550 flex (class H, G), 500 flex (class I, M), 535.3 (1325/NO 24) DLO conductor size Standard barre
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Barrel Size | 1.25 in OD x 1.85 in L |
| Barrel Type | Belled End/Standard/Short |
| Catalog Number | YA38LB |
| Color | Pink |
| Country of Origin | US |
| Gross Weight Per Pack | 0.6600 lb |
| Overall Length | 4.31 in |
| Series | YA-LB |
| Specifications | 1-15/16 in L Wire Strip |
| Temperature Rating | 90 °C |
| Tongue Size | 1.81 in W x 0.27 in THK |
| Tongue Type | Standard Straight |
| Type | 1-Hole |
| UNSPSC | 39121405 |
| UPC 11 | 78181050586 |
| UPC 12 | 781810505861 |
| Voltage Rating | 600 VAC to 35 kV |
| Stock Status | NONSTOCK |
| Brand | BURNDY® |
| Manufacturer | BURNDY® |
| Conductor Size | 700 kcmil |
| Conductor Type | Stranded Copper |
| Die Code | 400/1029 |
| Material | Copper |
| Stud Size | 5/8 in |
| Features: UL Listed 90 DEG C, 600 V - 35 KV, Temperature Rating: 90 DEG C, Tools, Die Nest Catalog Number, Die Indentor Catalog Number: P38D Die Nest, P48PR1 Die Indentor, Finish: Electro-Tin Plated, Dieless Tools (number Of Crimps): Y81KFT, Y81KFTMBH, PAT81KFT-18V Tool, (1) For 500, 535.3 KCMIL, (2) For 550 KCMIL, Conductor Type: Flexible Copper, Welding Cable, Class M (#34 STR), Locomotive Cable, Battery Cable, Class K (#30 STR), Wire Strip Length: 1-15/16 IN, Die Index: 1029 |
| 550 flex (class H, G), 500 flex (class I, M), 535.3 (1325/NO 24) DLO conductor size |
| Standard barre |
